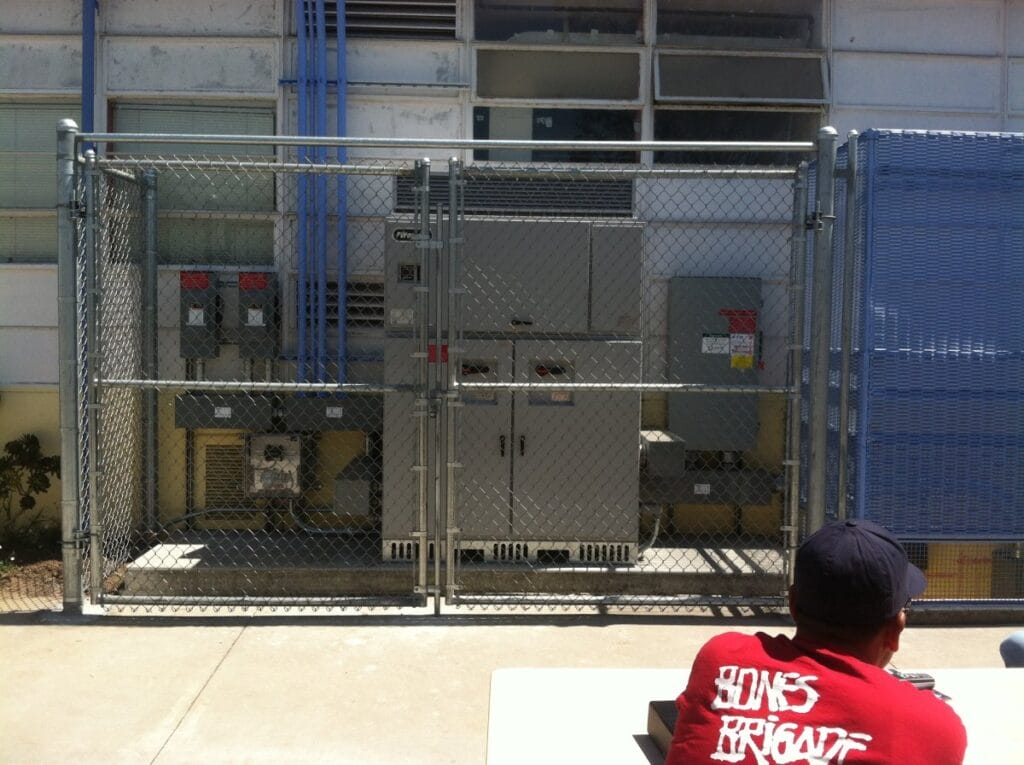

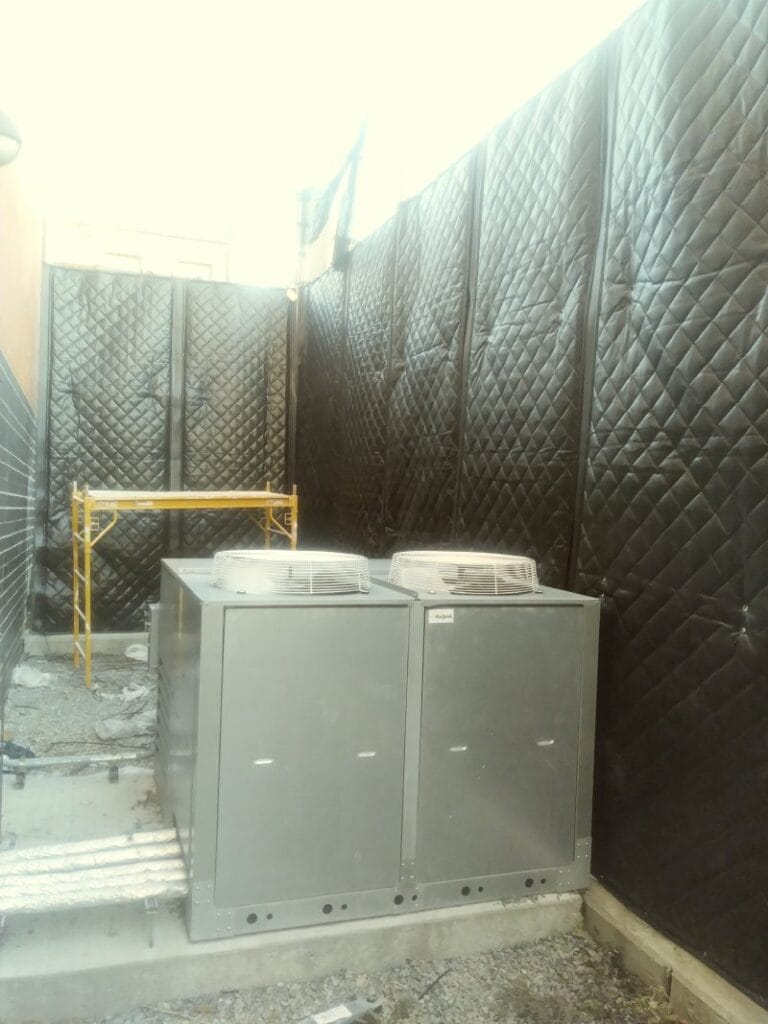

Exterior Chiller Enclosure Helps Homeowner Maintain Sanity!

NOISE S.T.O.P.™ Sound Blankets - Reinforced

BBC- EXT-R- 2 Noise Barrier/Sound Absorber Sound Blankets

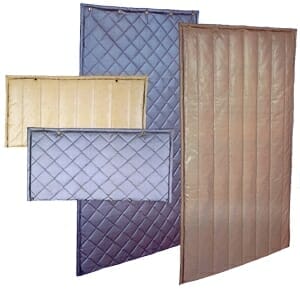

BBC- EXT-R- 2 offers the benefits of both a noise barrier and a sound absorber composite in one product. This BBC product consists of an exterior grade, UV resistant heavy-duty faced quilted fiberglass absorber bonded to a one-pound per sq. ft. reinforced loaded vinyl barrier. The heavy-duty facing is a 10 oz per sq yd vinyl-coated-polyester (VCP) quilted to the sound absorber rather than the standard 4.5 oz facing. Curtain panels are constructed with grommets across the top and bottom and exterior grade Velcro seals along the vertical edges.

• STC 32 Rating, NRC .85

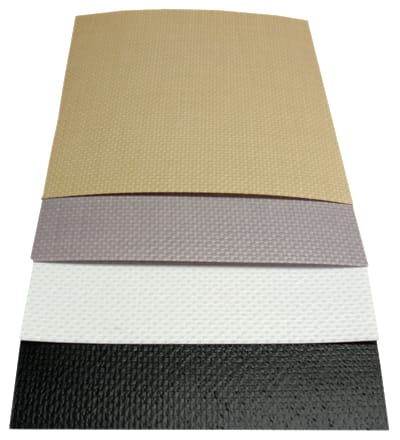

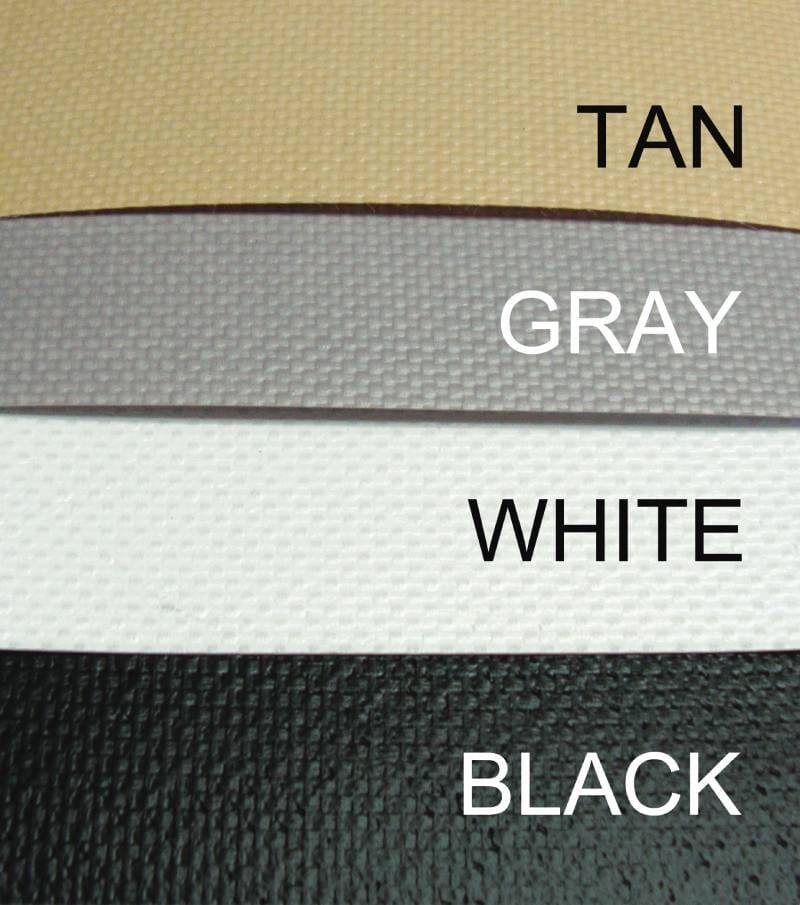

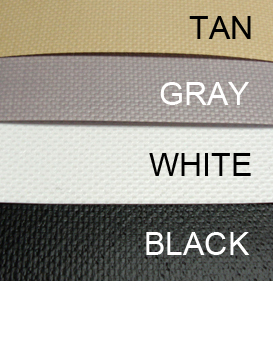

• Available facing colors on quilt: gray, tan, black

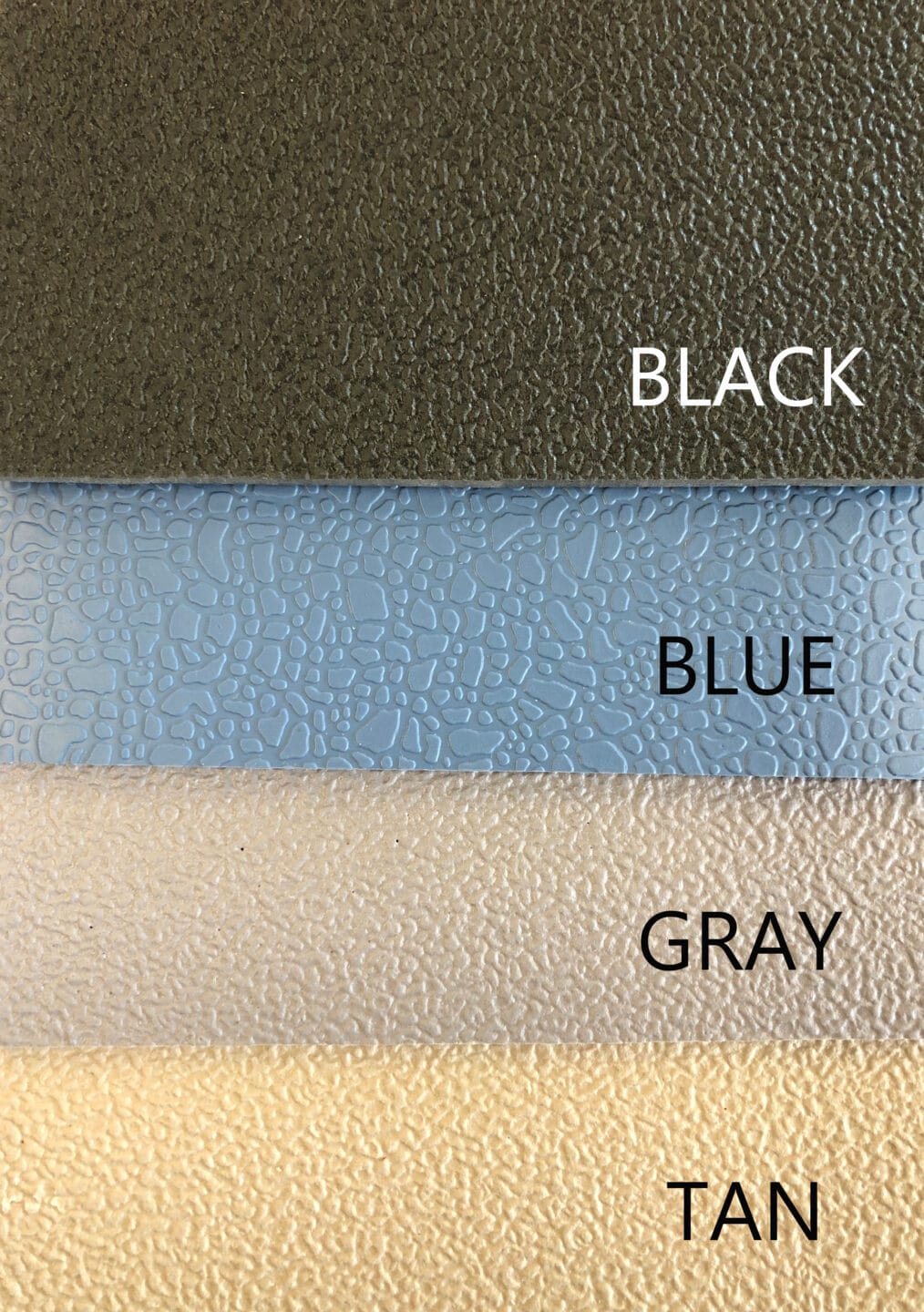

• Available barrier colors: gray, tan, olive drab or blue

MATERIAL: Vinyl coated polyester facing on 2” quilted fiberglass/ 1 lb-psf reinforced loaded vinyl barrier
FEATURES: Effective and durable absorber with mass loaded vinyl barrier option.

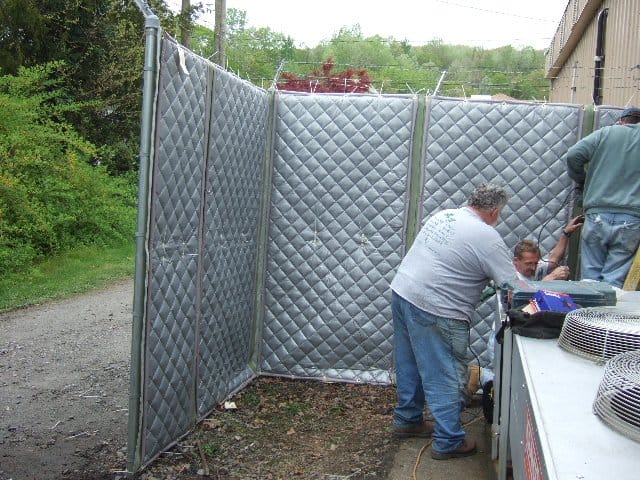

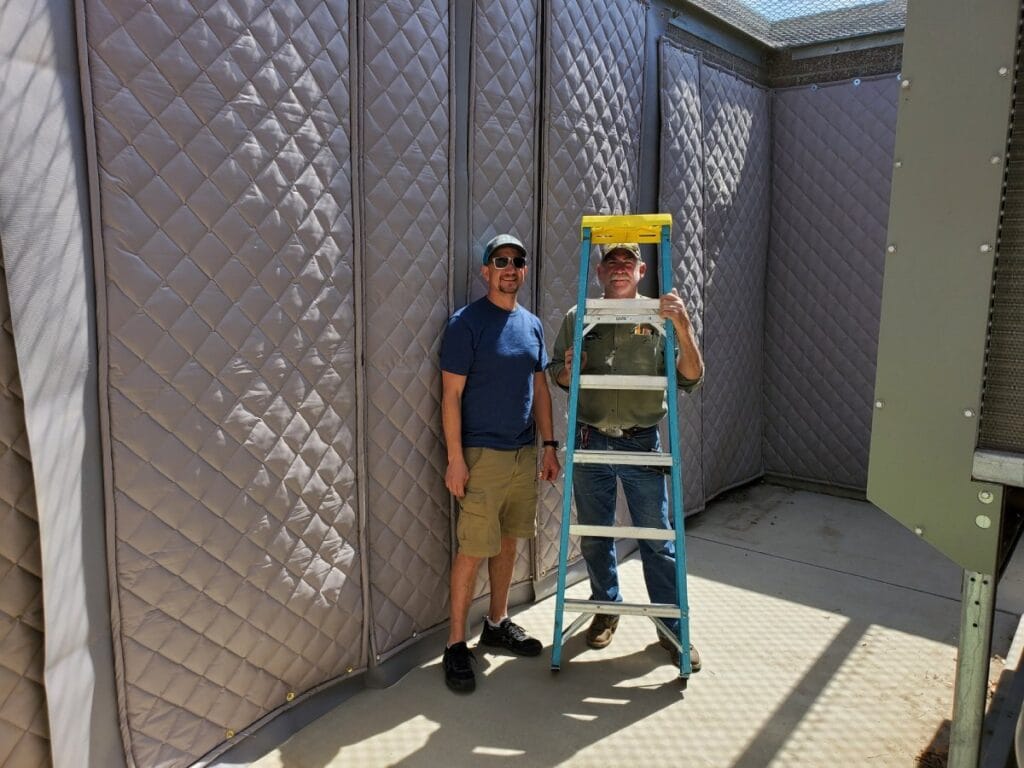

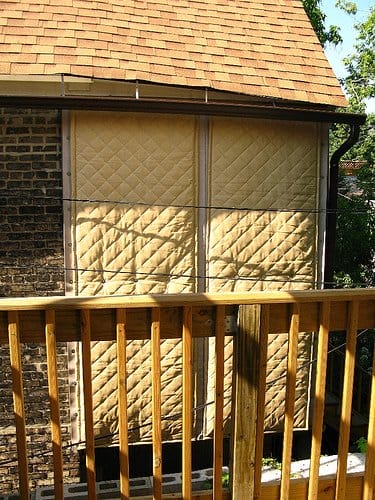

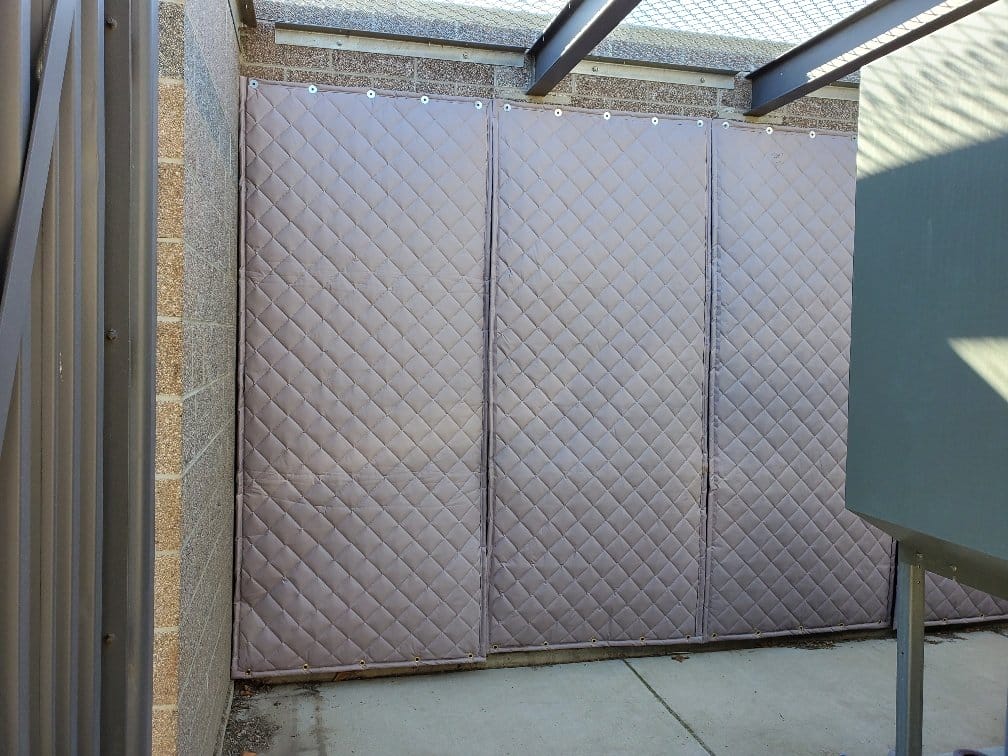

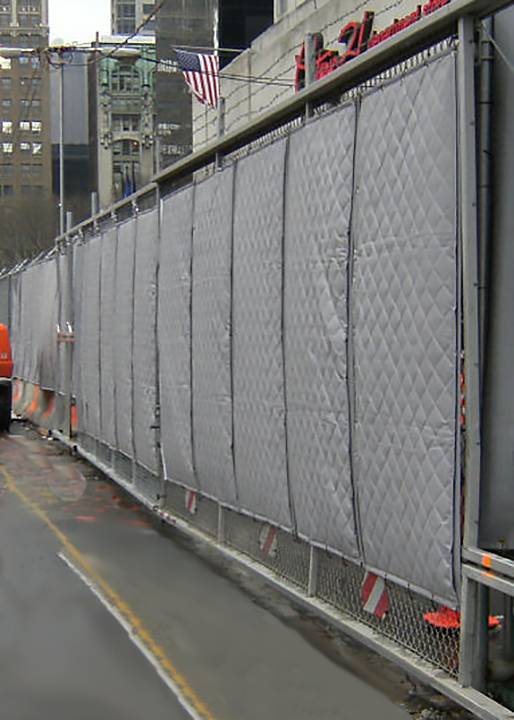

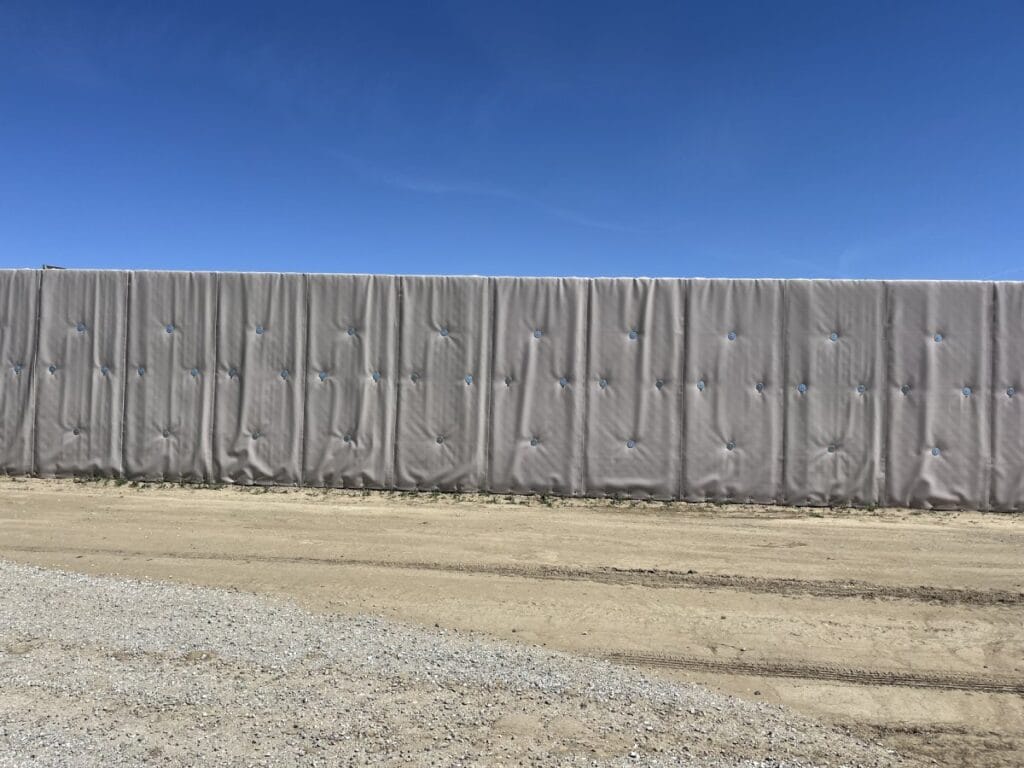

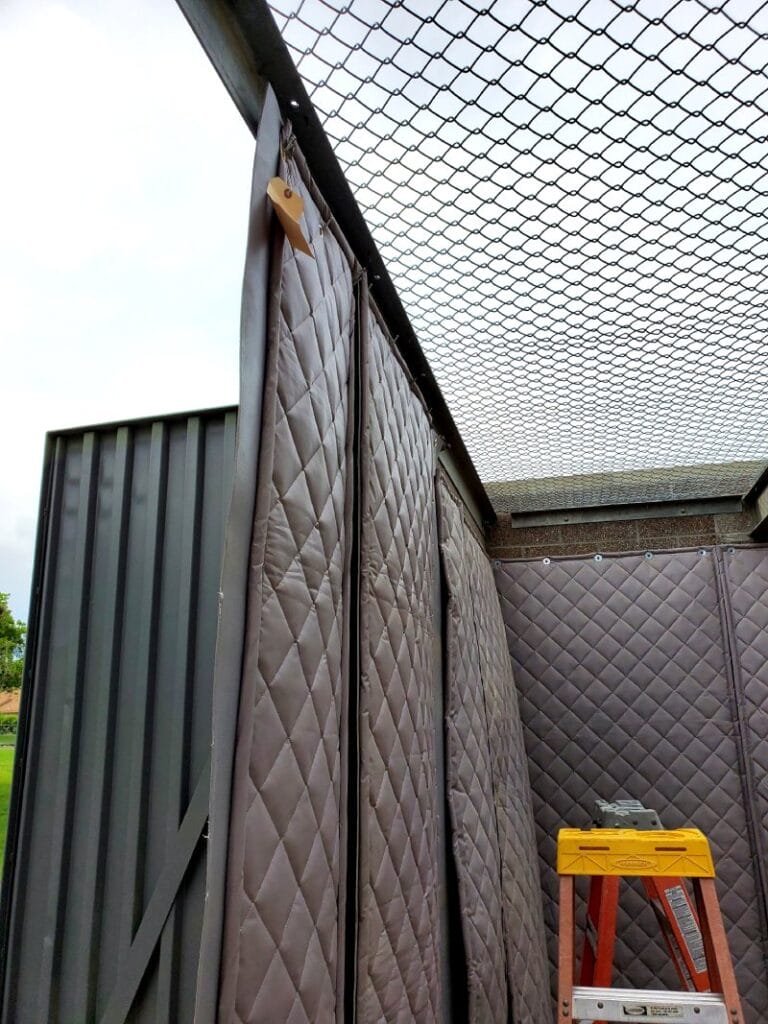

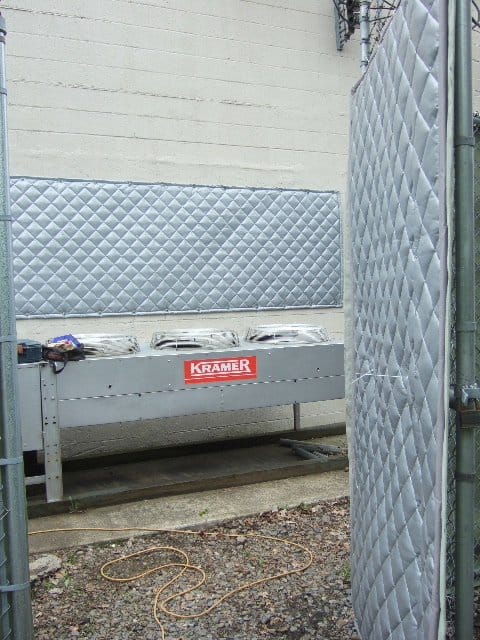

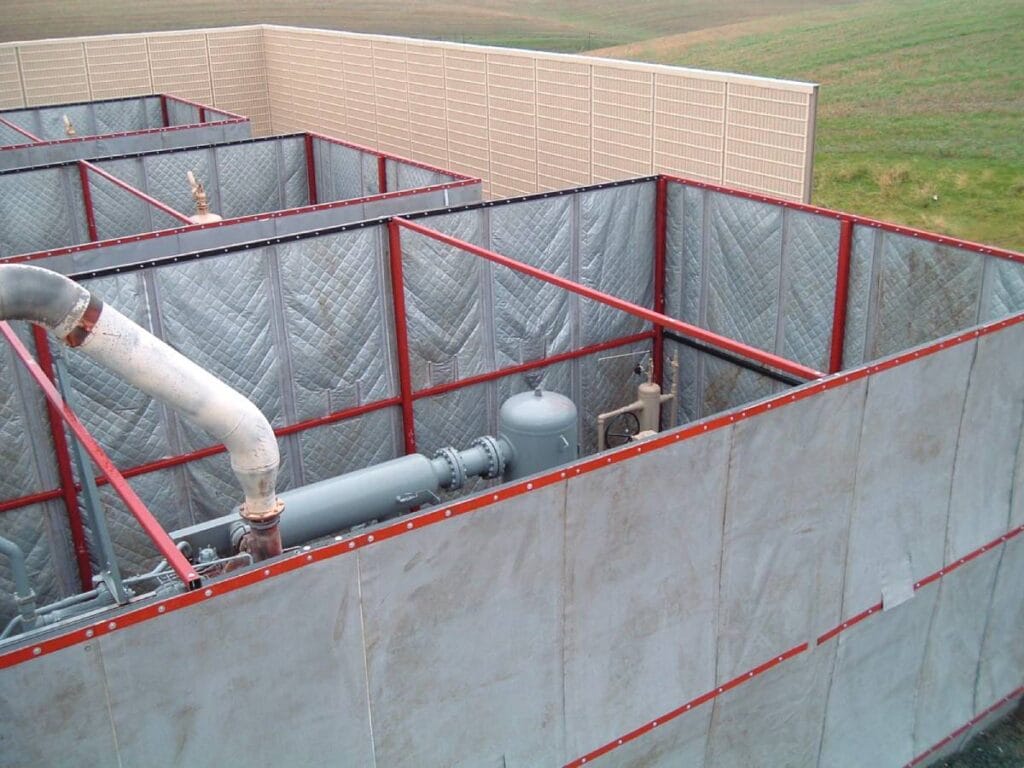

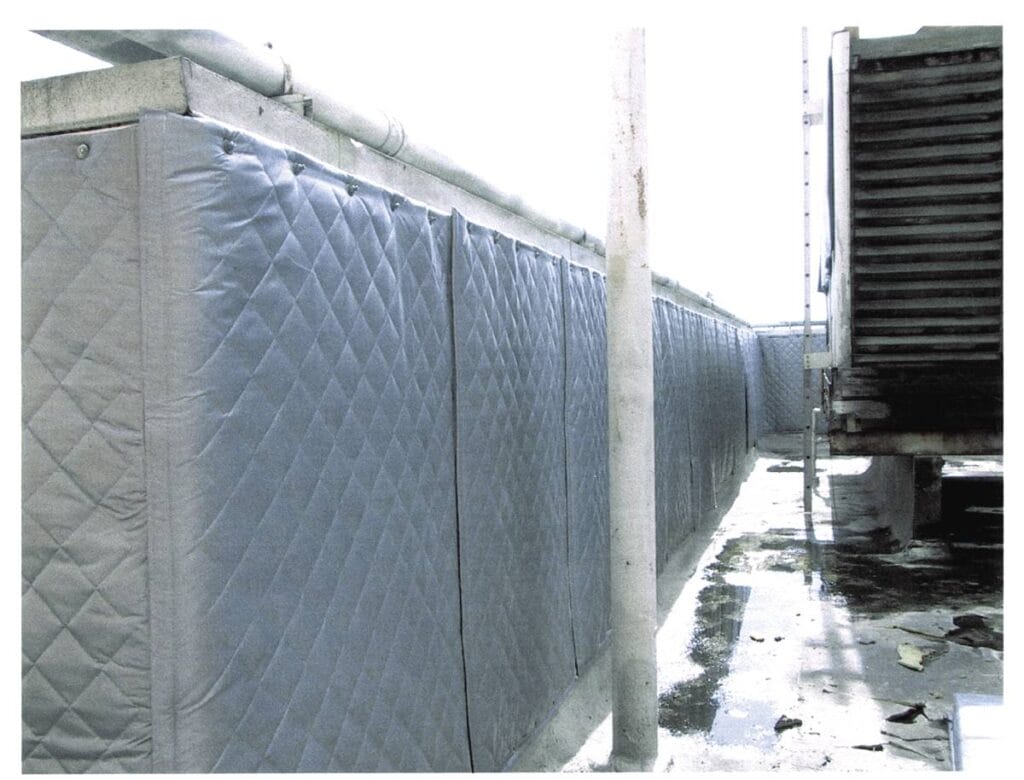

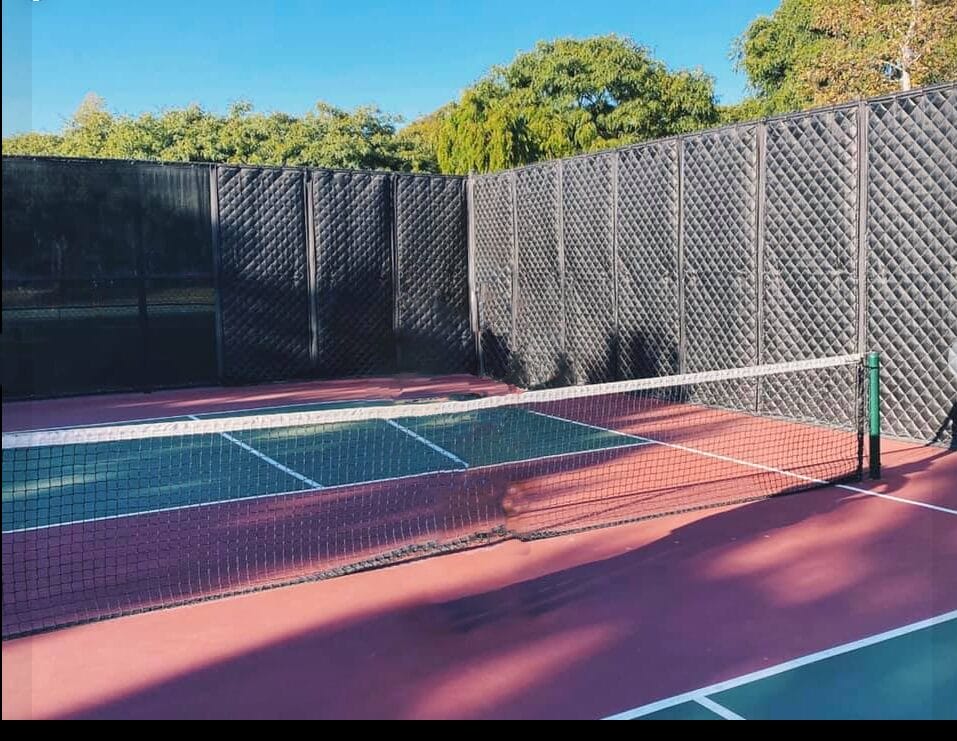

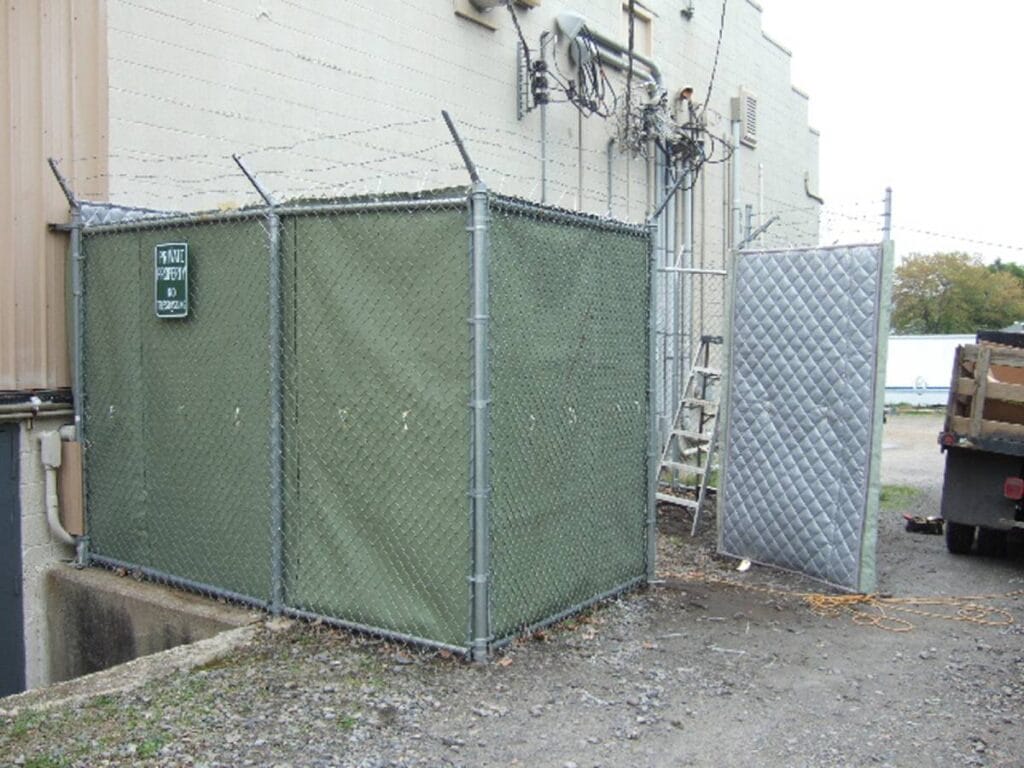

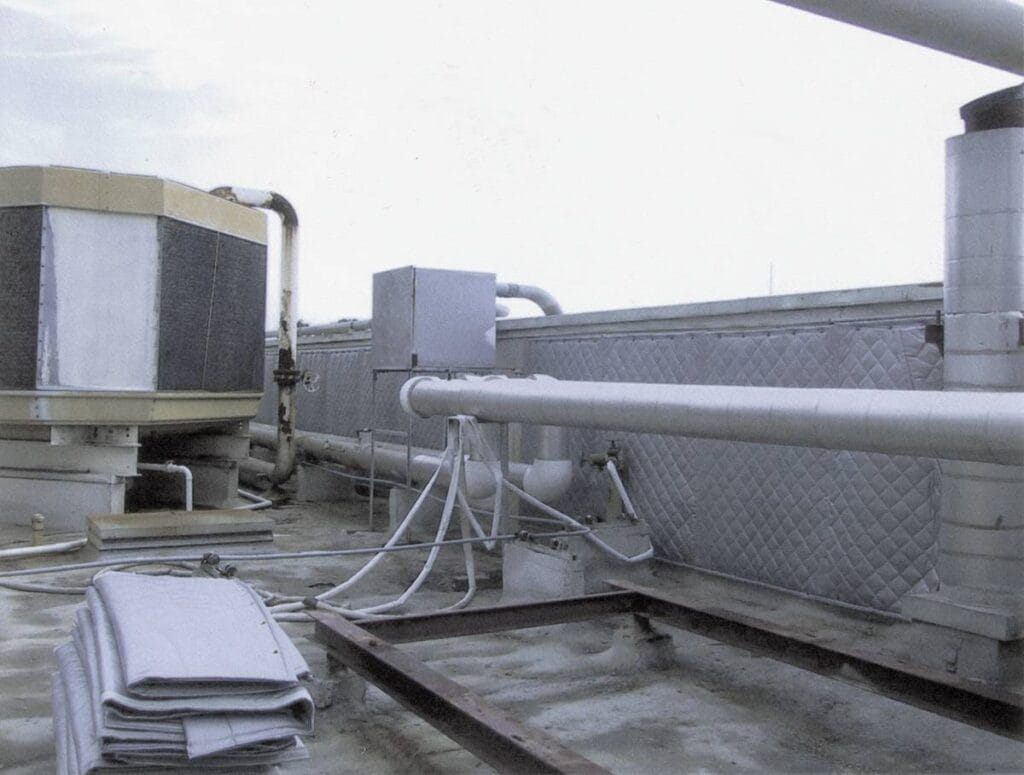

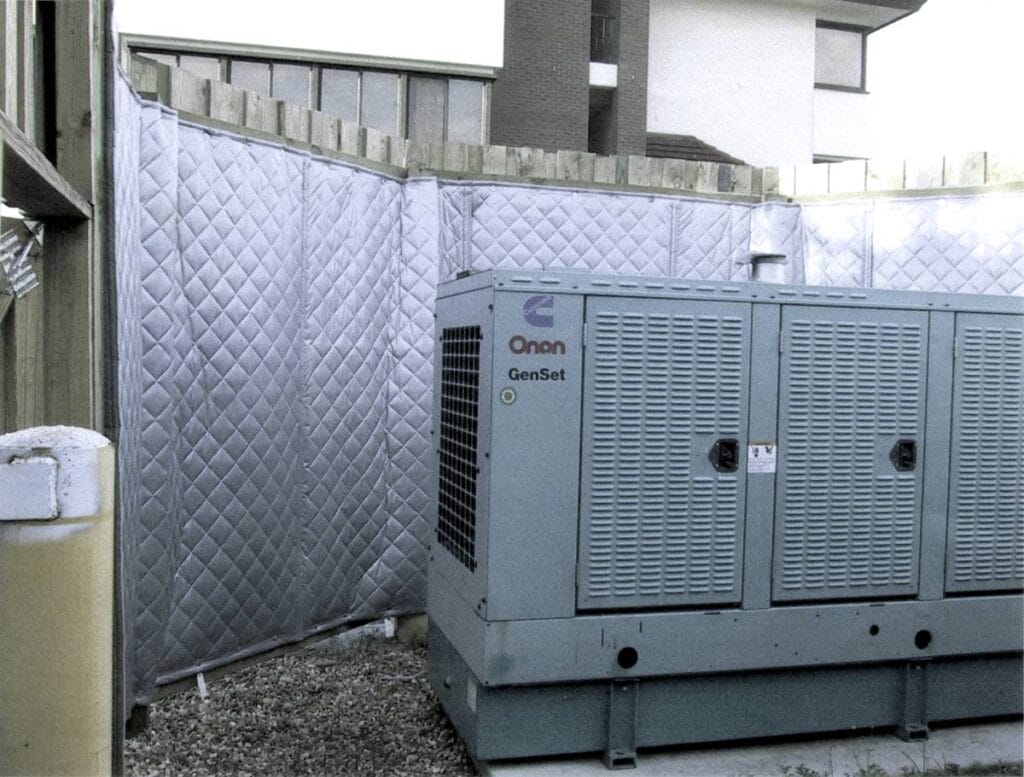

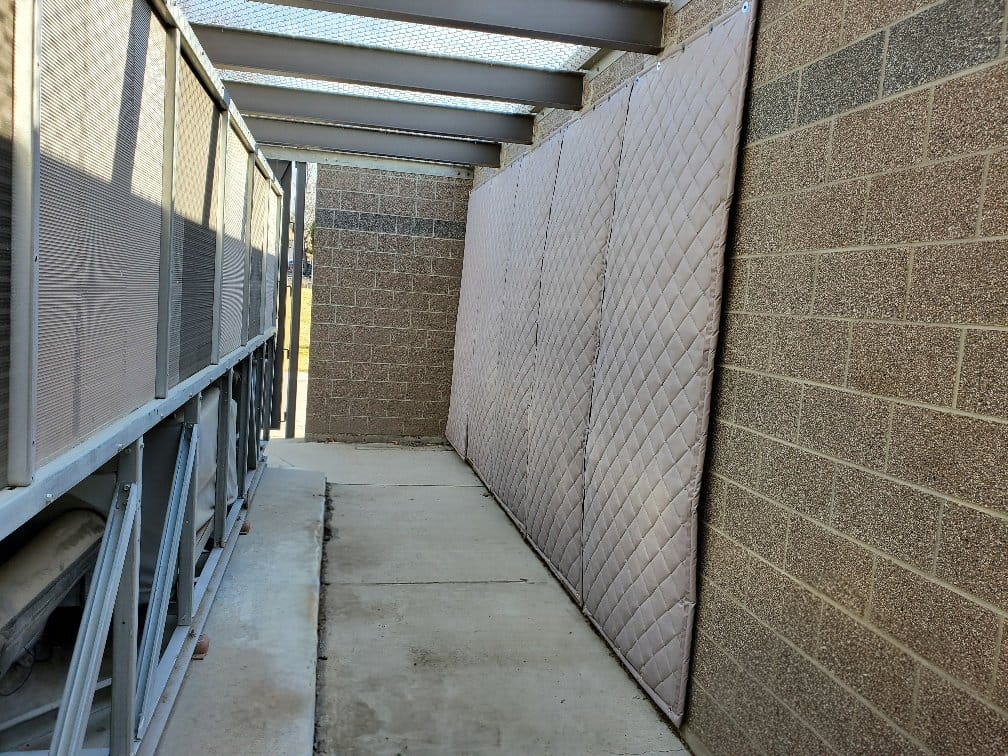

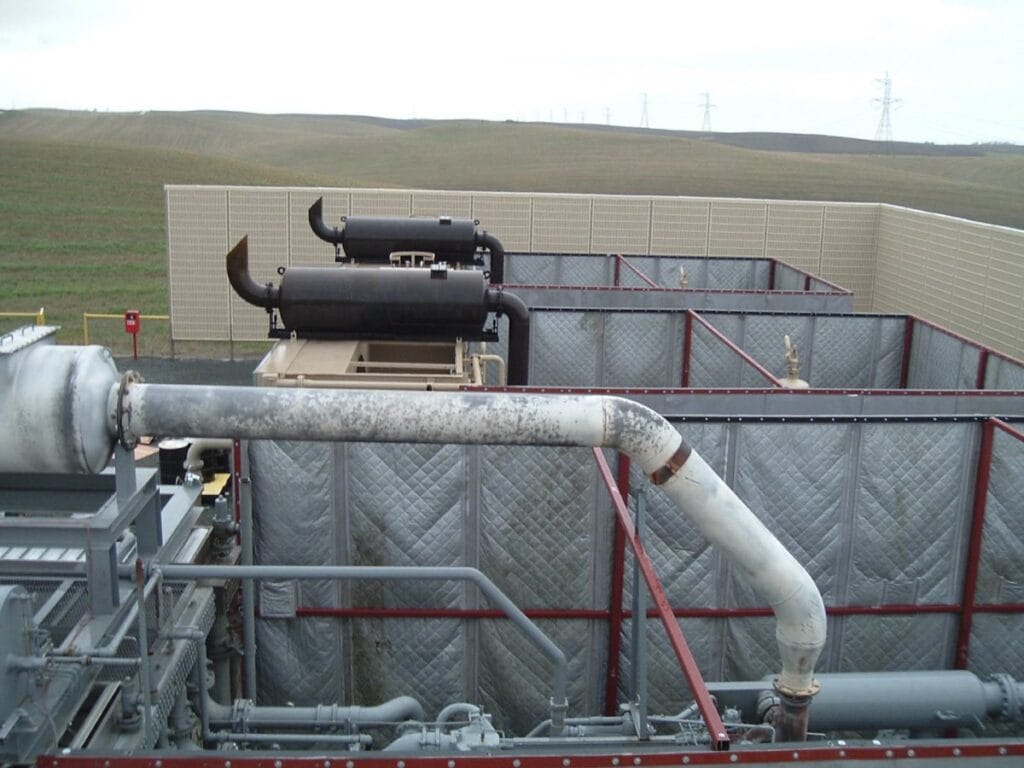

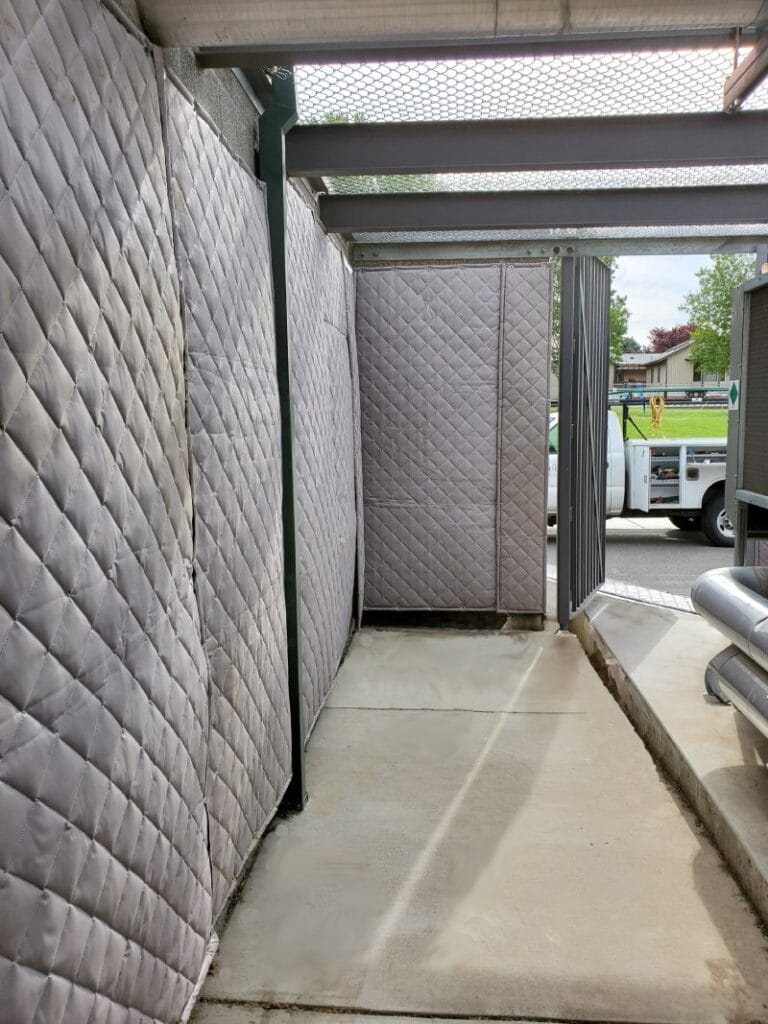

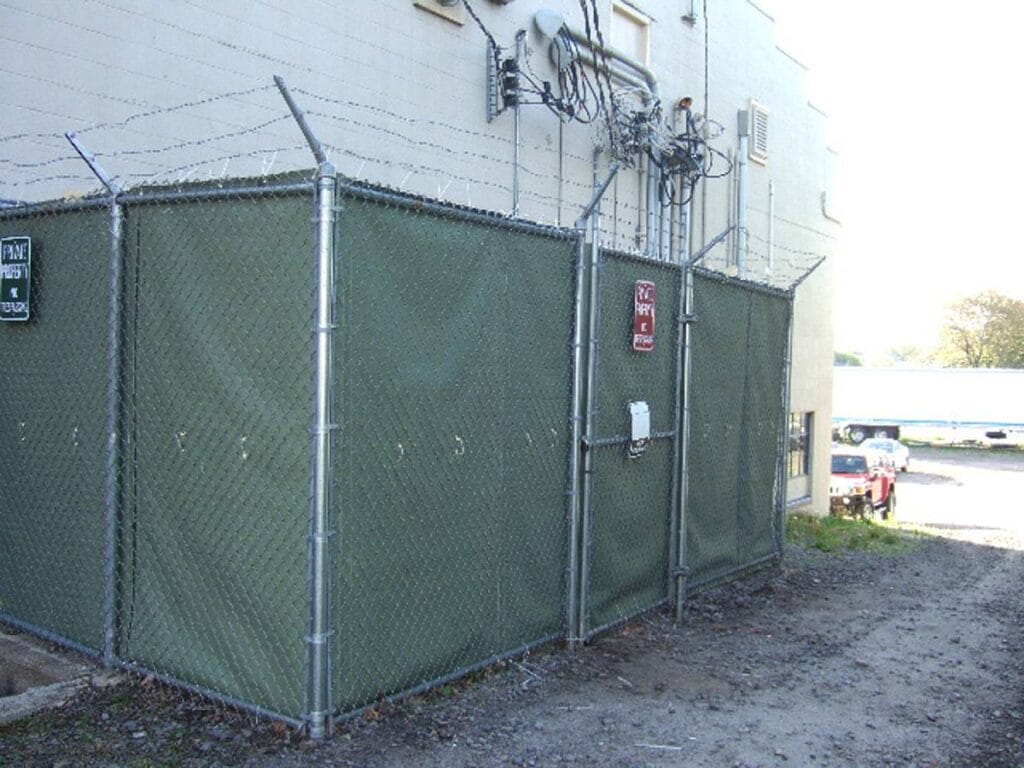

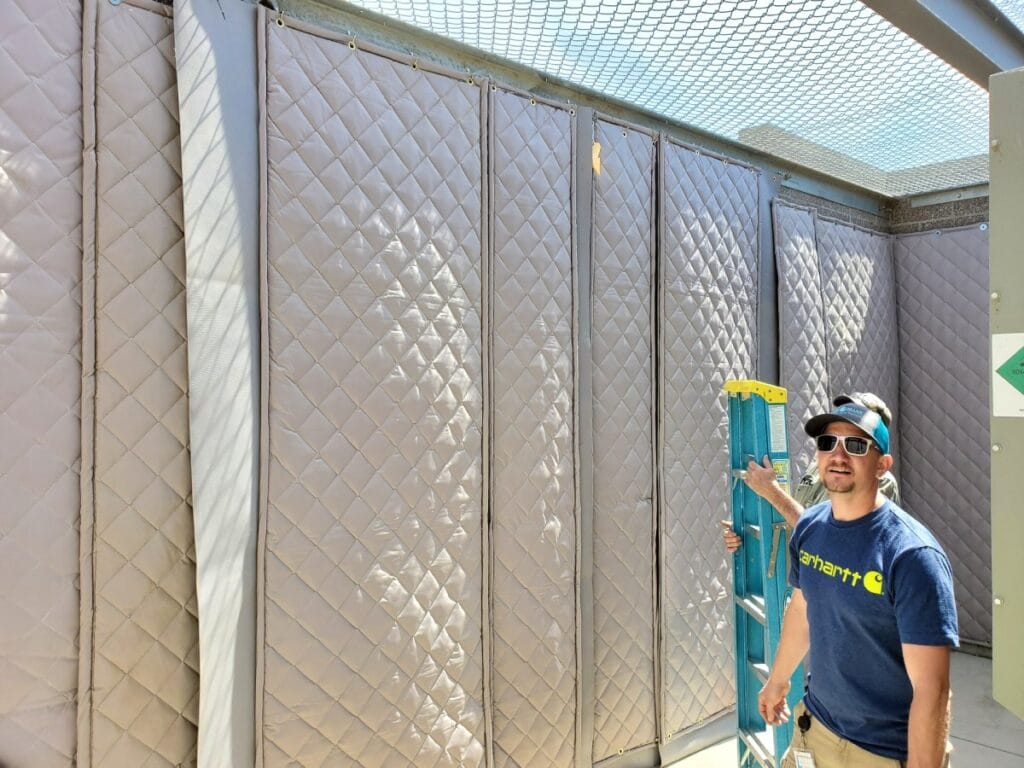

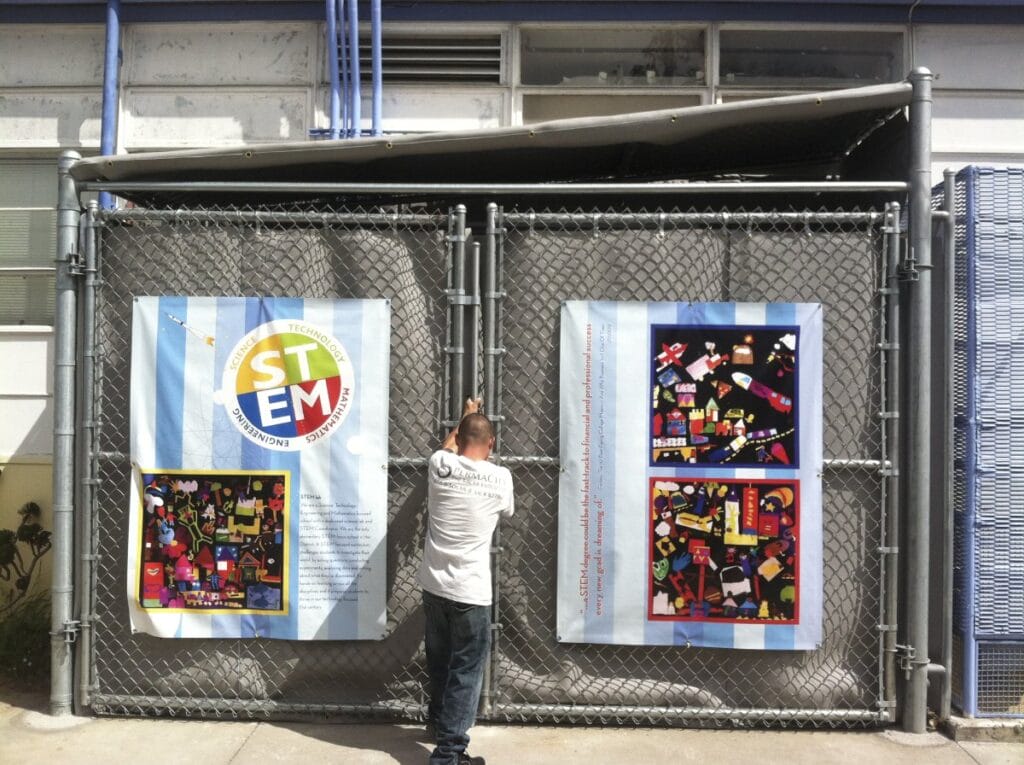

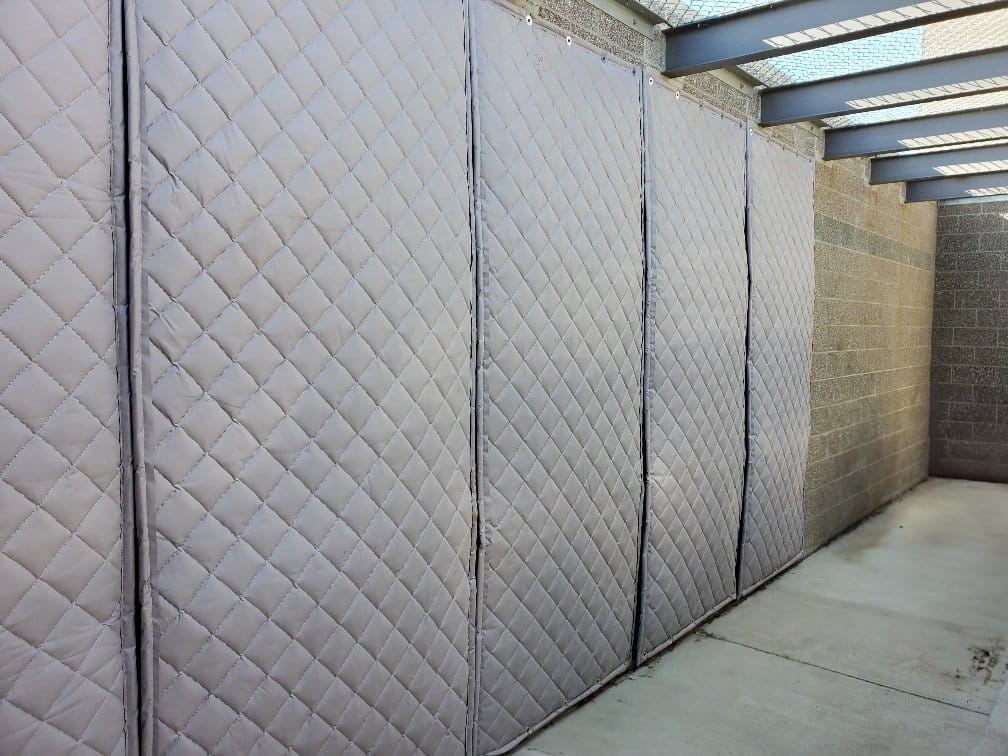

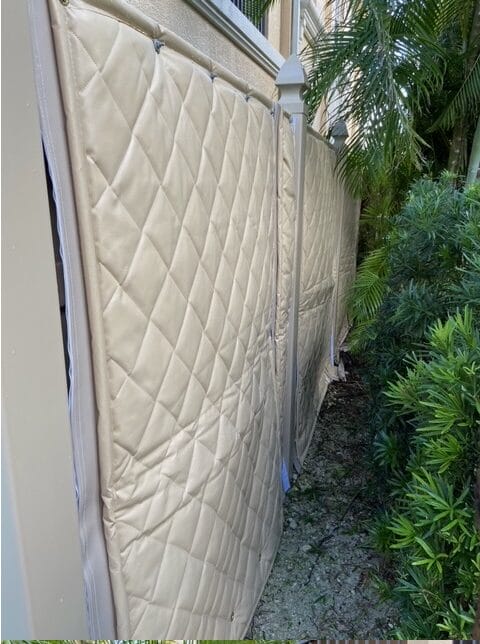

APPLICATIONS: Typically used as modular curtain panels in outdoor applications where high abuse resistance or excellent durability as well as maximum longevity and noise reduction is required. Also used as sliding acoustical doors, durable acoustical jacket on fans or valves, as well as a temporary noise barrier on outdoor construction projects.
WEIGHT: 1.5 LB/SF
THICKNESS: Nominal 2"
SIZES: Standard width 54" Roll Length 25'
COLORS: Available facing colors on quilt: gray, tan, black
Available barrier colors: gray, tan, olive drab or blue
TEMPERATURE RANGE: -20° tp +180° F

Front Back
Click on images to enlarge



Sound Blanket: Sound Transmission Loss - ASTM E90 & E 413
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz STC
BBC-EXT-R-2 13 20 29 40 50 55 32

Sound Blanket: Sound Absorption Performance: - ASTM C423
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
BBC-EXT-R-2 .07 .27 .96 1.13 1.08 .99 .85
