Silk Metal™

Silk Metal Ceiling Tiles in Black and White Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System

Micro-Perforated Acoustical Ceiling & Wall Panels

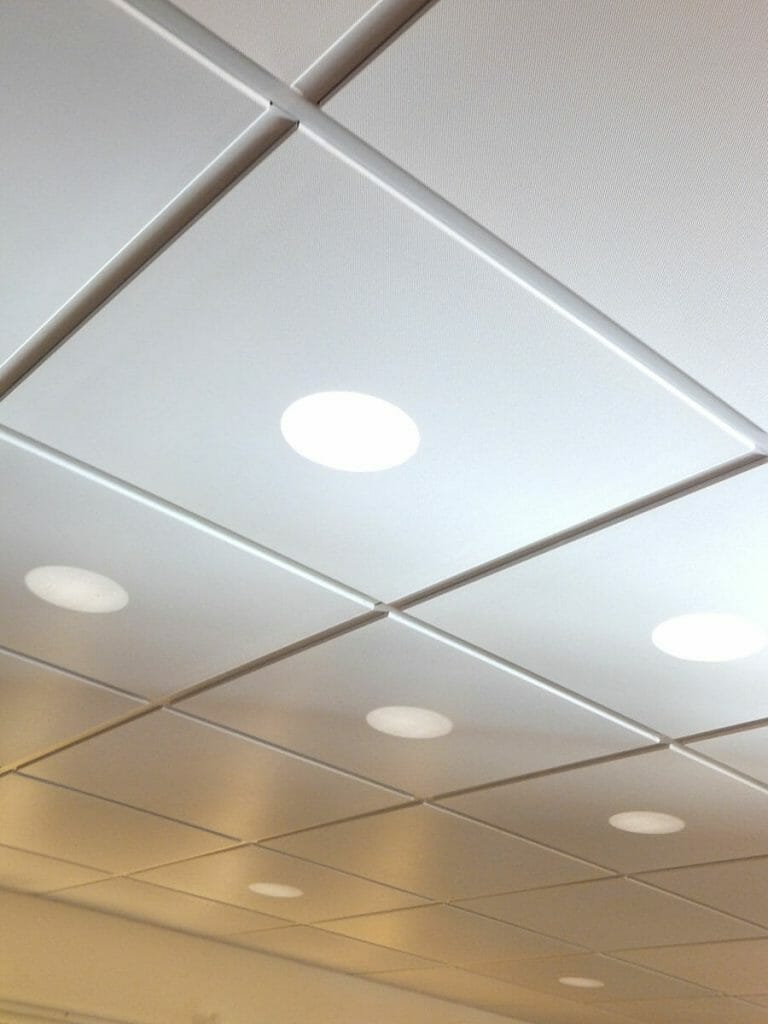

Our unique Silk Metal Ceiling Tiles are state-of-the-art micro-perforated aluminum sound absorber panels that reduce echo and sound reflections. They have an elegantly-smooth appearance, with an excellent NRC Rating of 0.80. Resembling smooth silk fabric, these affordable tegular or flat tiles install easily into any standard 15/16” ceiling grid.

Features

  • Tegular or flat lay-in ceilings
  • Anodized & custom printing available
  • Cost-effective
  • Installs into standard 15/16” grid
  • Also available as custom wall panels
  • Excellent NRC Rating – 0.80 NRC (per ASTM C423) with a 4” airspace, no liner needed
  • Resembles smooth fabric surface in appearance

Product Testing & Information

  • Product Specs
  • ASTM423 Sound Absorption Test
  • ASTM C 522 Airflow Resistance & ASTM E 1050 Impedance Tube Test
  • ASTM C423 Sound Absorption Test with Insulation
  • Access All

Applications

  • Restaurants
  • Pro Audio/Studios
  • Home Theaters
  • Ceilings
  • Walls
  • Hallways
  • Public Spaces
  • Offices
  • Airports
  • Concert Halls
  • Night Clubs
  • Practice Rooms

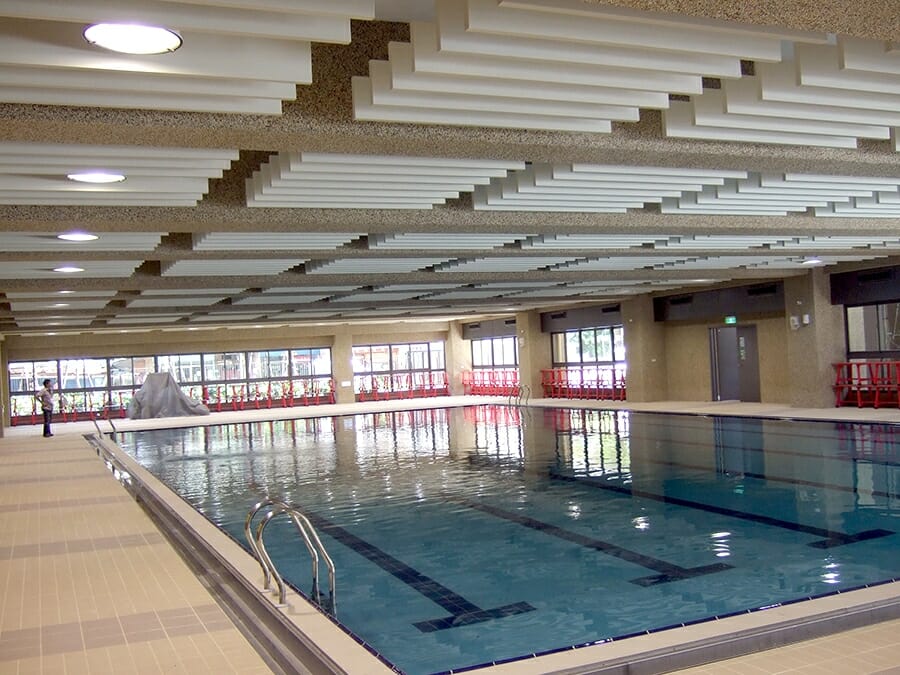

  • Swimming Pools
  • Cafeterias
  • Shopping Malls
  • Conference Rooms
  • Classrooms
  • Hospitals
  • Lobbies
  • Department Stores
  • Exhibition Spaces
  • Train Stations

Silk Metal Panels

  • Achieves acoustical value without acoustical liner
  • Resembles smooth fabric surface in appearance
  • Reversible surfaces

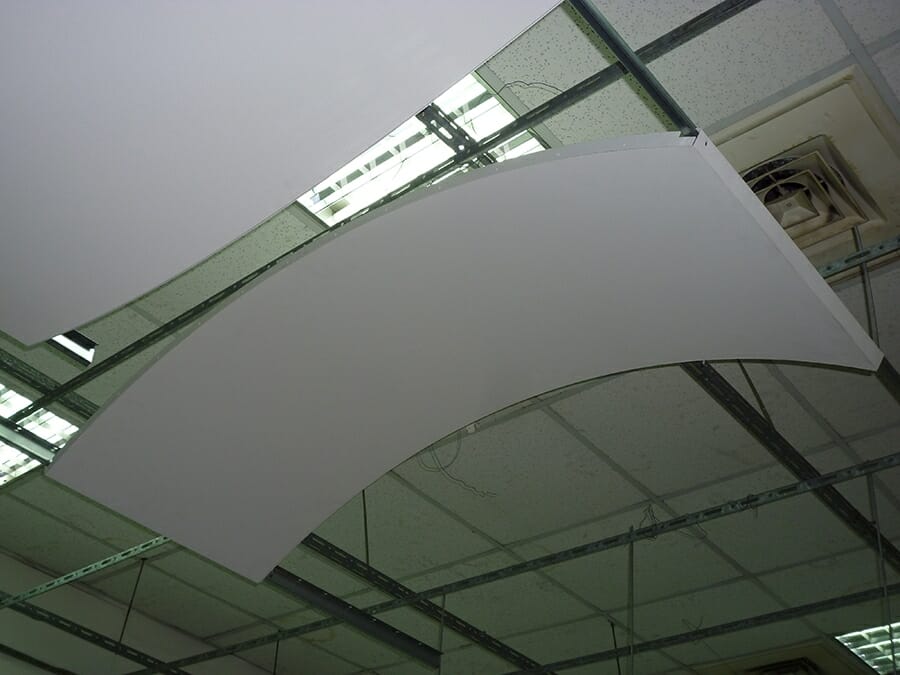

  • Can be fabricated into various forms & sizes
  • Tested as a “sheet good” to prove its electromagnetic wave attenuation characteristics
  • The only surface material that has been tested to prove its AEMIC (acoustical & electromagnetic interference control) capabilities

Silk Metal uses a patented angled micro-perforation method rather than traditional direct 90° punching methods. Silk Metal features an ideal surface to absorb wave energy generated by sound and electromagnetic waves, and for heat mitigation.

Silk Metal™ Ceiling and Wall System
Side A
Silk Metal™ Ceiling and Wall System
Side B

Lay-in System

Appearance

Flat or Tegular

Stock Colors & Sizes

23¾″ × 23¾″, White – 3/8″ – Tegular Edge
23¾″ × 23¾″, Black – 5/8″ – Tegular Edge

Maximum Panel Size

26¾″ × 78¾″

Standard 15/16″ Grid Options

Silk Metal™ Ceiling and Wall System
Standard Lay-In for 15/16″ Grid
Silk Metal™ Ceiling and Wall System
Flat
Silk Metal™ Ceiling and Wall System
Tegular

Custom Graphics Available

Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System Silk Metal™ Ceiling and Wall System
Silk Metal™ Ceiling Tile – Sound Absorption Coefficients
125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
Silk Metal 0.86 0.94 0.65 0.77 0.76 0.75 0.80
