Envirocoustic™ Wood Wool - Shapes

Envirocoustic Wood Wool Shapes for Acoustic Ceilings and Walls

Envirocoustic™ Wood Wool Shapes lead the acoustic panel products category with eco-friendliness, high-performance, and cost-effectiveness. Envirocoustic™ Wood Wool Shapes absorb sound to tame echo and reverberation. Ecologically, Wood Wool Shapes are simple to produce by combining water, Portland cement and wood fibers. Highly resistant to microbial and fungal growth, Envirocoustic Wood Wool Shapes are Class-A Fire Rated, pass the NFPA 286 fire test, and meet the California Department of Public Health VOC emissions standards, making them eligible for LEED credits as well as a sound choice for a variety of public and private venues.

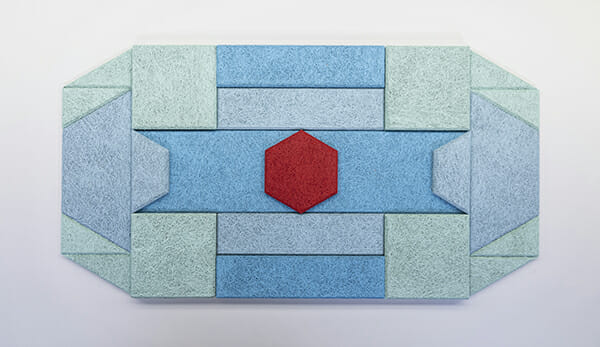

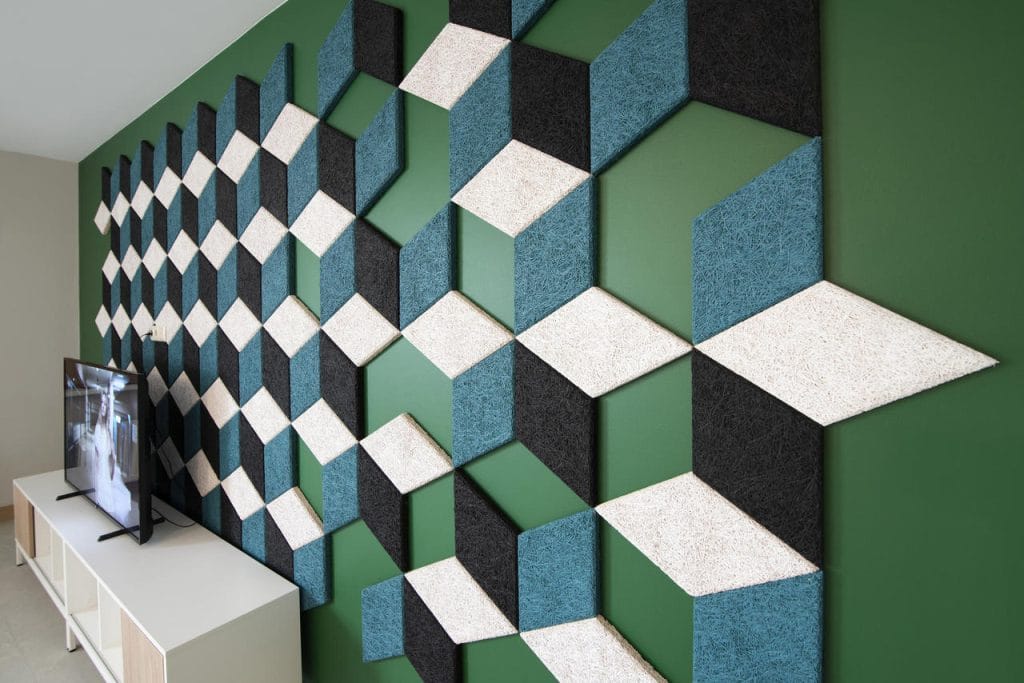

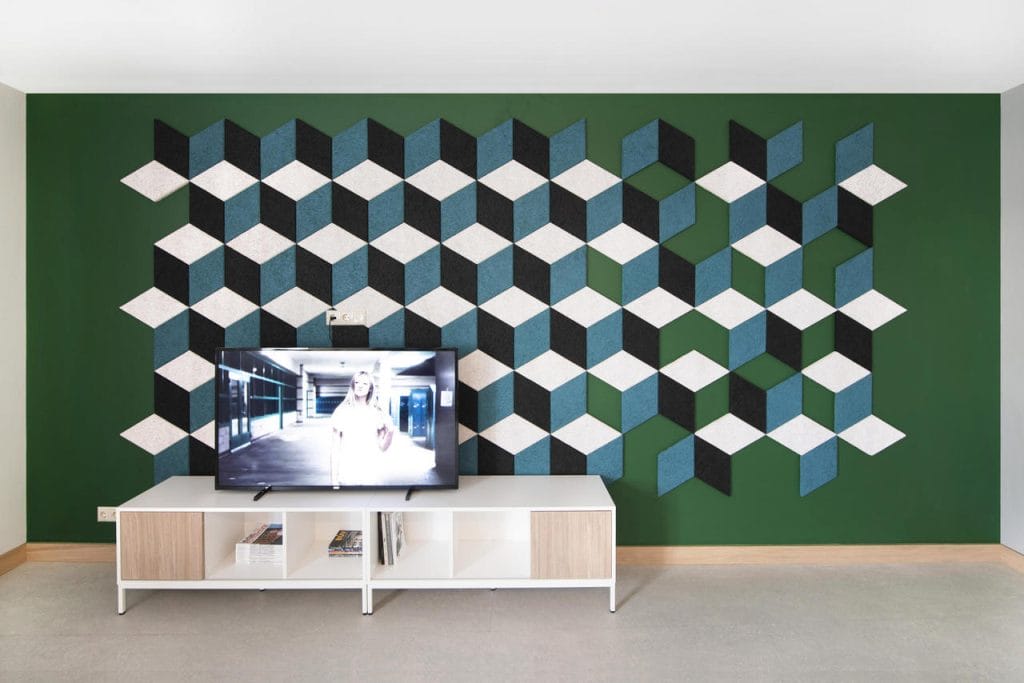

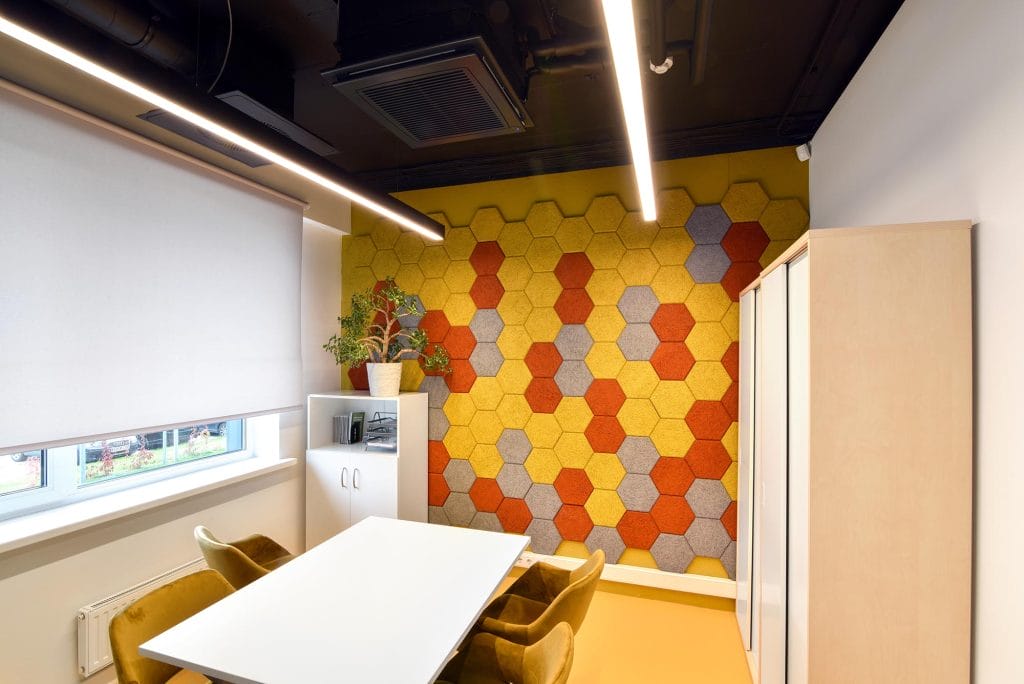

Wood Wool Shapes are available in many size and color variations that can be customized to fit nearly any space. Standard Shape sizes are available in even increments (6”, 12”, 24”) to fit well with most walls and ceilings. Several standard shapes are available and designed to be combined with other shapes to create unique patterns for interesting design aesthetics while absorbing sound. Incorporate the nearly unlimited Shape options with the Wood Wool Engraved line of products for endless designs and variety of wood wool patterns.

See less

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests CAD / BIM / Revit General Resources

Product Specs

Applications

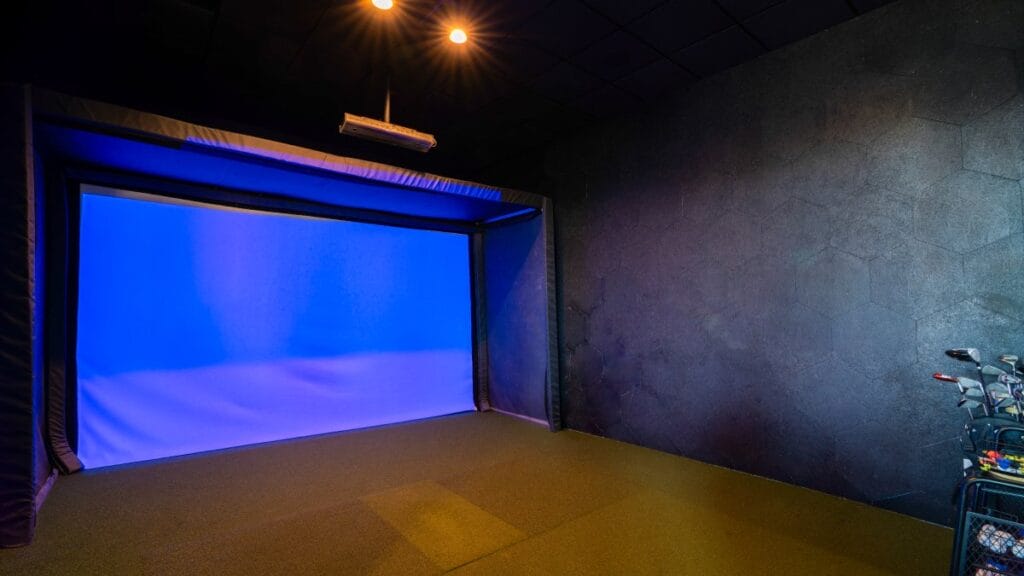

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

Wood fiber, Portland cement, and water.

Wood fiber is a natural material, color variations may occur

Thickness

1"
1" (Microstrand)
1-3/8"
2"

Size

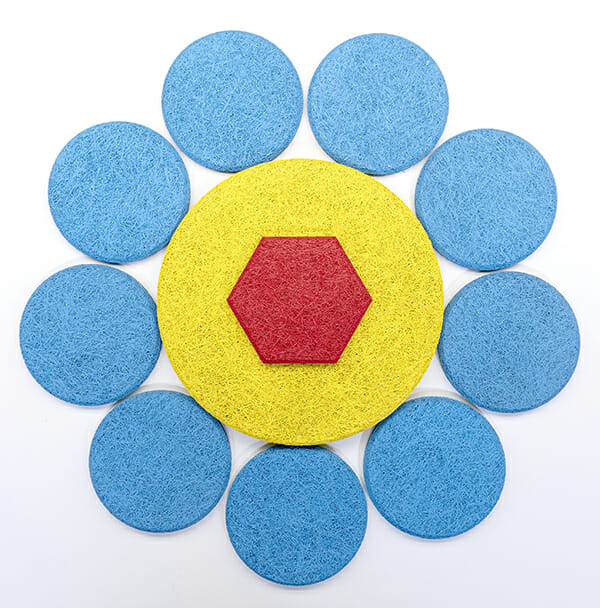

Standard Shapes and Sizes
Square: 12”, 24”
Rectangle: 6” x 24”, 12” x 24”, 12” x 48”
Circle: 12”, 24” – Diameter

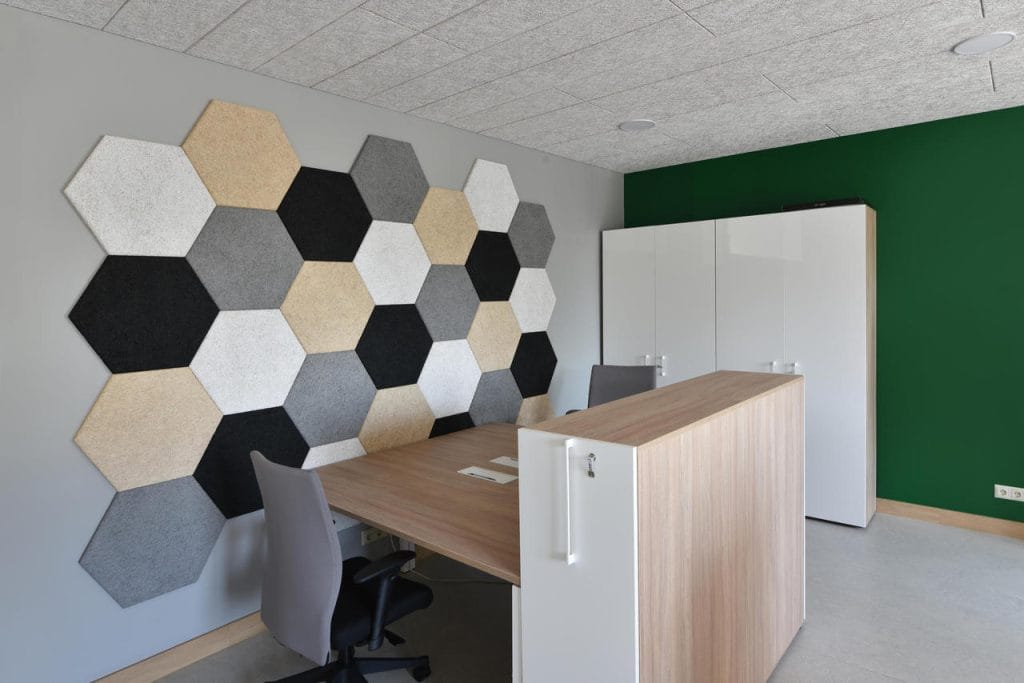

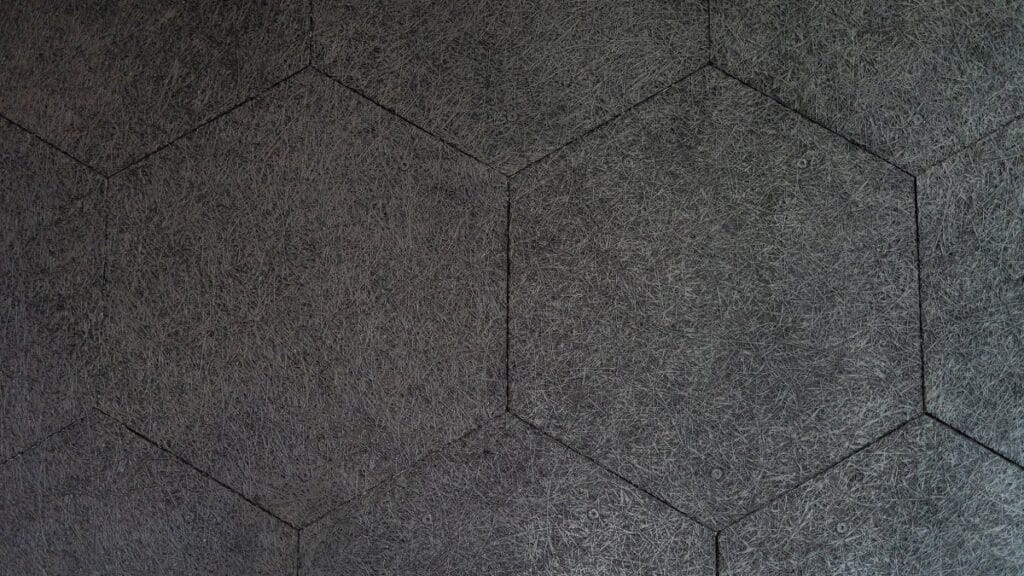

Hexagon: 12”, 24” – Maximal Diameter
Trapezoid: 12”, 24” – Base
Isosceles Triangle: 12”, 24”
Equilateral Triangle: 6”, 12”
Scalene Triangle: 3”, 6” – Base

Custom Shapes Sizes
Custom shapes and sizes available upon request, please inquire for additional details

Edge Detail

Beveled

Finishes

Primed Clear
Primed White
Painted

Installation Method

Direct attach
Finish Options

Available Finish Options

Primed Clear

Primed White

Painted
Acoustical Specs

Envirocoustic™ Wood Wool – NRC Results

Panel Thickness No Airspace
(A Mount)

1″ 0.45

1″ (Microstrand) 0.60

1-3/8″ 0.55

2″ 0.75
Material Performance

Fire Performance

Class A Fire Rated per ASTM E84
Passes NFPA 286 Contribution to Room Fire Growth Test

Light Reflectance

Primed Clear - 50
Primed White - 70

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM D3273 test (100% clear of fungal growth)
Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)

R-Value

1" R-Value: 2.32
2" R-Value: 3.74
