Echo EliminatorTM - Baffles
Hanging Acoustical Baffles
Utilize the same incredible performance that other Echo Eliminator soundproofing products provide but in the form of an acoustical baffle. These baffles are simple to hang and are customizable by color and size to fit your next project’s look and feel. Additionally, these hanging acoustical baffles help absorb noise in order to reduce the echoes in a large space, helping make the space more enjoyable for those that will be using it. Some additional features of the Echo Eliminator baffle include:
- No Fiberglass
- Economical
- Recycled Cotton Material
- Can Be Hung Vertically or Horizontally
- Eligible for LEED™ Credits (more information)
Echo Eliminator™ VS. Other Acoustical Materials
Echo Eliminator LEED® Credit Contribution Information
Echo Eliminator Baffle Grommet Placement Options
Product Testing & Information
- Product Data Sheet
- Installation Instructions
- CSI Specifications
- SDS
- Testimonials
- Acoustical Test
- Flammability
- Product Photos
- Misc. Data
- CSI, CAD, and Revit Files

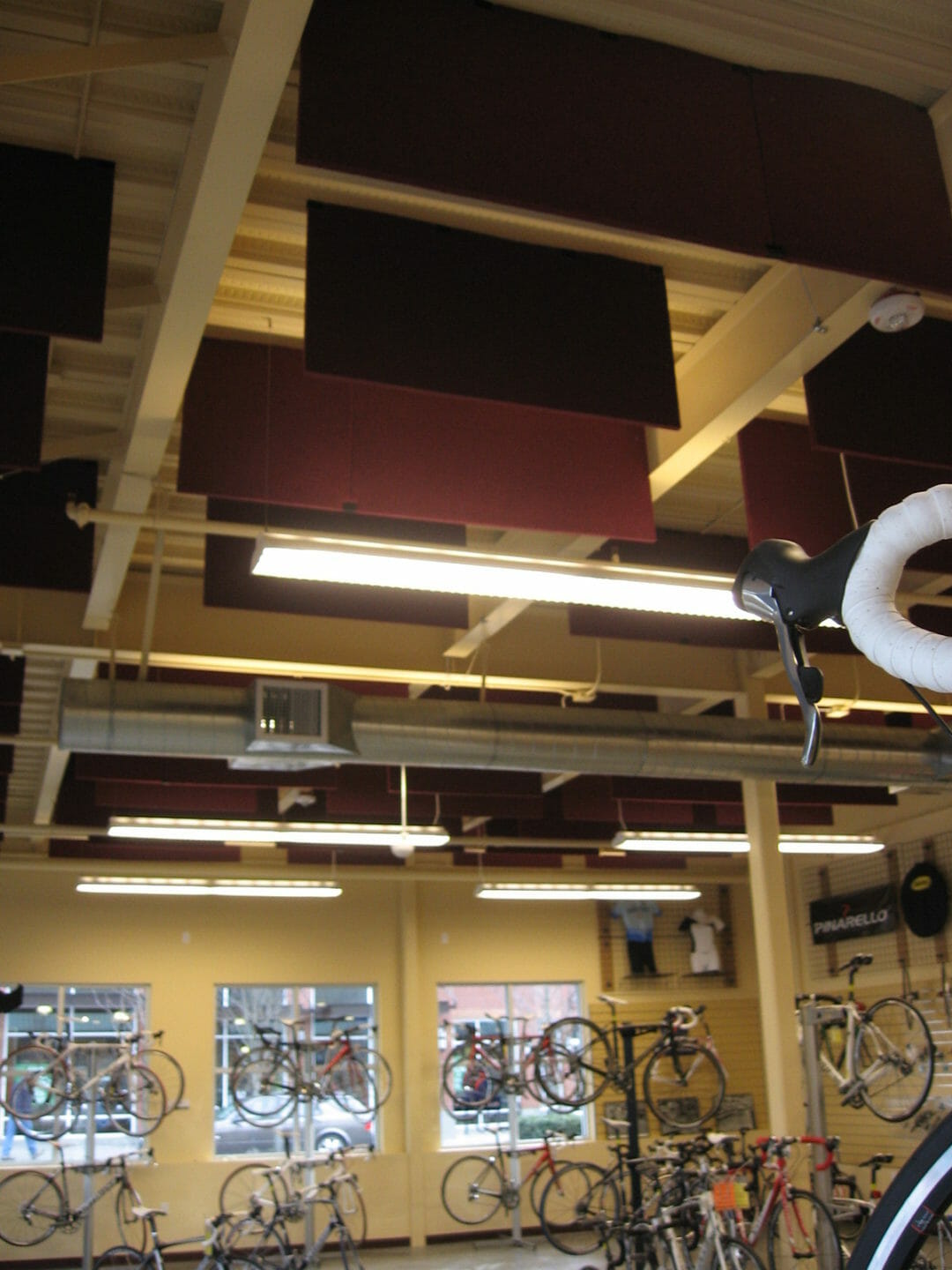

Acoustic Hanging Panel Photos
Color Options
Larger images show ceiling sound baffle color options. Click each color swatch for a larger image.
Discontinued Acoustic Hanging Panel - Limited Availability
Call for availability
Grommet Color Options – Gold or Silver
Product Specs
Material
Bonded Acoustical Cotton (B.A.C.). 100% Recyclable, Fiberglass Free.
Features
Economical, Multi-Purpose, High Performance, Durable, Lightweight.
Applications
Gymnasiums, Auditoriums, Classrooms, Music Rooms, Arenas & Stadiums, Churches, Offices, Computer Rooms, Restaurants/Cafeterias, Residential, Concert Halls & Theaters, Pro Audio, Gun Ranges, Manufacturing Plants, Machine Enclosures, Water Treatment Plants.
Density
3lb pcf, 6lb pcf (1” Only)
Thickness
1″, 2″
Sizes
Standard – 2’ x 4’; Custom Sizes Available
Colors
Standard Color Options:
Black, Graphite, Light Grey, White, Beige, Marble Blue
Discontinued Color Options (Limited Availability):
Burgundy, Pure Blue, Navy Blue, Hunter Green
Flammability
Class A Fire Rating per ASTM E84
Grommet Finish
Gold, Silver
| Echo Eliminator™ Ceiling Sound Baffle – Sabins/Baffle | |||||||
|---|---|---|---|---|---|---|---|
| 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | Avg | |
| 1″ – 2′ ×4′ | 2.43 | 4.93 | 8.34 | 12.35 | 15.57 | 16.73 | 10.30 |
| 2″ – 2′ × 4′ | 2.40 | 6.55 | 12.86 | 17.46 | 18.49 | 16.77 | 13.85 |
