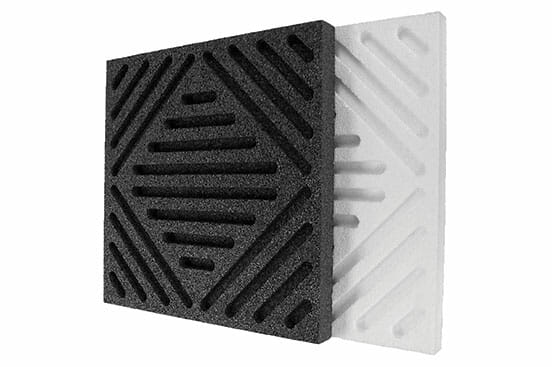

Sound Silencer™ - dBA Ceiling Tiles
Rigid Porous ARPRO® Tri-Functional Acoustical (P.E.P.P.) Ceiling Tiles
The new Sound Silencer dBA (Diffuser Blocking Absorber) ceiling tiles offer sound blocking, sound absorption and sound diffusion all in one unit that is easy to install into ceiling grid. These tri-functional acoustical panels have a unique design that not only provides a wide array of acoustical characteristics, but it is aesthetically pleasing and will give any studio or home theater that polished, professional look.
- High performance – both STC & NRC ratings
- Class A fire rated per ASTM E84
- No fiberglass – non-fibrous
- Water-resistant indoor
- Non-abrasive surface
- Indoor/outdoor usage
- Tackable surface
- Moisture-, impact-, bacteria- & fungi-resistant
- Lightweight & cleanable
- Low VOC Emissions – Passes CDPH V1.2 Test Standard and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials
- Product Specs
Home Theaters, Recording Studios, Commercial Sound, Pro Audio Application, or Any Acoustical Venue.
Porous Expanded Polypropylene (P.E.P.P.)
23-3/4" x 23-3/4"
23-3/4" x 47-3/4"
Adhesive, Direct Attach
Note to Installers
Sound Silencer™ is a thermal-molded acoustical sound panel. Although tough to see, one side of the sound suppressor panel will have injection and mold release marks these are circular marks that range in size and indent depth. These marks denote the back side of the cleanable acoustical sound panel so panels should be installed with these marks facing the wall or ceiling for best possible aesthetical outcome.
- Color Options
- Acoustical Specs
Sound Silencer dBA Ceiling Tile – NRC Results Panel Thickness Testing Mount NRC Rating 1″ E400 0.80 2″ E400 0.85
Click here for expanded acoustical absorption data
Sound Silencer Ceiling Tile – Expanded Acoustical Absorption Data Thickness Testing Mount 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz NRC SAA 1″ E400 0,46 0.59 0.44 0.49 0.76 0.86 0.55 0.56 2″ E400 0.51 0.52 0.52 0.77 0.89 0.98 0.70 0.68 Sound Silencer dBA Ceiling Tile – STC Results Panel Thickness STC Rating OITC Rating 1″ 6 5 2″ 7 6
Click here for expanded transmission loss data
Sound Silencer Ceiling Tile – Expanded Transmission Loss Data Thickness 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz STC OITC 1″ 6 5 7 8 9 16 9 8 2″ 9 8 10 10 17 17 13 11
- Material Performance
Class A Fire Rated per ASTM E84
White - 90
Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338, G21, G22 test (No fungal growth)
