WHR Neoprene Hangers Light Duty

whr
Buy Now

WHR Neoprene Acoustic Ceiling Hangers are an inexpensive but effective method of reducing noise and minor vibration transmission.

WHR neoprene vibration isolators are noise breaks for use with wire, chain or horizontal screws for hung ceiling applications.

Typical Wire Installation

Product Testing & Information

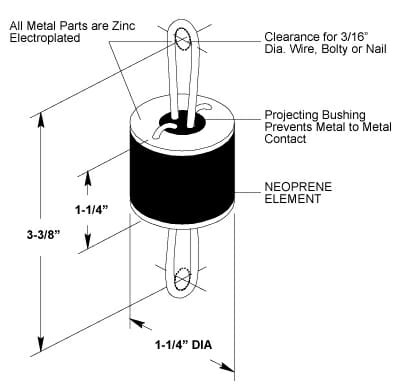

WHR Hangers
Type & Size Rated Capacity Range Rated Deflection Color Mark
WHR-40 up to 60 lbs 0.20″ Green
WHR-50 55 – 95 lbs 0.20″ Red
WHR-60 90 – 155 lbs 0.20″ White
WHR-70 150 – 220 lbs 0.20″ Yellow
