NOISE S.T.O.P.™ FIBERGLASS BAFFLE

Sailcloth & Vinyl Encapsulated Acoustical Baffles

Sailcloth & Vinyl Encapsulated Hanging Acoustical Baffles

  • Cost Effective
  • High Performance
  • Architecturally Decorative
  • Custom Engineered & Manufactured

Product Testing & Information

  • Product Specs
  • Technical Information
  • Acoustical Tests
  • Flammability
  • CSI Specifications
  • Installation Instructions
  • Access All

Product Spec

Material

Fiberglass core encapsulated in PVC Film or Sailcloth.

Pattern

Plain – Type A or Type B mounting.

Features

Cost effective, lightweight, high acoustical performance, moisture and chemical resistant.

Applications

These fiberglass baffles are perfect for any large area where noise and reverberation need to be reduced. Gymnasiums, community centers, sports arenas, lunchrooms, swimming pools, factories, animal hospitals, food processing plants, large open plan areas.

Thickness

1″, 2″

Sizes

Nominal 2′ × 4′

Core Density

1lb pcf, 1.65lb pcf, 2.25lb pcf, 3lb pcf

Color

PVC Film – 9 Colors; Sailcloth – 9 colors. See color chart.

Flammability

Product Components Class A Fire Rated per ASTM E84

Installation

Grommets, Direct Hang, Spring Clips, Tie Wraps

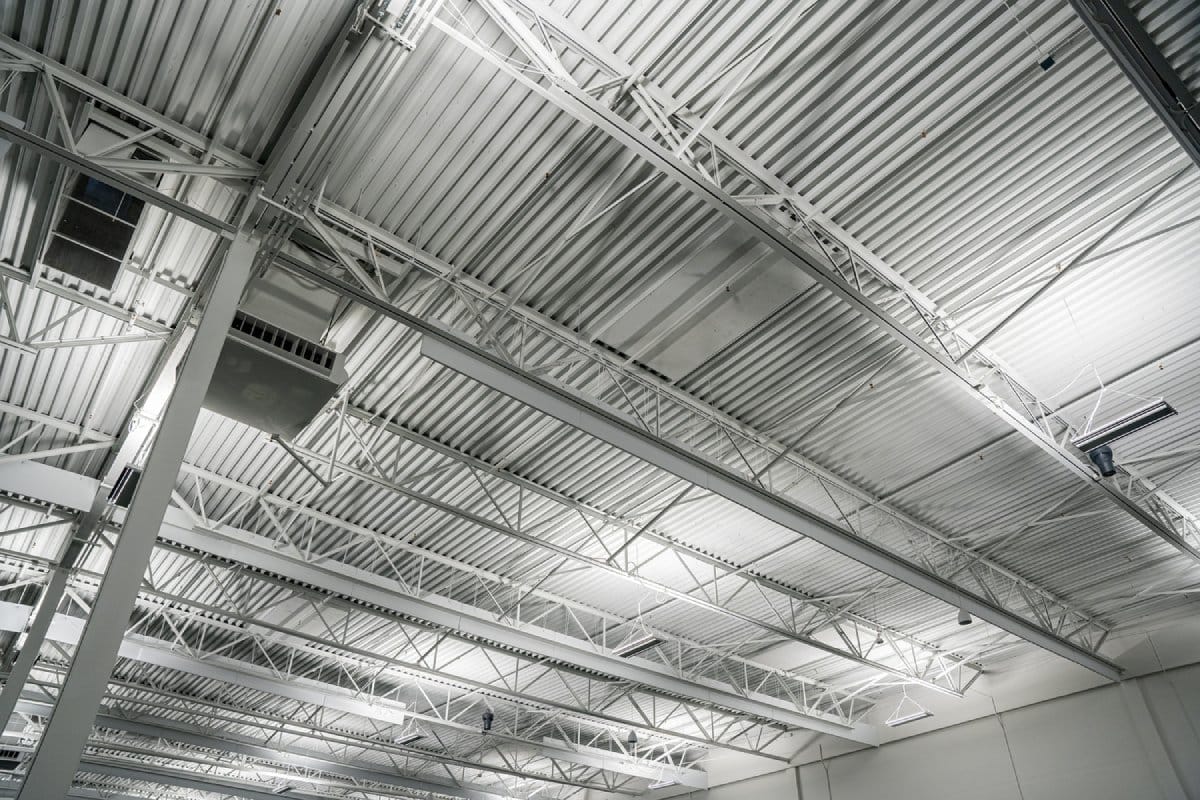

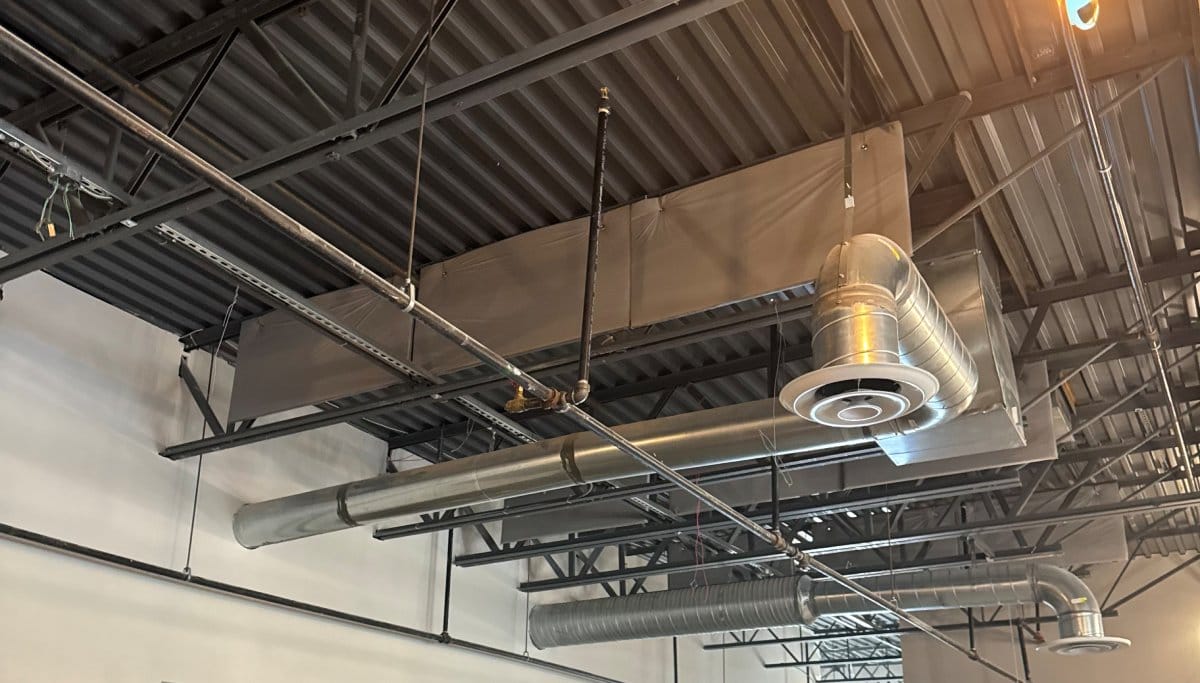

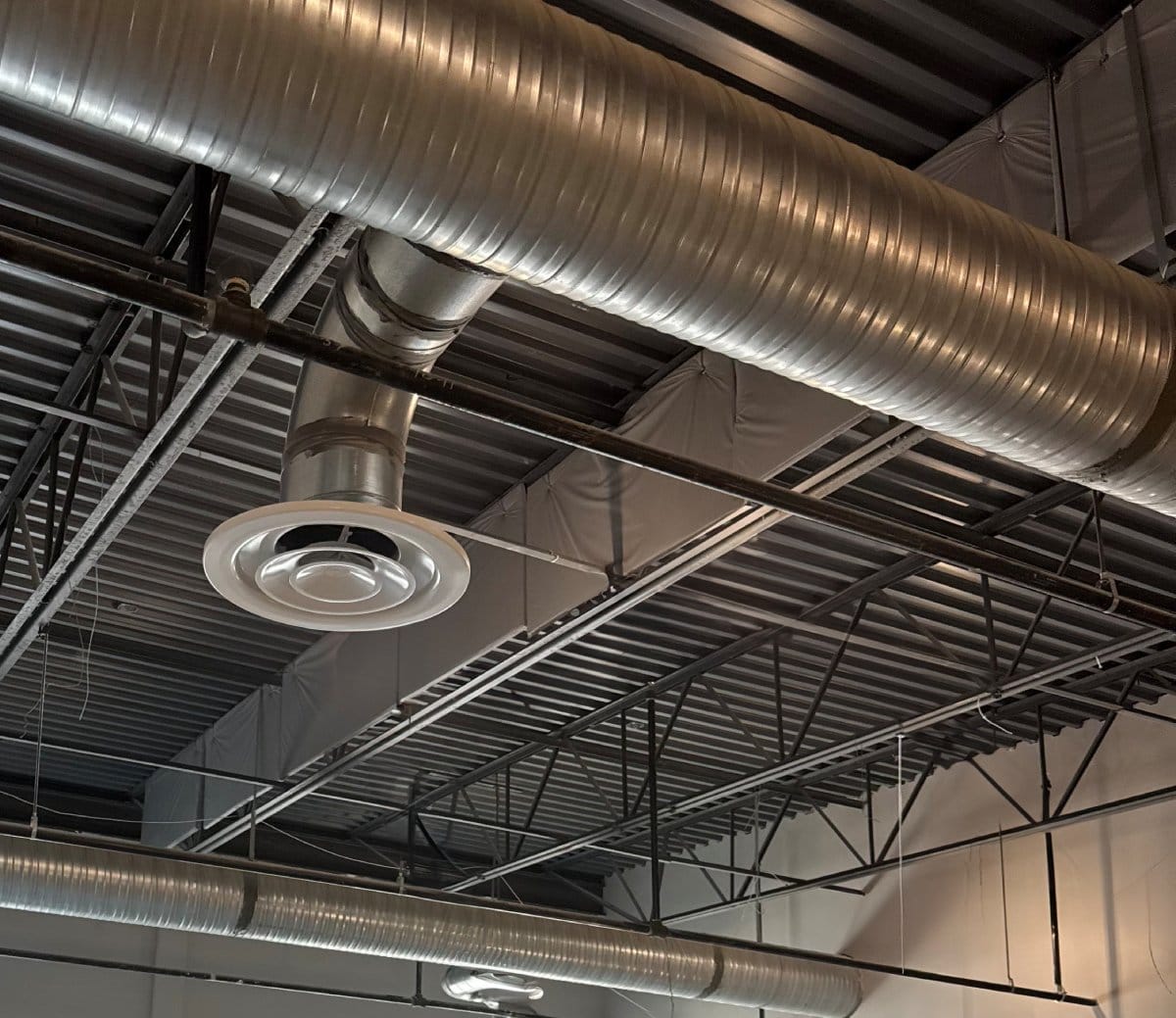

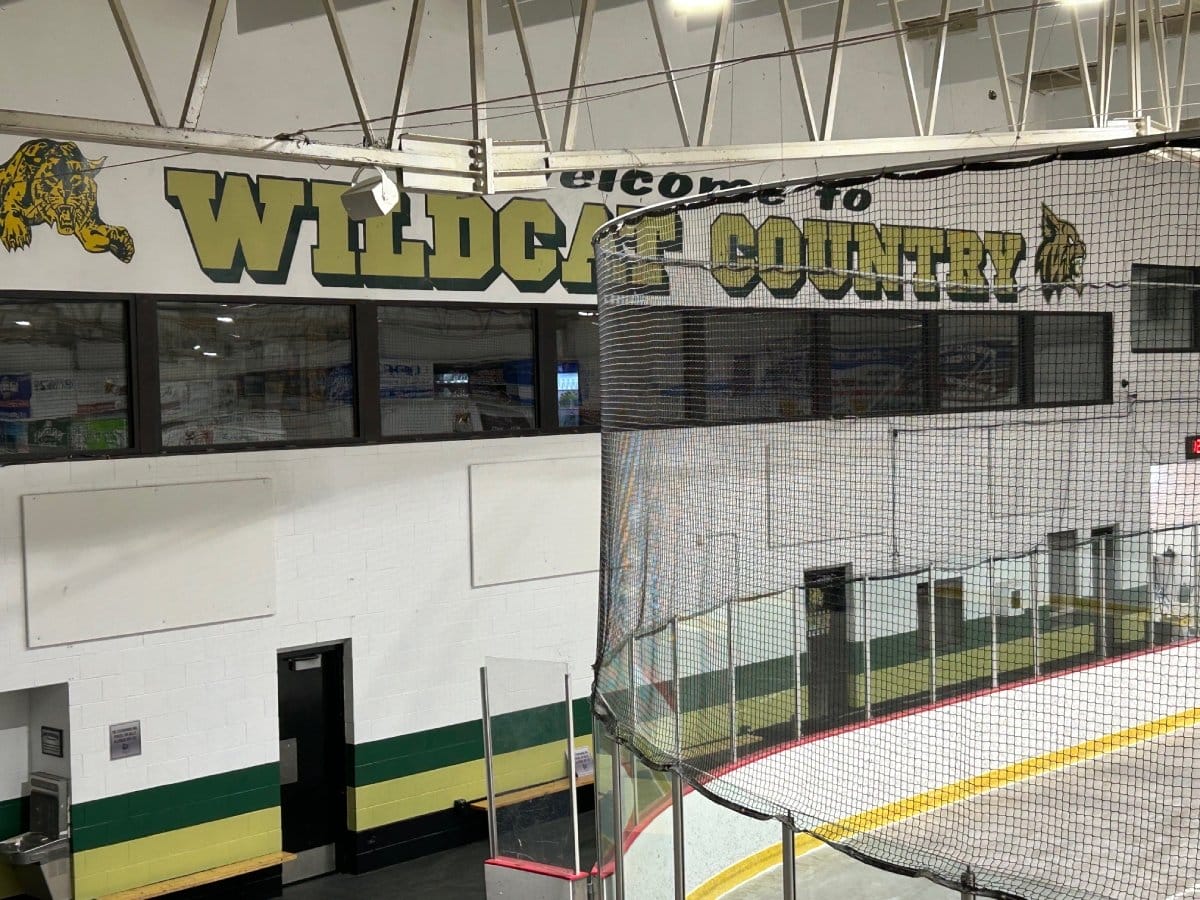

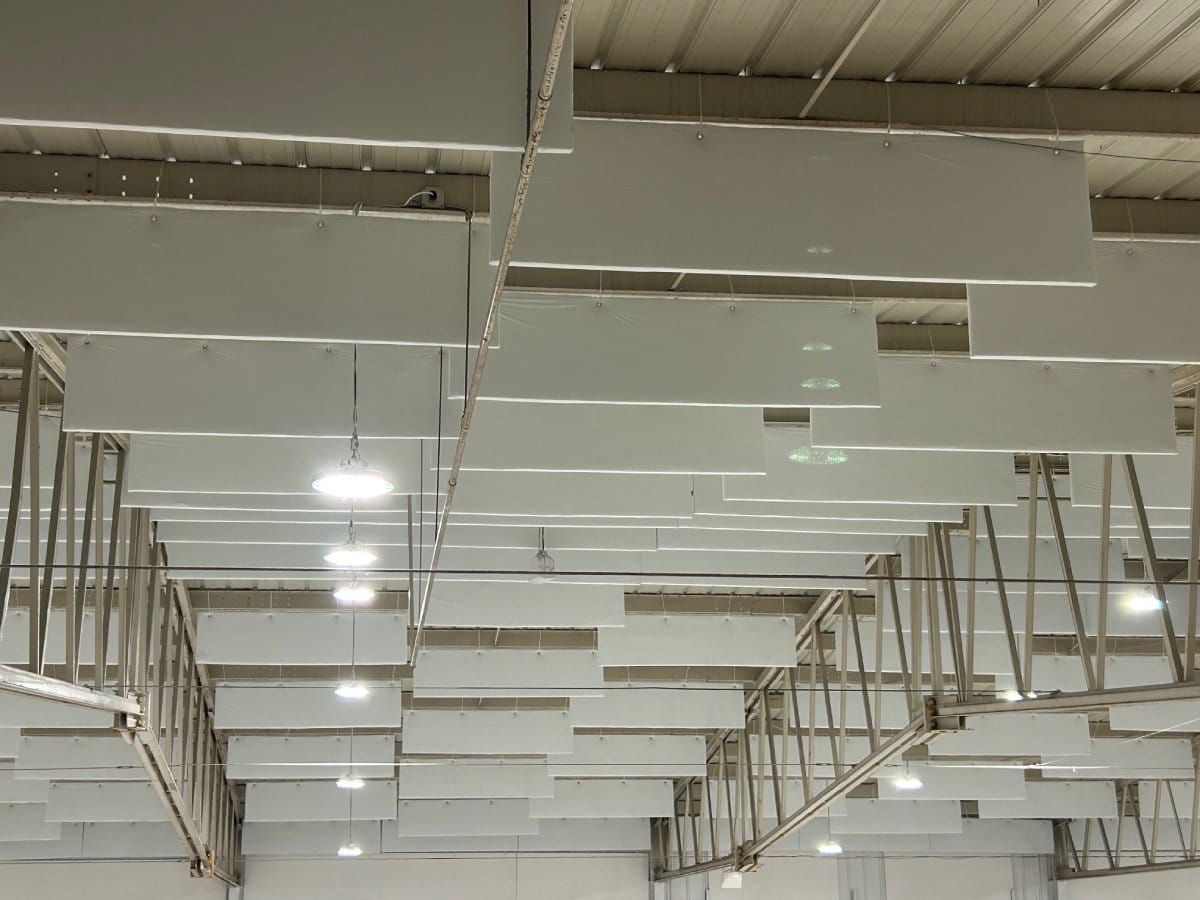

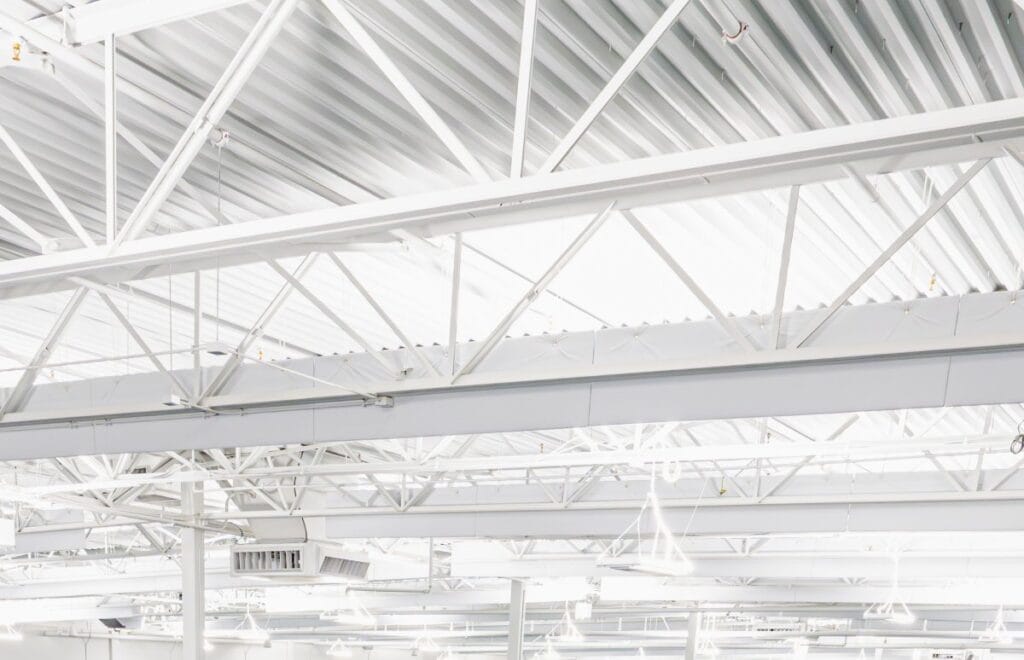

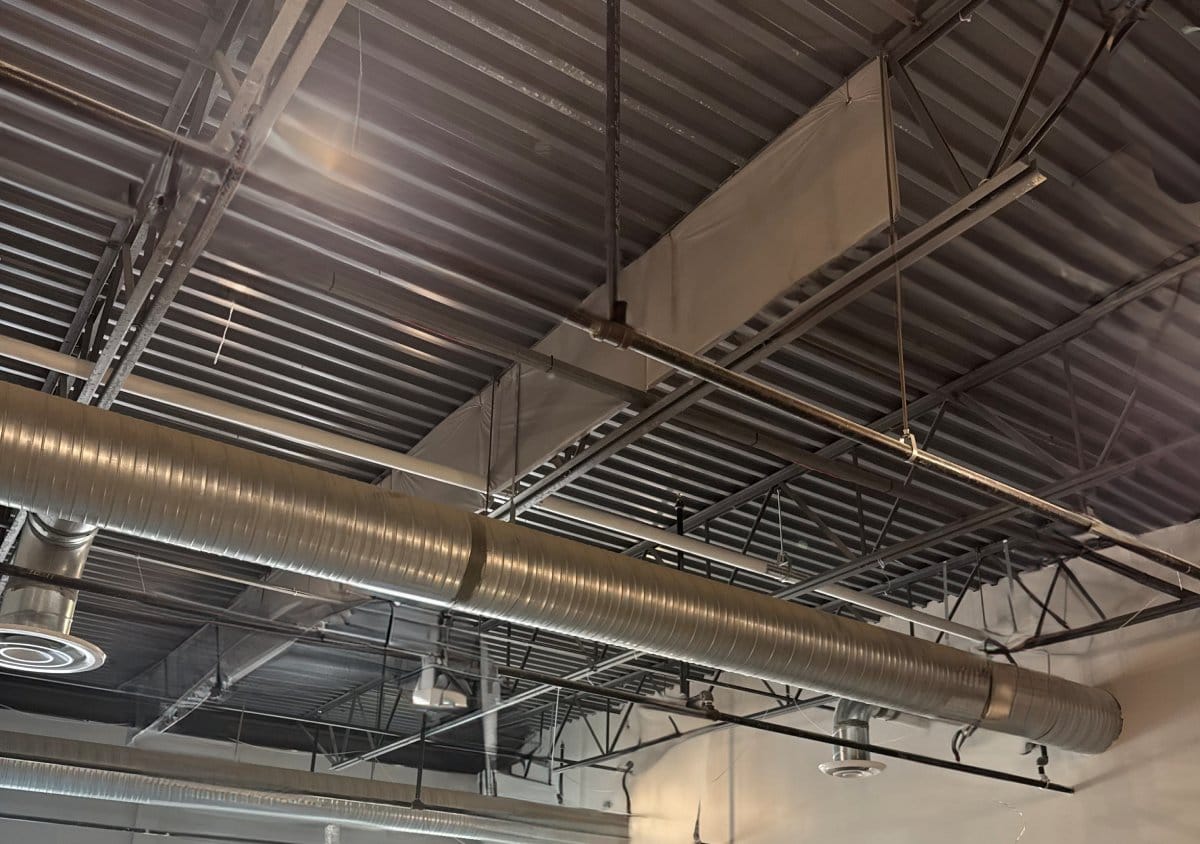

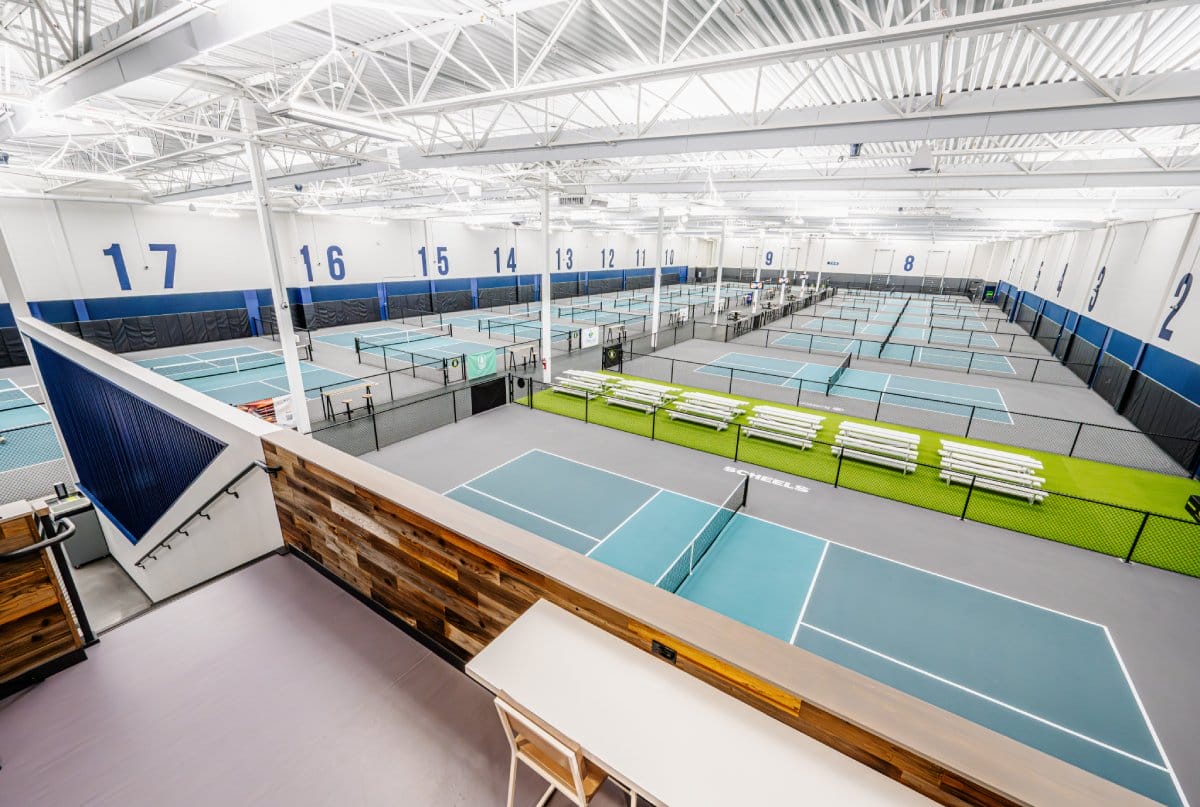

Product Photos

Sailcloth & Vinyl Encapsulated Acoustical Baffles
Mounting Type “A”
Slight puckering on Fabric Face
Sailcloth & Vinyl Encapsulated Acoustical Baffles
Mounting Type “B”
Clean, Smooth Facing
Sailcloth & Vinyl Encapsulated Acoustical Baffles
Acoustical Baffles on Wall
Sailcloth & Vinyl Encapsulated Acoustical Baffles – Sabins per Baffle
ASTM C423-90a & E795-92
125HZ 250Hz 500Hz 1KHz 2KHz 4Khz AVG.
1″ – 3# PVC 2.50 3.94 6.72 11.52 12.11 8.69
2″ – 3# Sailcloth 1.73 5.14 10.79 13.12 8.69 4.60 9.43
2″ – .75# PVC 6.88 7.12 7.12 8.08 8.16 8.88 7.75
2″ – 1.65# PVC 5.20 7.73 8.93 8.10 8.00 8.06 8.19
Baffle Mounting Hardware
Mounting Hardware
Item Description
CS 1001 Cable Crimp Sleeve
TB 1002 Turnbuckle
CT 1000 Crimp Tool
2H4 Beam Clamp 3/32″ – 9/64″
H24 Beam Clamp 1/8″ – 1/4″
WMX3 Hanger Wire
AC 1000 7×7 Aircraft Cable
Stainless steel hardware is available for damp and moist areas such as swimming pools or food processing plants.
