Reinforced Vinyl Noise Barrier
Interior/Exterior Nylon-Scrim Reinforced Mass Loaded Vinyl
When noise demands more than an ordinary barrier, Reinforced Mass Loaded Vinyl delivers dependable sound control in a rugged, flexible form. Its dense construction helps block airborne noise, while an internal reinforcement layer provides the added tear and tensile strength needed for demanding installations. The material hangs easily, conforms around equipment and irregular surfaces, and can be fabricated into barrier walls, acoustical enclosures, equipment jackets, pipe or duct wraps, and accordion-fold doors. Suitable for indoor and outdoor applications, Reinforced Mass Loaded Vinyl may be used alone or combined with quilted fiberglass absorbers to create a complete solution that both contains noise and reduces reflected sound—bringing lasting, adaptable noise control to industrial, commercial, and mechanical environments.
-
Product Specs
Applications

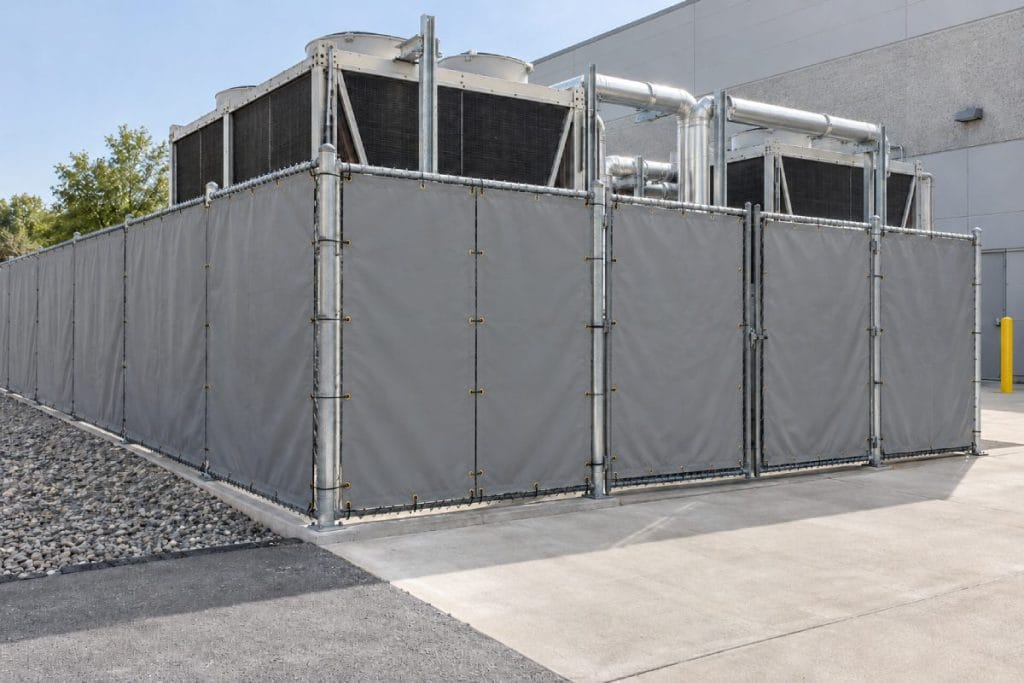

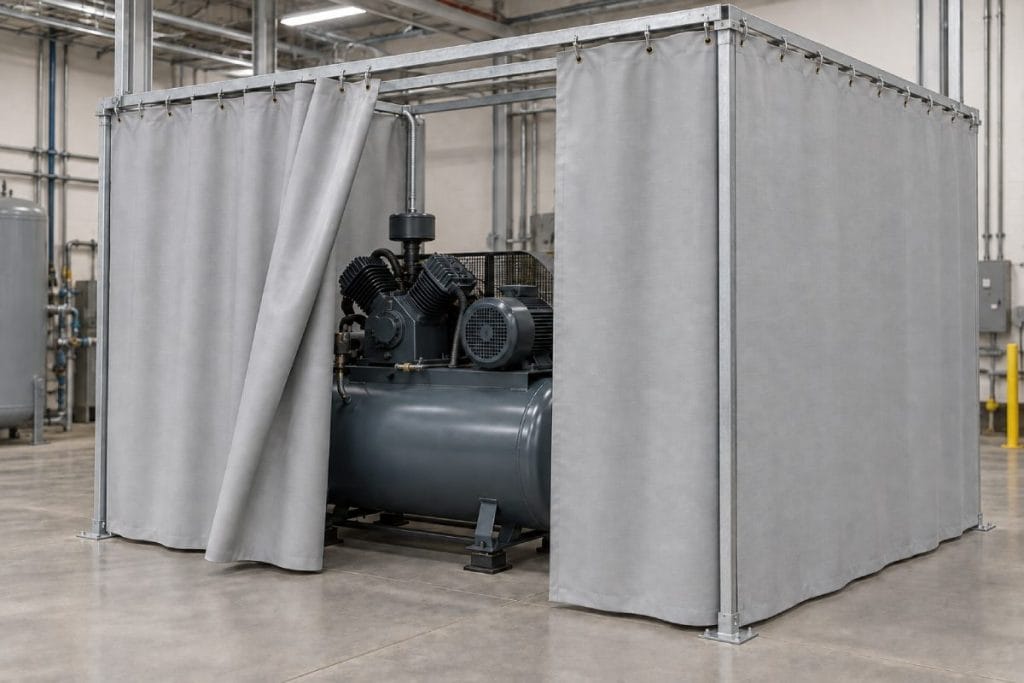

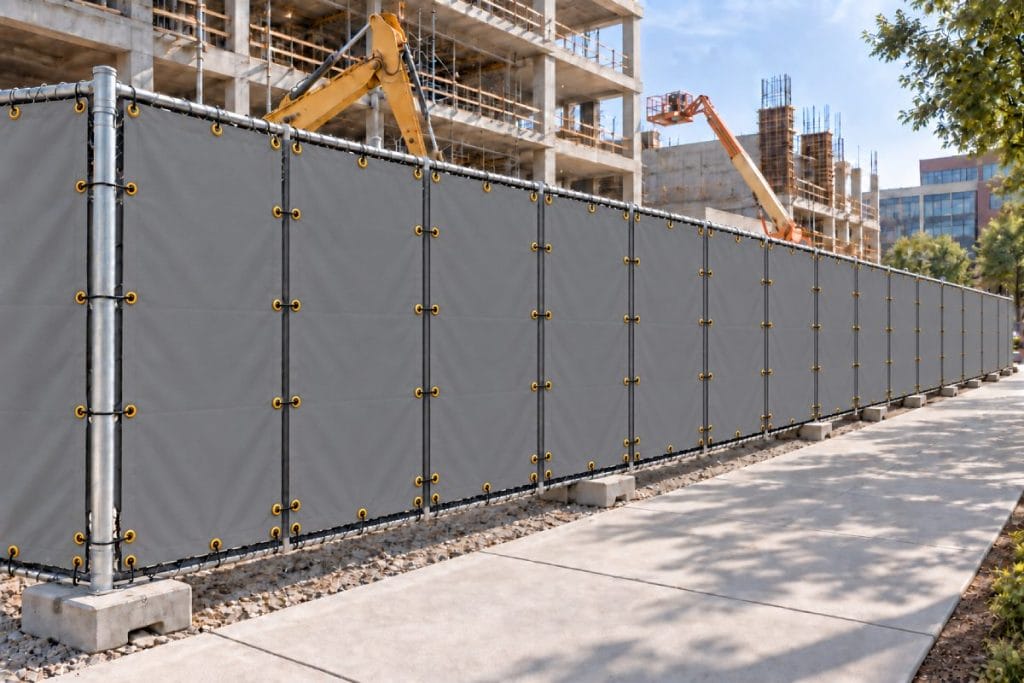

Industrial machinery enclosures, equipment noise barriers, acoustical curtain panels, barrier-backed sound curtains, portable noise screens, temporary construction barriers, permanent outdoor noise barriers, air compressor enclosures, generator enclosures, pump enclosures, blower enclosures, fan enclosures, chiller enclosures, HVAC equipment barriers, production line partitions, manufacturing area dividers, mechanical room barriers, utility room barriers, conveyor enclosures, granulator enclosures, stamping press enclosures, wall soundproofing, ceiling soundproofing, floor soundproofing, ceiling plenum barriers, pipe wraps, duct wraps, valve wraps, removable equipment jackets, and more.
Material Composition

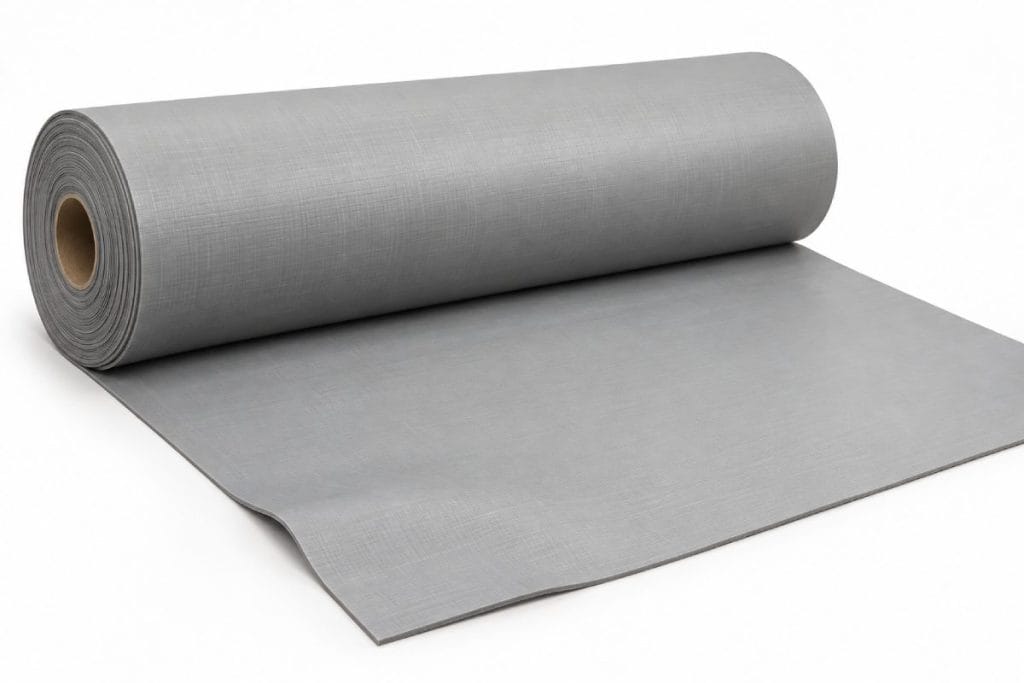

High-density, mass-loaded vinyl with internal reinforcing scrim
Thickness
1 lb. : nominal 0.13"
2 lb. : nominal 0.25"Weight options
1 lb. and 2 lbs. per square foot
Roll Size
1 lb. : 54" wide x 60' long
2 lb. : 54" wide x 30' longColor

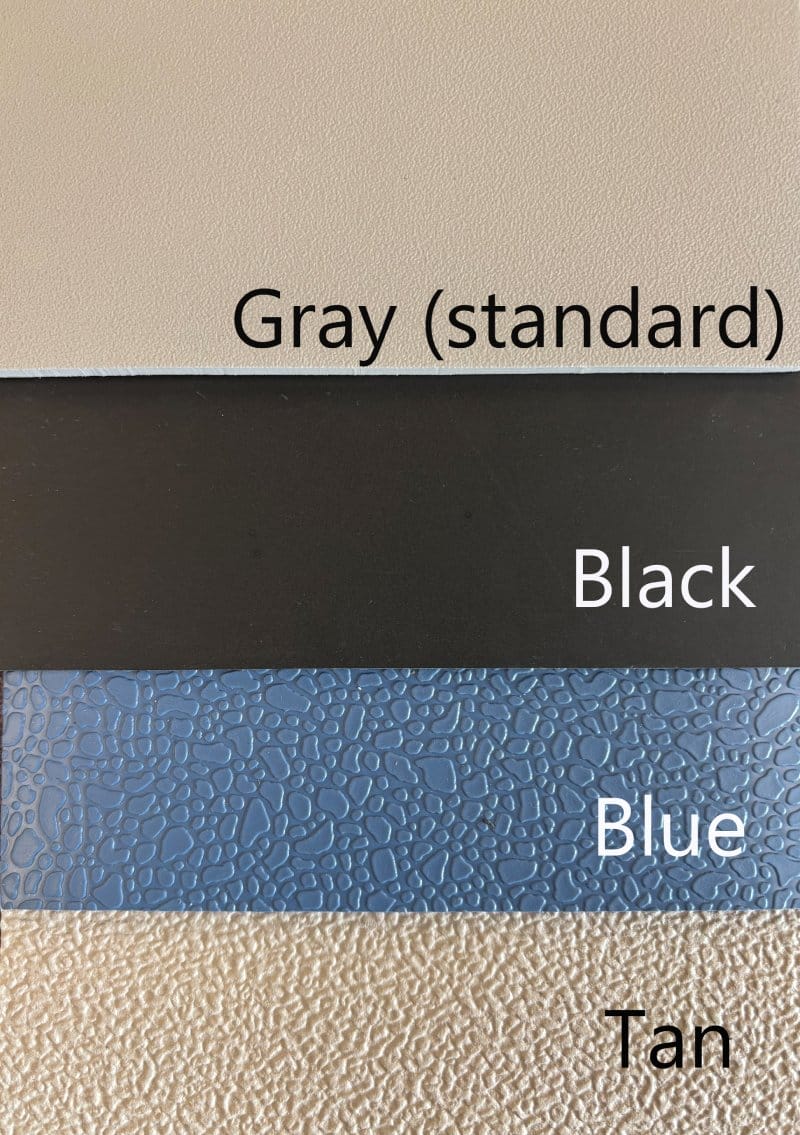

Gray, Tan, Black, Light Blue* *subject to availability
Installation Method
Suspedned from factory or field installed grommets, installed onto structures with mechanical fasteners
-
Color Options
-
Acoustical Specs
Sound Absorption Coefficients at the Octave Band Frequencies Frequency (Hz) 125 250 500 1K 2K 4K STC B-10 R 13 17 22 26 32 37 26 Frequency (Hz) 125 250 500 1K 2K 4K STC B-20 NR 16 22 26 32 35 40 31
