ND Neoprene Mounts
Looking for high frequency vibration mounts? The ND Neoprene Mounts are ideal for noise prevention. When you place neoprene isolators under supported equipment they run quieter and more reliably with less wear. Many times the noise control problem isn’t the walls, ceiling or floors. It’s the mechanical equipment that produces high frequency vibration.
ND Neoprene Mounts are designed for both high static deflections and simplified installation. The rubber in this neoprene floor mount vibration isolator is loaded in both shear and compression to provide rubber in shear performance as well as overload protection.
These neoprene isolation vibration mounts are one piece molded assemblies with skid resistant rubber ridged base plates and circular rubber ridged tops. The complete neoprene covering of the metal parts provides corrosion protection in either humid indoor or outdoor service.
Product Testing & Information
Product TAGUse double deflection neoprene vibration isolation mounts to isolate equipment having slowest rotational component speeds above 1200 RPM that are located in non-critical areas. When a mechanical equipment is located on wide vibration sensitive spans, higher deflection spring neoprene isolators are generally required to cancel the effect of the floor span’s deflection.
Bolting is not necessary on most installations. When the equipment has a flush drain pan or tank on the bottom, mounts can be inverted as shown so the base plate provides support over a larger area.
ND Mounts perform best when placed under equipment located on ground support concrete slabs, above stiff support walls and columns and rigid upper building spans.

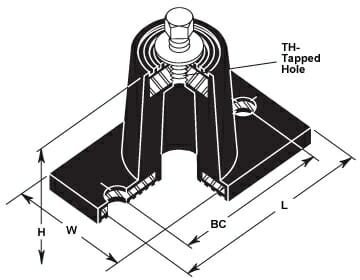

| ND Double Deflection Neoprene Mounts | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type & Size | Max Rated Capacity | Max Rated Deflection | Hardness (Durometer) | Dimensions | ||||
| H | L | W | BC | TH | ||||
| ND-A-Black | 45 lbs | 0.35″ | 30 | 1-1/2″ | 3-3/16″ | 1-5/8″ | 2-3/8″ | 5/16-18 × 3/4″ |
| ND-A-Green | 75 lbs | 40 | ||||||
| ND-A-Red | 125 lbs | 50 | ||||||
| ND-B-Black | 100 lbs | 0.40″ | 30 | 1-7/8″ | 3-7/8″ | 2-5/16″ | 3″ | 3/8-16 × 1″ |
| ND-B-Green | 150 lbs | 40 | ||||||
| ND-B-Red | 235 lbs | 50 | ||||||
| ND-B-White | 380 lbs | 60 | ||||||
| ND-B-Yellow | 600 lbs | 70 | ||||||
| ND-C-Green | 260 lbs | 0.50″ | 40 | 2-3/4″ | 5-1/2″ | 3-5/16″ | 4-1/8″ | 1/2-13 × 1″ |
| ND-C-Red | 400 lbs | 50 | ||||||
| ND-C-White | 600 lbs | 60 | ||||||
