Poly Max™ - Baffle

Polyester Acoustic Ceiling Baffles

Poly Max polyester acoustical Baffles are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde. Decorative and tackable, apply the acoustical baffles to ceilings to tame echo and reverberation. Available in a variety of colors or printed with custom graphics to blend into any decor. Material: 100% polyester (60% PET-recycled fiber, 40% PET-virgin fiber). Poly Max passes the CDPH V1.2 test standard for low VOC emissions and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials.

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests Additional Resources

Product Specs

Applications

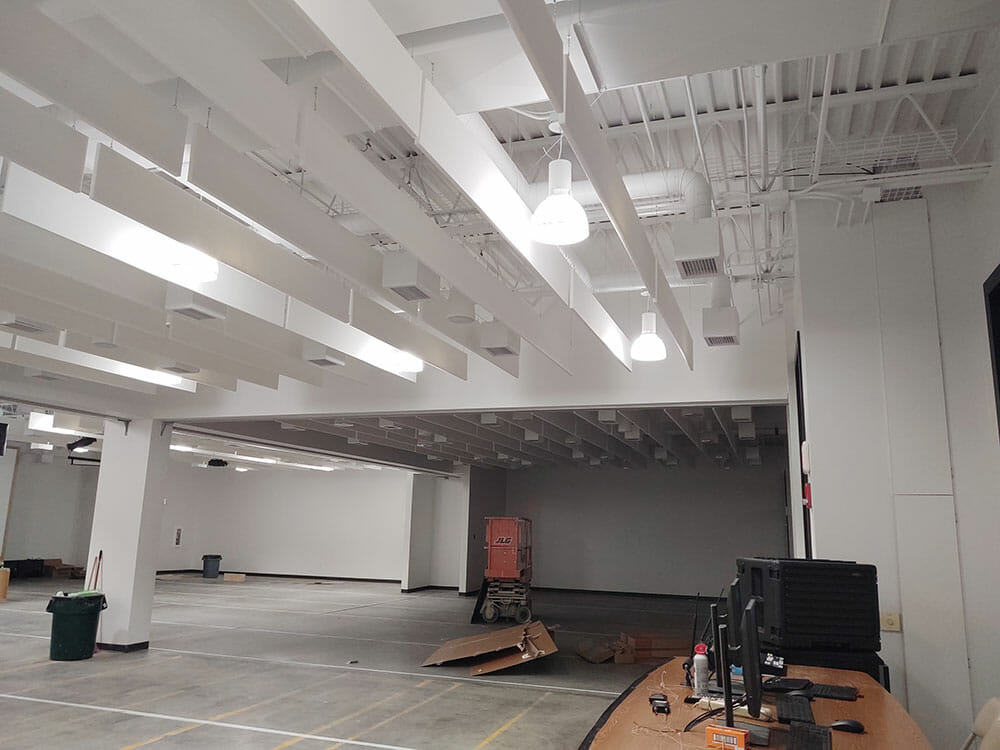

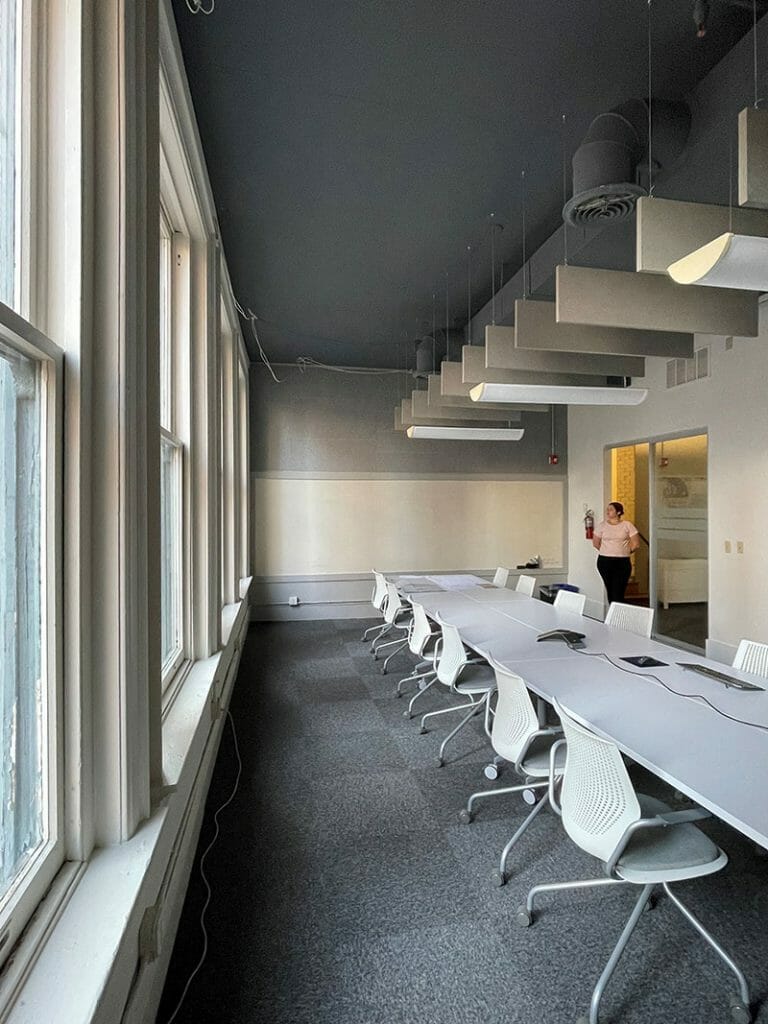

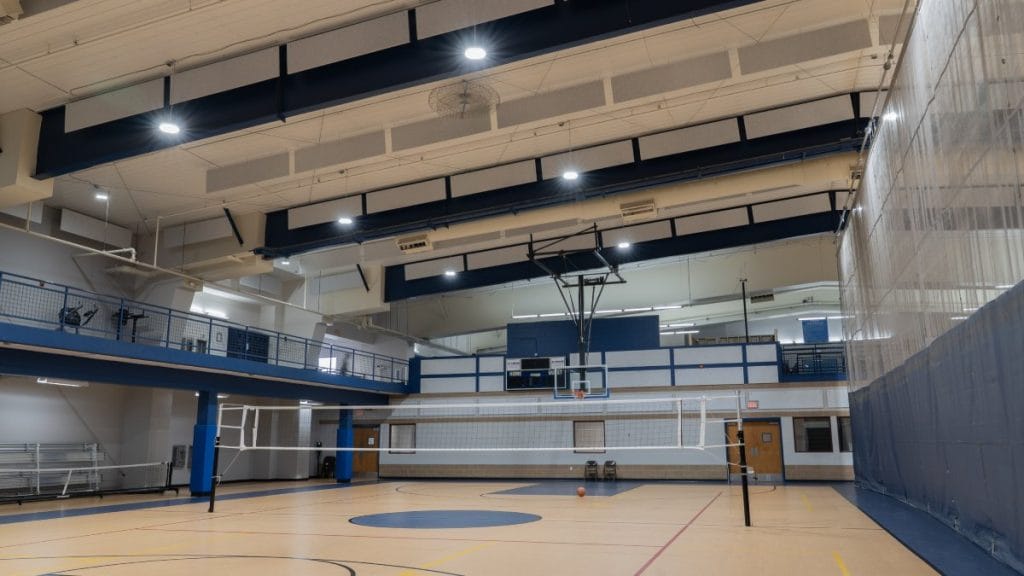

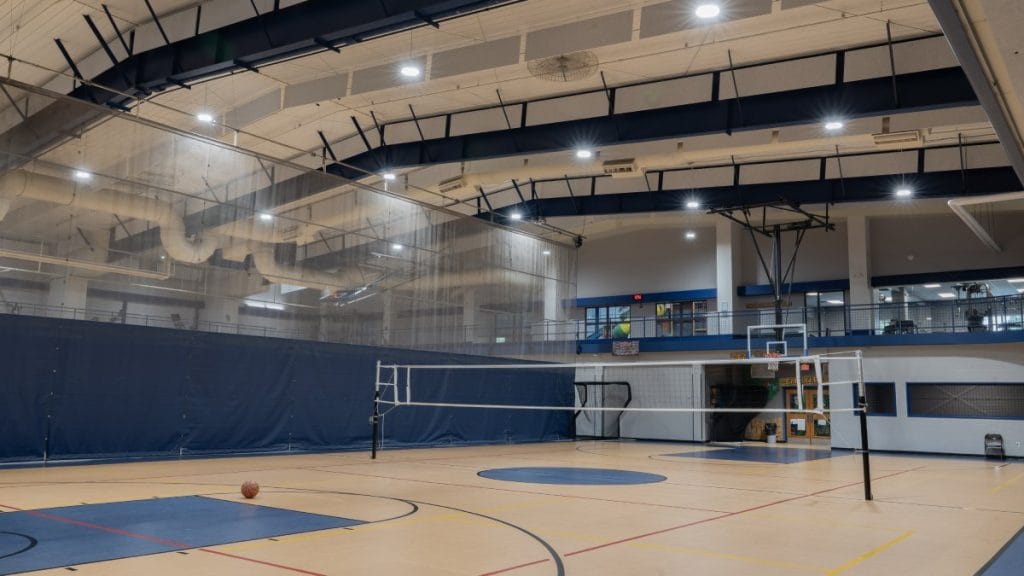

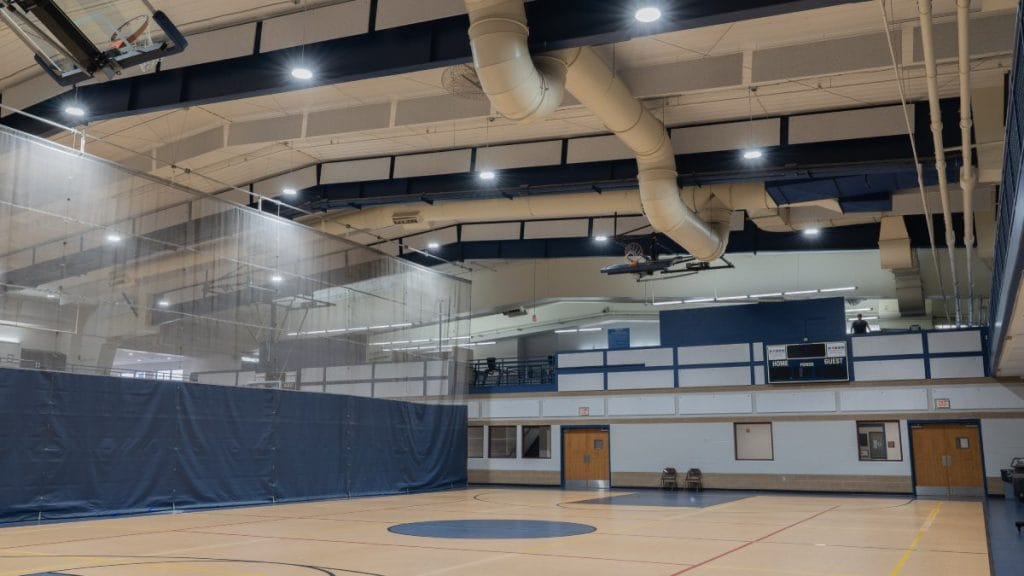

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

100% Polyester (60% PET-recycled fiber, 40% PET-virgin fiber)

Thickness

1/2"
1"
2"

Density

1/2": 12.5 lb. pcf
1": 7.5 lb. pcf
2": 5 lb. pcf

Size

Standard Sizes
24" x 48"
48" x 96"
Custom Sizes
Up to 48" x 96"

Color

See color options tab for full color availability.

Installation Method

Suspended Panel
Grommets: Available in brass or silver color for 1/2" and 1" baffles
Eyelets: Available in silver color for 1" and 2" baffles
Color Options

1/2" Color Options

White

Beige

Tan

Brown

Silver

Gray

Black

Blue

Purple

Red

Orange

Lime

Printed Graphics

1" and 2" Color Options

White

Beige

Black

Printed Graphics

Acoustical Specs

Poly Max – Octave Band Sabins per Baffle
Testing Mount	Panel Thickness	125 Hz	250 Hz	500 Hz	1 kHz	2 kHz	4 kHz	Avg. Sabins per Baffle
J-Mount 12″ depth with 12″ Spacing	1/2″	1.29	1.47	2.12	3.24	4.65	5.62	2.85
	1″	1.39	1.74	2.96	4.46	6.04	5.82	3.80
	2″	1.94	2.45	4.23	6.00	6.77	6.67	4.85
J-Mount 24″ depth with 24″ spacing	1/2″	3.34	3.46	5.11	6.47	9.30	10.87	6.10
	1″	3.43	3.80	6.57	9.95	12.04	12.13	8.10
	2″	4.65	5.49	9.36	12.81	13.72	13.40	10.35

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84

Light Reflectance

1/2" White - 87
1" White - 83
2" White - 82

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)

Passes ASTM C1338 test (No fungal growth)
