HMIB Hanger Mounts
The HMIB Mounts can be used to break the path of vibration. This anti-vibration rubber mount is an inexpensive way of providing some relief from the noise of a wall fan, a kitchen exhaust fan or a fan assisted strip heater.
*Used for Suspended or Floor Mounted Equipment
Product Testing & Information

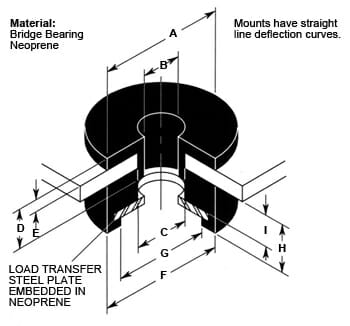

Product TAG| HMIB Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C | D | E | F | G | H | I | Rated Load | Rated Deflection |
| HMIB-1/4 | 1″ | 1/4″ | 1/2″ | 3/8″ | 1/8″ | 1-1/2″ | 1″ | 1/2″ | 3/8″ | 60 lbs | .075″ |
| HMIB-3/8 | 1-1/4″ | 3/8″ | 5/8″ | 1/2″ | 1/8″ | 1-3/4″ | 1-1/4″ | 5/8″ | 1/2″ | 70 lbs | .095″ |
| HMIB-1/2 | 1-5/8″ | 1/2″ | 3/4″ | 1/2″ | 1/8″ | 1-3/4″ | 1-1/4″ | 5/8″ | 1/2″ | 100 lbs | .095″ |
| HMIB-5/8 | 2″ | 5/8″ | 7/8″ | 5/8″ | 3/16″ | 2″ | 1-1/2″ | 1/2″ | 1/2″ | 120 lbs | .110″ |
