Envirocoustic™ Wood Wool - Tegular Edge Ceiling Tile

Cementitious Wood-Fiber Acoustic Tegular Edge Ceiling Tile

Envirocoustic™ Wood Wool Tegular Edge Ceiling tiles provide a unique design aesthetic and lead the acoustical-panel products category as an eco-friendly, high-performing, and cost-effective sound absorber that manages echo and reverberation to improve the acoustics in a room or space. Ecologically, Envirocoustic Wood Wool is simple to produce with three ingredients, wood fiber, water and Portland cement. Tegular Edge Ceiling tiles meet the California Department of Public Health VOC emissions standards, making their projects eligible for LEED credits. Highly resistant to microbial and fungal growth, Envirocoustic Tegular Edge Ceiling Tiles are a sound choice for a variety of public and private spaces. The tiles are Class A fire rated and pass the NFPA 286 fire test. Standard-sized Tegular Edge Ceiling Tiles have quick lead times and can be installed easily by dropping them into a standard 15/16” H.D. T-Grid. With a state-of-the-art manufacturing process, Envirocoustic Wood Wool Tegular Edge Ceiling tiles are produced with even thicknesses, consistent dimensions, and clean, square edges.

These eco-friendly cementitious wood-fiber tiles not only liven up a room with design variety, but Envirocoustic Wood Wool Tegular Ceiling tiles also reduce echo and reverberation through sound absorption. Wood-fiber ceiling tiles can be paired with a cellulose acoustical backer to further improve acoustical performance in any interior space.

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests CAD / BIM / Revit General Resources
  • Product Specs

    Applications

    Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

    Material Composition

    Wood fiber, Portland cement, and water.

    Wood fiber is a natural material, color variations may occur

    Thickness

    1"
    1-3/8"
    2"

    Size

    Standard Sizes
    23-3/4" x 23-3/4"
    23-3/4" x 47-3/4"

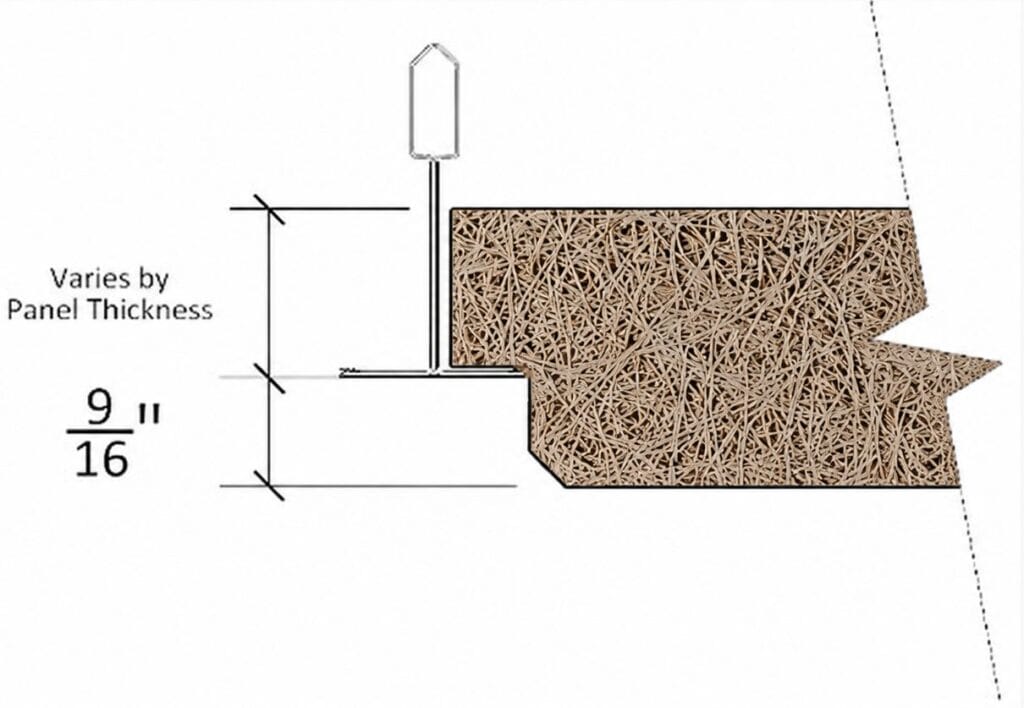

    Edge Detail

    Tegular

    Finishes

    Primed Clear
    Primed White
    Painted

    Installation Method

    Lay-in

  • Finish Options
  • Acoustical Specs
    Envirocoustic™ Wood Wool – NRC Results
    Panel Thickness No Backer
    (E-400 Mount)
    1″ CFAB Backer
    (E-400 Mount)
    2″ CFAB Backer
    (E-400 Mount)
    5/8″ 0.50 0.90 0.95
    1″ 0.40 0.80 0.85
    1-3/8″ 0.60 0.85 0.90
    2″ 0.75 0.95 0.95
  • Material Performance

    Fire Performance

    Class A Fire Rated per ASTM E84
    Passes NFPA 286 Contribution to Room Fire Growth Test

    Light Reflectance

    Primed Clear - 50
    Primed White - 70

    Environmental

    Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
    Passes ASTM D3273 test (100% clear of fungal growth)
    Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)
