Noise S.T.O.P.™ Ultra-San Clean Room Ceiling and Wall Panels
- Superior Acoustics
- Approved for Demanding Clean Room Requirements
- Cleanable/Washable
Product Testing & Information
- Product Specs
- CSI Specifications
- Installation Instructions

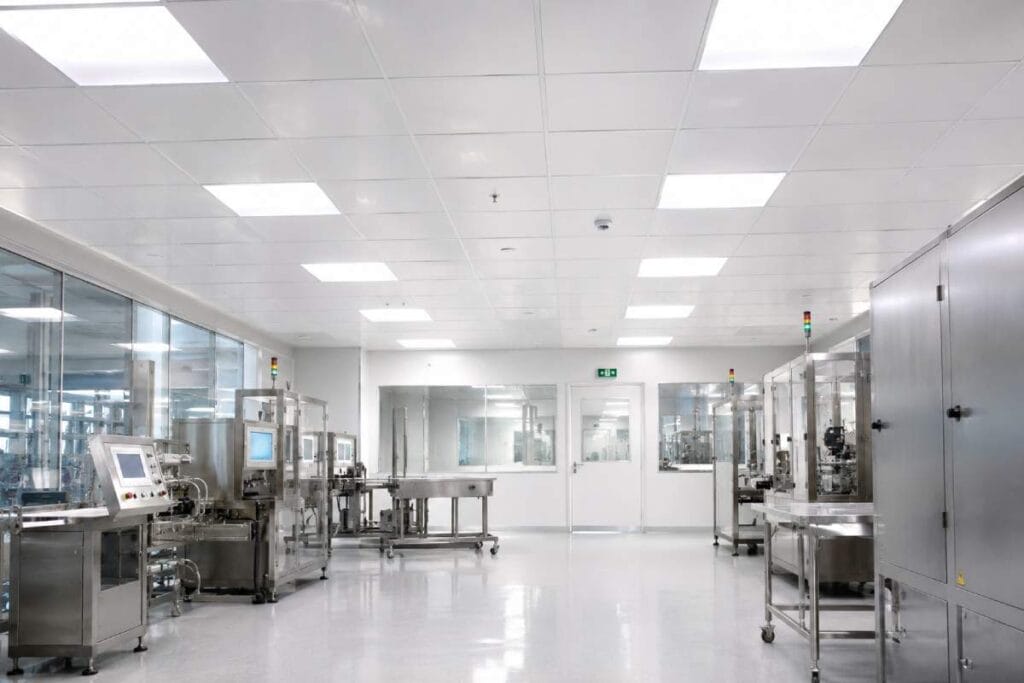

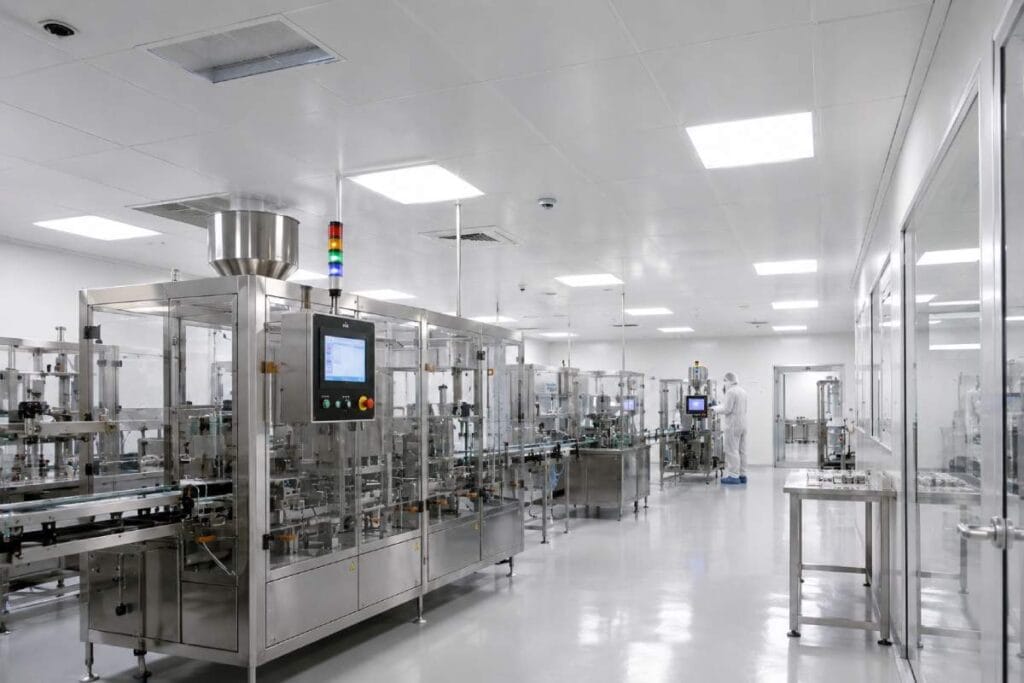

Product TAGNoise S.T.O.P.™ Ultra-San soundproofing clean room ceiling tiles offer superior acoustics while meeting demanding clean room requirements. Noise S.T.O.P.™ Ultra-San clean room acoustic panels are available in either faced only model or completely encapsulated model. The 1 mil reinforced white mylar is USDA & FDA approved for clean room applications.
Product Specs
Material
6-7lb pcf fiberglass core
Applications

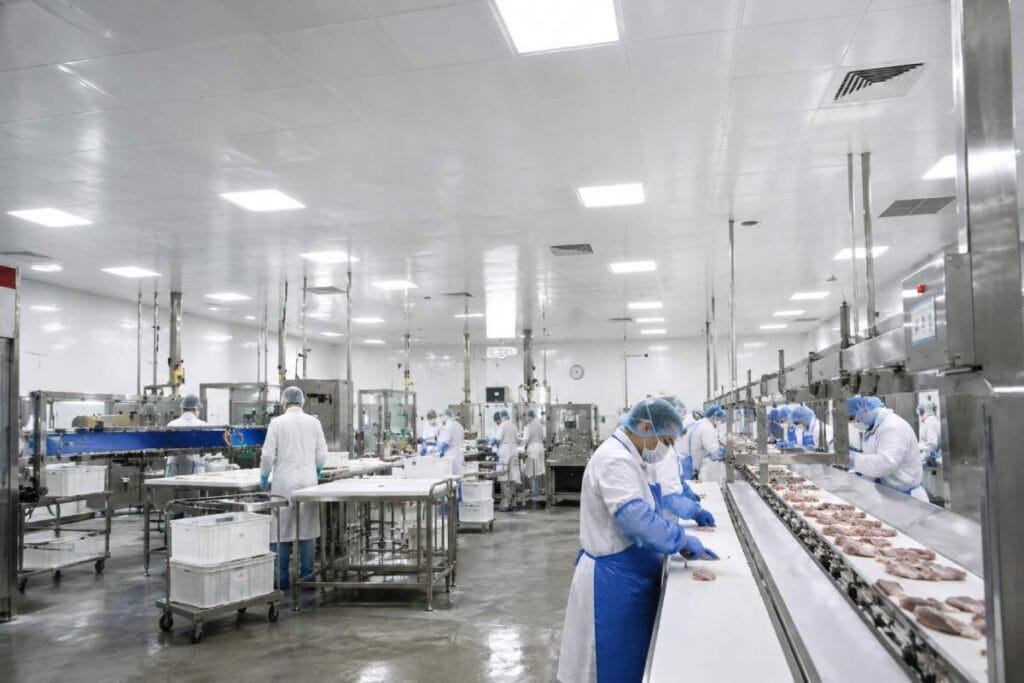

Typical uses include food processing plants, cafeterias, kitchen areas, restaurants and veterinary clinics.
Thickness
1″ or 2″
Size
Nominal 2′×2′ or 2′×4′. Custom sizes up to 4' x 8'.
Facing

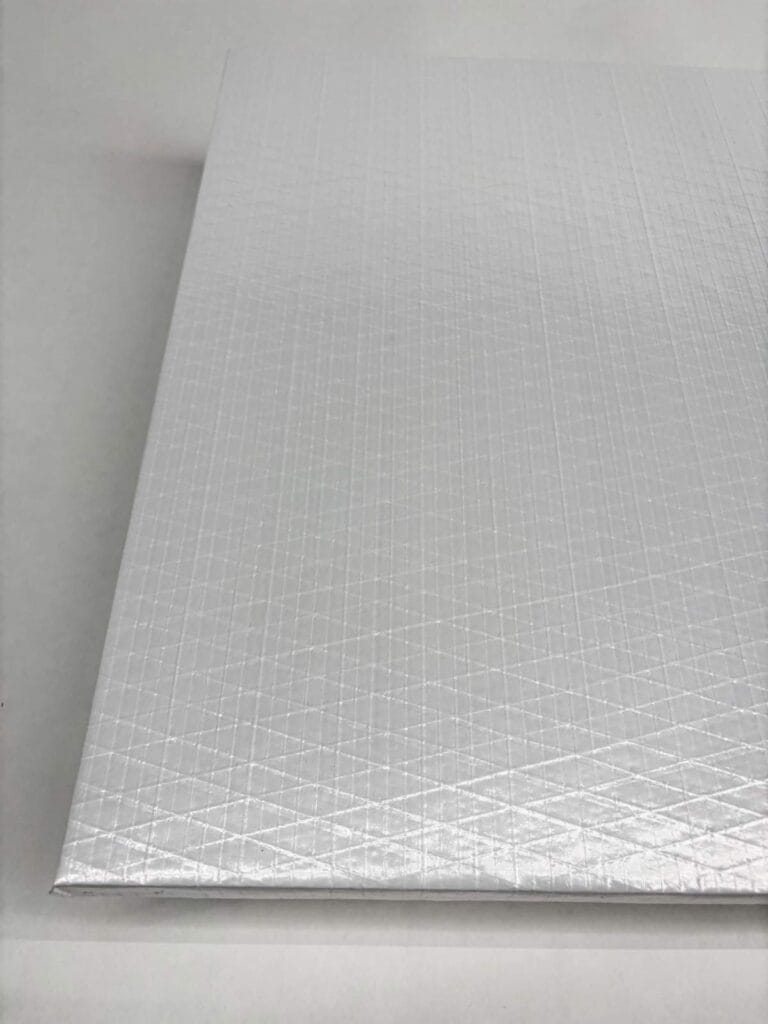

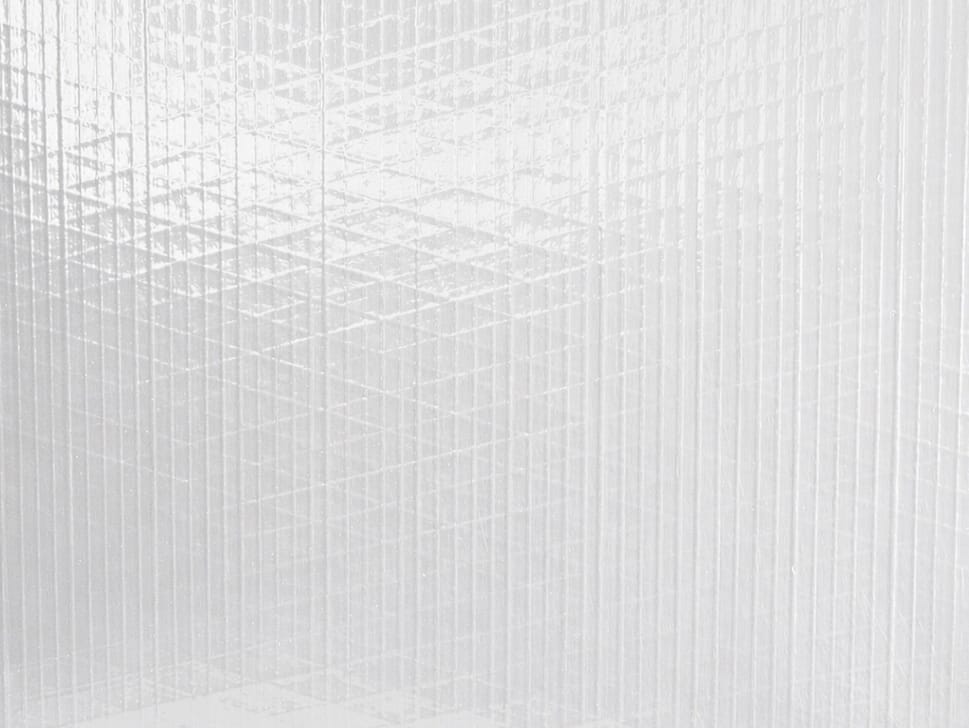

1 Mil Reinforced White Mylar
Facing Options

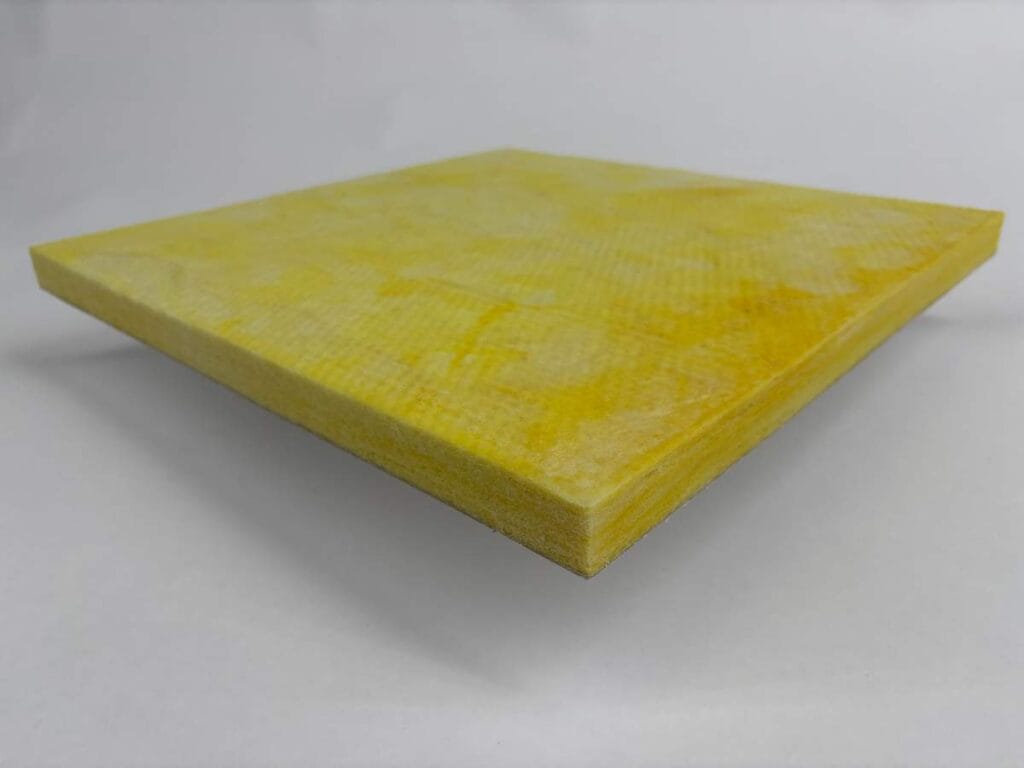

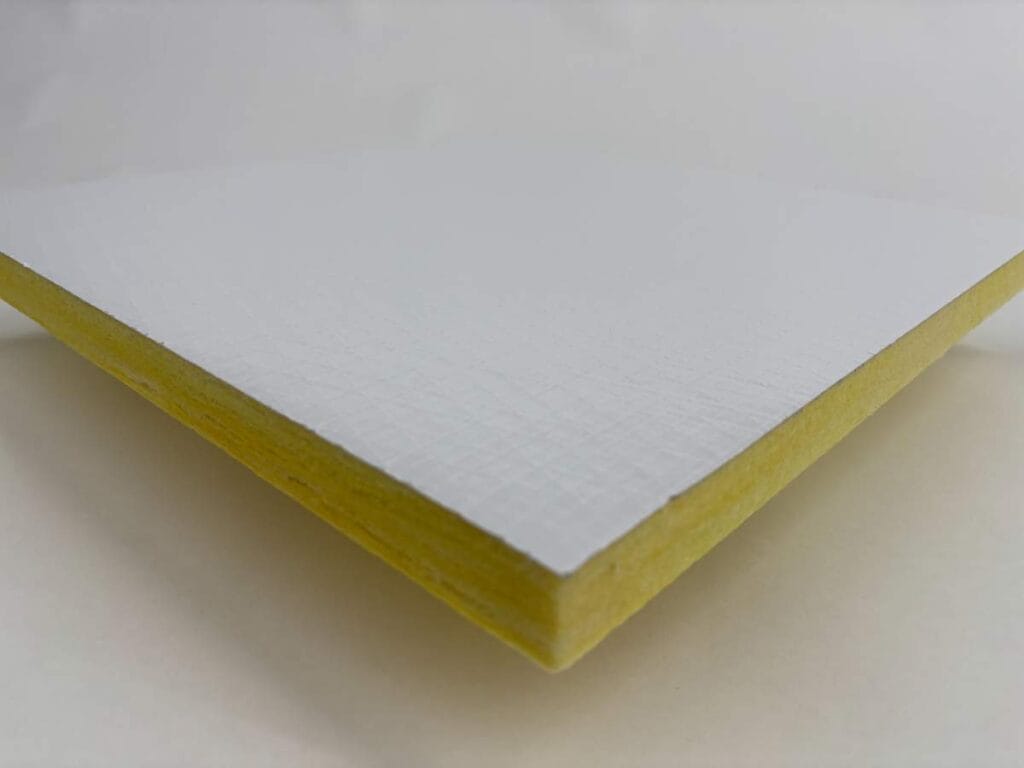

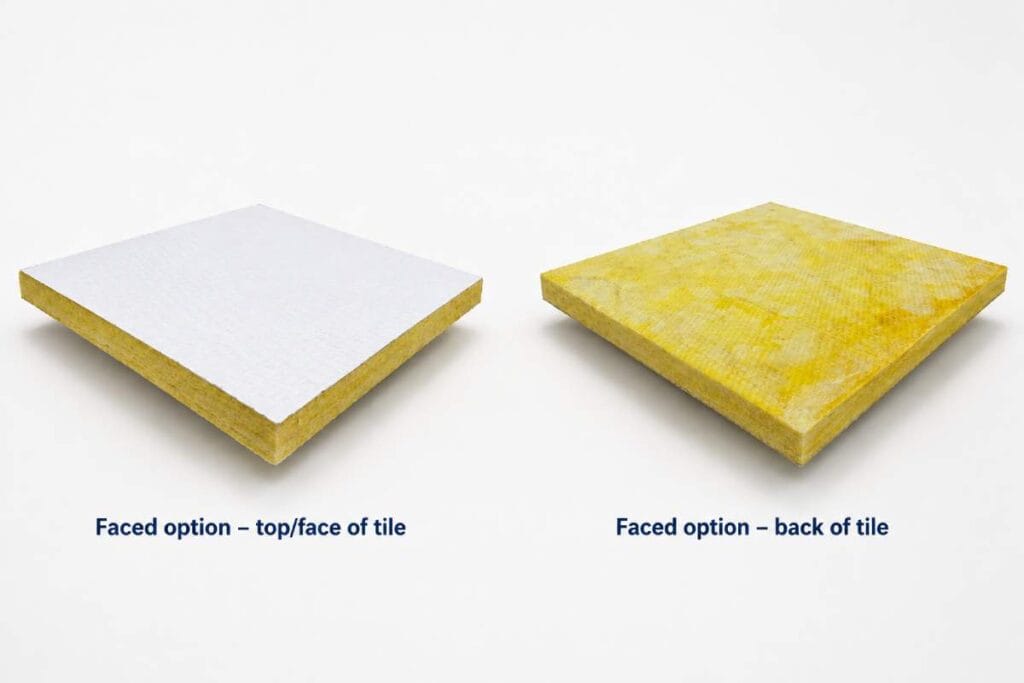

Faced 1 Side Only

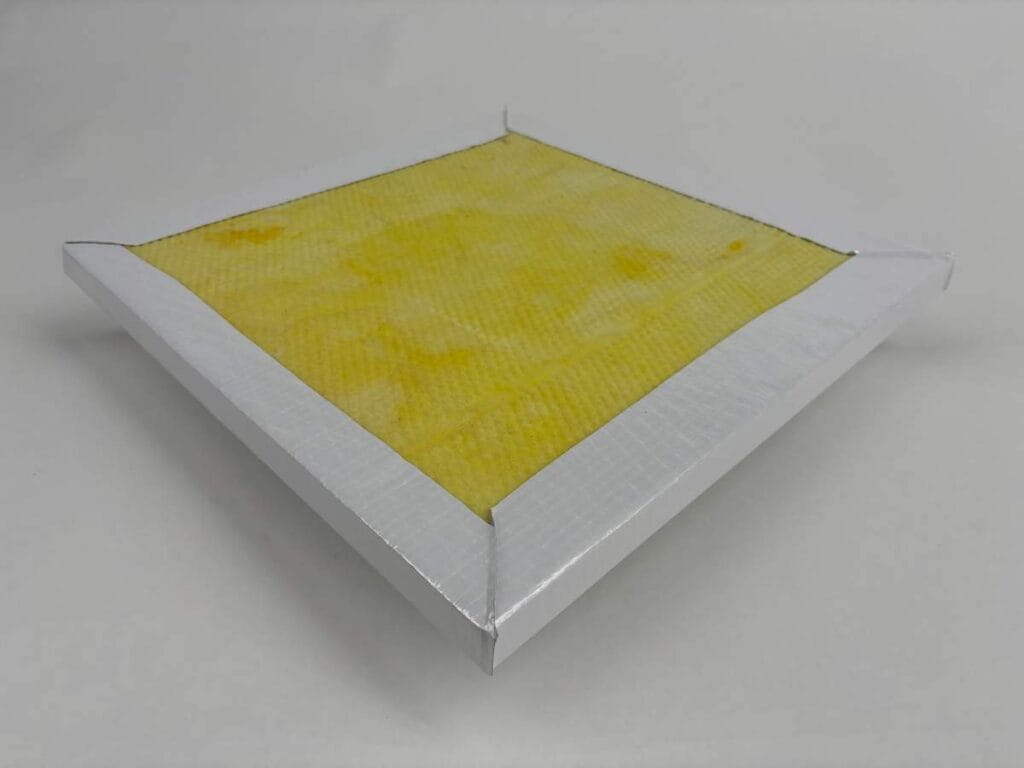

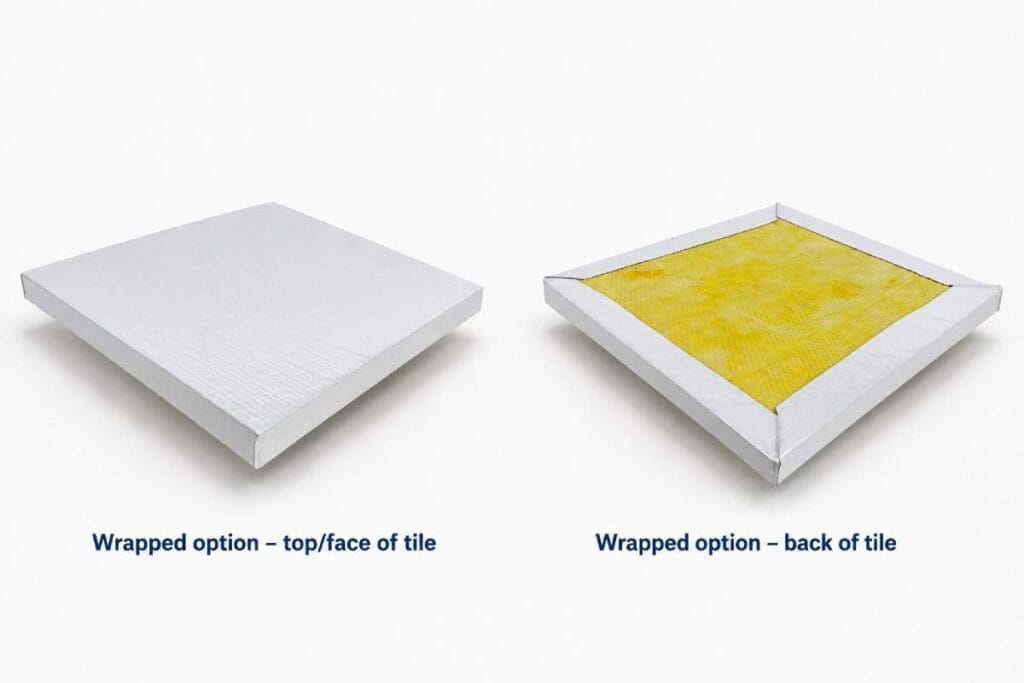

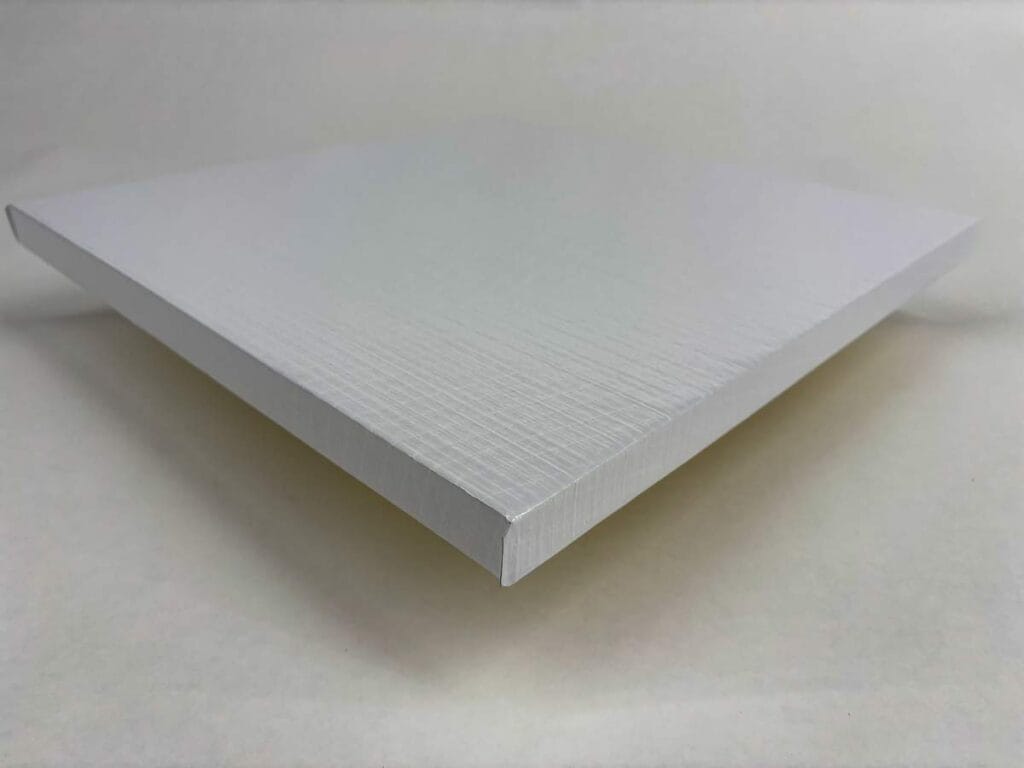

Faced & Wrapped Edges

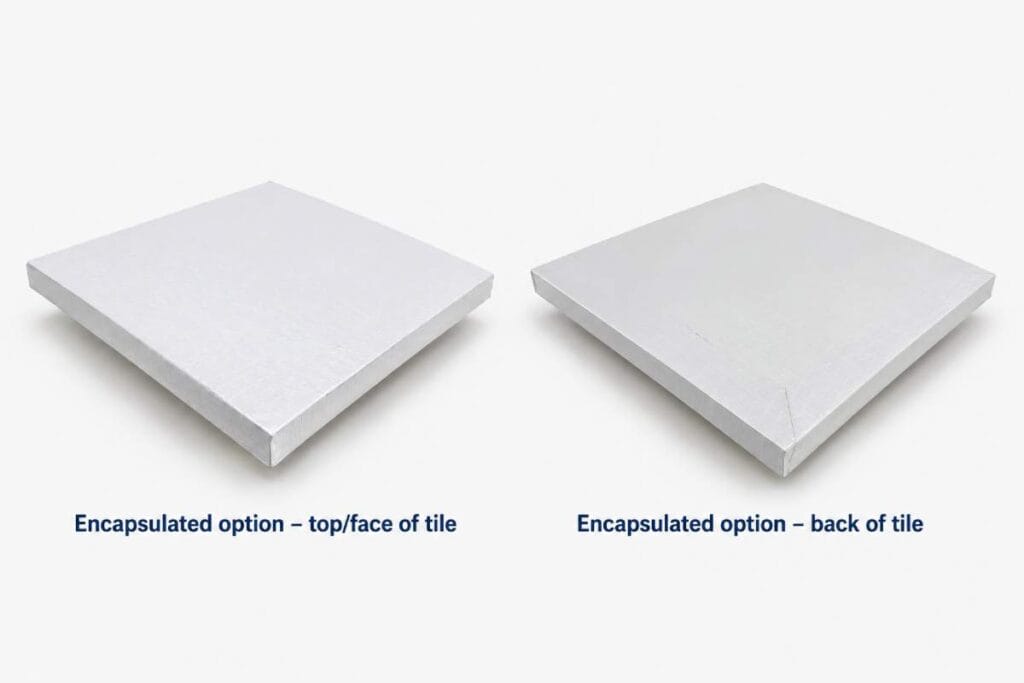

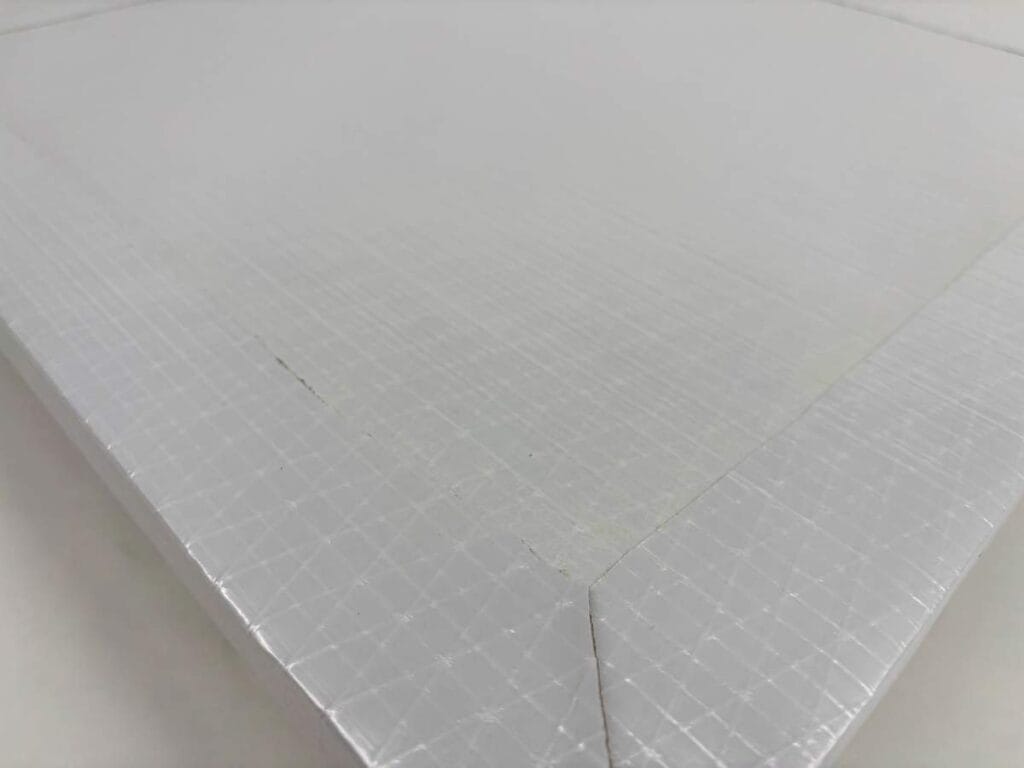

Completely Encapsulated
Installation
Ceiling panels can be dropped in to 15/16” T-Grid. Wall panels can be mounted with Z-Clips.
Flammability
Product Components Class A Fire Rated per ASTM E84
| Ultra-San Ceiling and Wall Panel – Acoustical Performance | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Thickness | Facing | Testing Mount | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC | SAA |
| 1″ | Encapsulated | A | 0.00 | 0.12 | 0.49 | 0.62 | 0.41 | 0.13 | 0.40 | 0.39 |
| 1″ | Encapsulated | E400 | 0.11 | 0.26 | 0.19 | 0.75 | 0.54 | 0.22 | 0.45 | 0.38 |
| 2″ | Encapsulated | A | 0.02 | 0.52 | 0.36 | 0.56 | 0.41 | 0.21 | 0.45 | 0.43 |
| 2″ | Encapsulated | E400 | 0.03 | 0.21 | 0.58 | 0.60 | 0.47 | 0.19 | 0.45 | 0.42 |
