Envirocoustic™ Wood Wool - Direct Attach Ceiling and Wall Panels

Cementitious Wood-Fiber Direct Attach Acoustic Ceiling and Wall Panels

Envirocoustic™ Wood Wool leads the acoustical-panel products category as an eco-friendly, high-performing, and cost-effective sound absorber that manages echo and reverberation. Ecologically, Envirocoustic Wood Wool is simple to produce with three simple ingredients, wood fiber, water and Portland cement. Envirocoustic Wood Wool Standard panels meet the California Department of Public Health VOC emissions standards and are also highly resistant to microbial and fungal growth making them eligible for LEED credits as well as a sound choice for a variety of spaces . In addition, they are Class A fire rated and pass the NFPA 286 fire test. Standard panels provide quick lead times and can be installed easily by attaching panels directly to substrates or using furring strips. With a state-of-the-art manufacturing process, Envirocoustic Wood Wool Standard panels are produced with even thicknesses, consistent dimensions, and clean, square edges for seamless panel-to-panel installation.

The economical Cementitious Wood Wool Standard panels not only liven up a room’s aesthetics with endless design variety and visual interest, but also improve the acoustics of a room or space.

See less

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests CAD / BIM / Revit General Resources

Product Specs

Applications

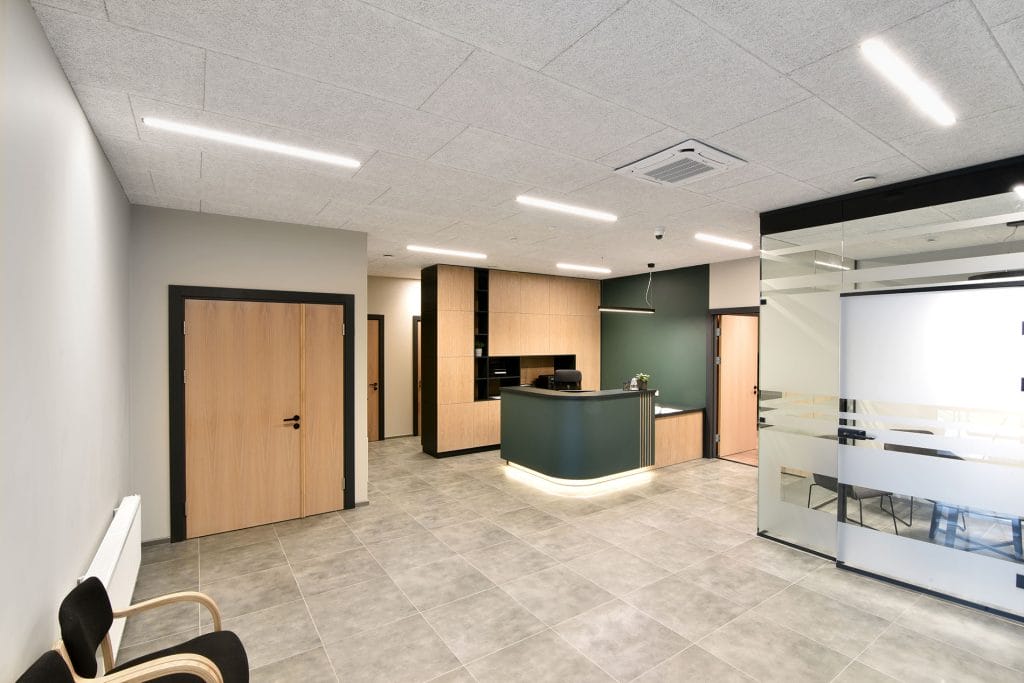

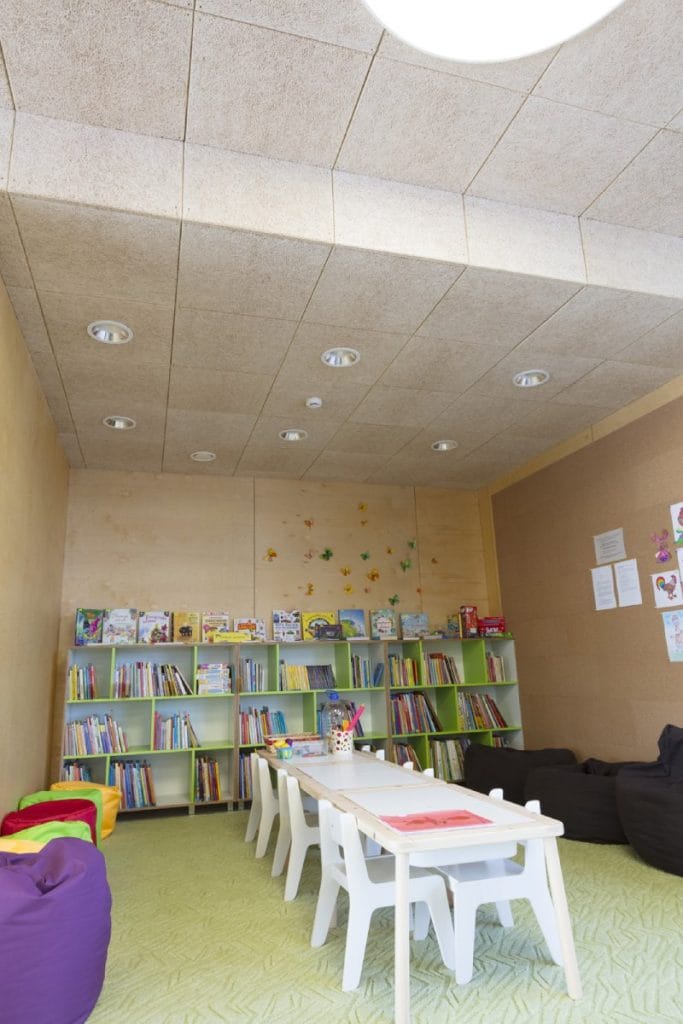

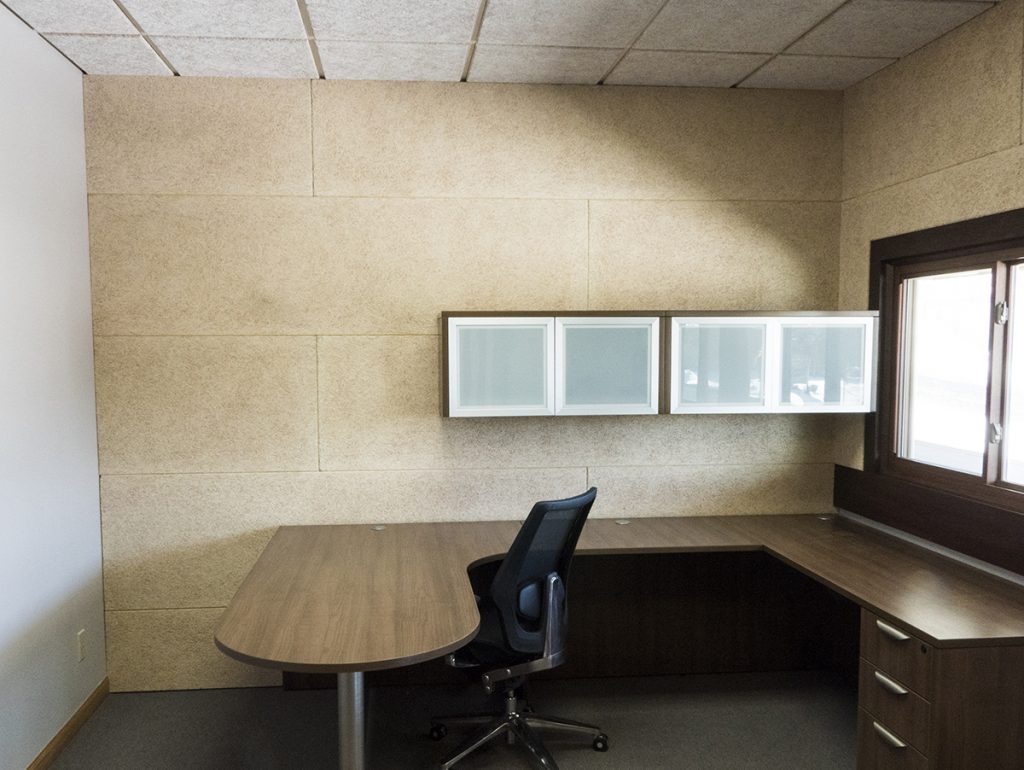

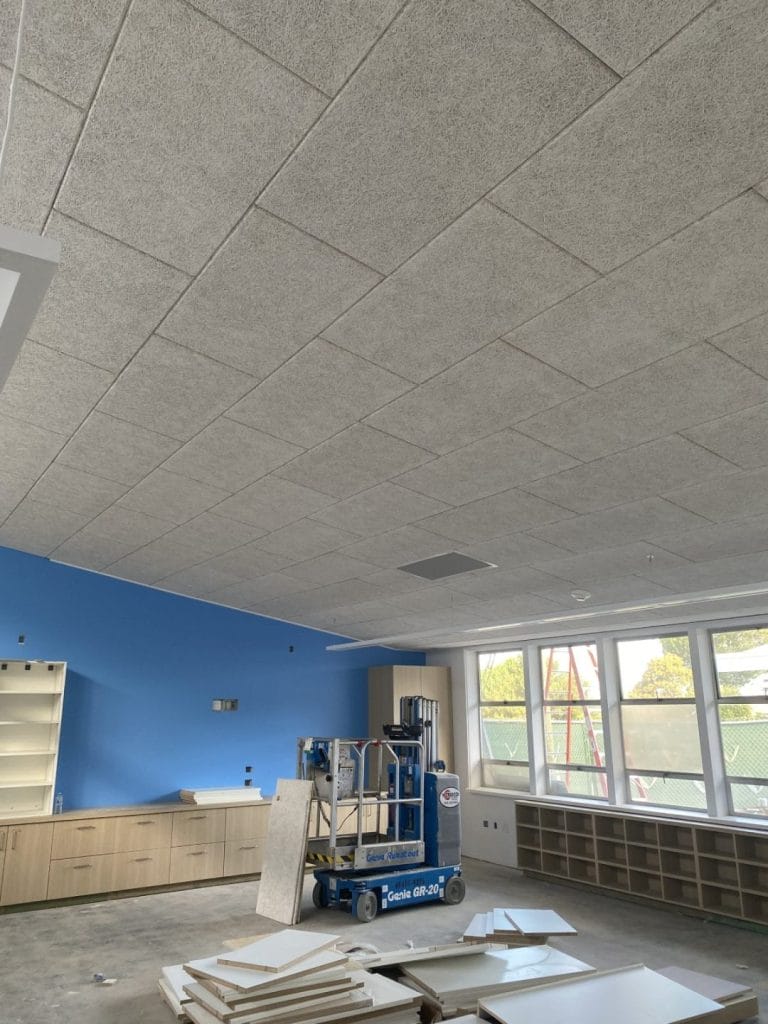

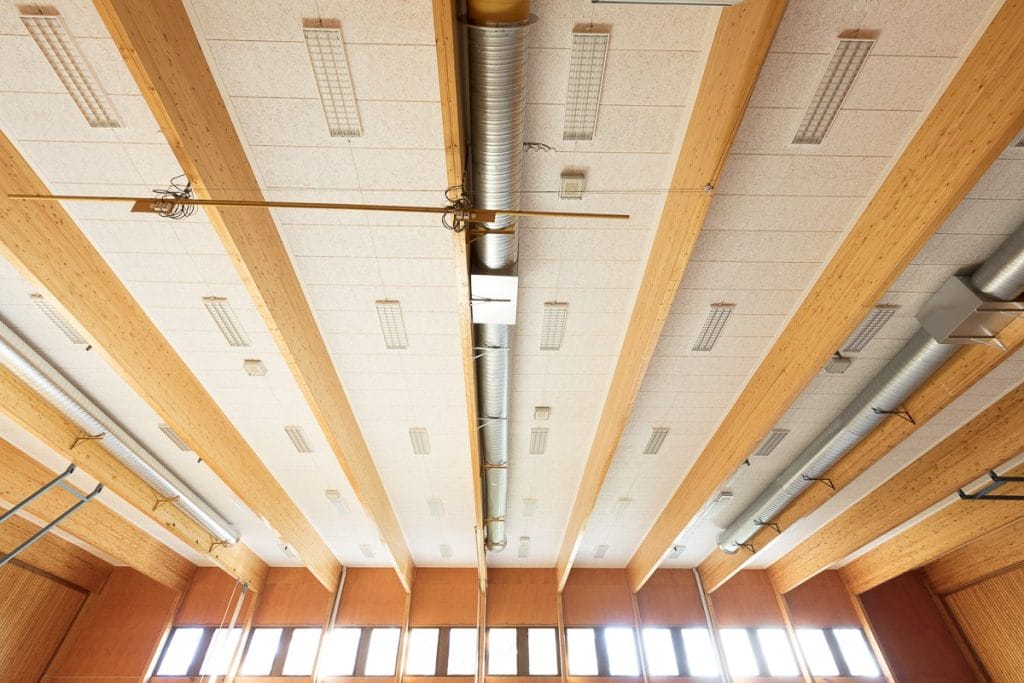

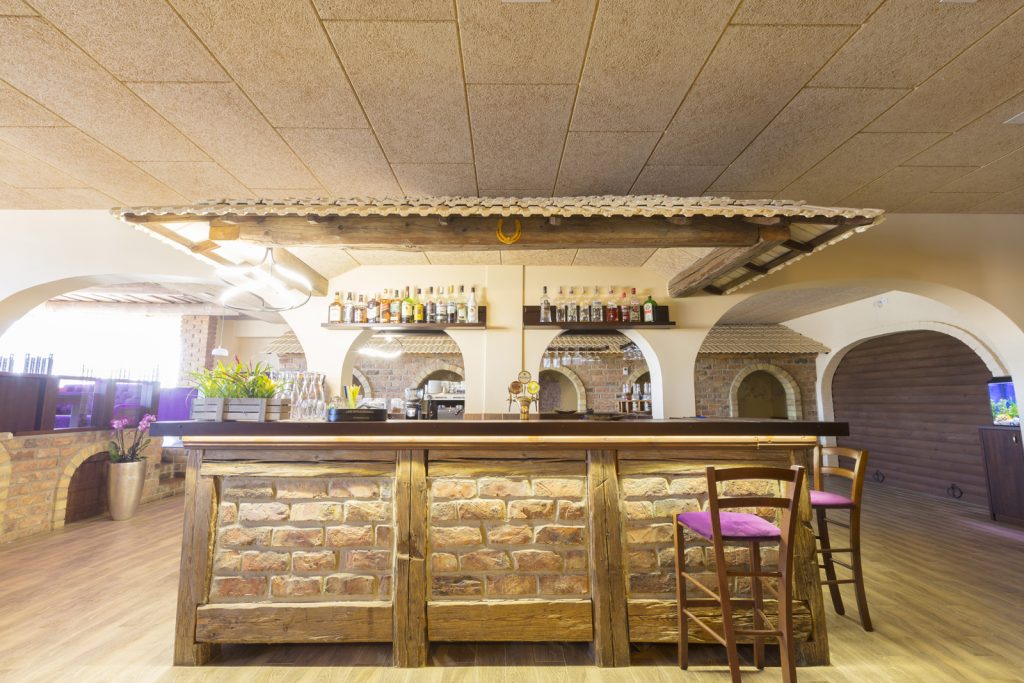

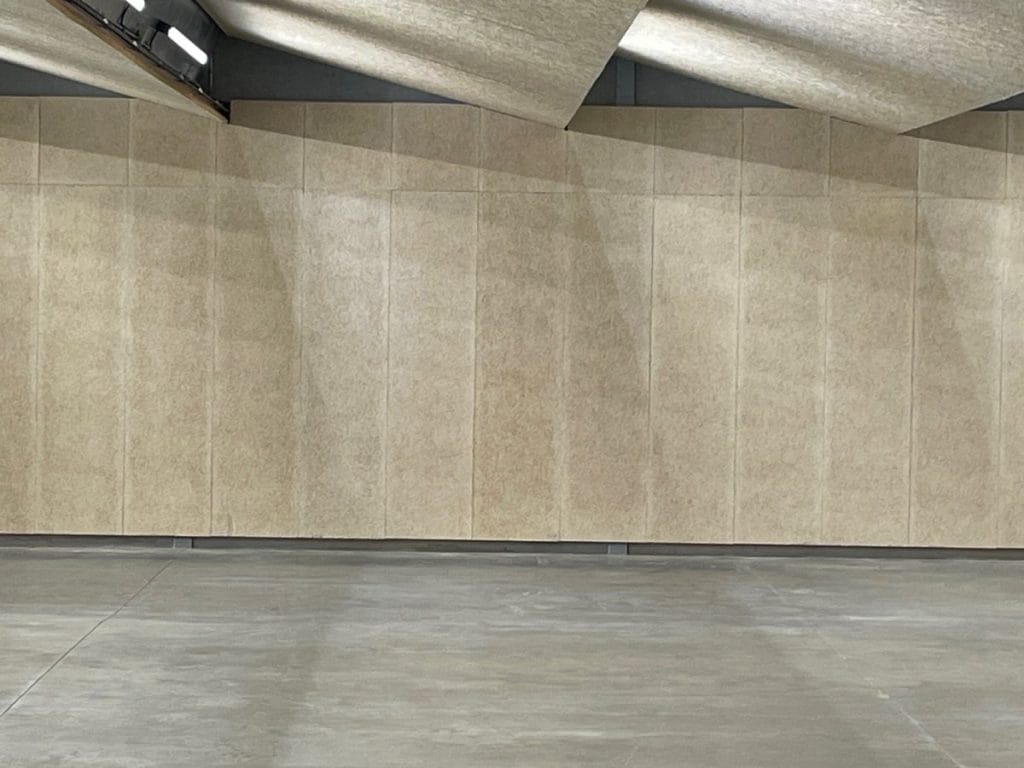

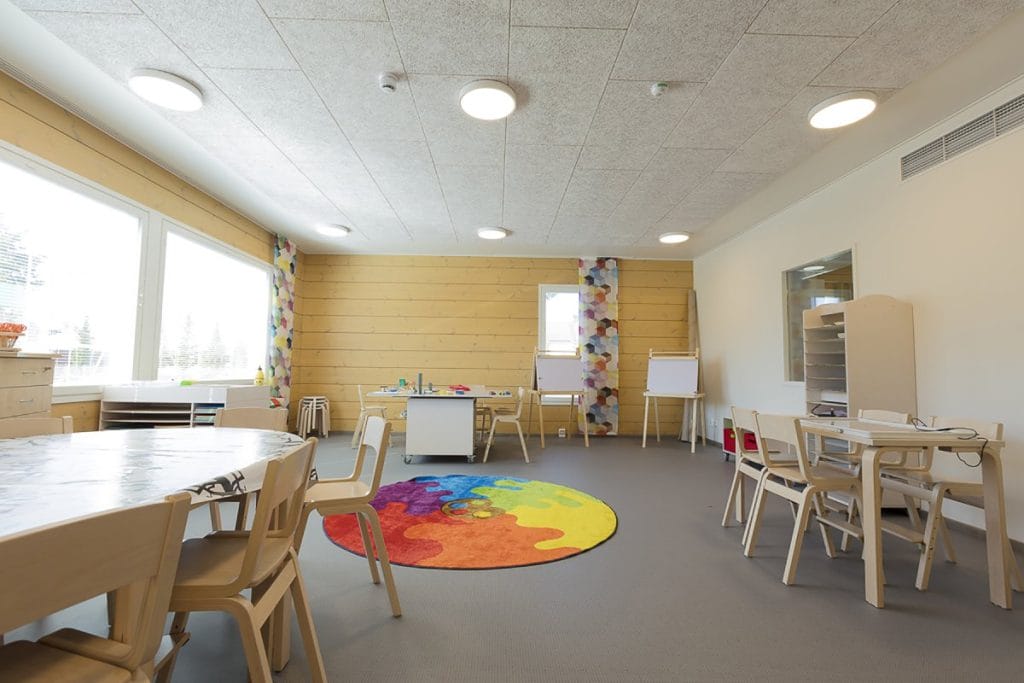

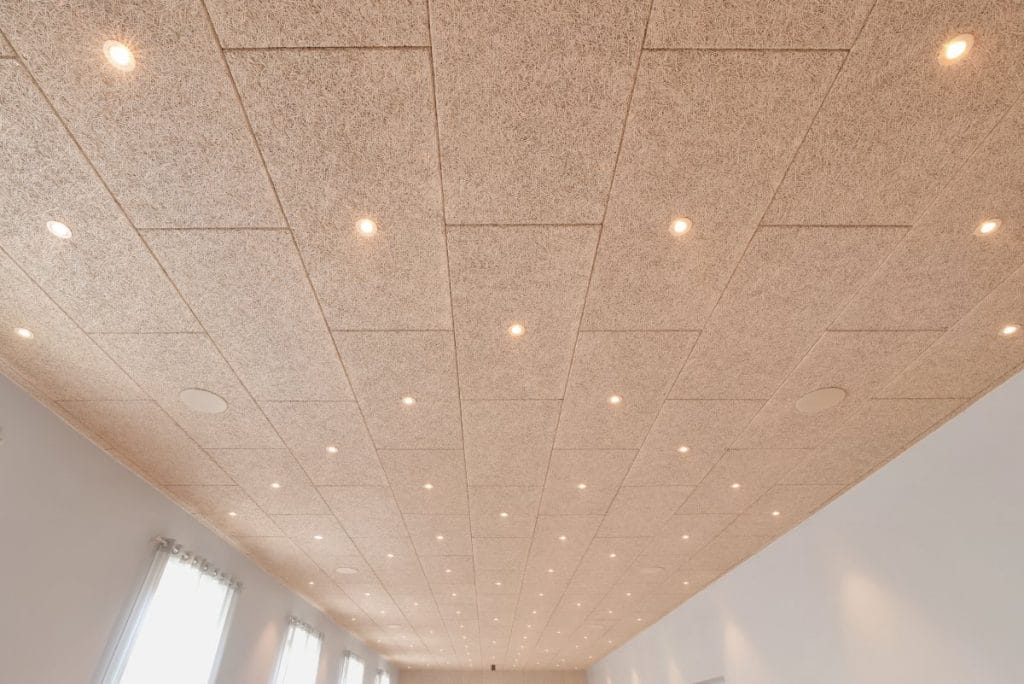

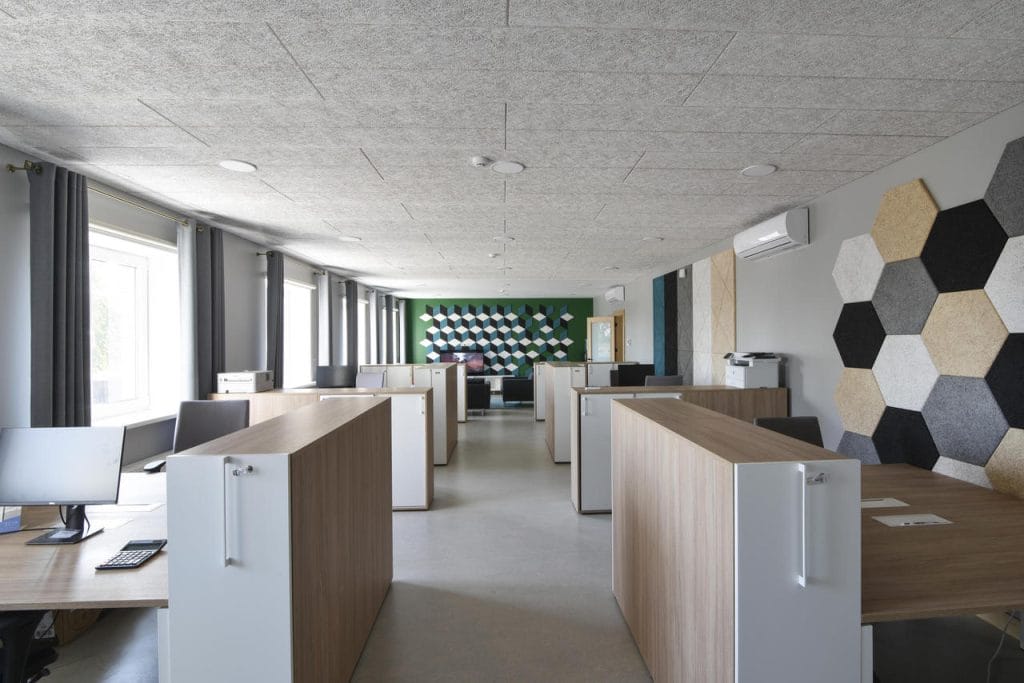

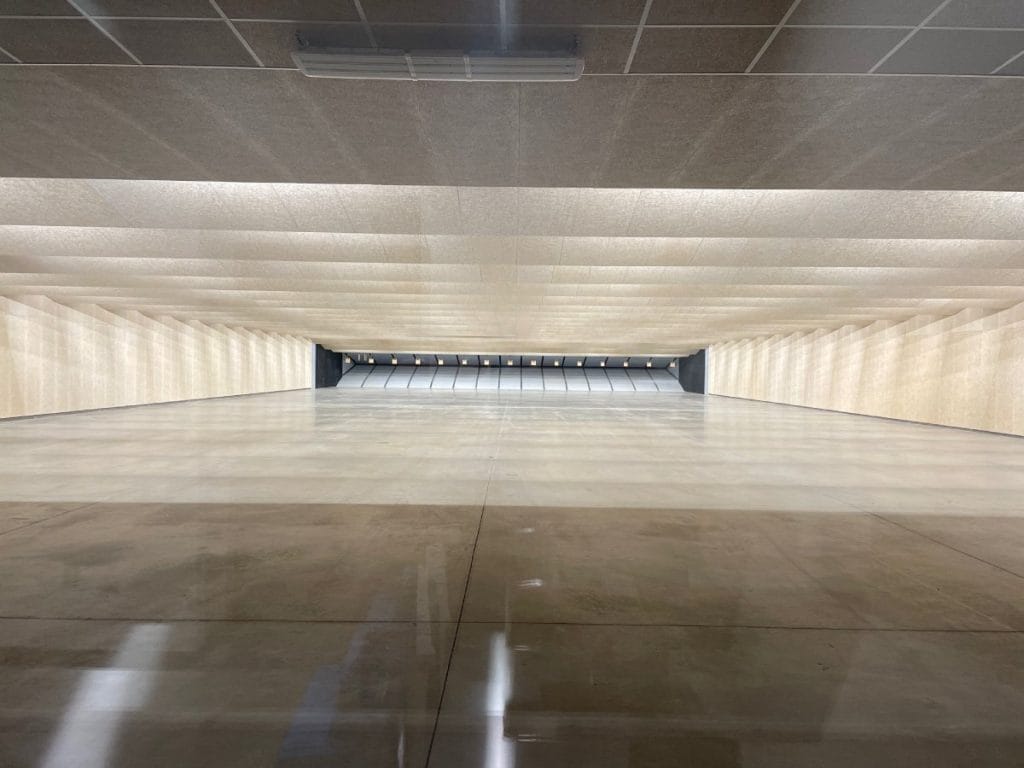

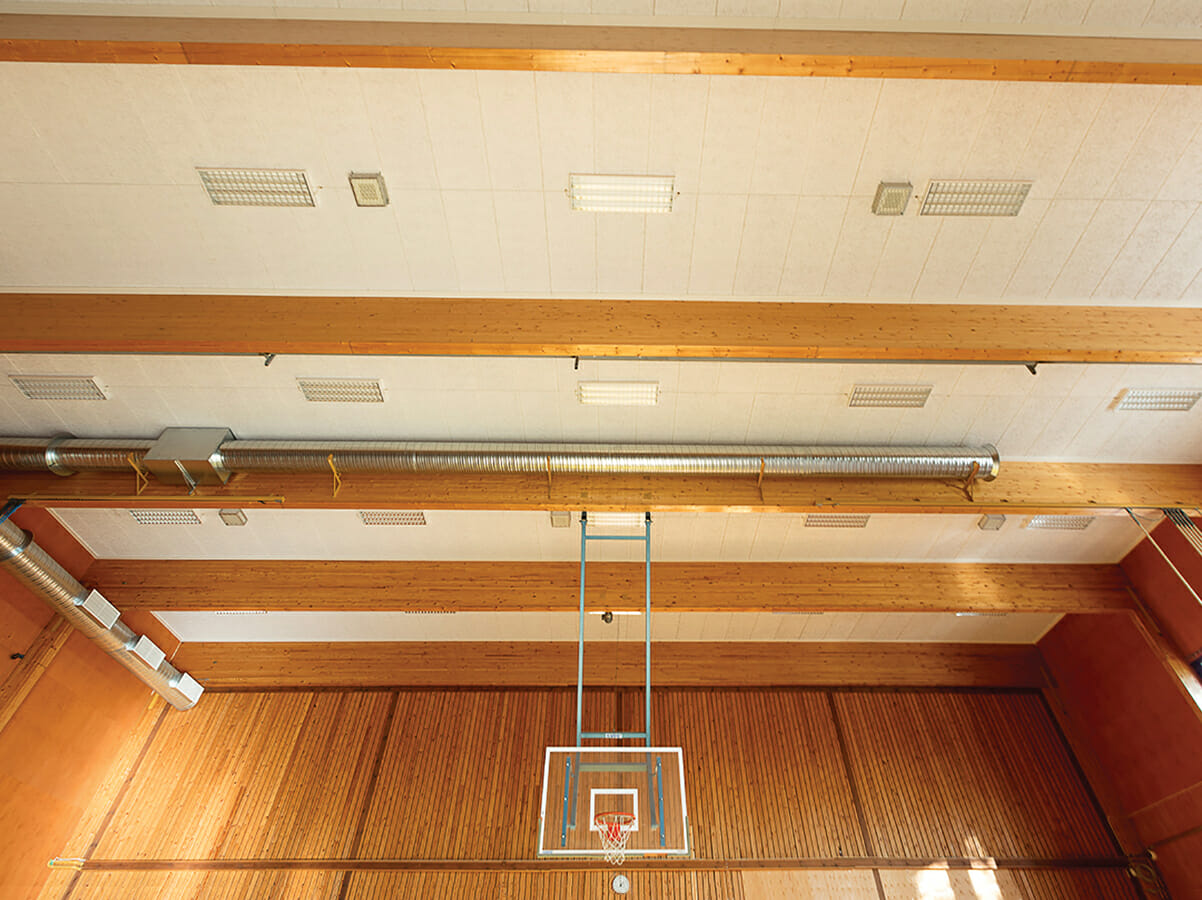

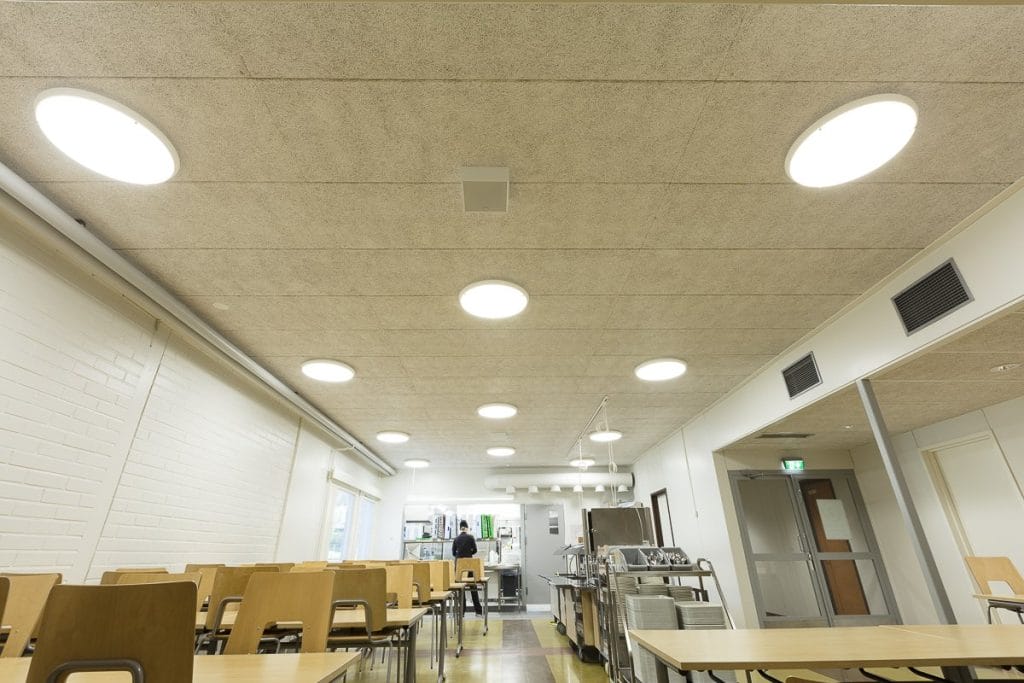

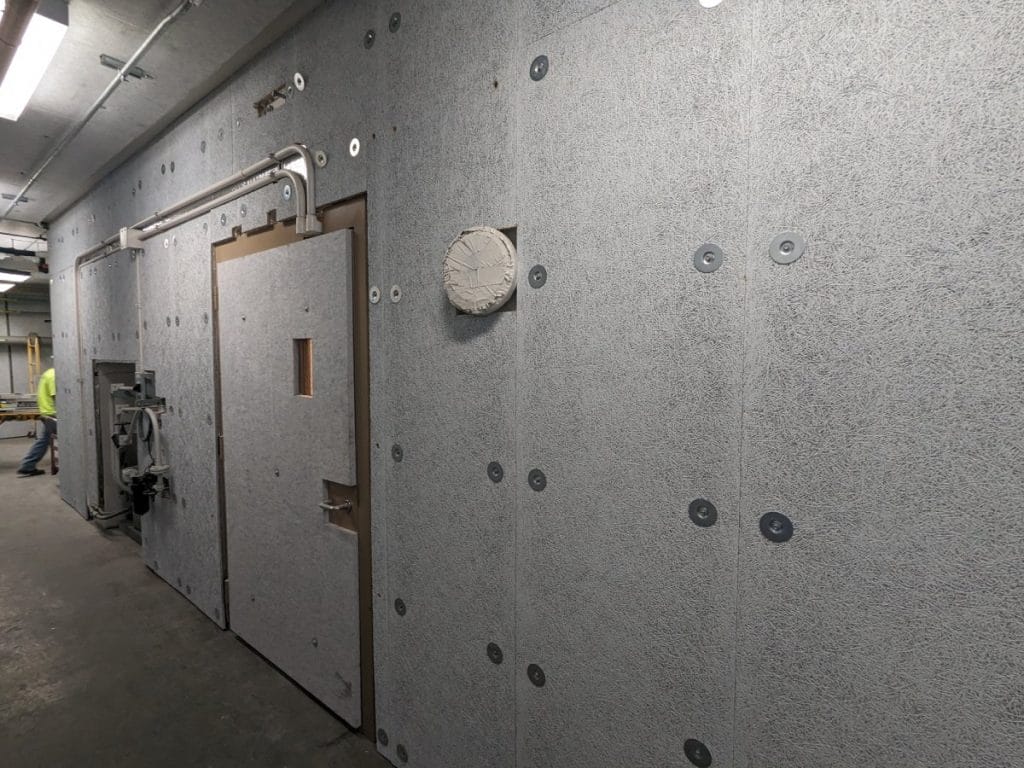

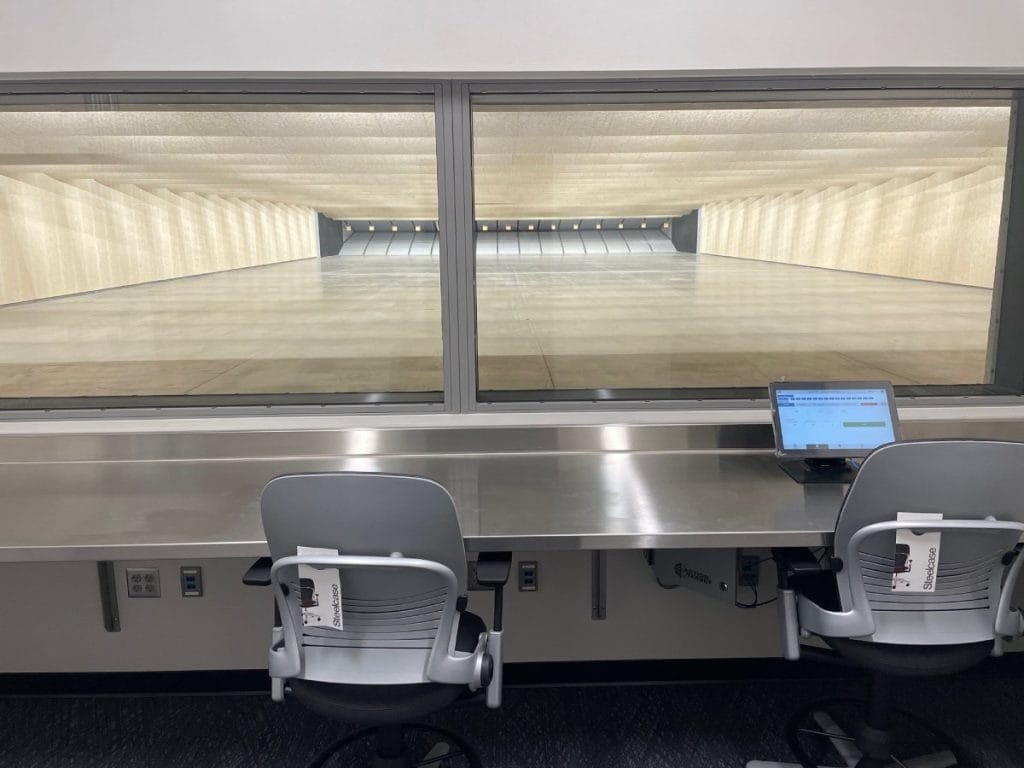

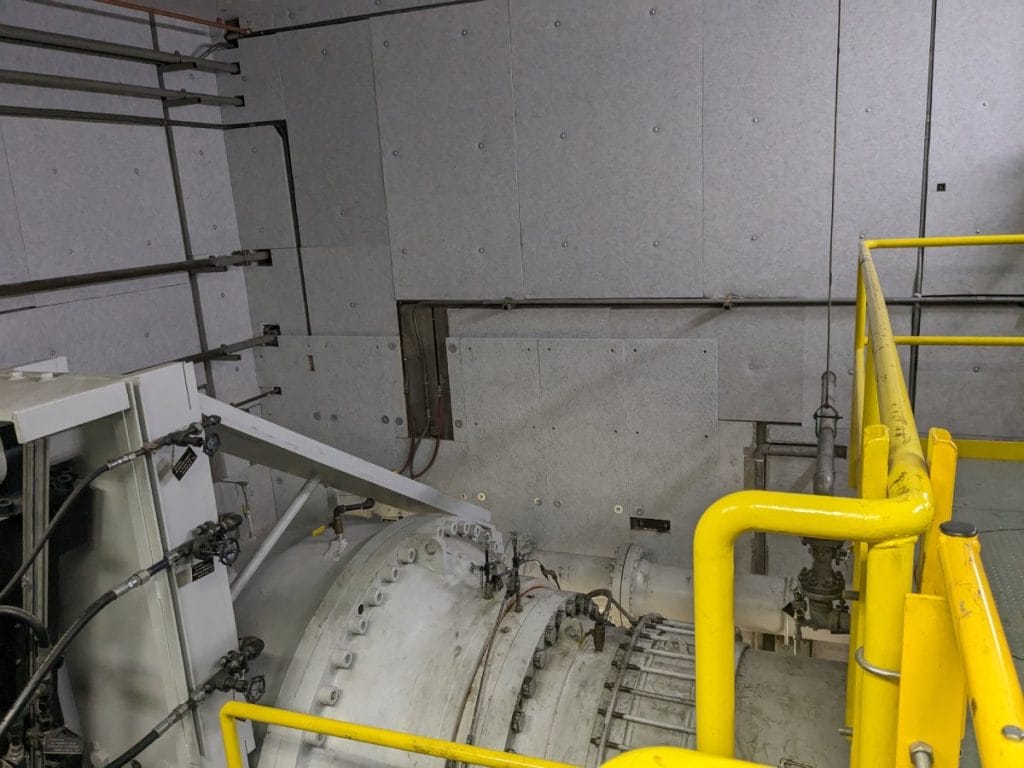

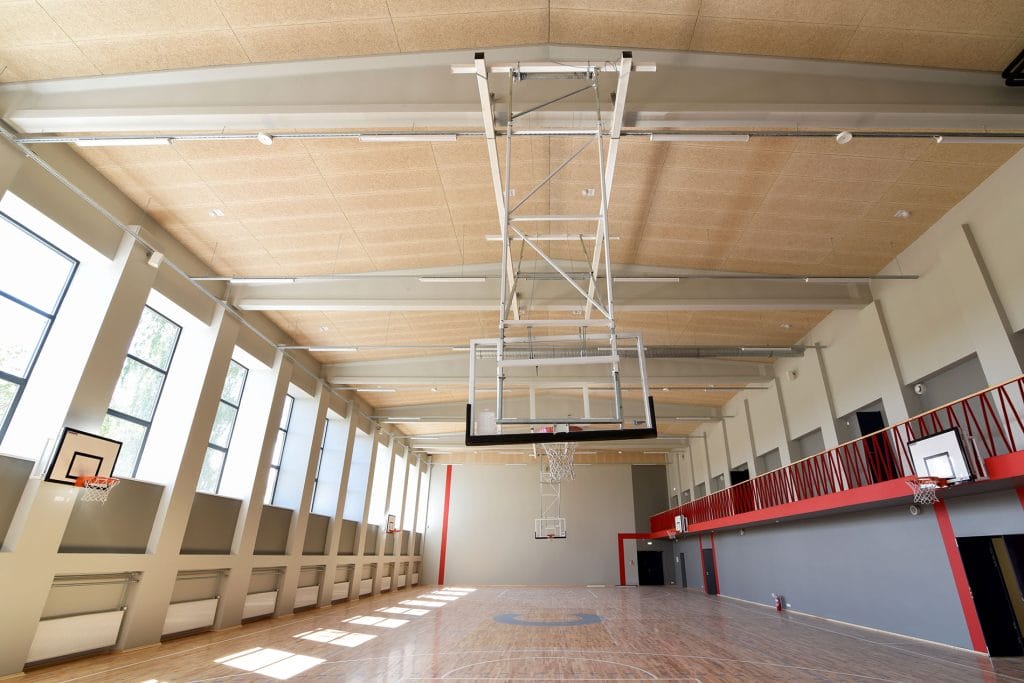

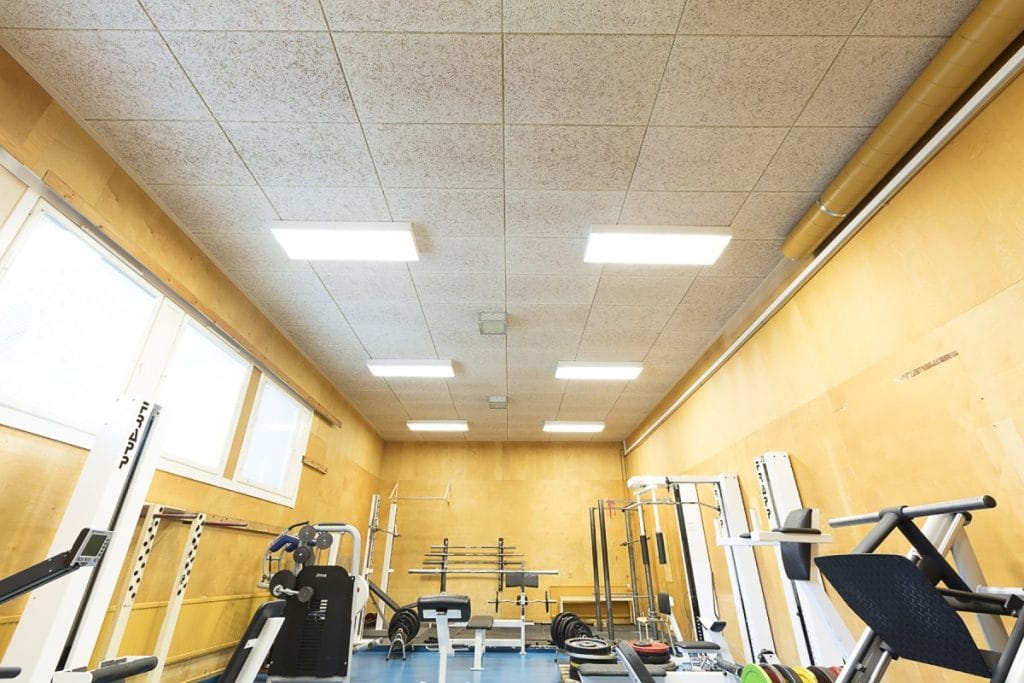

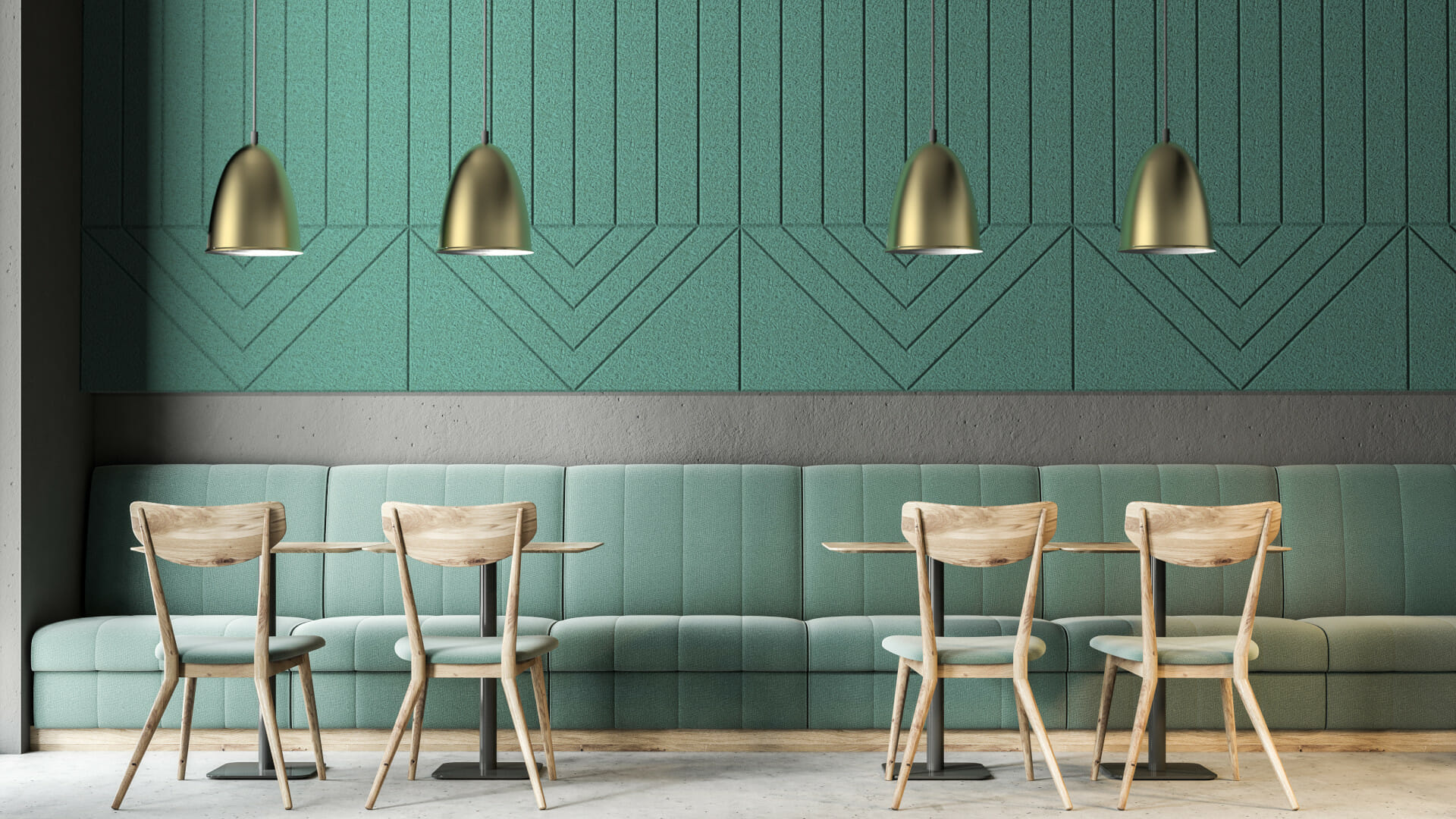

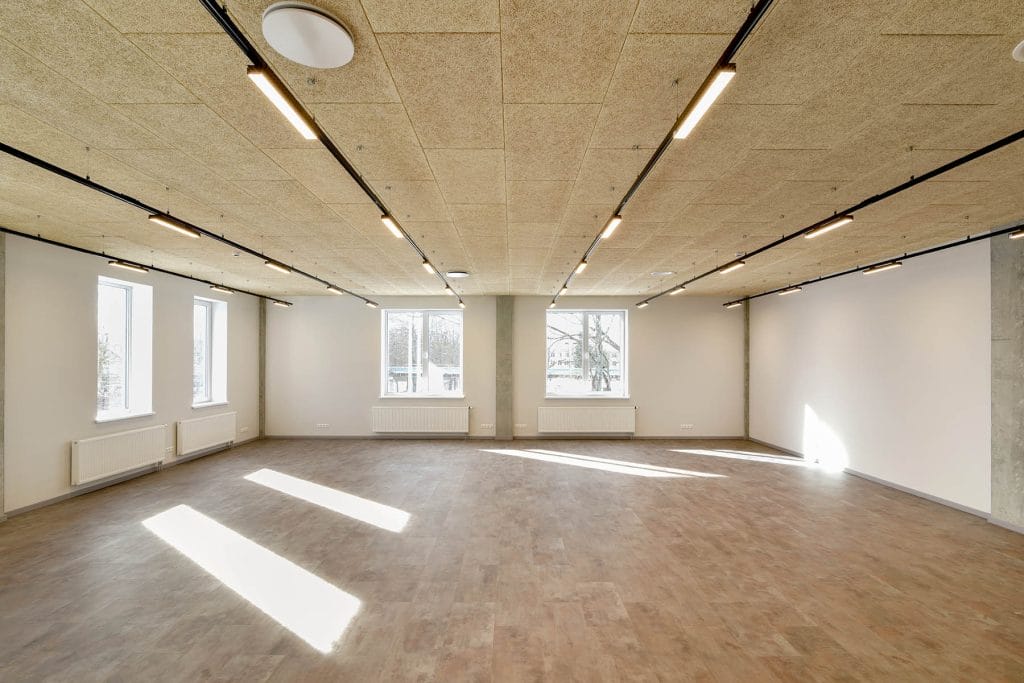

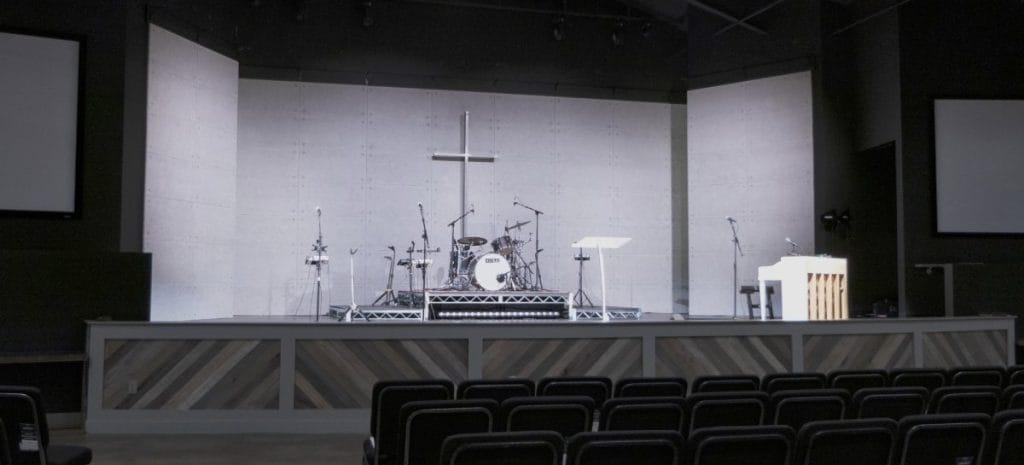

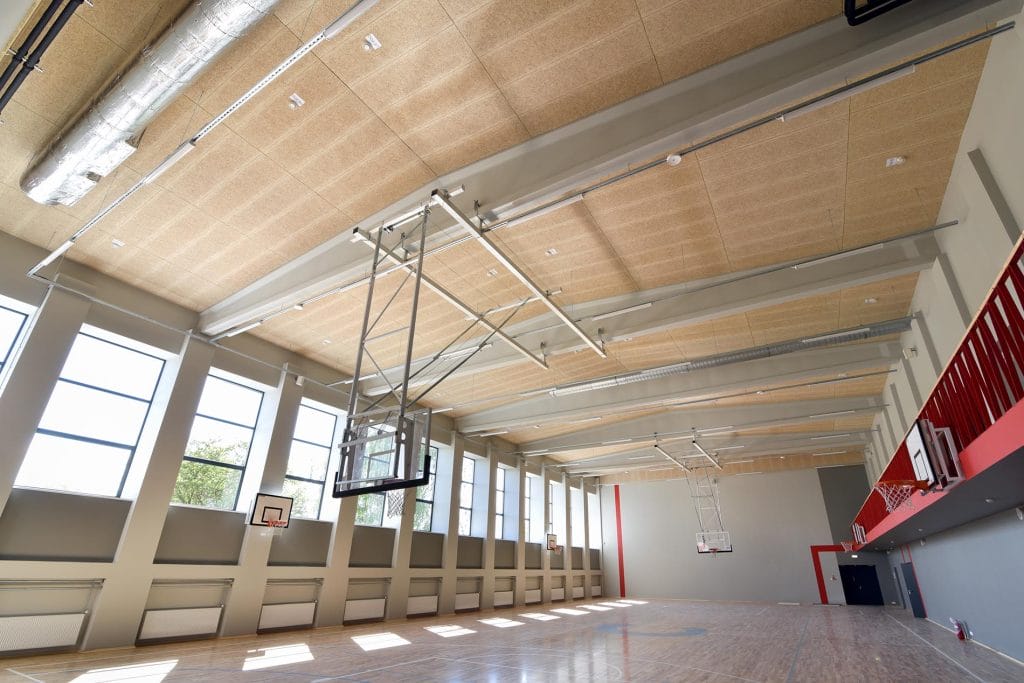

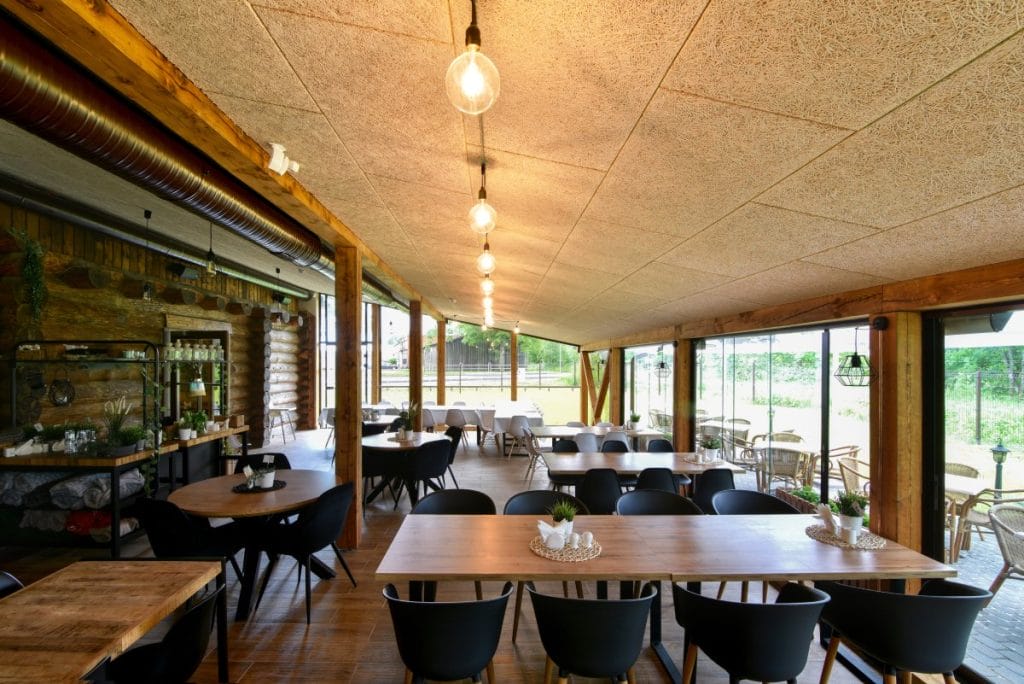

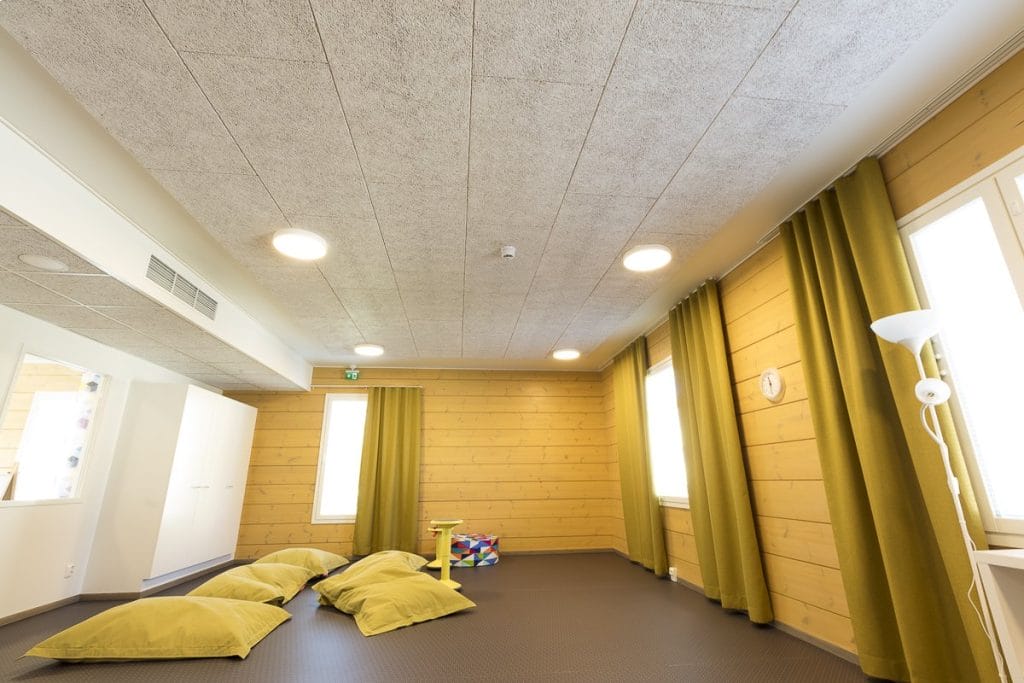

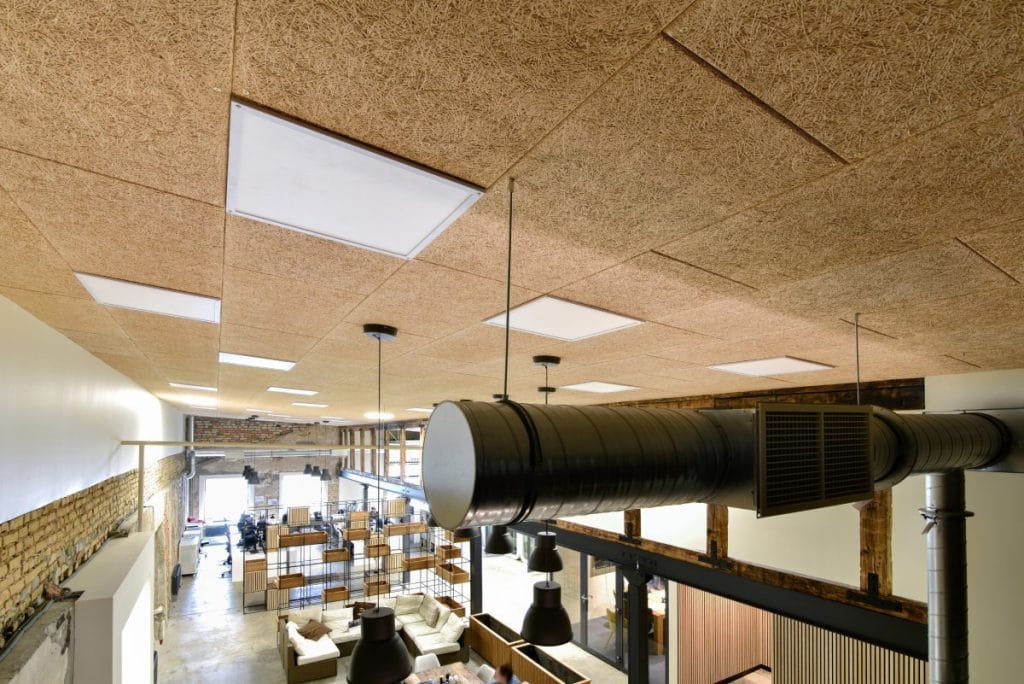

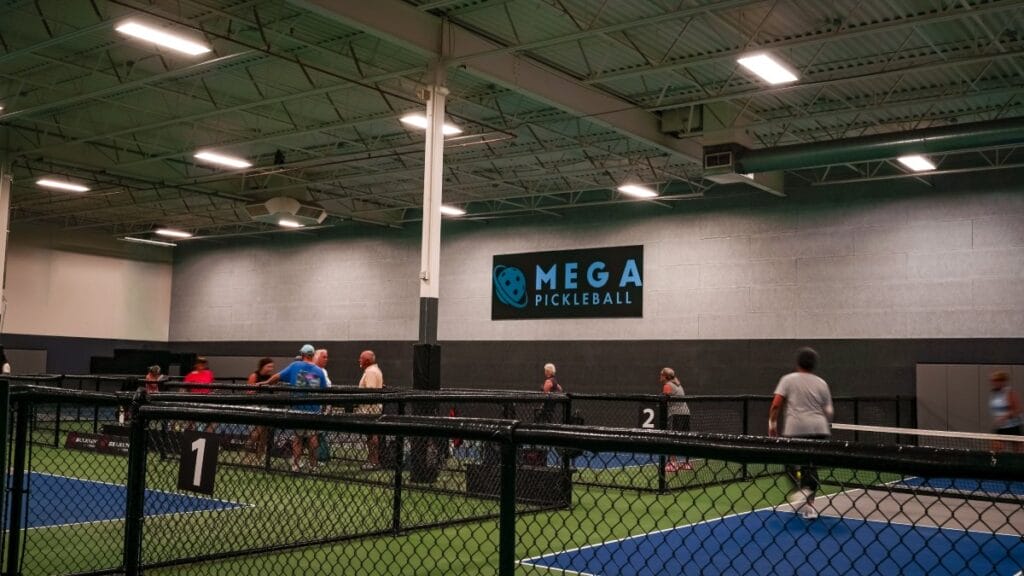

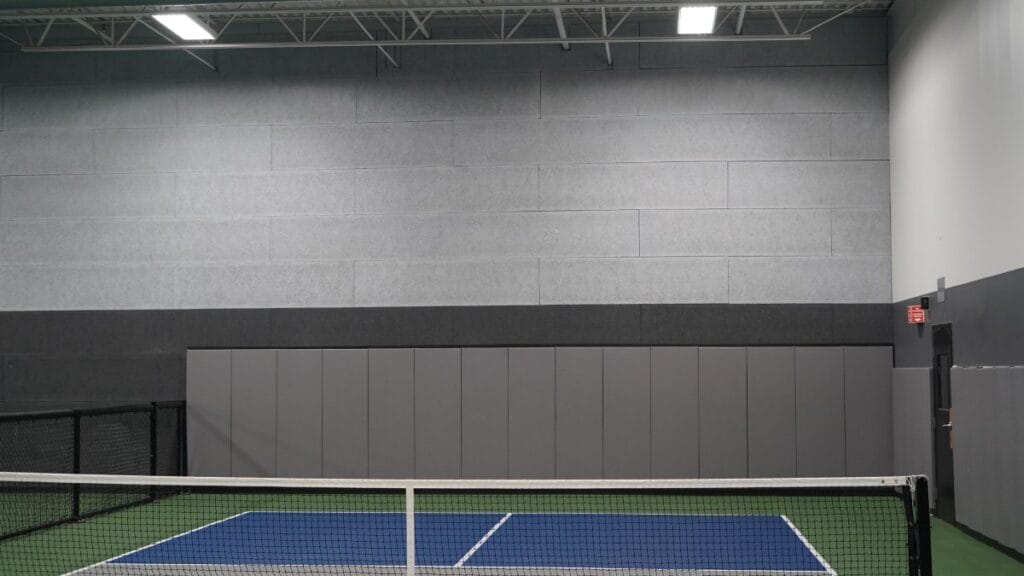

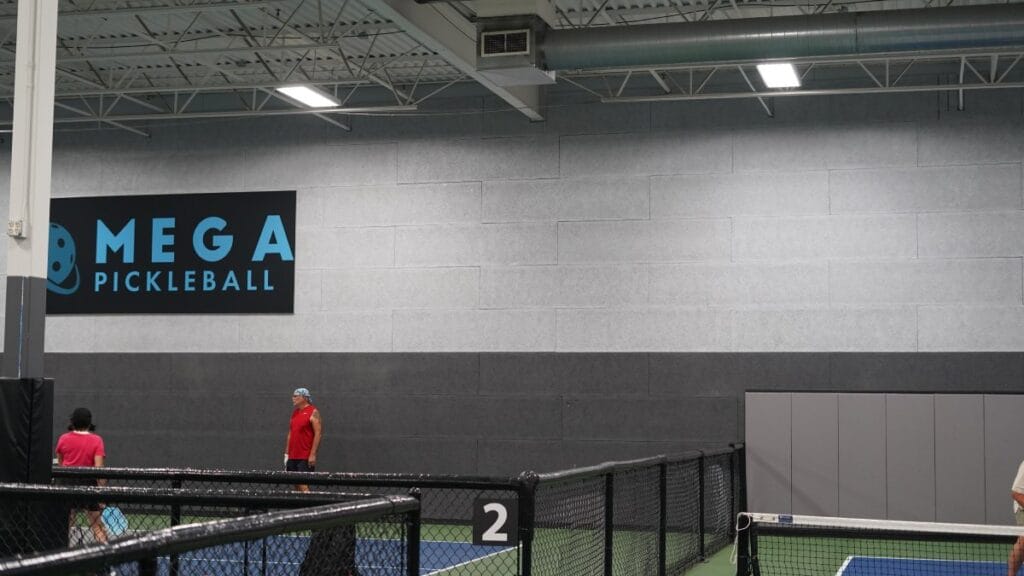

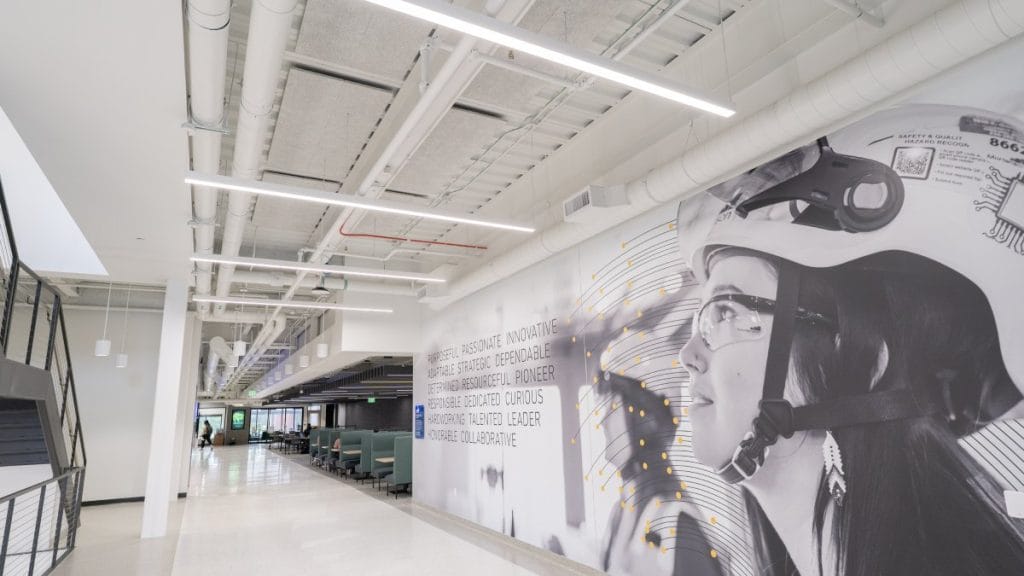

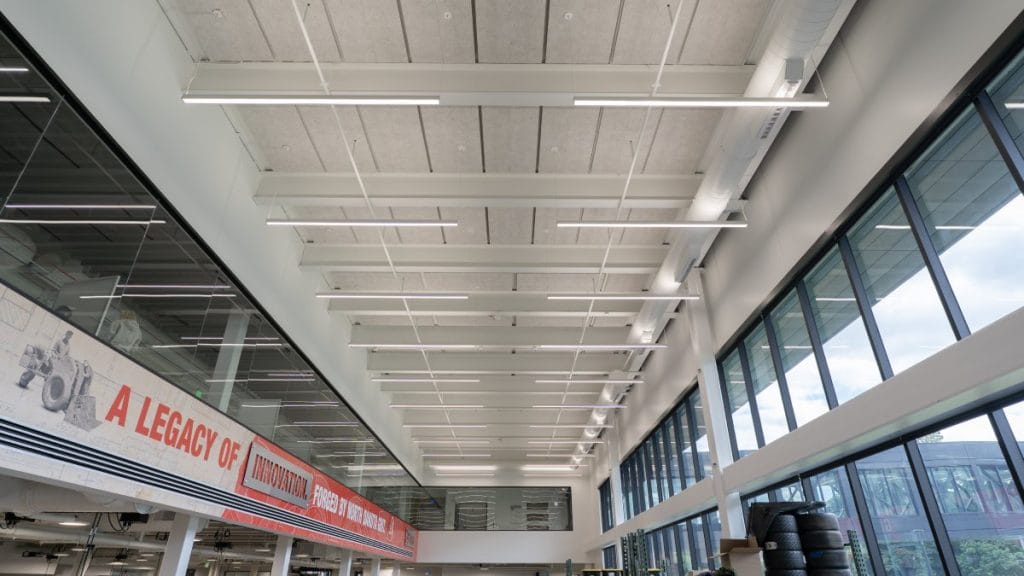

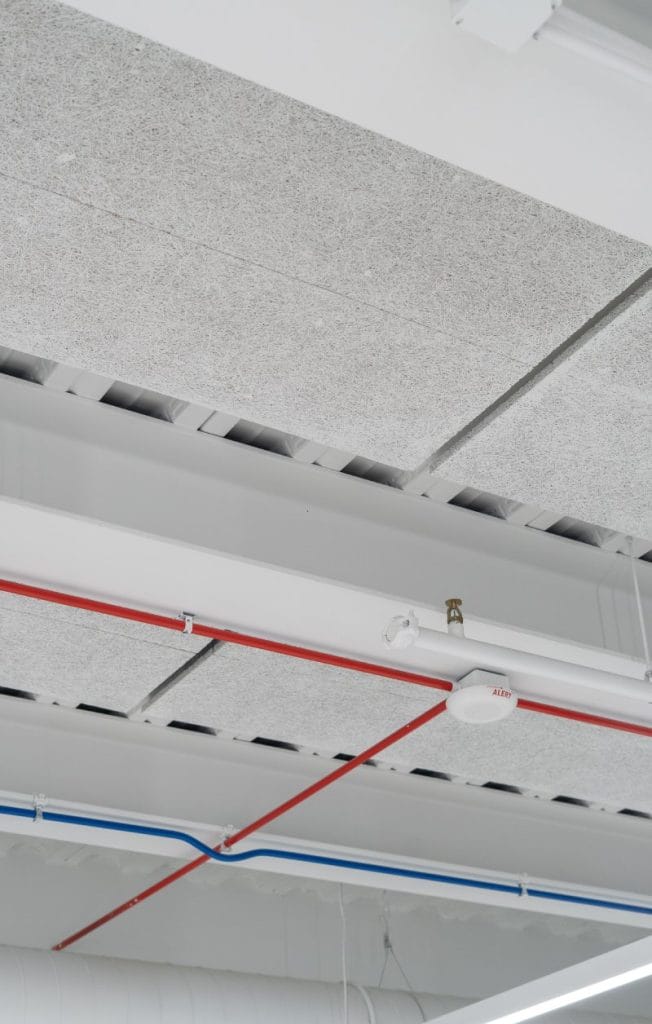

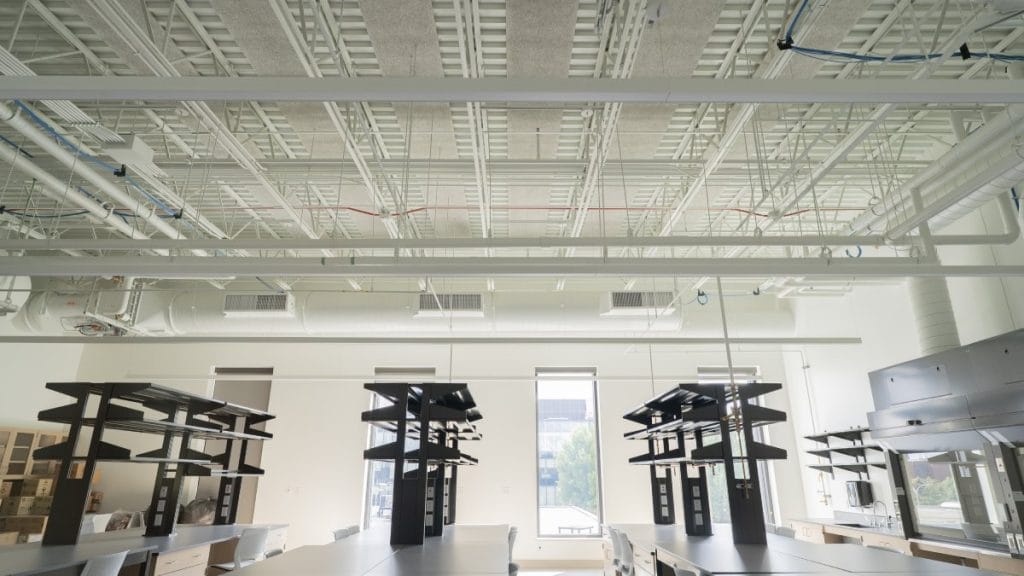

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

Wood fiber, Portland cement, and water.

Wood fiber is a natural material, color variations may occur

Thickness

1"
1" (Microstrand)
1-3/8"
2"

Size

Standard Sizes
24" x 48"
24" x 96"
Custom Sizes
Up to 24" x 96"

Edge Detail

Square
Beveled

Finishes

Primed Clear
Primed White
Painted

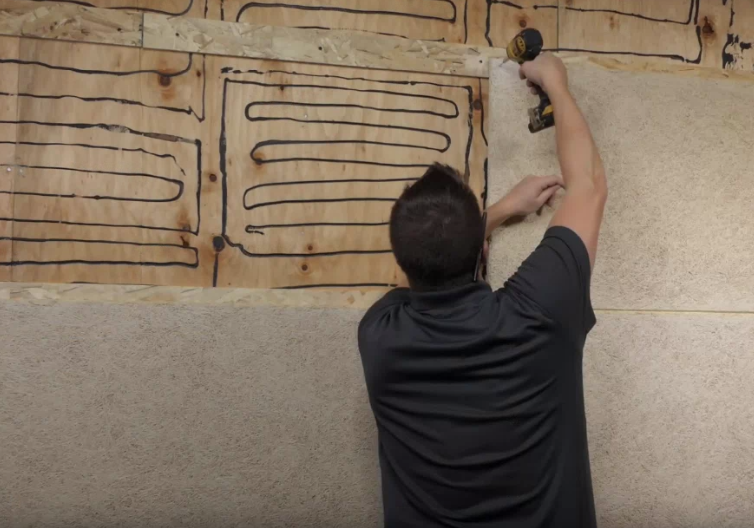

Installation Method

Direct attach
Finish Options

Available Finish Options

Primed Clear

Primed White

Painted

Acoustical Specs

Envirocoustic™ Wood Wool – NRC Results
Panel Thickness	No Airspace (A Mount)	3/4″ Airspace (D-20 Mount)	1″ CFAB Backer (C-25 Mount)	2″ CFAB Backer (C-50 Mount)
1″	0.45	0.50	0.80	0.85
1″ (Microstrand)	0.60	0.50	0.80	0.95
1-3/8″	0.55	0.60	0.85	0.90
2″	0.75	0.75	0.90	0.95

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84
Passes NFPA 286 Contribution to Room Fire Growth Test

Light Reflectance

Primed Clear - 50
Primed White - 70

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM D3273 test (100% clear of fungal growth)
Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)

R-Value

1" R-Value: 2.32
2" R-Value: 3.74
