Poly Max™ - Cloud

Polyester Acoustic Ceiling Clouds

Poly Max polyester acoustical ceiling Cloud panels are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde. Decorative and tackable, apply the acoustical cloud panels to ceilings to tame echo and reverberation. Available in a variety of colors or printed with custom graphics to blend into any decor. Material: 100% polyester (60% PET-recycled fiber, 40% PET-virgin fiber). Poly Max passes the CDPH V1.2 test standard for low VOC emissions and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials.

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests Additional Resources
  • Product Specs

    Applications

    Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

    Material Composition

    100% Polyester (60% PET-recycled fiber, 40% PET-virgin fiber)

    Thickness

    1"
    2"

    Density

    1": 7.5 lb. pcf
    2": 5 lb. pcf

    Size

    Standard Sizes
    24" x 48"
    48" x 96"
    Custom Sizes
    Up to 48" x 96"

    Color

    See color options tab for full color availability.

    Installation Method

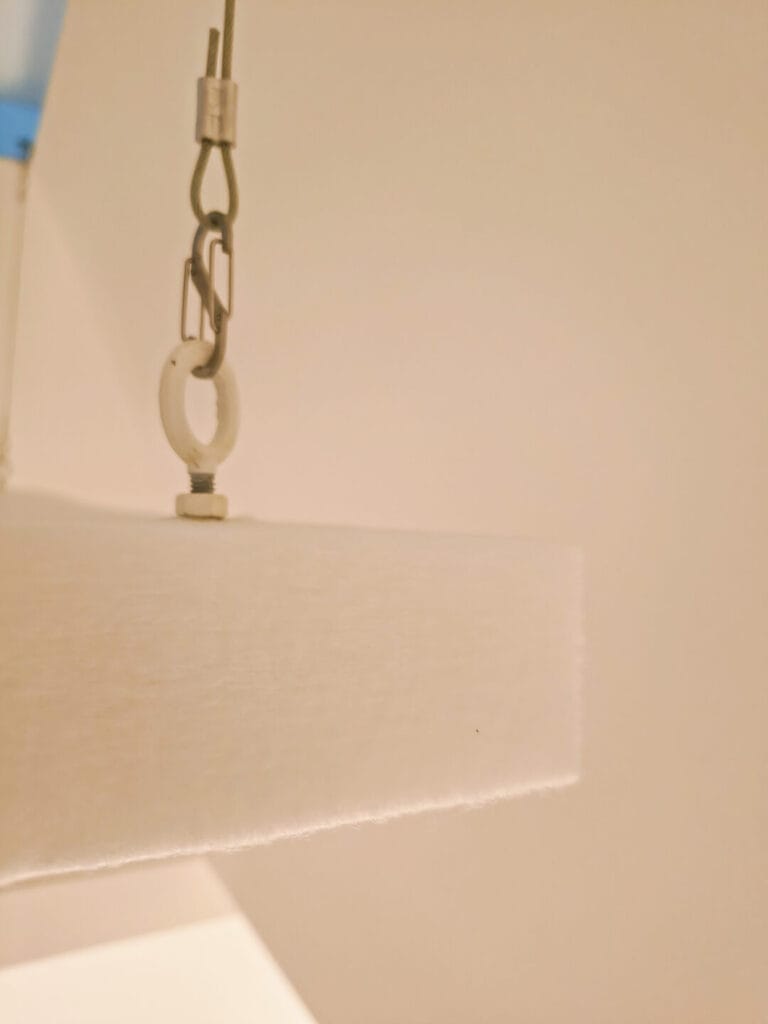

    Suspended Panel

  • Color Options
  • Acoustical Specs
    Poly Max – Octave Band Absorption Coefficients
    Panel Thickness Testing Mount 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz NRC Rating
    1/2″ A 0.01 0.07 0.26 0.54 0.78 0.94 0.40
    1″ A 0.08 0.20 0.59 0.94 1.04 1.02 0.70
    1″ E400 0.44 0.80 0.73 0.99 1.05 1.01 0.90
    2″ A 0.31 0.58 1.08 1.11 1.04 1.04 0.95

    Acoustical test results for ceiling cloud mounting coming soon!

  • Material Performance

    Fire Performance

    Class A Fire Rated per ASTM E84

    Light Reflectance

    1" White - 83
    2" White - 82

    Environmental

    Passes CDPH Standard Method V1.2-2017 (VOC Emissions)

    Passes ASTM C1338 test (No fungal growth)
