Foam S.T.O.P. Soundwave™

melamine_soundwave_foam
Buy Now

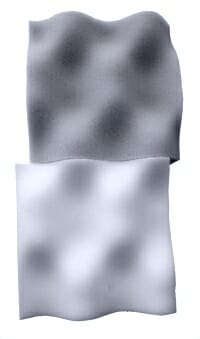

Melamine Acoustic Soundproofing Foam Panel

  • Class A Fire Retardant
  • High Performance Sound Absorber
  • Sound Wave Pattern
  • Fiber Free

Available as Hanging Acoustical Baffles



NOTE:
Due to manufacturing limitations, this open cell acoustic foam’s wave pattern will not carry uninterrupted panel to panel

Product Testing & Information


Product Specs

Material

Melamine Open Cell Acoustical Foam

Pattern

Convoluted Double Hump Anechoic Wedges. Sonex Patterns Also Available

Features

Acoustic Soundproofing Foam Panel Designed For Sound Absorption in a Wide Range of Frequencies. Increased Surface Absorption Area

NOTE:
Due to manufacturing limitations, wave pattern will not carry uninterrupted panel to panel

Applications

Industrial, Commercial, Audio, OEM Residential Markets, Ceilings, Walls, Partitions, Sound/Recording Studios, Radio Stations, Board Rooms, Swimming Pools, Churches, Schools, Gun Ranges, Enclosures

Thickness

1″, 2″, 3″, 4″

Sizes

2′ × 4′

Density

0.7lbs/cub. ft.

Colors

Standard: Natural White or Light Grey
Latex or HPC Paint: Black, Light Grey, Almond
Painted: Black, Brown, Beige, Light Gray (Custom Colors Also Available)

Flammability

ASTM E84, Class A. Flame Spread: 6; Smoke Developed: 15

Installation

ASI S.T.O.P Noise Acoustical Adhesive

NOTE:
Due to manufacturing limitations, wave pattern will not carry uninterrupted panel to panel

Reverberation Demonstration

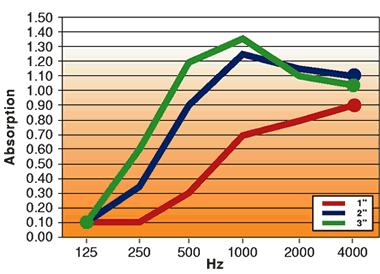

FOAM S.T.O.P. Soundwave – Sound Absorption/Noise Reduction
125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1″ 0.10 0.10 0.30 0.70 0.80 0.90 0.60
2″ 0.10 0.35 0.90 1.25 1.15 1.10 1.00
3″ 0.10 0.60 1.20 1.35 1.10 1.05 1.15
4″ N/A N/A N/A N/A N/A N/A N/A

mel_sw04
