Fabrisorb™ Fabric Wrapped Acoustic Panels

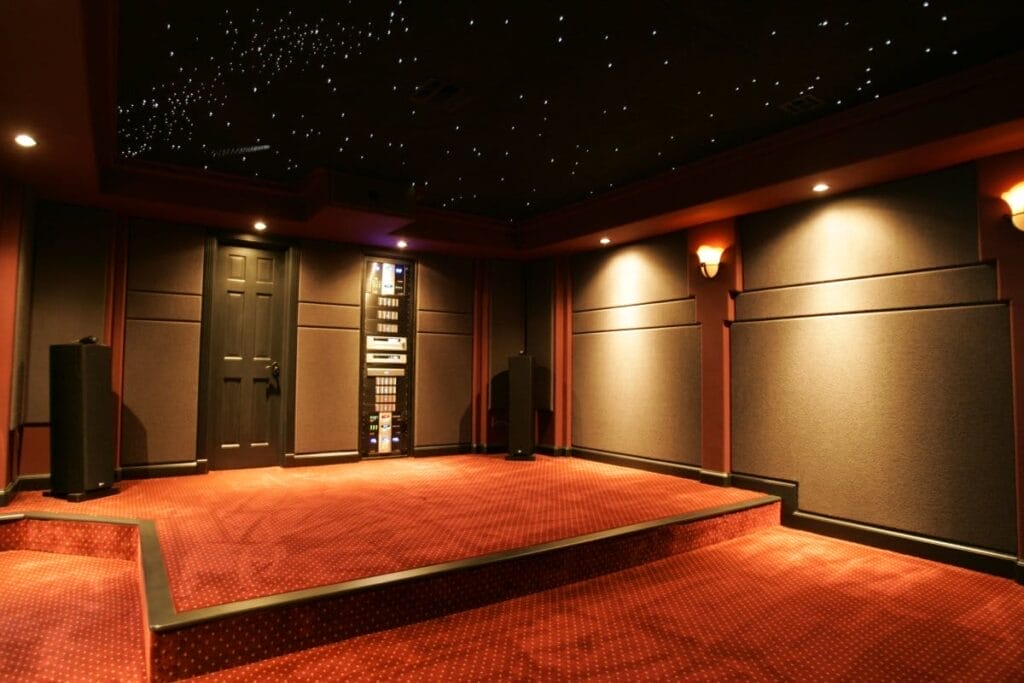

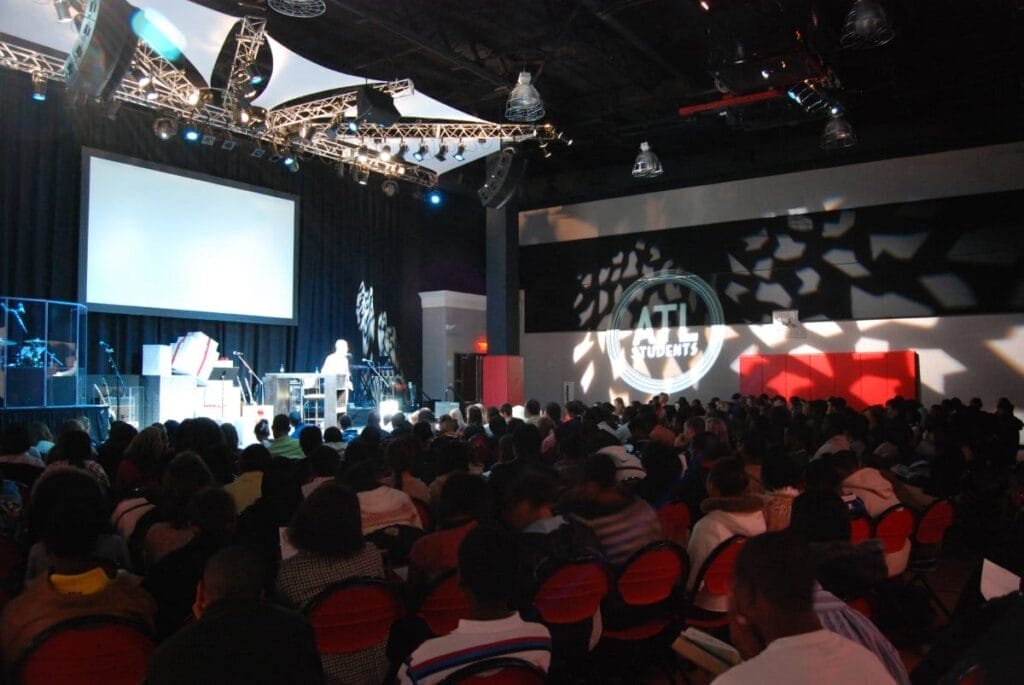

Fabrisorb™ decorative fabric wrapped acoustic panels provide high-performance noise and reverberation reduction. From movie theaters to home music production studios, Fabrisorb™ ceiling and wall panels help you create a space that is both visually and acoustically pleasing. Some features that Fabrisorb™ offers are:
- High Performance
- Architecturally Decorative
- Custom Engineered & Manufactured
- Reduced Noise & Reverberation
- 100% Custom Colors and Sizes
Find out more about how Fabrisorb™ wall and ceiling panels can be utilized on your next project.
Order these custom decorative panels from Acoustical Surfaces today!
Product Testing & Information
- Product Spec Sheets
- Installation
- CSI CAD REVIT
- Acoustical Tests
- Fire Tests
- MSDS
- Misc. Data
- Product Photos
- Testimonials
-

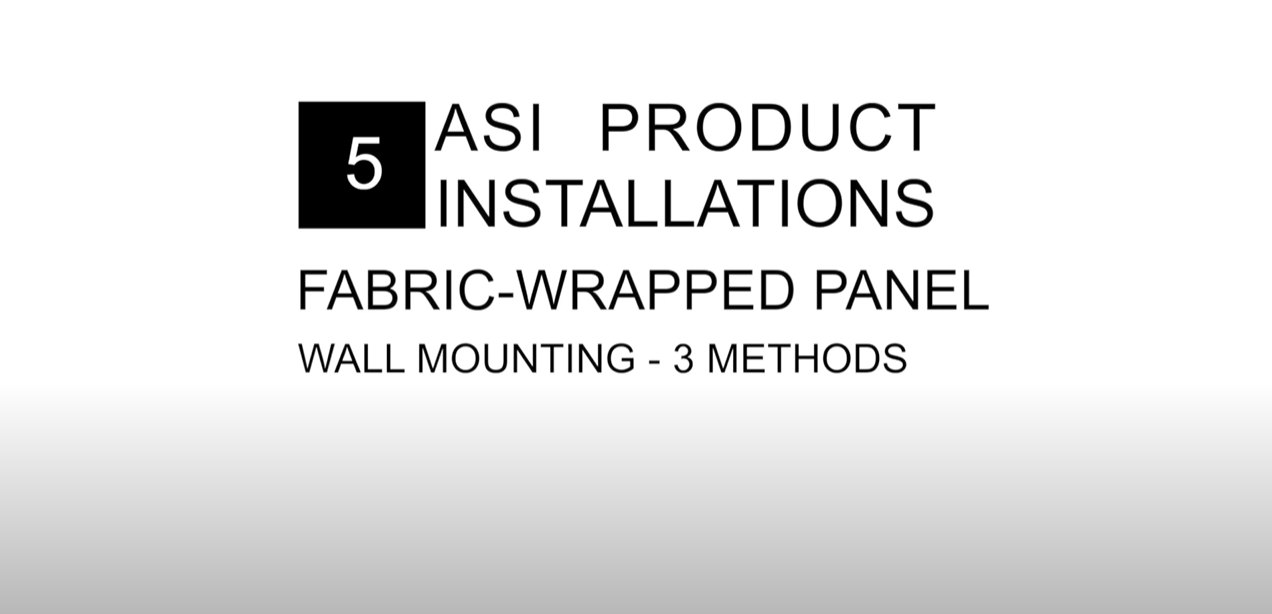

Fabric Wrapped Panel Installation Tutorial

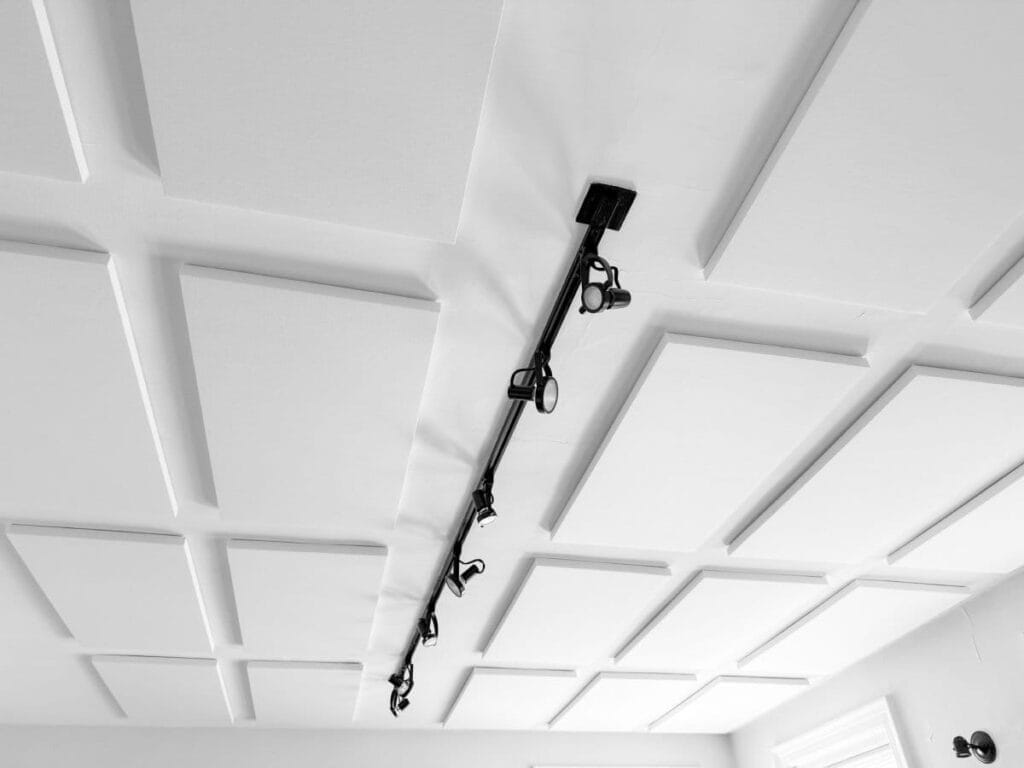

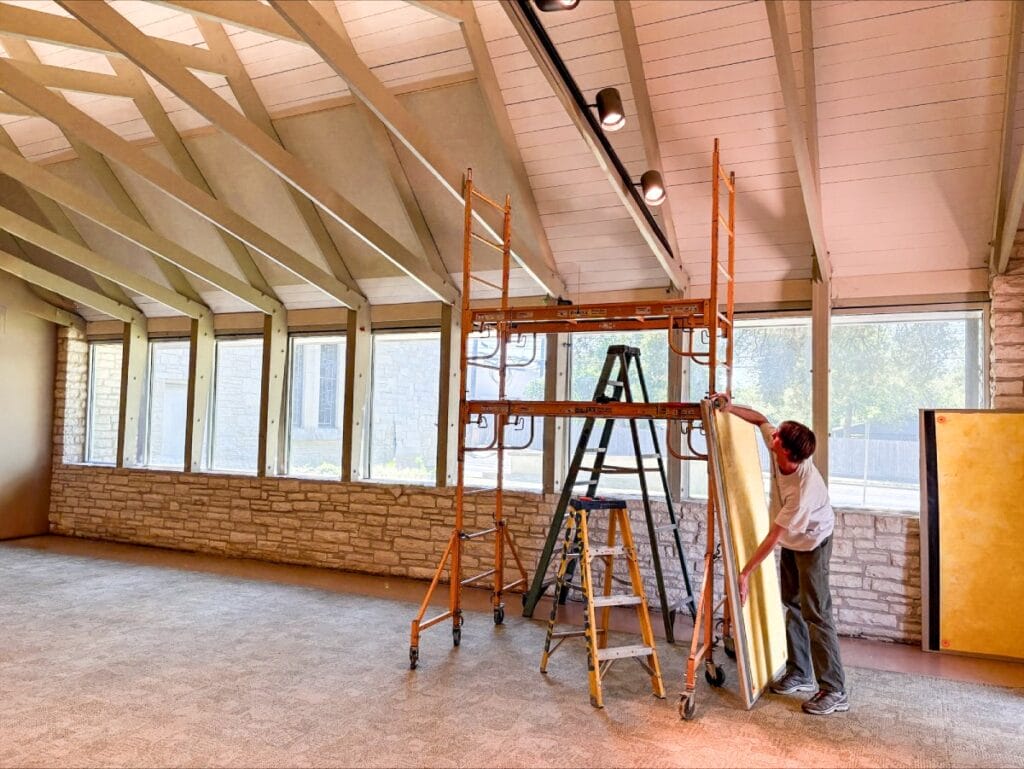

Note: If using Z-Clips to mount these fabric wrapped acoustical panels to the ceiling, the installer must use construction adhesive on each clip so the clips do not slide apart. It is also advised to toe-nail the acoustic wall tile into place, or use trim around the perimeter to make sure that the clips adhere together correctly.
Product Specs
Material
6 lb. density glass fiber with woven fabric and micro-perforated vinyl facings.
Features
Fabric acoustic panels are custom designed and manufactured to meet every need. Soft or hard edges
Applications

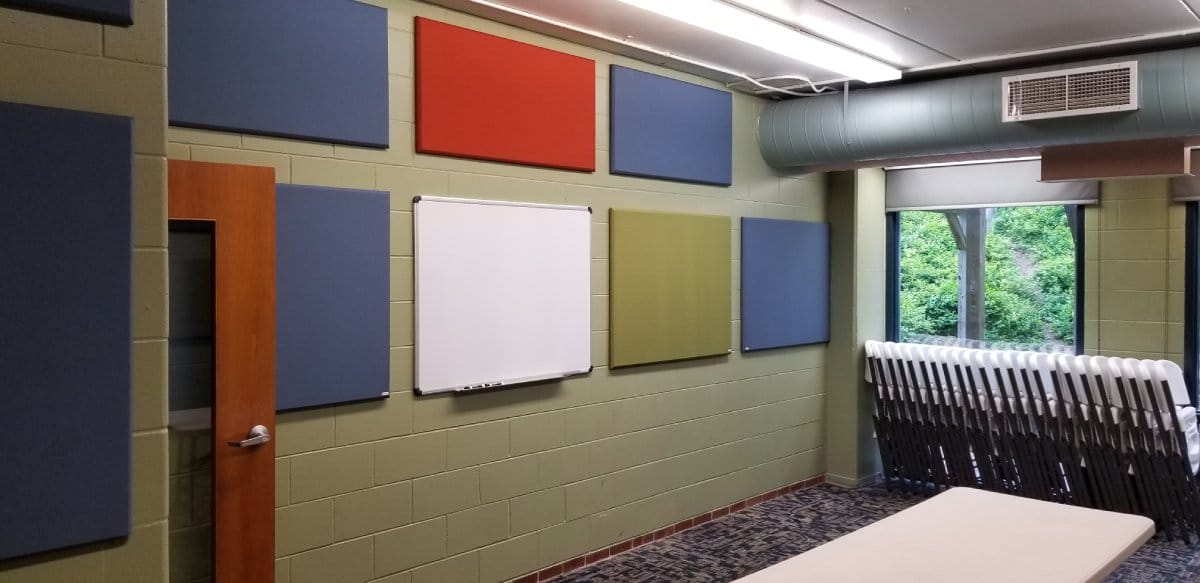

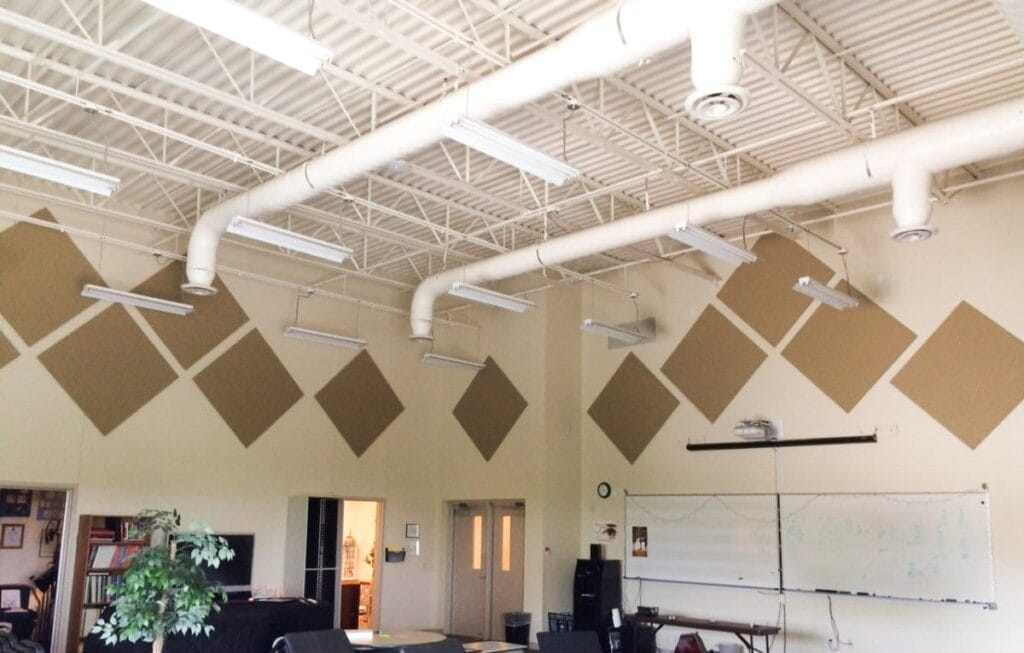

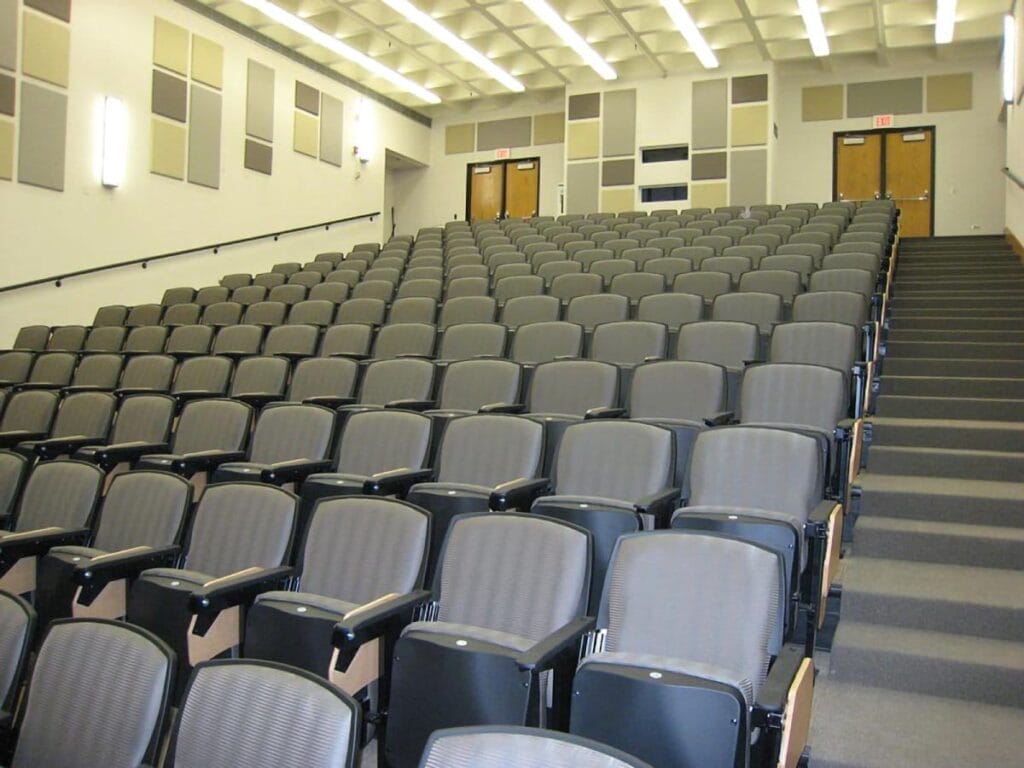

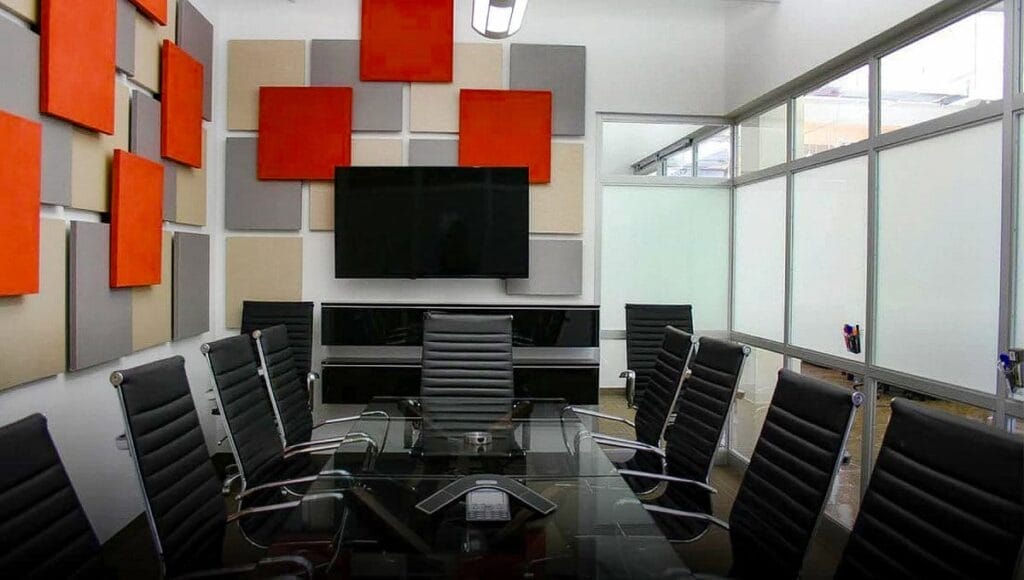

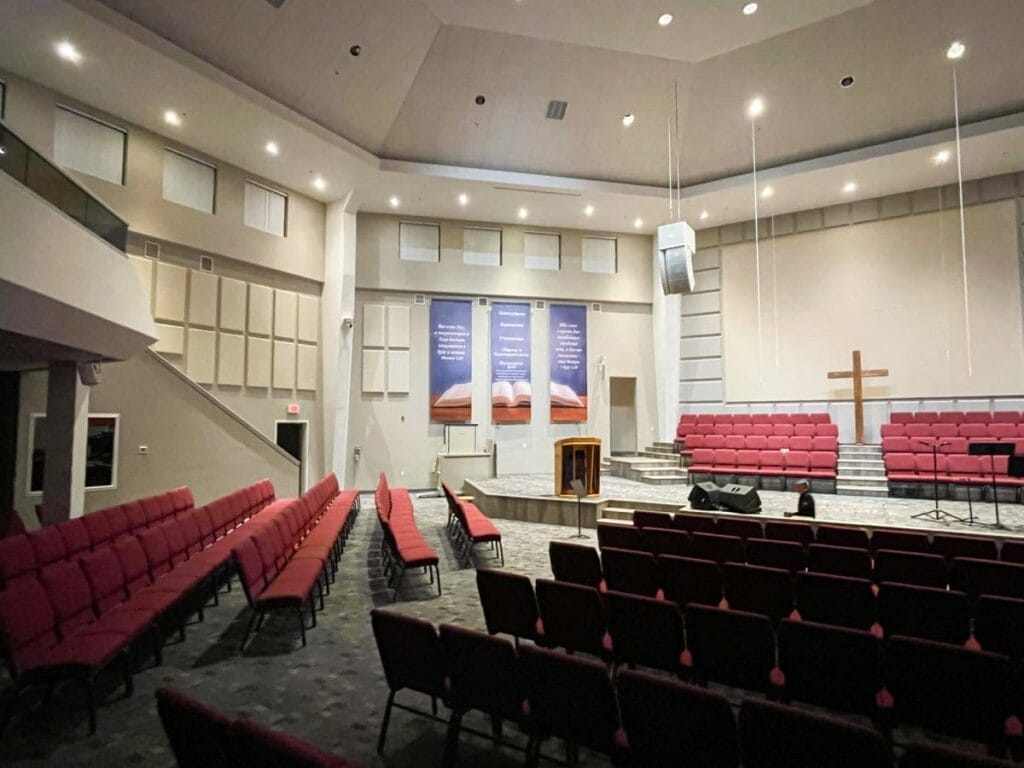

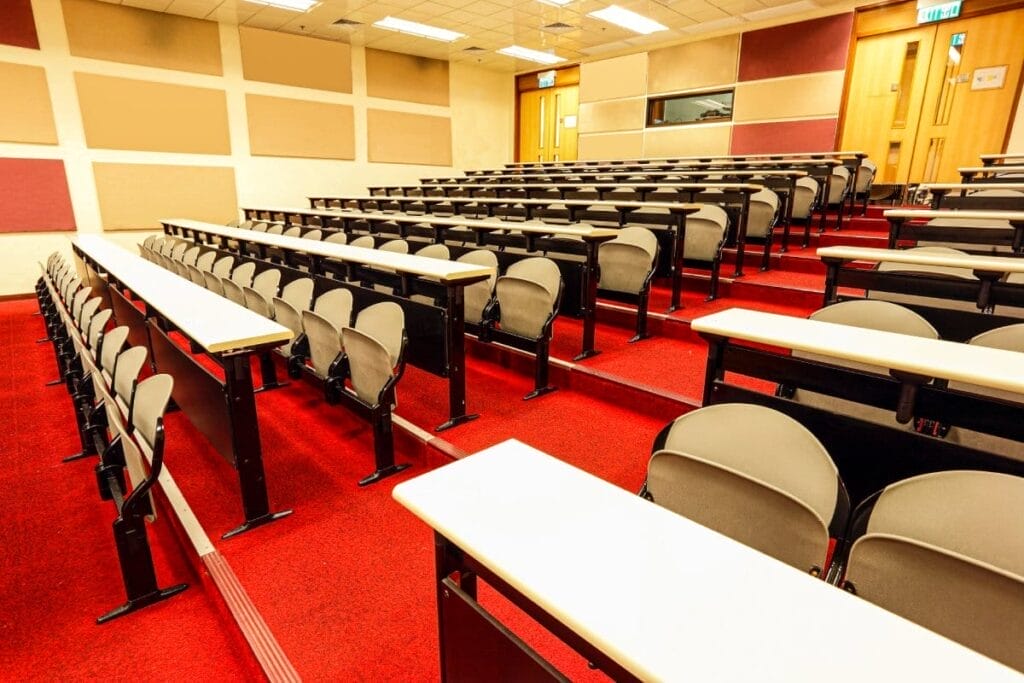

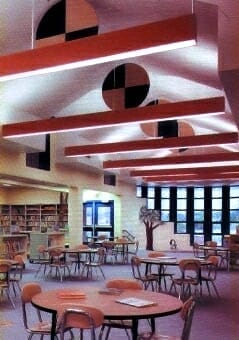

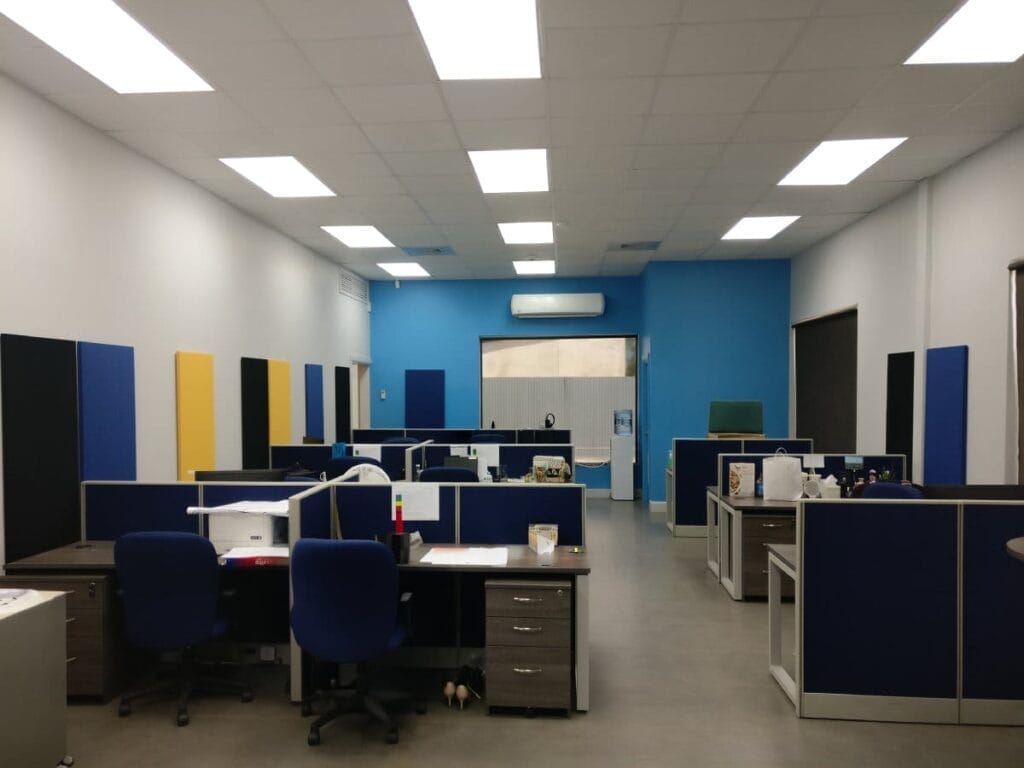

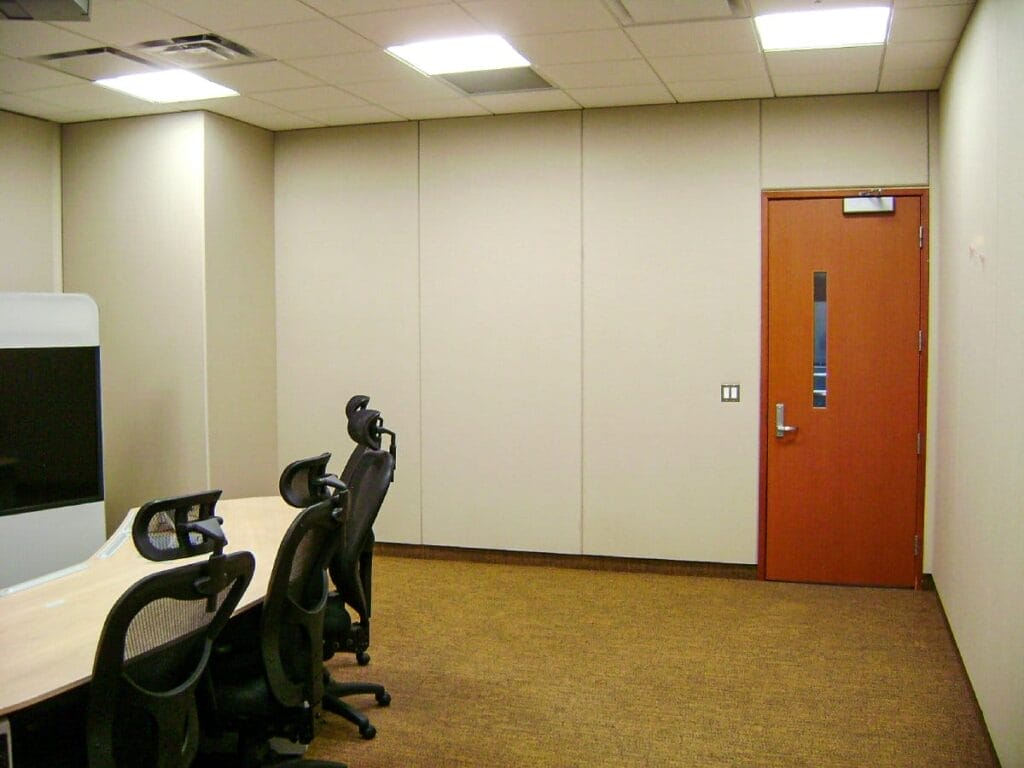

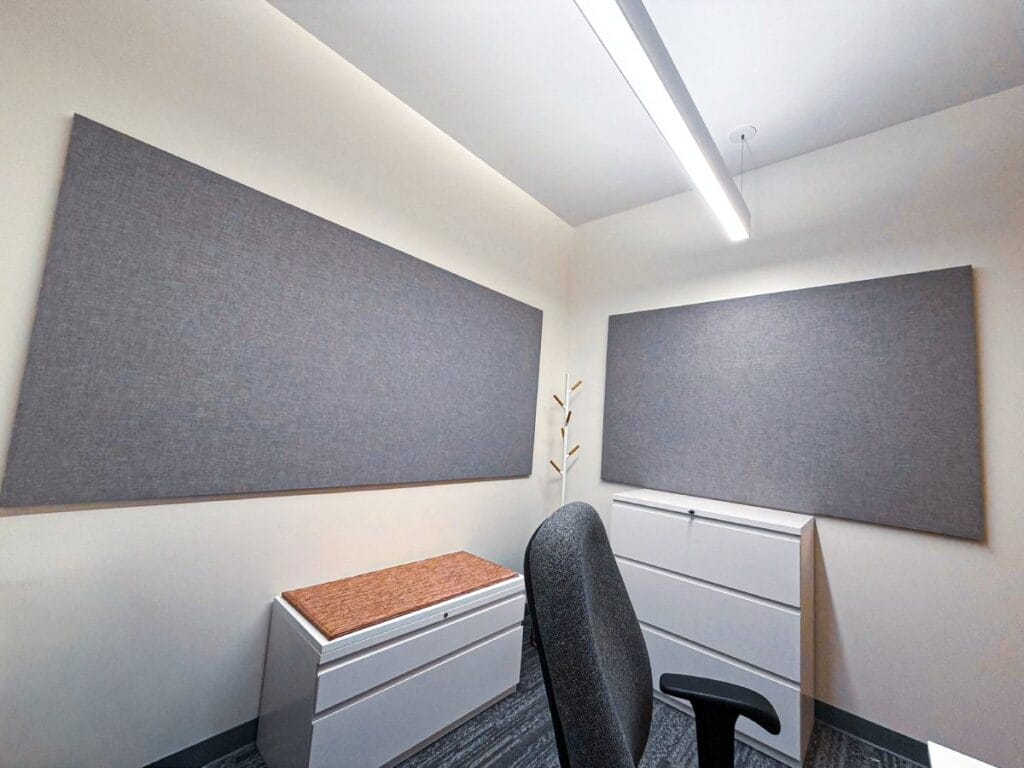

These decorative sound absorbing panels are great for offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios. These acoustic wall panels are perfect for any space where good speech privacy or speech intelligibility is important.
Thickness
1″, 1-1/8″, 2″, 2-1/8″
Size
Custom Fabric Wall Panels Up to 4′ × 10′

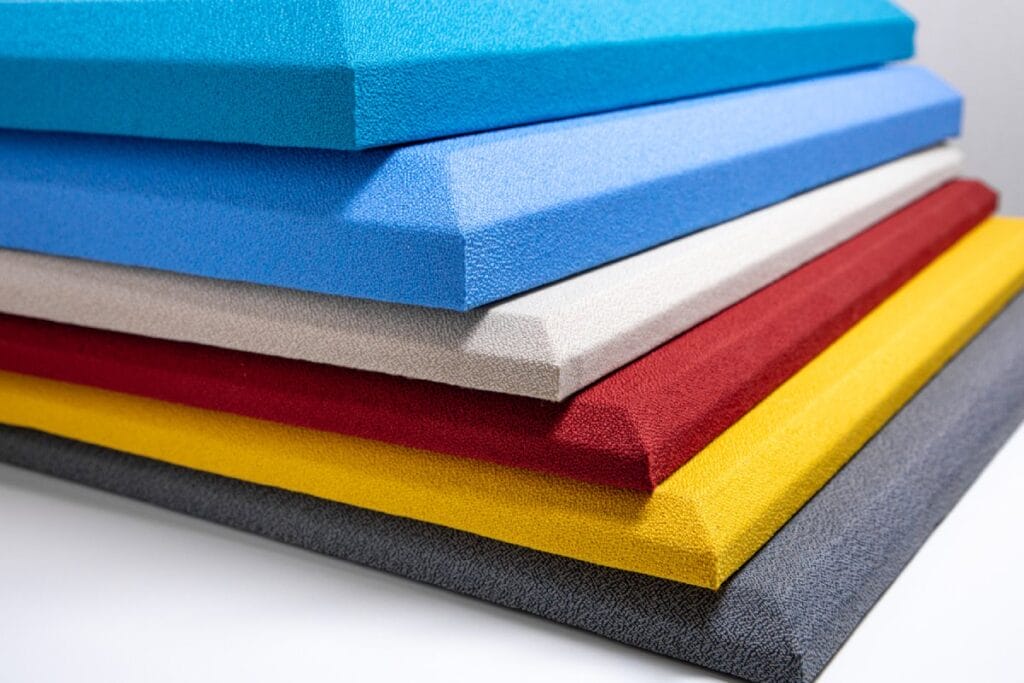

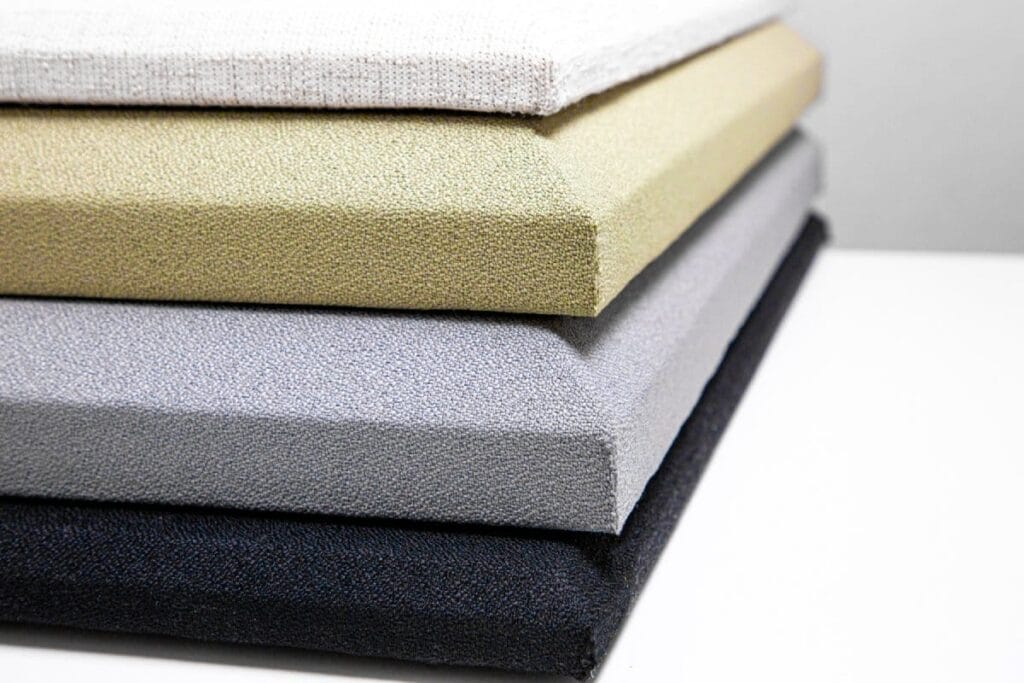

Edge Detail
Square, Radius, Bevel, Half-Bevel
Colors
Acoustical fabric and micro-perforated vinyl facings available in a wide range of standard and custom colors. For a full list of acoustical fabric options, visit our Fabric Selection Webpage!
Flammability
Class A Fire Rated per ASTM E84
Installation
Adhesive, Hook & Loop Fasteners, Mechanical Clips, Impaling Clips, magnetic clips.

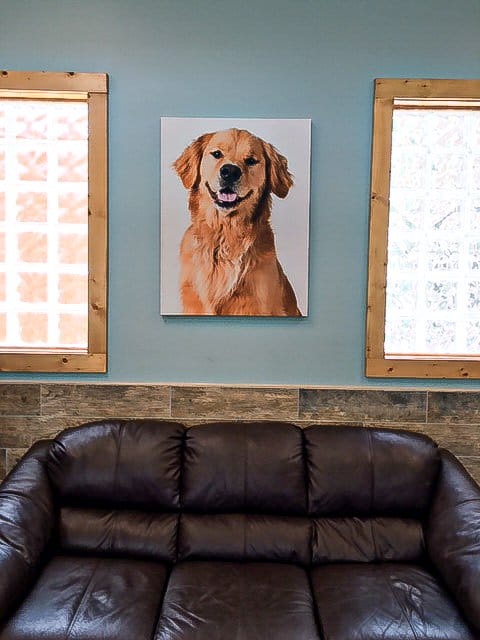

Custom Graphic Options for All Decorative Sound Absorbing Panels
| Fabrisorb™ Wall panel – Sound Absorption Coefficients | |||||||
|---|---|---|---|---|---|---|---|
| 6-7 PCF Glass Fiber | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC |
| 1″ | .14 | .27 | .80 | 1.11 | 1.14 | 1.14 | .85 |
| 2″ | .22 | .81 | 1.24 | 1.30 | 1.21 | 1.16 | 1.15 |
Edge Details

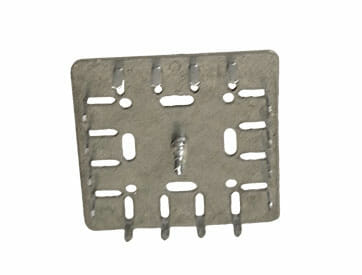

| Impaling Clips and Adhesive | ||
|---|---|---|
| One impaling clip is needed for each mounting locationImpaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries. | ||
 |
||
| Install Location | Wall | |
| Parts Included | (1) × Impaling Clip | |
| Recommended Adhesive (sold separately) |
Titebond Green Choice Adhesive (ASTSA28) | |
| Part Number | HWIMP33 | |

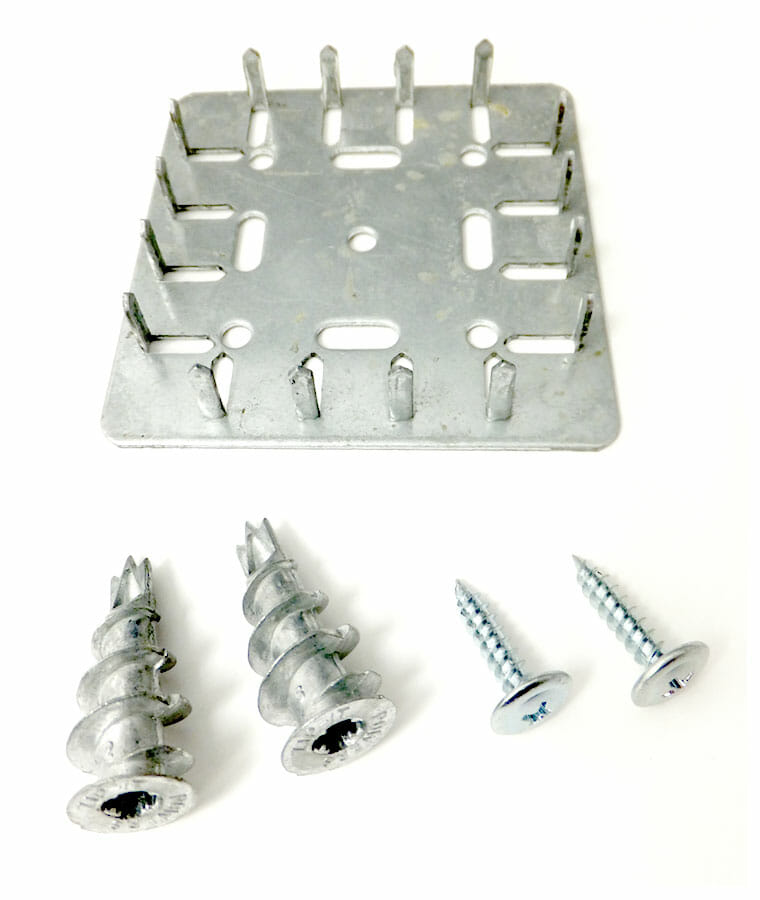

| Fabric Wrapped Panel Hardware Pack – Impaling Clip | ||
|---|---|---|
| One hardware pack is needed for each mounting locationDrywall anchors are installed into the drywall and the screws hold the impaling clip to the anchor. Impaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries. | ||
 |
||
| Install Location | Wall | |
| Parts Included | (1) × Impaling Clip (2) × Drywall Anchors (2) × ¾″ Screws |
|
| Recommended Adhesive (sold separately) |
Titebond Green Choice Adhesive (ASTSA28) | |
| Part Number | HWFWPIMP | |

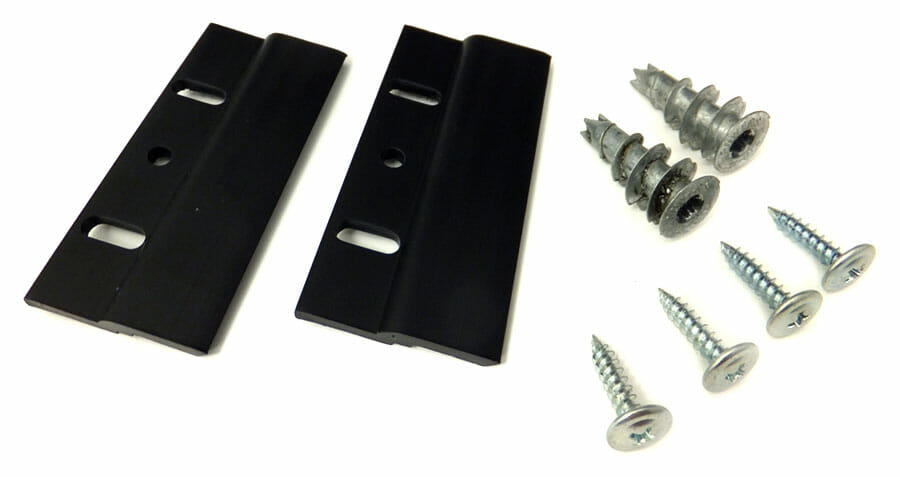

| Fabric Wrapped Panel Hardware Pack 1 | ||
|---|---|---|
| One hardware pack is needed for each mounting locationThe drywall anchors are installed onto the drywall and the screws hold one of the plastic clips to the wall. The remaining ¾″ screws are used to mount the remaining plastic clip to the mounting plate on the back of the panel. Adhesive can be used to hold the clips together to prevent the clips from detaching from one another. | ||
 |
||
| Install Location | Wall or Ceiling | |
| Parts Included | (1) × Mounting Plate (factory-installed on the back of the panel) (2) × 3″ Plastic Z-bars (2) × Drywall Anchors (4) × ¾″ Screws |
|
| Part Number | HWFWPHP1 | |
| Note | Plastic clips are also available in 21″, 47″, and 96″ lengths. | |
| Fabric Wrapped Panel Rotofast Standard Anchor Kit | ||
|---|---|---|
| One hardware pack is needed for each mounting location. The Rotofast Standard Anchor is screwed to the wall. Mark anchor locations on panel. Push metal insert into anchor body. Position panel at pre-marked locations and push hex tool through panel face to engage anchor. Turn clockwise approximately two revolutions. Pull the driver out.For panels with tightly-woven fabric, leather, vinyl, or other specialty covering, the Rotofast Snap-On Anchor is recommended. | ||
 |
||
| Install Location | Wall | |
| Parts Included | (1) × Rotofast standard anchor (1) × Wall anchor (1) × 2″ #8 Screw (1) Rotofast standard hex tool (1) Rotofast standard driver tool |
|
| Note | Multiple kits ordered together will only include (1) Rotofast standard hex tool and (1) Rotofast standard driver tool. | |

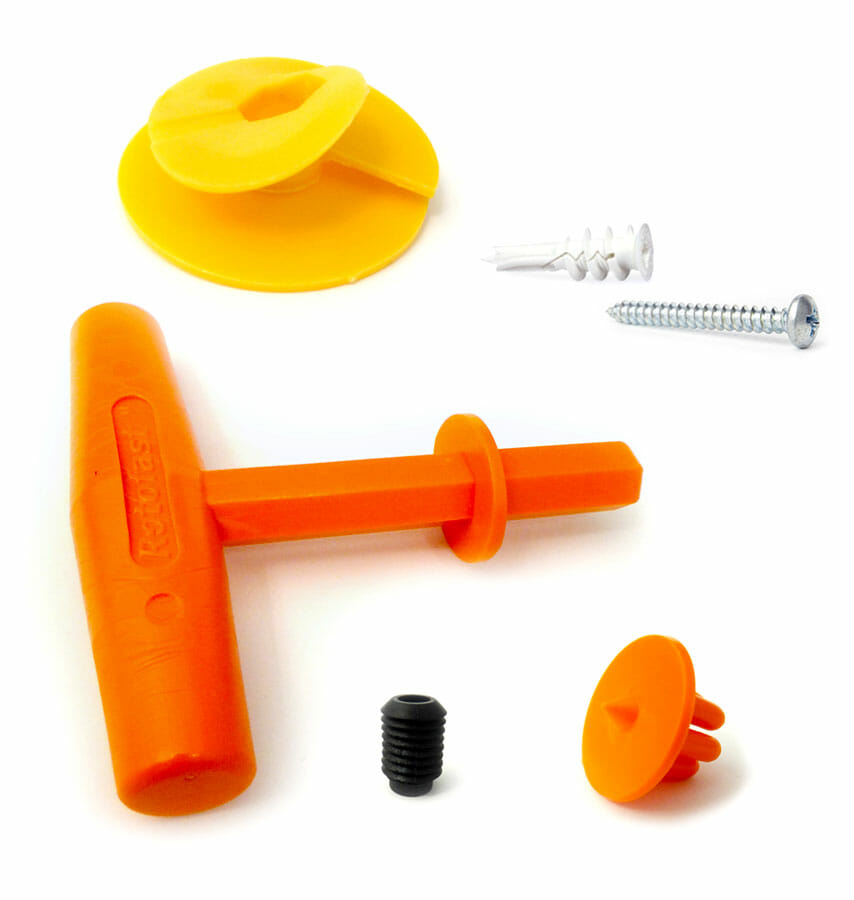

| Fabric Wrapped Panel Rotofast Snap-On Anchor Kit | ||
|---|---|---|
| One hardware pack is needed for each mounting location. The Rotofast Snap-On Anchor is screwed into the back of the panel. The marking plug is inserted into the anchor, then panel is pushed against wall to mark anchor locations. The ratchet is screwed into the wall at marked locations. Firmly push panels onto ratchets to complete installation. | ||
 |
||
| Install Location | Wall or Ceiling | |
| Parts Included | (1) × Rotofast snap-on anchor with ratchet (1) × Marking plug (1) × Wall anchor (1) × 2″ #8 Screw (1) Rotofast Snap-On Hex Tool |
|
| Note | Multiple kits ordered together will only include (1) Rotofast Snap-On Hex Tool and up to (6) Marking plugs. | |
