Echo Eliminator - Baffle

Bonded Acoustical Cotton Hanging Baffles

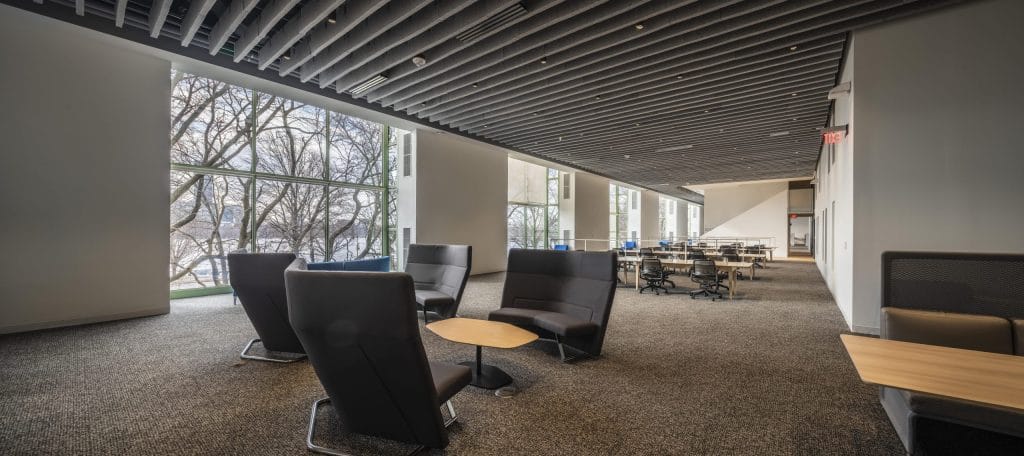

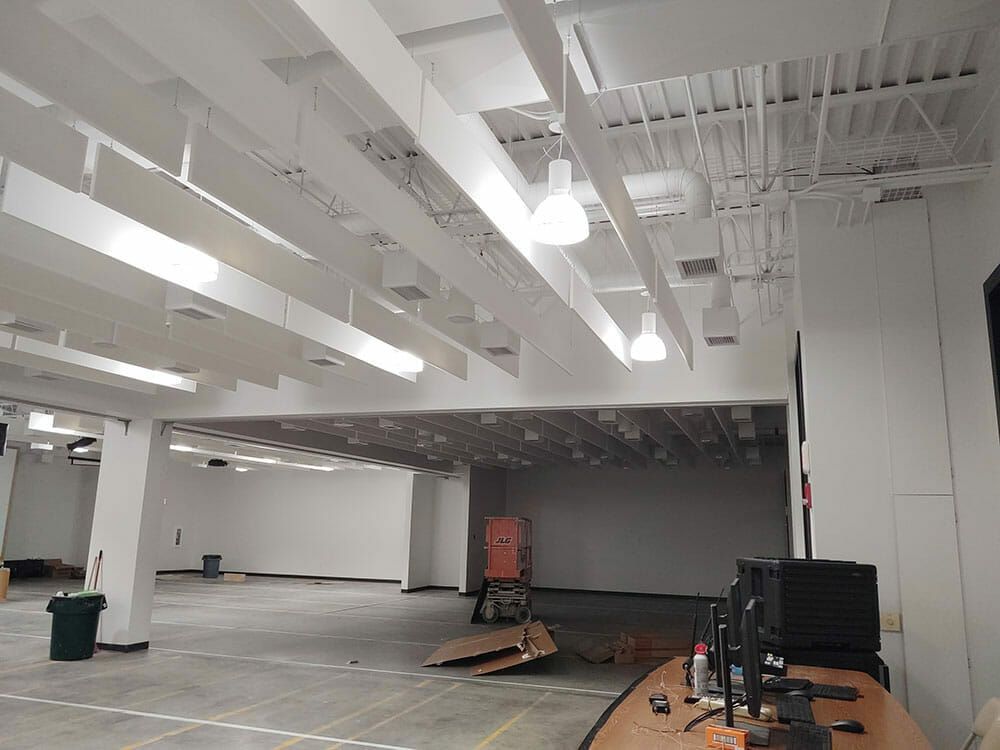

For excellent acoustical control in large open spaces, Echo Eliminator Baffles offer outstanding performance across a wide range of frequencies, as well as design flexibility. This product solves challenging acoustical problems in concert halls, auditoriums, gymnasiums, meeting halls, retail spaces, and more, to aid in improving sound quality, especially for speech articulation.

Echo Eliminator Baffles combine noise and reverberation reduction with architectural elements to add beauty and interest to a space.

See less

Downloads:

Product Data Sheets Acoustical Tests Fire Tests Properties Tests Additional Resources
  • Product Specs

    Applications

    Gymnasiums, Auditoriums, Classrooms, Music Rooms, Arenas & Stadiums, Churches, Offices, Computer Rooms, Restaurants/Cafeterias, Residential, Concert Halls & Theaters, Pro Audio, Gun Ranges, Manufacturing Plants, Machine Enclosures, Water Treatment Plants.

    Material Composition

    Bonded acoustical cotton (B.A.C.) made from recycled fibers

    Thickness

    1"
    2"

    Density

    1" 3 lb pcf
    1" 6 lb pcf
    2" 3 lb pcf

    Size

    Standard Size
    24" x 48"
    Additional Sizes
    12" x 12", 24" x 24", 48" x 48", 48" x 96"

    Minimum quantities apply, please call for details.

    Color

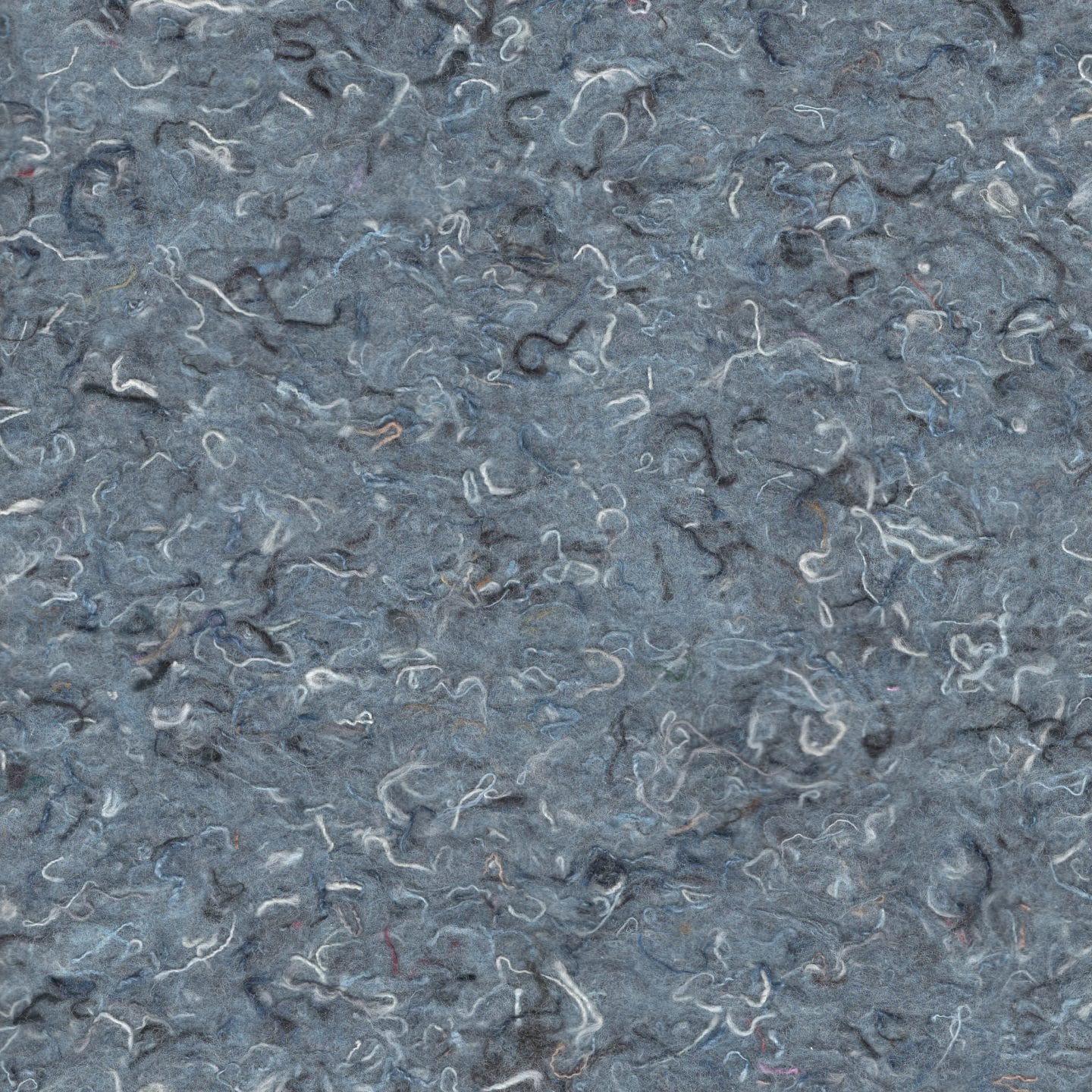

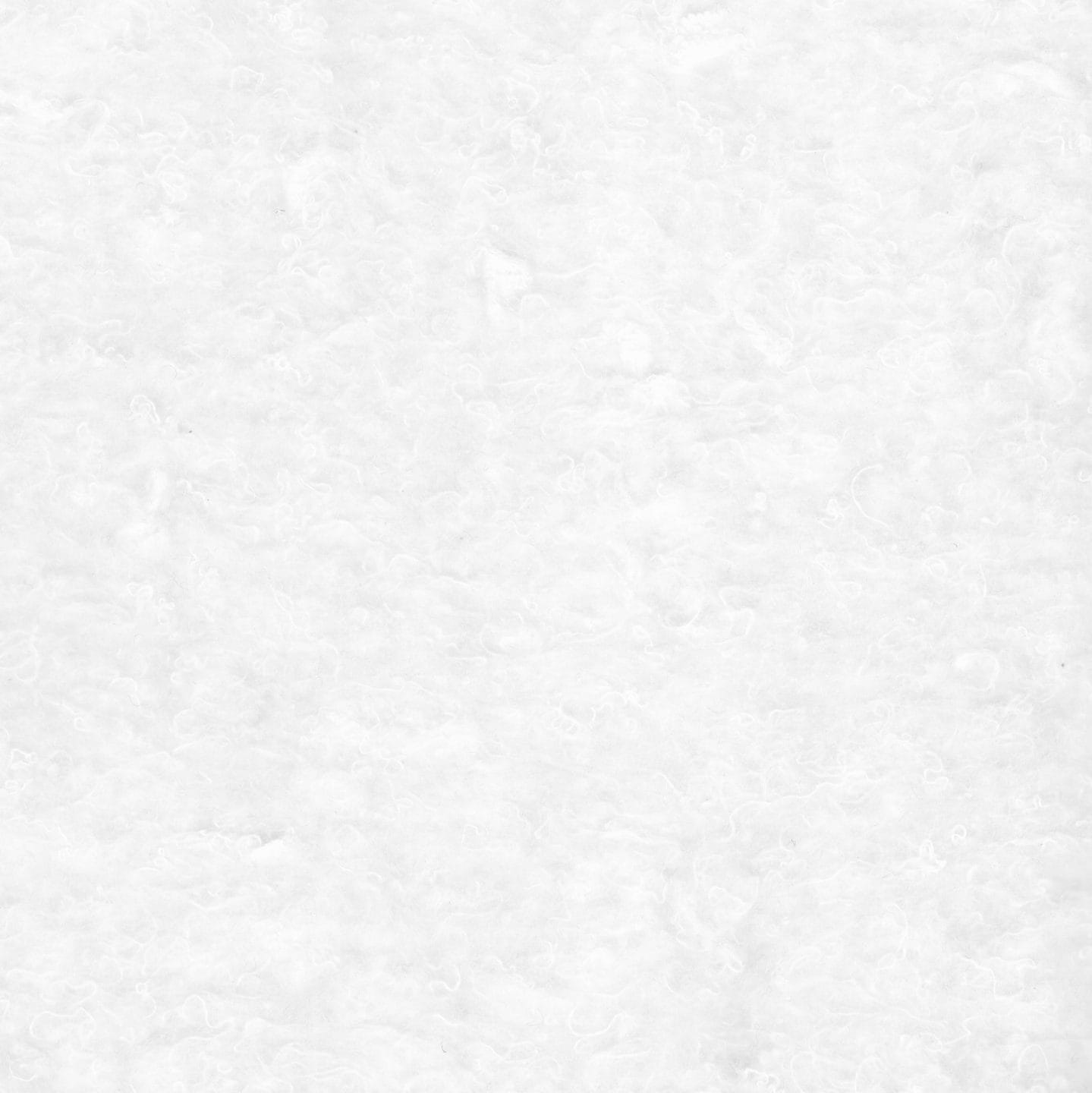

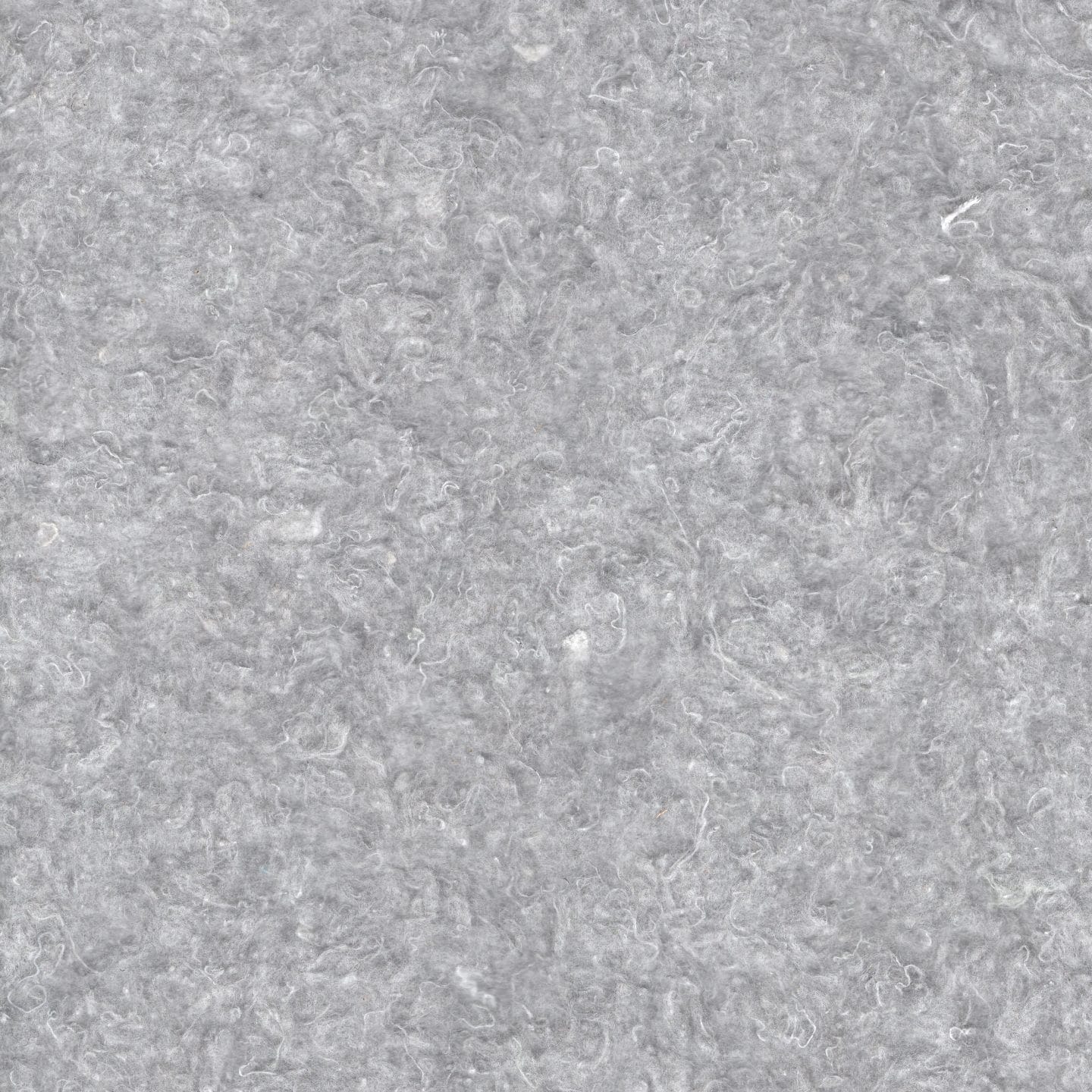

    White, Black, Marble Blue, Graphite, Light Gray, Beige

    Installation Method

    Suspended Panel by Grommets

  • Color Options
    Echo Eliminator – Baffle Echo Eliminator – Baffle Echo Eliminator – Baffle Echo Eliminator – Baffle Echo Eliminator – Baffle Echo Eliminator – Baffle

    Note: Although we take extensive precautions and purge the lines between colors, due to the manufacturing process color inconsistencies – including dye lot variations – flecks, specks, and other slight surface blemishes are unavoidable. Please call for details.

  • Acoustical Specs
    Echo Eliminator - Sabins/Baffle Results
    Panel Thickness/Density Testing Mount Sabins/Baffle Average
    1" 3 lb. pcf Baffle - 16" Spacing 10.30
    2" 3 lb. pcf Baffle - 16" Spacing 13.85
  • Material Performance

    Fire Performance

    Class A Fire Rated per ASTM E84

    Thermal Resistance (R-Value)

    1" 3 lb pcf - 3.8
    1" 6 lb pcf - 3.8
    2" 3 lb pcf - 7.5

    Light Reflectance

    White - 89
    Light Gray - 37

    Environmental

    Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
    Passes ASTM C1338 test (No fungal growth)

  • Accessories & Hardware

    Grommets

    Available in a Brass/Gold or Silver/Nickle color
    Application: Baffles
