Mass Loaded Vinyl Noise Barrier

Dense, plyable vinyl for reducing sound transmission

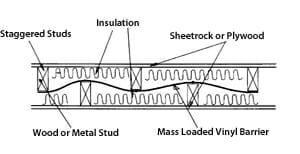

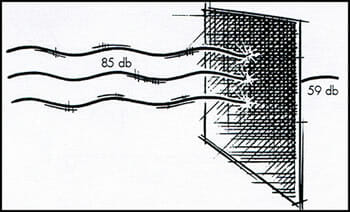

Mass Loaded Vinyl Noise Barrier is a dense, flexible acoustic membrane designed to reduce airborne sound transmission through walls and ceilings. Because of its density adds a significant amount of mass in a thin layer, and it is easily cut to fit around penetrations or shaped to follow the contours of ductwork and equipment enclosures. The barrier can be nailed, screwed, or stapled to framing and is available in three thicknesses and weights: 1/16 inch at ½ lb/ft² (STC 20), 1/8 inch at 1 lb/ft² (STC 27), and 1/4 inch at 2 lb/ft² (STC 31). These ratings apply to the barrier material. The sound isolation of the finished assembly depends on its construction and how seams, edges, and penetrations are sealed.

See less

Downloads / Product Resources

Product Data Sheet
Technical specifications
Installation
Step by step guide
CSI Specs
Industry standard format
Test Reports
Acoustic, fire and material testing
Sustainability Documents
For projects pursuing LEED, WELL, or LBC
Misc. Data
SDS, warranty, care & maintenance
  • Product Specs

    Applications

    Demising Walls, Condominium Ceilings, Hotel Guest Room Partitions, Dormitory Room Partitions, Private Office Walls, Conference Rooms, Medical Exam Rooms, Counseling Rooms, Classrooms, Library Study Rooms, Recording Studios, Podcast Studios, Broadcast Studios, Music Practice Rooms, Home Theaters, Cinema Auditorium Walls, Houses of Worship, Laundry Rooms, Mechanical Rooms, Server Rooms, Workshops, Industrial Control Rooms, Production Area Partitions, Air Compressor Enclosures, Pump Enclosures

    Material Composition

    Black, non-reinforced flexible PVC compounded with calcium carbonate.

    Weight / Approx. Thickness

    1/2 lb/sqft : 1/16″ 3/4 lb/sqft: _____"
    1 lb/sqft : 1/8″ 1.25 lbs/sqft: : ___"
    2 lbs/sqft: 1/4"

    Size

    ½ lb. psf (54”x20’ rolls)
    ¾ lb. psf (54”x30’ rolls)
    1 lb. psf (54"x20',30' and 60' rolls) (2'x4', 4'x8' and 54"x96" sheets)
    1.25 lb. psf (54”x20’ rolls)
    2 lbs. psf (54”x20’ rolls)

    Color

    Black

    Installation Method

    Stapled, nailed or screwed.

  • Acoustical Specs

    ½ lb. psf (54”x20’ rolls)
    ¾ lb. psf (54”x30’ rolls)
    1 lb. psf (54″x20′,30′ and 60′ rolls) (2’x4′, 4’x8′ and 54″x96″ sheets)
    1.25 lb. psf (54”x20’ rolls)
    2 lbs. psf (54”x20’ rolls)

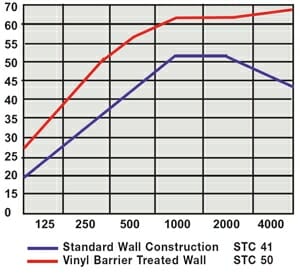

    Noise Transmission Loss (dB) Per Octave Band (HZ)
    Barriers 125 250 500 1000 2000 4000 STC
    1/2 lb. PSF 8 13 17 22 27 31 20
    1 lb. PSF 13 17 22 26 32 37 27
    1.25 lb. PSF 14 18 24 27 33 38 28
    2 lb. PSF 16 22 26 32 35 40 31
  • Material Performance

    Fire Performance

    UL 94VO
