Sound Silencer™ - Baffle

Sound Silencer™ Vertically Hanging Acoustical Baffles

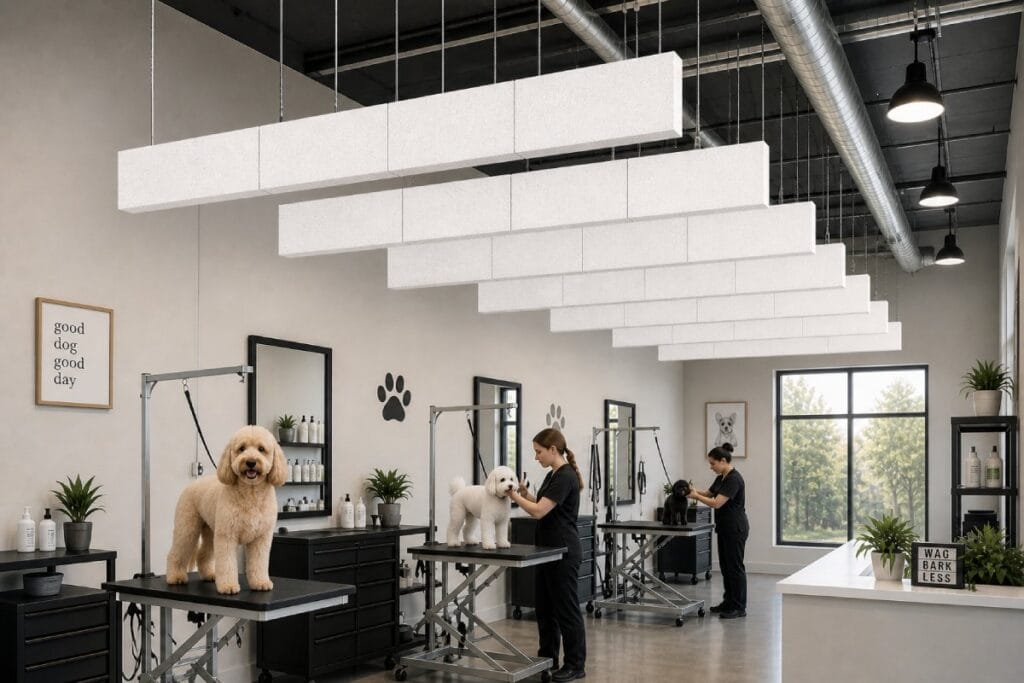

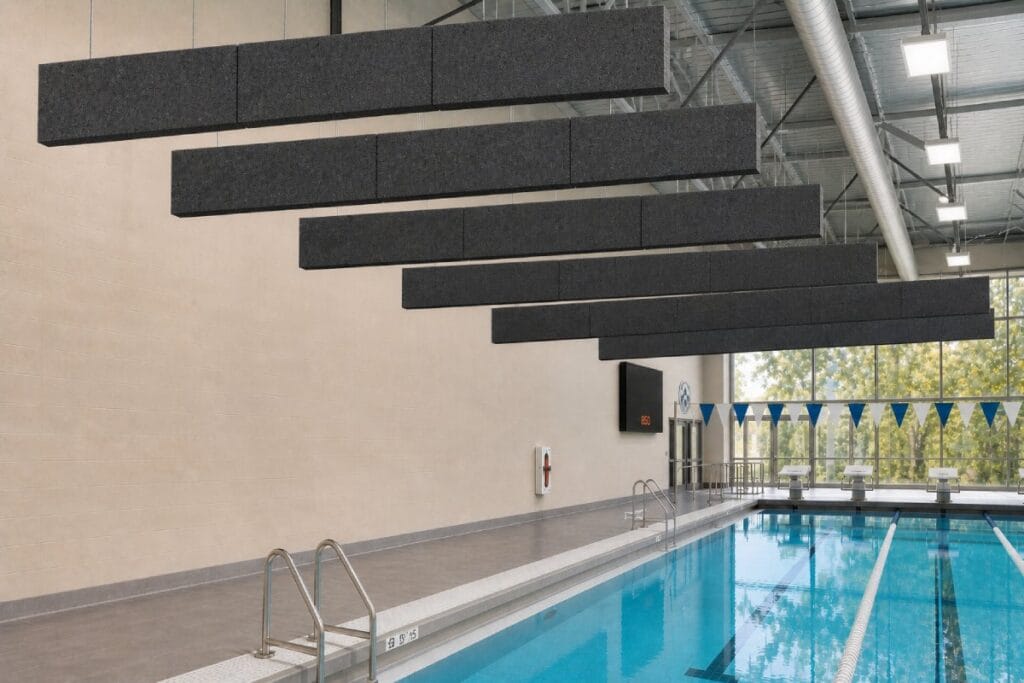

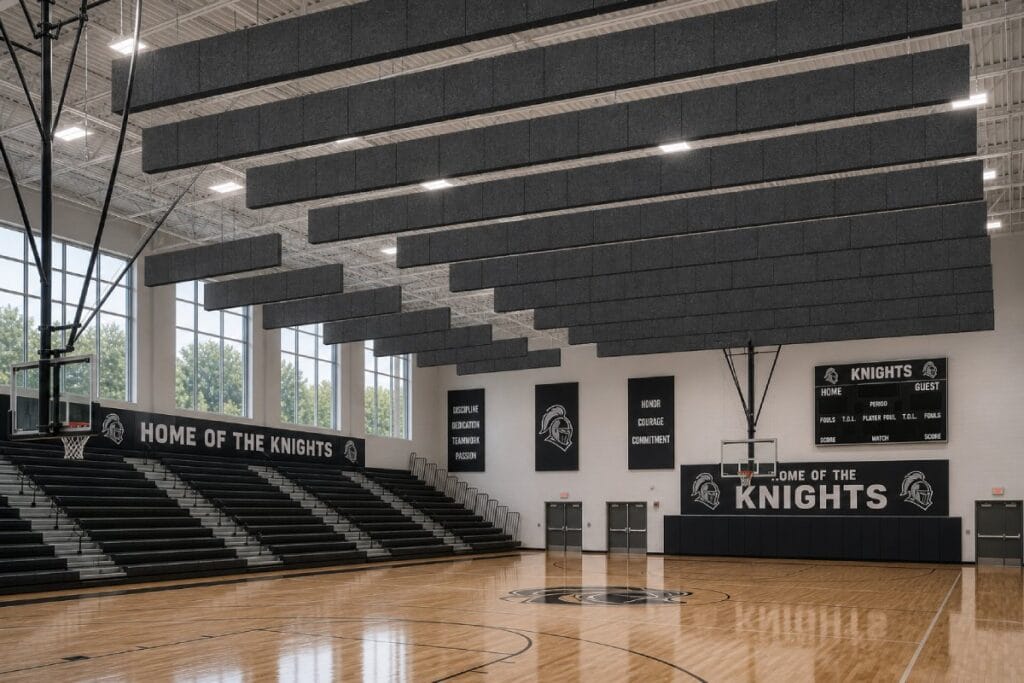

Some spaces simply weren’t built to be quiet. In gymnasiums, indoor pools, manufacturing facilities, and other large spaces filled with hard surfaces, sound can bounce from wall to wall, creating excessive reverberation that makes the environment loud and uncomfortable. Sound Silencer™ Acoustical Baffles help bring that noise under control from above, suspending an absorptive material in the open ceiling space where both sides can capture reflected sound. Made from lightweight, rigid, porous ARPRO® Acoustical Expanded Polypropylene (P.E.P.P.), these fiber-free baffles resist moisture, impact, bacteria, and fungi while providing durable acoustical performance. Their cleanable, non-abrasive construction makes them especially well suited for demanding environments such as gymnasiums, swimming pools, arenas, manufacturing and processing facilities, food preparation areas, laboratories, and other spaces where traditional acoustical treatments may not be the best fit.

See less

Downloads / Product Resources

Product Data Sheet
Technical specifications Installation
Step by step guide CSI Specs
Industry standard format Test Reports
Acoustic, fire and material testing Sustainability Documents
For projects pursuing LEED, WELL, or LBC Misc. Data
SDS, warranty, care & maintenance

View All Resources

Product Specs

Applications

Gymnasiums, Indoor Swimming Pools, Ice Rinks, Manufacturing Plants, Food Processing Facilities, Auditoriums, Arenas & Indoor Stadiums, School Cafeterias, Classrooms, Multipurpose Rooms, Indoor Recreation Centers, Machine Shops, Clean Rooms, Laboratories, Food Preparation Areas, Restaurants, Commercial Kitchens, Locker Rooms, Indoor Firing Ranges, Animal Hospitals & Veterinary Facilities, Dog Kennels & Animal Shelters, Water Treatment Facilities, Chemical Processing Facilities, Automobile Service & Repair Facilities, Car Wash Facilities, and more.

Material Composition

Rigid Porous ARPRO® Acoustical Expanded Polypropylene (P.E.P.P.)

Thickness

1" and 2"

Density

approximately 2.8 lbs. p.c.f.

Size

(standard) 48" wide x 24" tall or 24" wide x 24" tall. Baffles can be hung horizontally or vertically or custom (cut from 24" x 48")

Color

Charcoal or White

Installation Method

Suspended from Structure
Color Options

Charcoal

White

Acoustical Specs

Sound Silencer - Sabins / Baffle Results
Panel Thickness	Testing Mount	Sabins / Baffle Average
1"	Baffle - 16" Spacing	3.55
2"	Baffle - 16" Spacing	5.55

Click here for expanded sabins per baffle acoustical data

Sound Silencer - Expanded Sabins per Baffle Acoustical Data
Thickness	Testing Mount	125 Hz	250 Hz	500 Hz	1 kHz	2 kHz	4 kHz	Sabins / Baffle Average
1"	Baffle - 16" Spacing	0.82	2.18	2.79	3.03	6.29	8.36	3.55
2"	Baffle - 16" Spacing	1.17	2.53	3.67	6.61	9.39	10.64	5.55

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84

Light Reflectance

White - 90

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338, G21, G22 test (No fungal growth)
