Poly Max™ - Cloud

Polyester Acoustic Ceiling Clouds

Poly Max polyester acoustical ceiling Cloud panels are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde. Decorative and tackable, apply the acoustical cloud panels to ceilings to tame echo and reverberation. Available in a variety of colors or printed with custom graphics to blend into any decor. Material: 100% polyester (60% PET-recycled fiber, 40% PET-virgin fiber). Poly Max passes the CDPH V1.2 test standard for low VOC emissions and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials.

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests Additional Resources

Product Specs
Applications
Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.
Material Composition
100% Polyester (60% PET-recycled fiber, 40% PET-virgin fiber)
Thickness
1"
2"
Density
1": 7.5 lb. pcf
2": 5 lb. pcf
Size
Standard Sizes
24" x 48"
48" x 96"
Custom Sizes
Up to 48" x 96"
Color
See color options tab for full color availability.
Installation Method

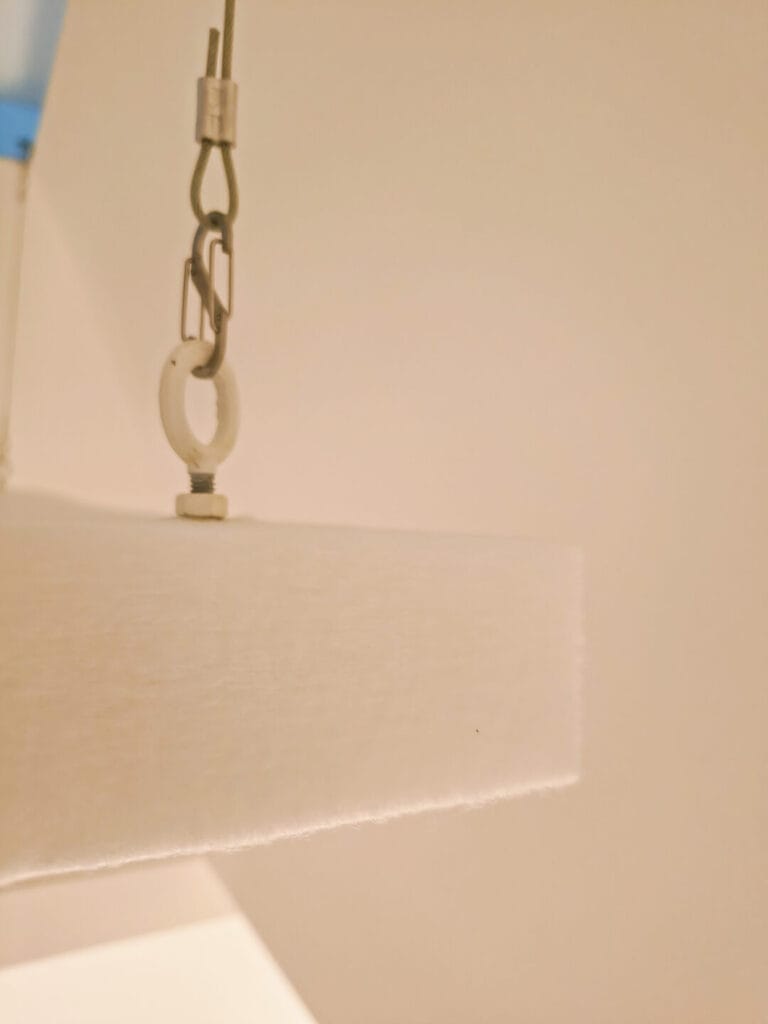

Suspended Panel
Color Options
1" and 2" Color Options

White

Beige

Black

Printed Graphics

Acoustical Specs

Poly Max – Octave Band Absorption Coefficients
Panel Thickness	Testing Mount	125 Hz	250 Hz	500 Hz	1 kHz	2 kHz	4 kHz	NRC Rating
1/2″	A	0.01	0.07	0.26	0.54	0.78	0.94	0.40
1″	A	0.08	0.20	0.59	0.94	1.04	1.02	0.70
1″	E400	0.44	0.80	0.73	0.99	1.05	1.01	0.90
2″	A	0.31	0.58	1.08	1.11	1.04	1.04	0.95

Material Performance
Fire Performance
Class A Fire Rated per ASTM E84
Light Reflectance
1" White - 83
2" White - 82
Environmental
Passes CDPH Standard Method V1.2-2017 (VOC Emissions)

Passes ASTM C1338 test (No fungal growth)
