Acousti-Board
Echo Eliminator - Bass Buster
Bonded Acoustical Cotton Low-frequency Absorber Panels
Echo Eliminator Bass Buster, made from bonded acoustical cotton (B.A.C.), is a cost-effective acoustical absorbing material that excels at low-frequency absorption which is important in industrial, architectural, and pro audio spaces. It is a high-performance acoustical panel manufactured from recycled cotton, and is ideal for any noise control application. Echo Eliminator Bass Buster panels are easily installed with adhesive or used as a backer material, fiberglass free, and may be eligible for LEED™ credits.
-
Product Specs
Applications
Residential, commercial, industrial; schools, restaurants, classrooms, houses of worship, community centers, offices, conference rooms, music rooms, recording studios, theaters, public spaces, medical facilities, auditoriums, arenas/stadiums, warehouses, manufacturing plants, and more.
Material Composition
Bonded acoustical cotton (B.A.C.) made from recycled fibers
Thickness
4"
Density
1.5 lb. pcf
Size
Standard Size
24" x 48"
Special sizes available, minimum quantities apply, please call for details.Color
Charcoal
Installation Method
Adhesive
-

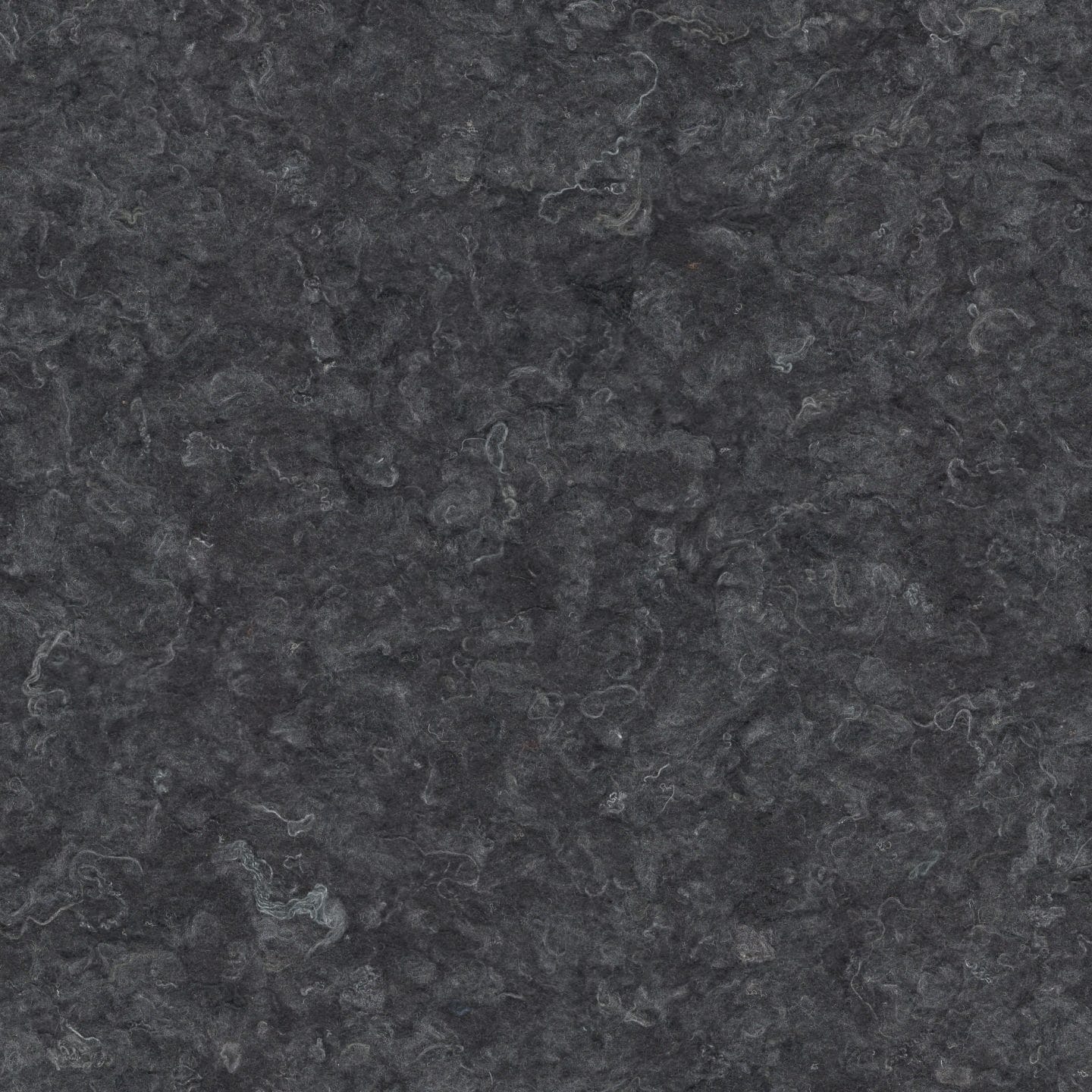

Color Options
Charcoal Note: Although we take extensive precautions and purge the lines between colors, due to the manufacturing process color inconsistencies – including dye lot variations – flecks, specks, and other slight surface blemishes are unavoidable. Please call for details.
-
Acoustical Specs
Echo Eliminator – Octave Band Absorption Coefficients Panel Thickness / Density Testing Mount 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz NRC Rating 4″ 1.5 lb. pcf A 0.95 1.30 1.19 1.08 1.02 1.00 1.15 -
Accessories & Hardware
Noise S.T.O.P.™ Contact Adhesive Spray
Used in combination with GREENchoice™ Heavy Duty Construction Adhesive to bond acoustical panel to substrate
Application: Ceiling and Wall Panels
GREENchoice™ Heavy Duty Construction Adhesive
Used in combination with Noise S.T.O.P.™ Contact Adhesive Spray to bond acoustical panel to substrate
Application: Ceiling and Wall Panels
Stick Pin
Stick pins are often used as mechanical fasteners for overhead installations or to hold panels in place while adhesive is setting. They are strongly recommended for corrugated metal deck or similar applications. Pins and washers are available in both galvanized and stainless steel. Pin lengths are available from 1” to 6” in varying increments. Please call or contact an ASI product specialist for more information.
Application: Ceiling PanelsB.A.C. Blade
8″ round universal table saw toothless blade for field cutting acoustical panels
Application: Ceiling and Wall PanelsInsul-Knife
Insul-Knife hand tool for field cutting acoustical panels
Application: Ceiling and Wall Panels
