Envirocoustic™ Wood Wool Panel Designs & Patterns

Cementitious Wood-Fiber Engraved Design Acoustic Ceiling and Wall Panels

Envirocoustic™ Wood Wool Designs panels lead the acoustic panel products category with eco-friendliness, high-performance, and cost-effectiveness. Envirocoustic Wood Wool Designs panels are designed for sound absorption to tame echo and reverberation in spaces. Ecologically, the Designs Ceiling and Wall panels are simple to produce by combining water, Portland cement and wood fibers. Highly resistant to microbial and fungal growth, Envirocoustic Wood Wool Designs Ceiling and Wall panels are Class-A Fire Rated and pass the NFPA 286 fire test. The wood wool panels meet the California Department of Public Health VOC emissions standards, qualifying projects for LEED credits, and making Designs a sound choice for a variety of venues.

Wood Wool Designs panels are available as wall and ceiling acoustic board panels and in many design and color variations that can be customized to fit nearly any space or decor. Flexible, variable, and mixable, a wood wool acoustic panel is a practical solution to sound sensitive environments. Make big design statements, or keep it subtle, all while absorbing noise to make any space sound better.

See less

Downloads / Product Resources

Product Data Sheet
Technical specifications Installation
Step by step guide CSI Specs
Industry standard format Test Reports
Acoustic, fire and material testing Sustainability Documents
For projects pursuing LEED, WELL, or LBC Misc. Data
SDS, warranty, care & maintenance

View All Resources

Product Specs

Applications

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

Wood fiber, Portland cement, and water.

Wood fiber is a natural material, color variations may occur

Thickness

1"
1" (Microstrand)
1-3/8"
2"

Size

Standard Panel Sizes
24" x 24"
24" x 48"
Custom Panel Sizes
Up to 24" x 96"

Designs

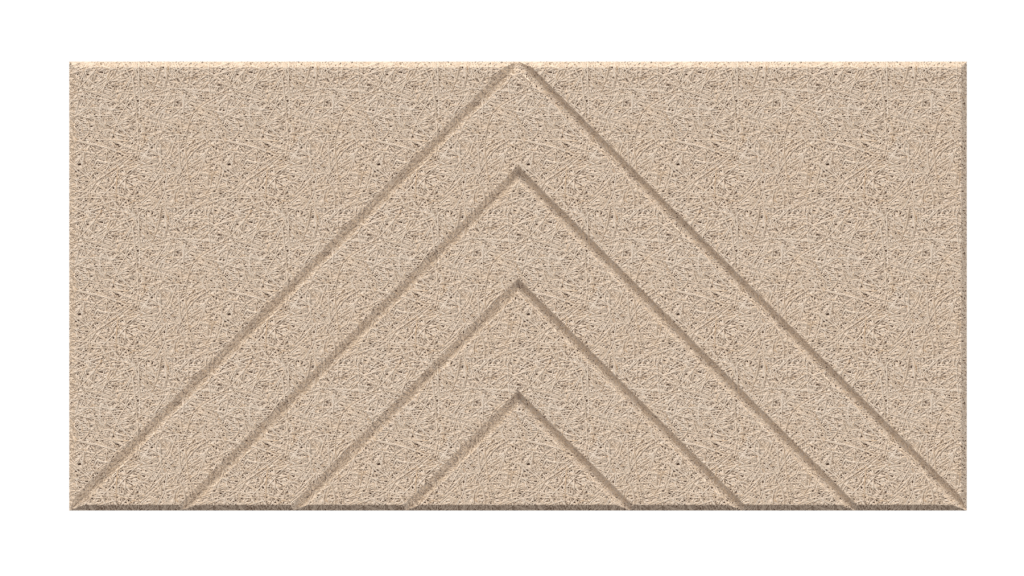

Arrow

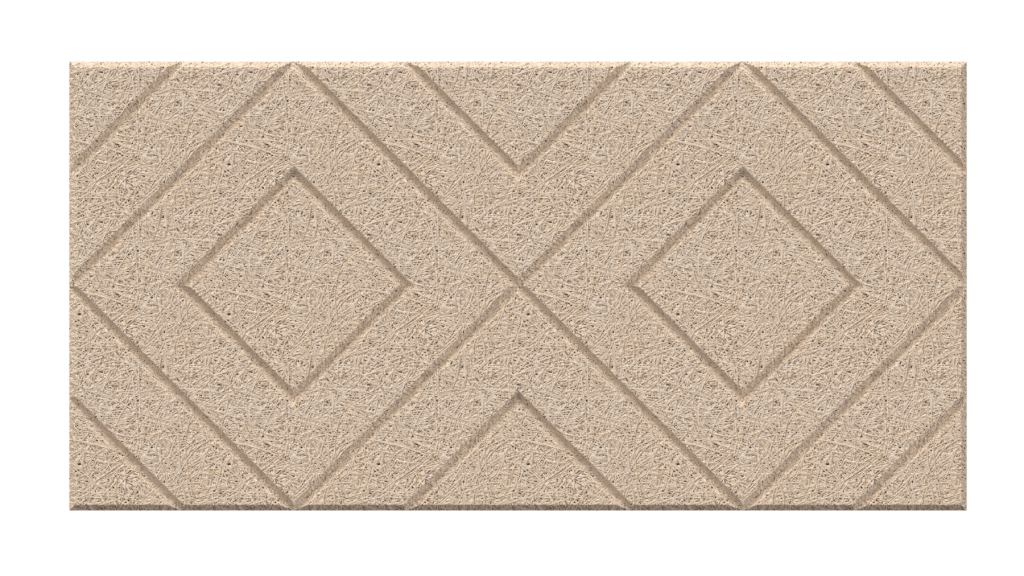

Askew

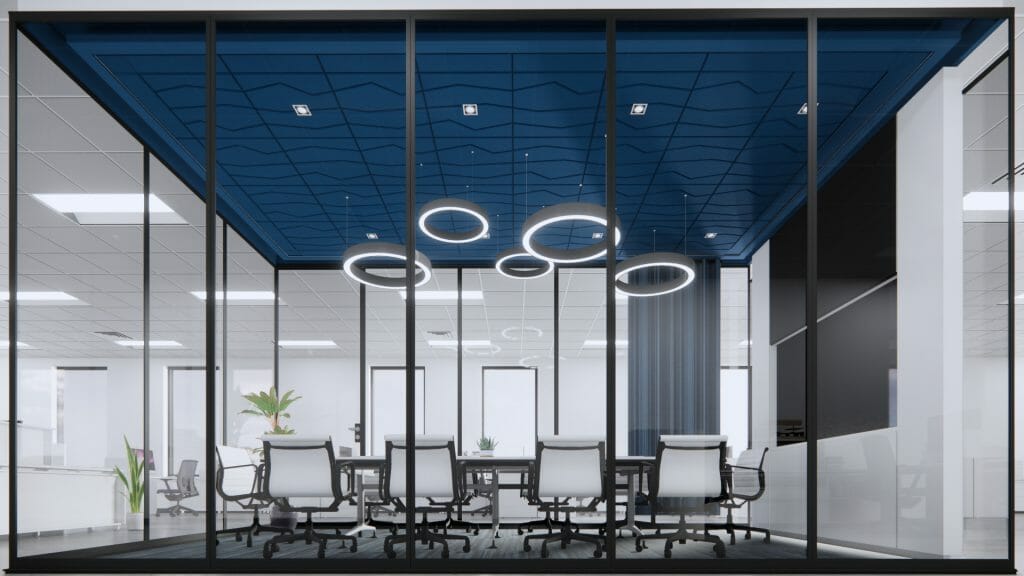

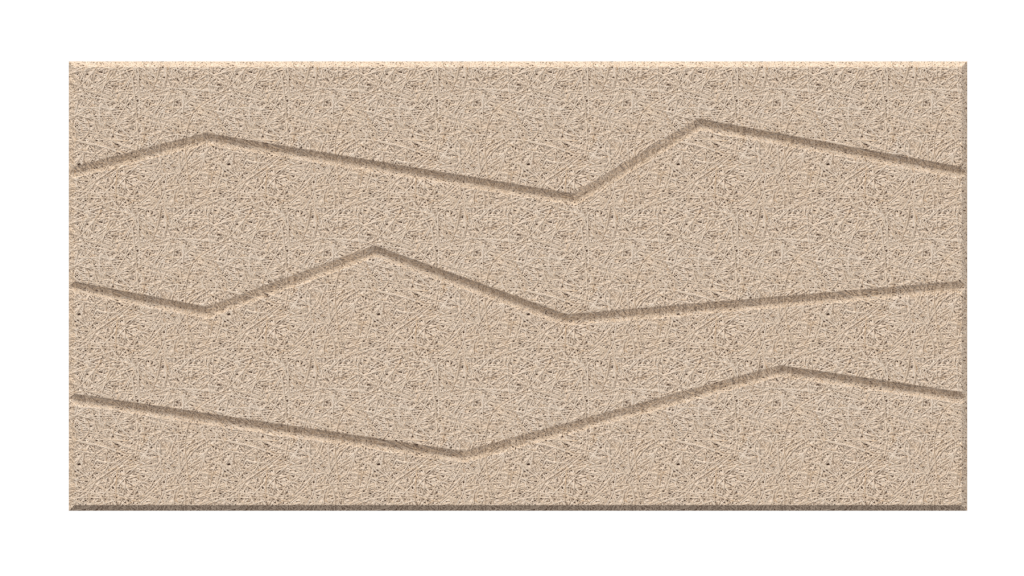

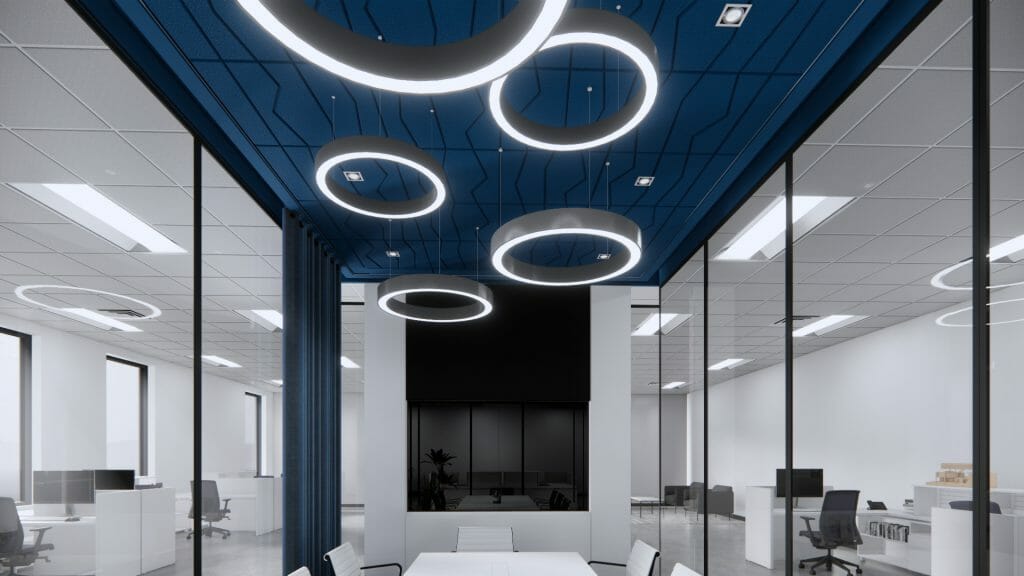

Crackle

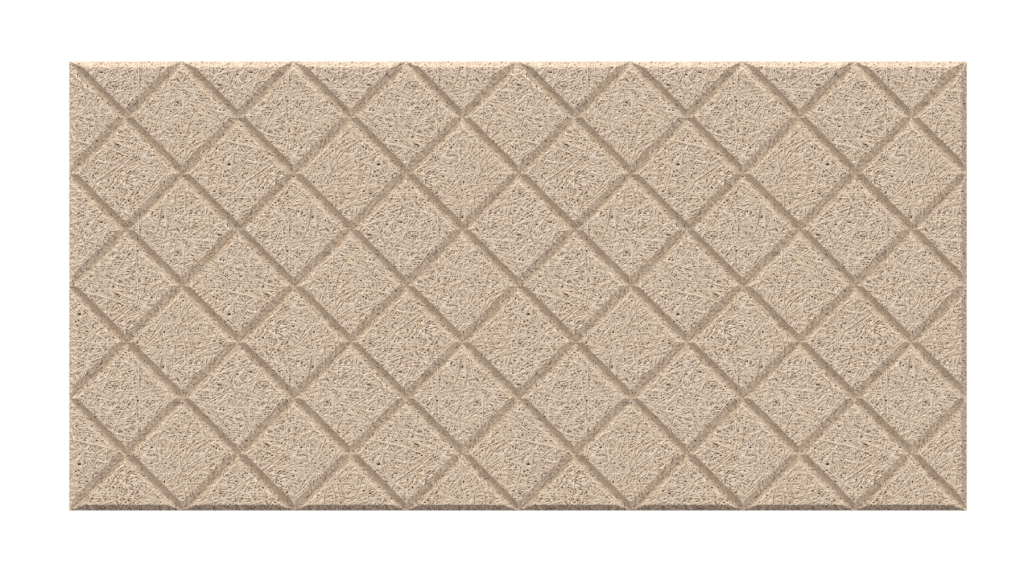

Crossed

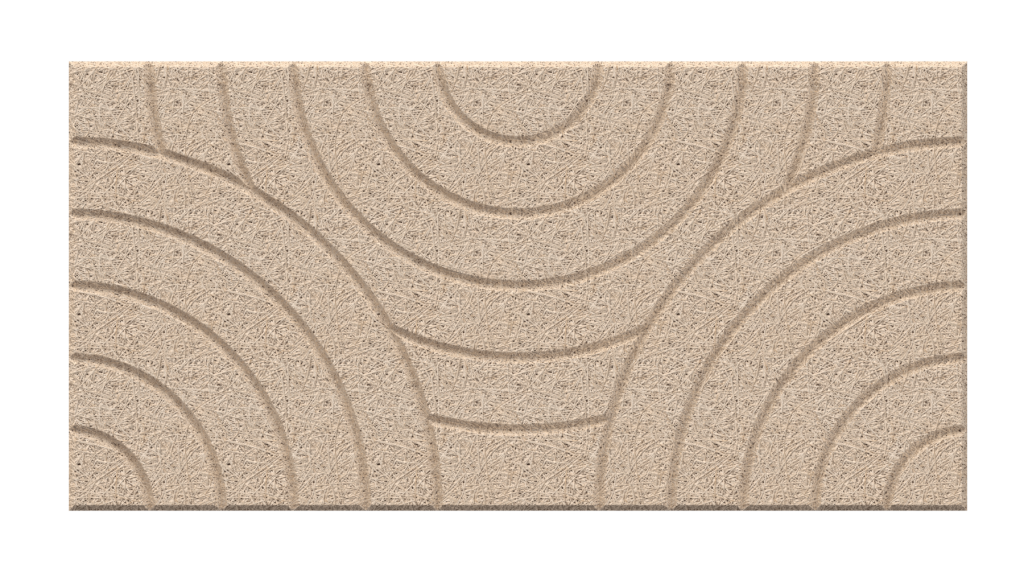

Current

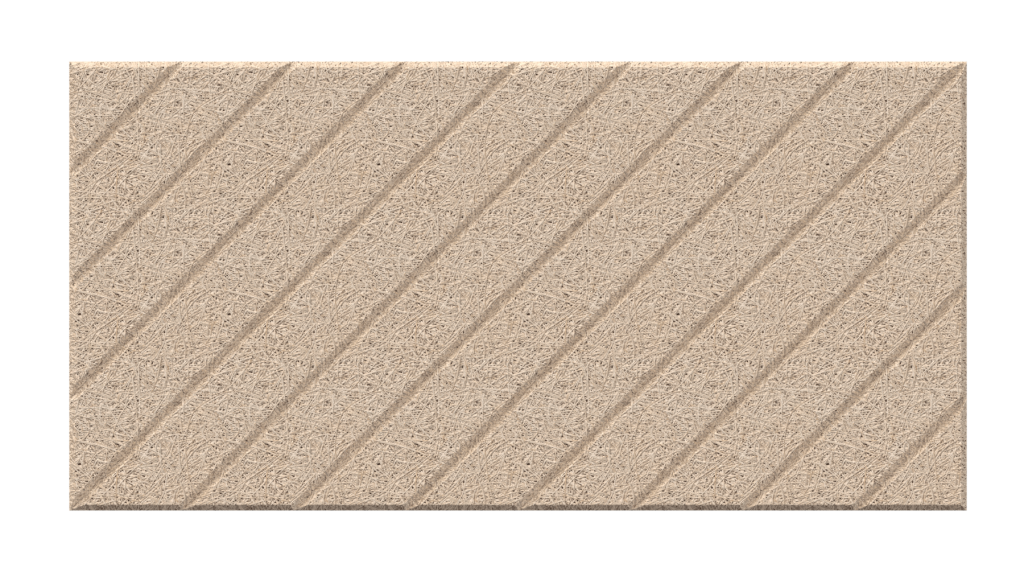

Downhill

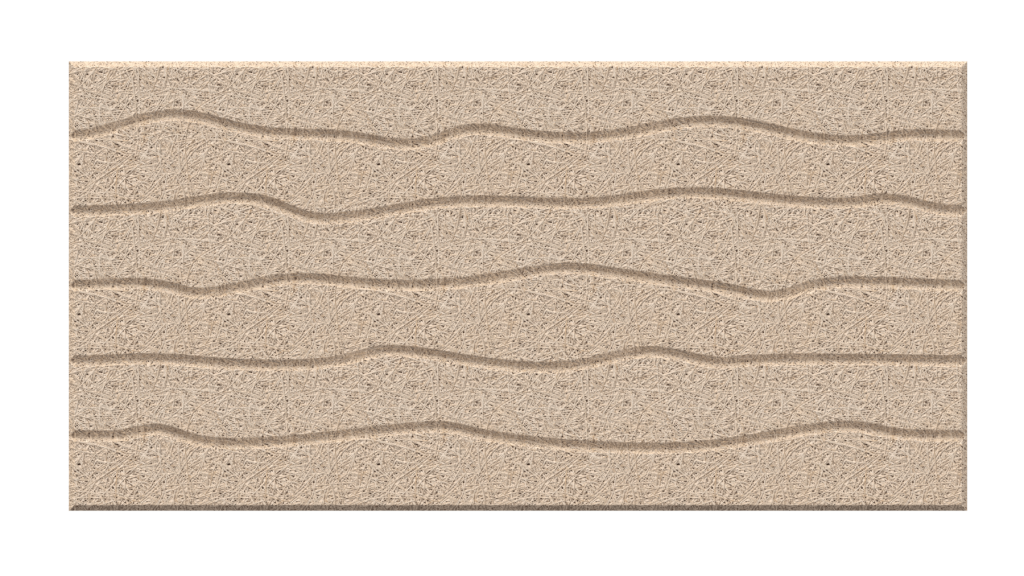

Drizzle
Grid

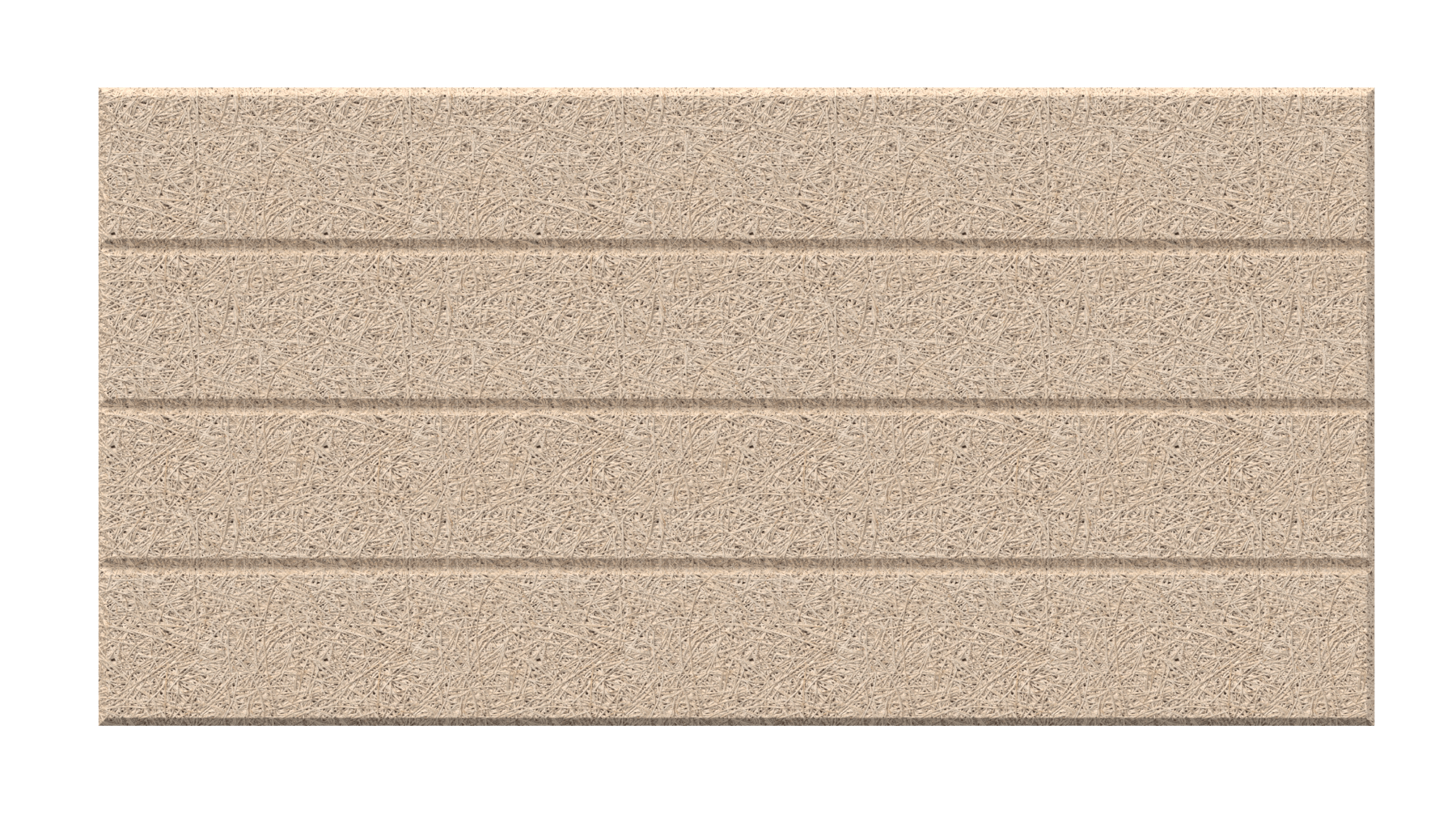

Longitude
Latitude

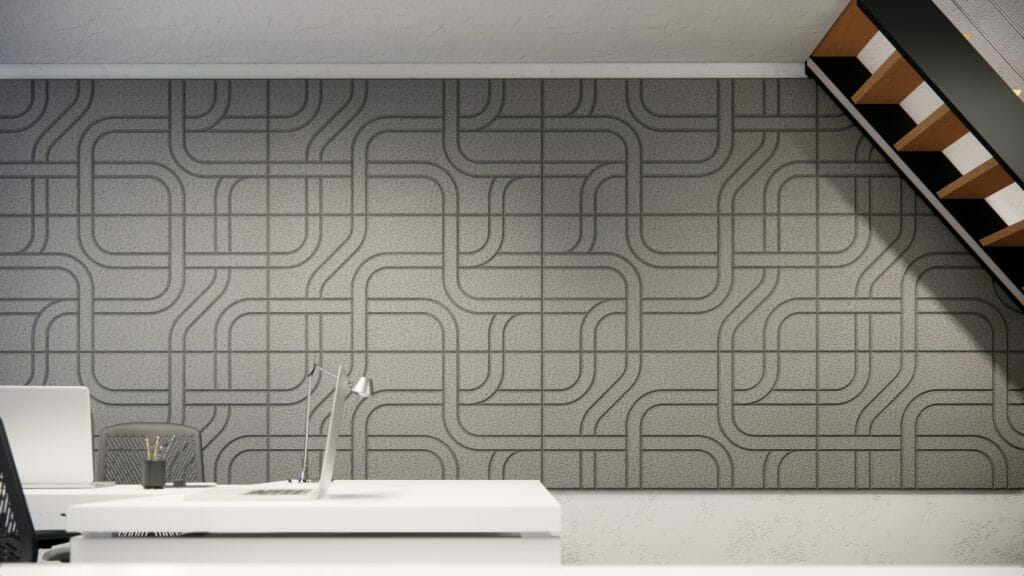

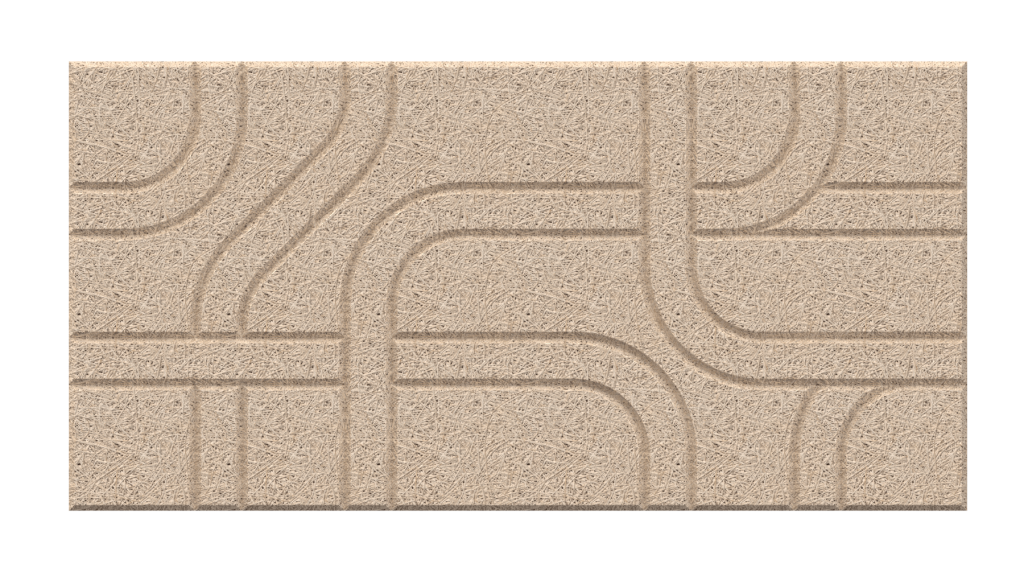

Metro
Panes

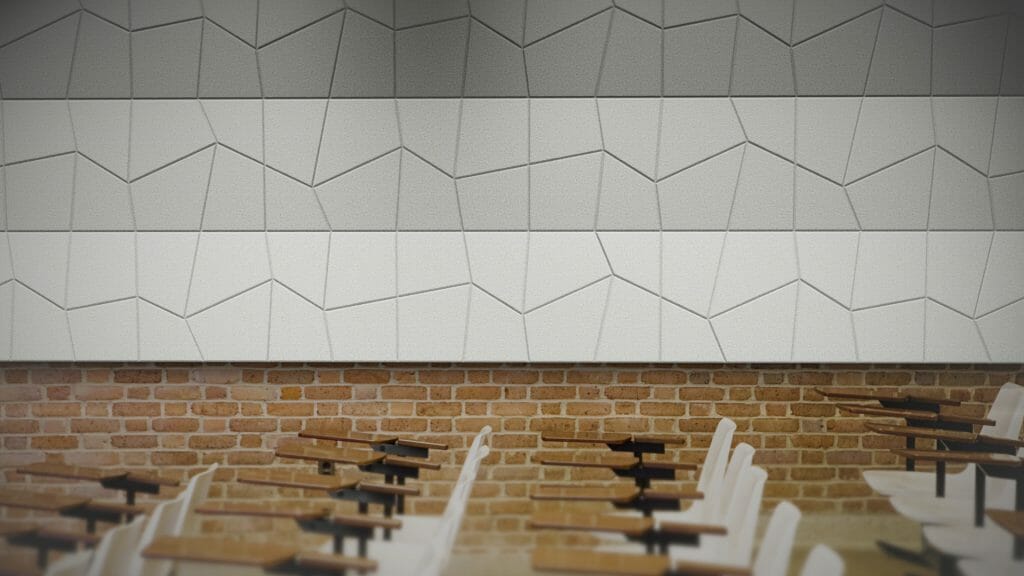

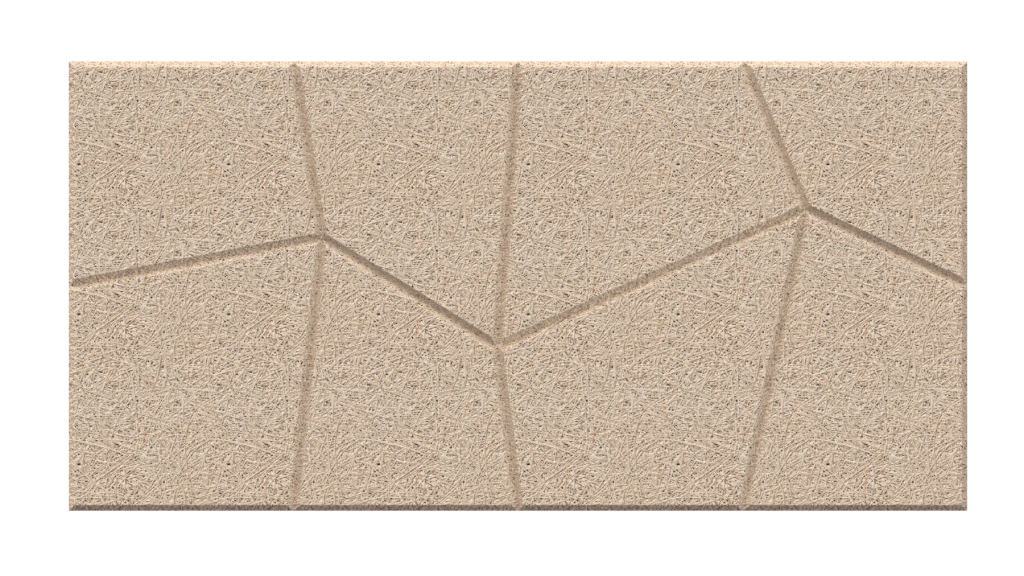

Skew

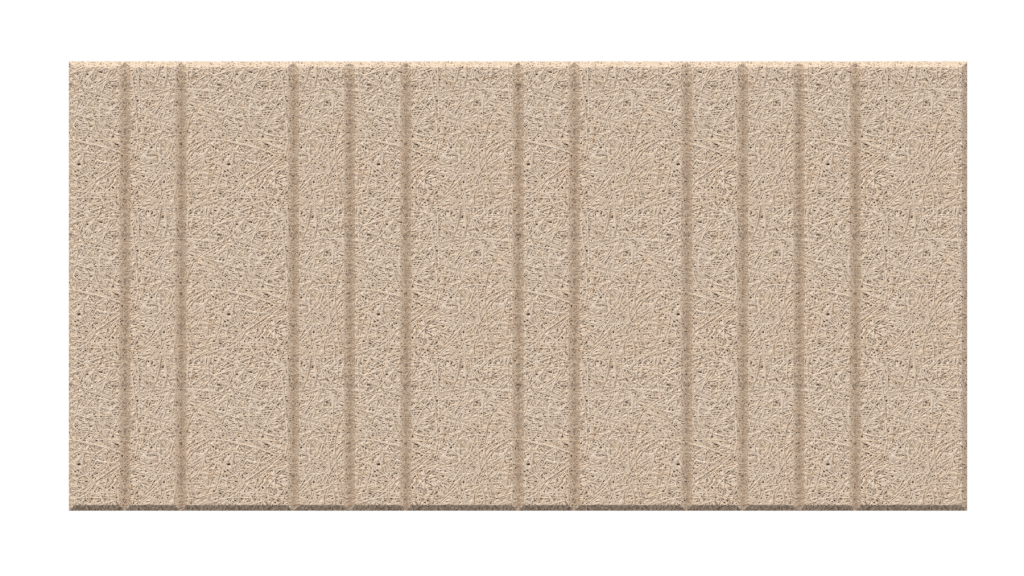

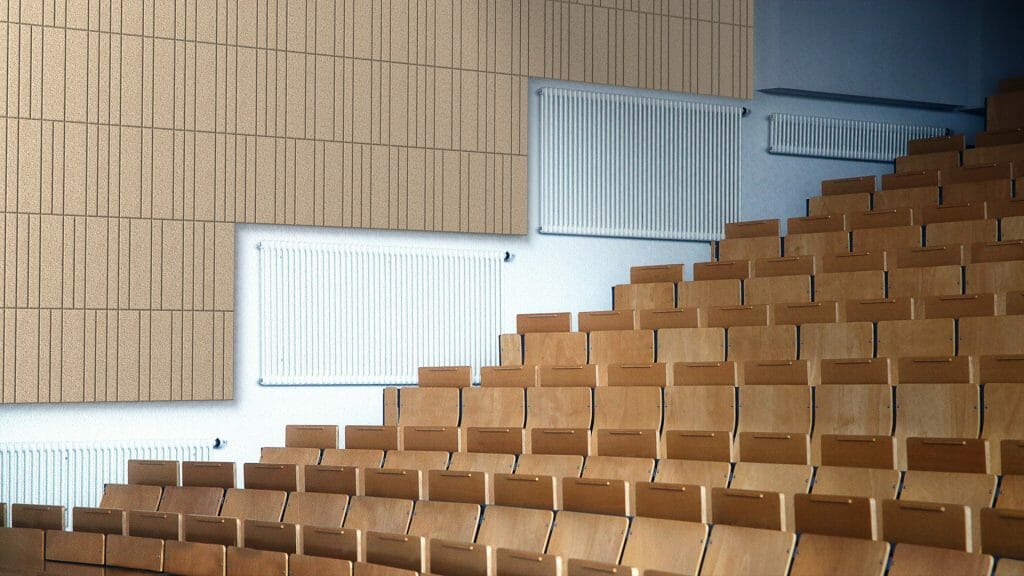

Strata

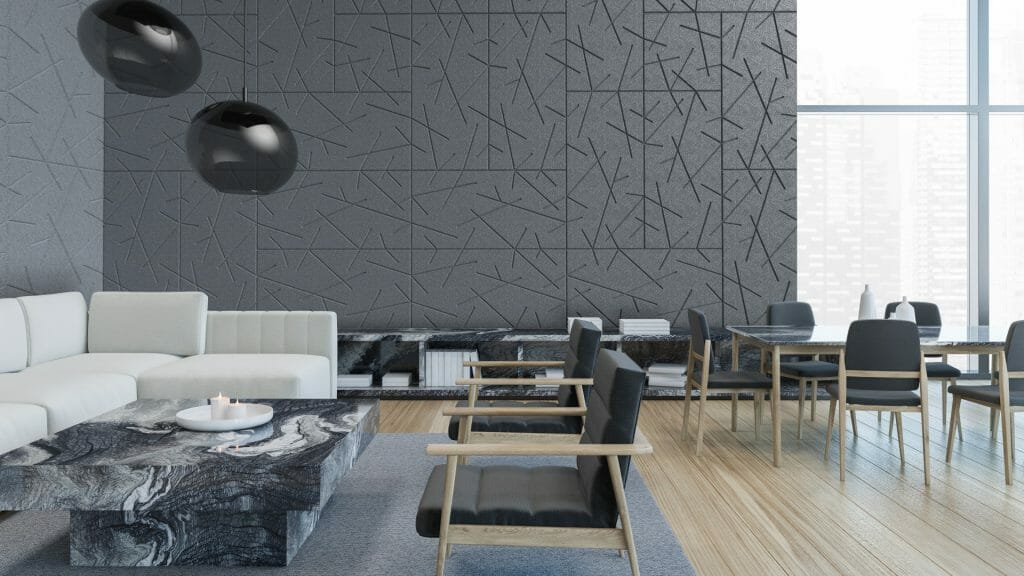

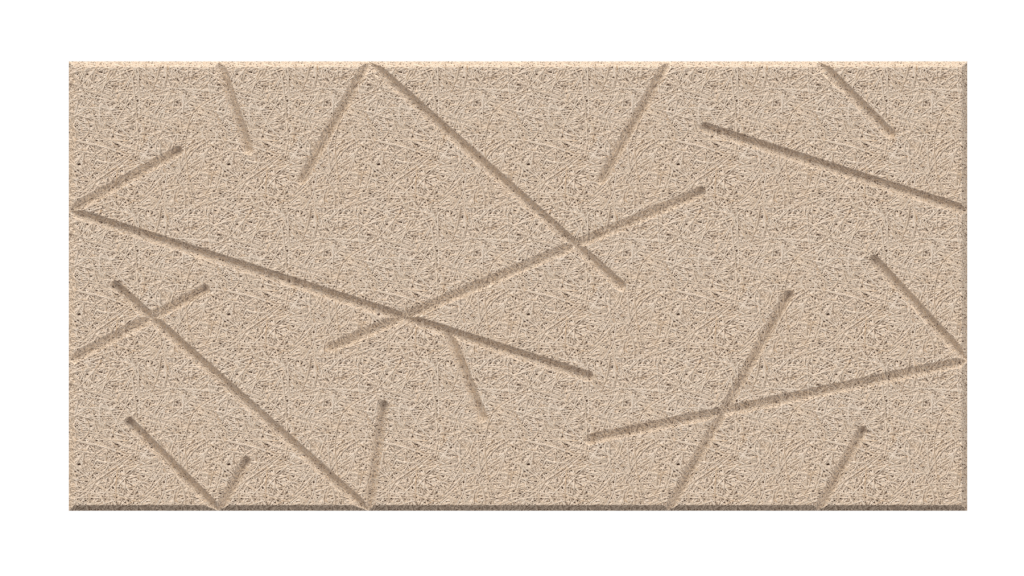

Twigs
Uphill

Edge Detail

Beveled

Finishes

Primed Clear - natural wood color
Extra White - SW 7006 (Pro Industrial Waterborne Acrylic Dryfall)
Tricorn Black - SW 6258 (ProMar 200 Interior Latex - flat)
Stamped Concrete - SW 7665 (ProMar 200 Interior Latex - flat)

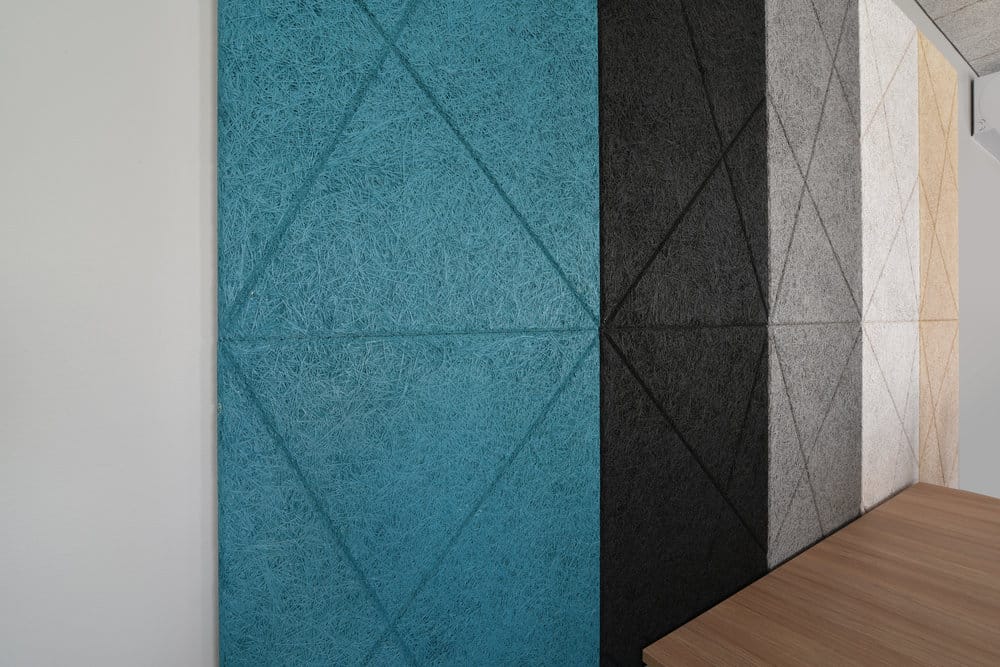

Custom Painted
Exterior paint (Duration Exterior Acrylic Latex) is available for exterior projects, please call for details
NOTE: Panel appearance and color will vary with the texture of the Wood Wool Fibers

Installation Method

Direct Attach
Finish Options

Available Finish Options

Wood fiber is a natural material, color variations may occur

Standard Colors

Primed Clear

Extra White

Tricorn Black

Stamped Concrete

Custom Painted
Design Options

Arrow
Askew
Crackle
Crossed
Current
Downhill
Drizzle
Grid
Latitude
Longitude
Metro
Panes
Skew
Strata
Twigs
Uphill

Acoustical Specs

Envirocoustic™ Wood Wool – Panel NRC Results
Panel Thickness	No Airspace (A Mount)	3/4″ Airspace (D-20 Mount)	1″ CFAB Backer (C-25 Mount)	2″ CFAB Backer (C-50 Mount)
1″	0.45	0.50	0.80	0.85
1″ (Microstrand)	0.60	0.50	0.80	0.95
1-3/8″	0.55	0.60	0.85	0.90
2″	0.75	0.75	0.90	0.95

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84
Passes NFPA 286 Contribution to Room Fire Growth Test

Light Reflectance

Primed Clear - 50
Primed White - 70

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM D3273 test (100% clear of fungal growth)
Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)

R-Value

1" R-Value: 2.32
2" R-Value: 3.74
