Envirocoustic™ Wood Wool - Baffle

Envirocoustic™ Wood-Wool Acoustic Ceiling Baffles

Envirocoustic™ Wood Wool Ceiling Baffles liven up rooms with unexpected design variety and provide sound absorption to spaces where direct-attach panels are impractical. In restaurants, gymnasiums and auditoriums, industrial buildings, and arenas where echoes and reverberation can be overwhelming and pose risks to hearing and peace of mind, Wood Wool Baffles absorb sound and lead the eco-friendly, high-performing, cost-effective acoustic panel products category. Envirocoustic Wood Wool Baffles are Class A fire rated and pass the NFPA 286 fire test. In addition, the baffles meet the California Department of Public Health VOC emissions standards, possibly qualifying projects for LEED credits, and are also highly resistant to microbial and fungal growth making baffles a sound choice for a variety of spaces.

Ecologically, acoustic wool is simple to produce by combining water, Portland cement and wood fibers. Panels are available in many size, shape, and color variations that can be designed to fit nearly any décor. Easily suspend Baffles with factory installed PVC inserts for high acoustical performance with visual interest.

Downloads:

Product Data Sheets CSI Specifications Installation Instructions Acoustical Tests Fire Tests Properties Tests CAD / BIM / Revit General Resources
  • Product Specs

    Applications

    Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

    Material Composition

    Wood fiber, Portland cement, and water.

    Wood fiber is a natural material, color variations may occur

    Thickness

    1"
    1" (Microstrand)
    1-3/8"
    2"

    Size

    Standard Sizes
    12" x 48"
    24" x 48"
    Custom Sizes
    Up to 24" x 96"

    Edge Detail

    Square
    Beveled

    Finishes

    Primed White
    Painted

    While both sides of baffle panels come finished, panels are directional - each panel will have an A-side and a B-side in which there may be slight variance in texture.

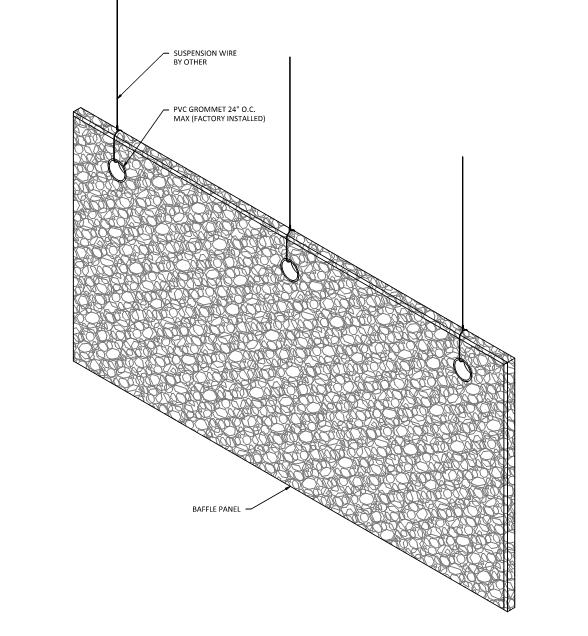

    Installation Method

    Suspension by Other

  • Finish Options

    Available Finish Options

    Envirocoustic Wood Wool Product Page – Baffle
    Primed White
    Envirocoustic Wood Wool Product Page – Baffle
    Painted
  • Acoustical Specs
    Envirocoustic™ Wood Wool – NRC Results
    Panel Thickness A Mount E-400 Mount
    1″ 0.45 0.40
    1″ (Microstrand) 0.60 0.55
    1-3/8″ 0.55 0.60
    2″ 0.75 0.75
  • Material Performance

    Fire Performance

    Class A Fire Rated per ASTM E84
    Passes NFPA 286 Contribution to Room Fire Growth Test

    Light Reflectance

    Primed White - 70

    Environmental

    Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
    Passes ASTM D3273 test (100% clear of fungal growth)
    Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)
