Acoustical Wall Panels

NOISE S.T.O.P. FABRISORB™

Decorative Fabric Wrapped Custom Acoustical Wall Panels
  • High Performance
  • Architecturally Decorative
  • Custom Engineered & Manufactured
  • Reduced Noise & Reverberation
  • 100% Custom Colors and Sizes

Click onWord Iconicon to download CSI specification.


MATERIAL: 6 lb. density glass fiber with woven fabric and micro-perforated vinyl facings.
PATTERN: Flat-faced with square or radiused corners, beveled, radiused or mitered edges.
FEATURES: Custom designed and manufactured to meet every need. Flat or curved panels. Soft or hard edges
APPLICATIONS: Offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios. Any space where good speech privacy or speech intelligibility is important.
THICKNESS: 1″, 1-1/8″, 2″, 2-1/8″
SIZES: Custom Up to 4′ × 10′
COLORS: A wide range of standard colors and custom colors are available for woven fabrics and perforated vinyls.
FLAMMABILITY: ASTM E84, Class A. Flame Spread: 15; Smoke Developed: 40
INSTALLATION: Adhesive, Hook & Loop Fasteners, Mechanical Clips, Impaling Clips, magnetic clips, splines.
Note: If using E.C. clips to mount these panels to the ceiling, the installer must use construction adhesive on each clip so the clips do not slide apart. It is also advised to toe-nail the panel into place, or use trim around the perimeter to make sure that the clips adhere together correctly.
Printed Acoustical Panel

Inquire About Custom Graphic Options
Buy Acoustical Panels Online
Product Testing and Information
Testimonials Acoustical Tests Materials Safety Data Sheet Flammability Tests
Installation Instructions Product Photos Miscellaneous Data
ABSORPTIVE HIGH IMPACT REFLECTIVE MINERAL CORE ABUSE RESISTANT
Absorptive Panel
High performance absorption.
High Impact Panel
Absorptive in high traffic areas.
Reflective Panel
For combined use in Studios for absorption and reflection.
Mineral Core Panel
Multi-purpose panel for absorption and sound blocking
Abuse Resistant Panel
For gymnasiums, absorption and abuse resistance.
TACKABLE 1 HI-TACK TACKABILITY 2 NOISE BARRIER
Tackable Panel
For long lasting and effective tackability.
Hi-Tack Panel
High absorption and tackability
Tackable Panel
Tackability where sound absorption is not necessary.
Noise Barrier Panel
Barricade vinyl barrier, ideal for areas requiring high STC.


Fabrisorb™ Wall panel – Sound Absorption Coefficients
6-7 PCF Glass Fiber 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1″ .14 .27 .80 1.11 1.14 1.14 .85
2″ .22 .81 1.24 1.30 1.21 1.16 1.15

EDGE DETAILS
Fabric Wrapped Panel Square Edge Fabric Wrapped Panel Radius Edge
Square Radius
Fabric Wrapped Panel Bevel Edge Fabric Wrapped Panel Half Bevel Edge
Bevel Half Bevel

Impaling Clips and Adhesive
One impaling clip is needed for each mounting location

Impaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries.
Impaling Clip
Install Location Wall
Parts Included (1) × Impaling Clip
Recommended Adhesive
(sold separately)
Titebond Green Choice Adhesive (ASTSA28)
Part Number HWIMP33
Fabric Wrapped Panel Hardware Pack – Impaling Clip
One hardware pack is needed for each mounting location

Drywall anchors are installed into the drywall and the screws hold the impaling clip to the anchor. Impaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries.

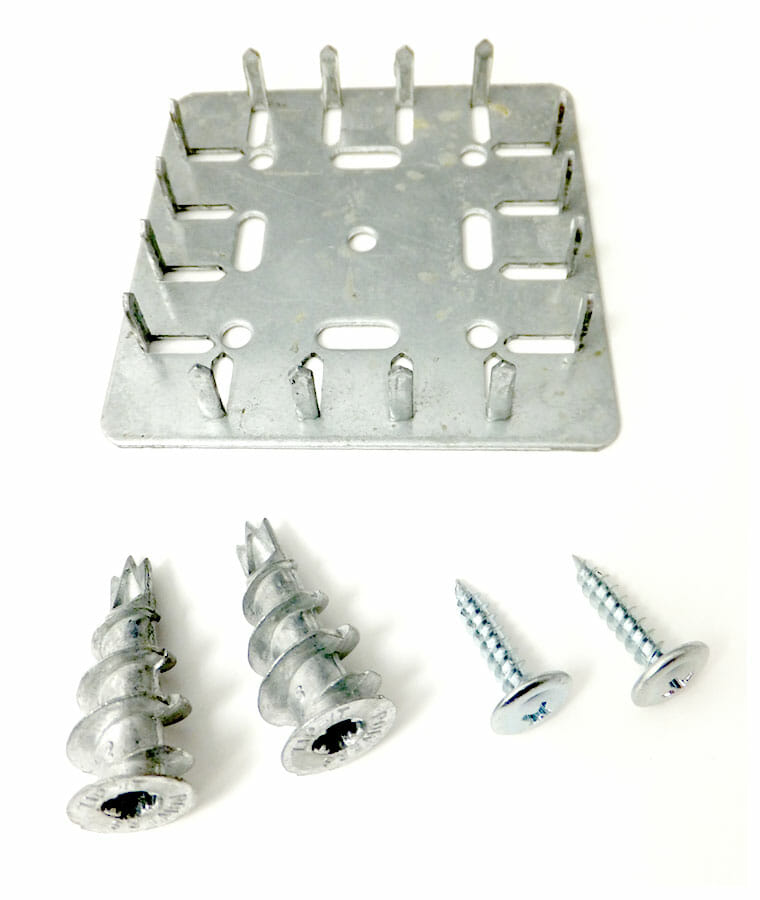

Fabric Wrapped Panel Impaling Clip Hardware Pack
Install Location Wall
Parts Included (1) × Impaling Clip
(2) × Drywall Anchors
(2) × ¾″ Screws
Recommended Adhesive
(sold separately)
Titebond Green Choice Adhesive (ASTSA28)
Part Number HWFWPIMP
Fabric Wrapped Panel Hardware Pack 1
One hardware pack is needed for each mounting location

The drywall anchors are installed onto the drywall and the screws hold one of the plastic clips to the wall. The remaining ¾″ screws are used to mount the remaining plastic clip to the mounting plate on the back of the panel. Adhesive can be used to hold the clips together to prevent the clips from detatching from one another.

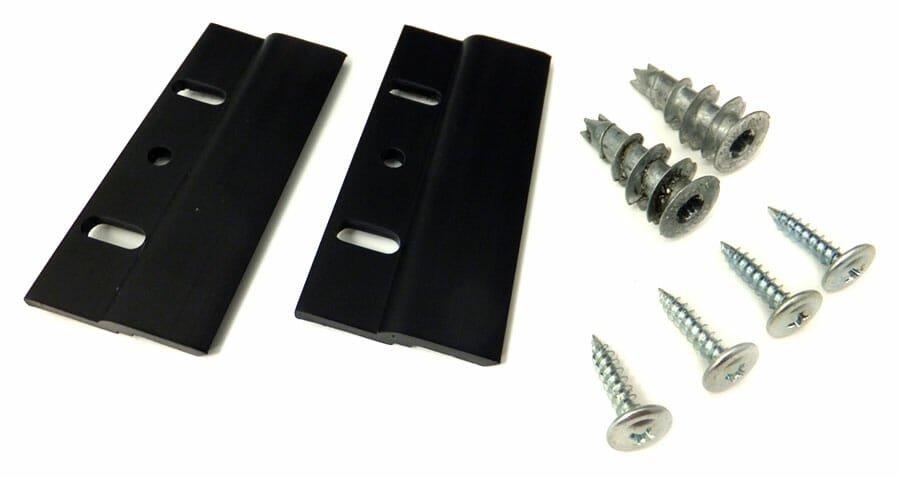

Fabric Wrapped Panel Hardware Pack 1
Install Location Wall or Ceiling
Parts Included (1) × Mounting Plate (factory-installed on the back of the panel)
(2) × 3″ Plastic Z-bars
(2) × Drywall Anchors
(2) × ¾″ Screws
Part Number HWFWPHP1
Note Plastic clips are also available in 21″, 47″, and 96″ lengths.

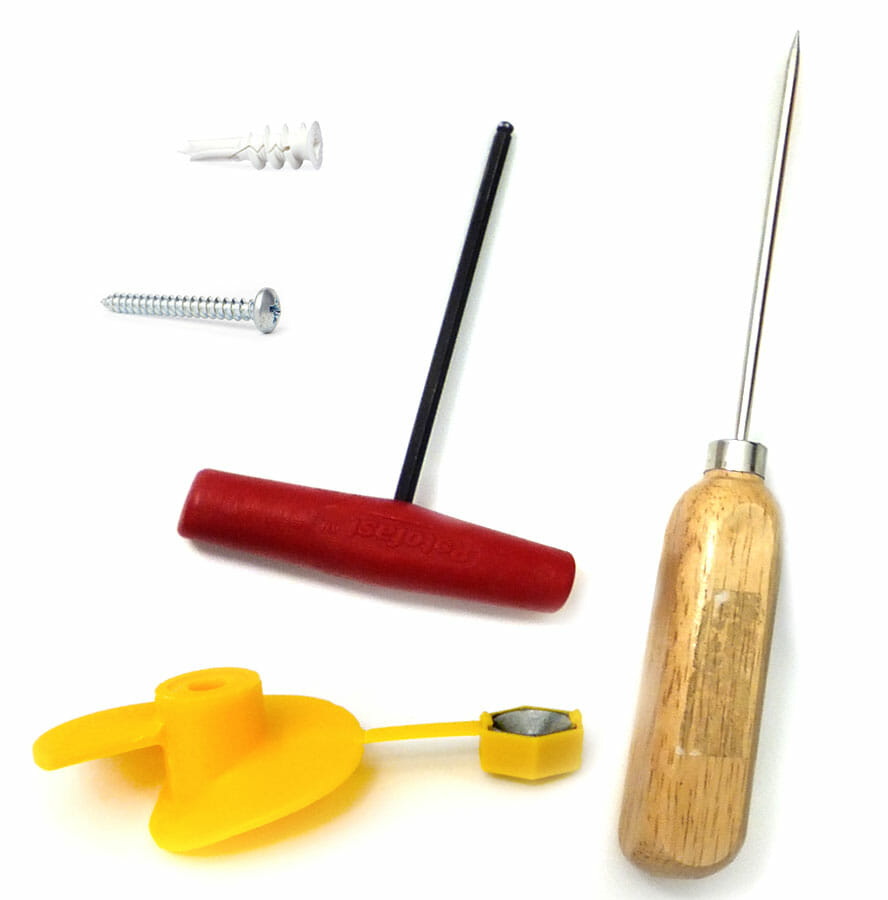

Fabric Wrapped Panel Rotofast Standard Anchor Kit
One hardware pack is needed for each mounting location

The Rotofast Standard Anchor is screwed to the wall. Mark anchor locations on panel. Push metal insert into anchor body. Position panel at pre-marked locations and push hex tool through panel face to engage anchor. Turn clockwise approximately two revolutions. Pull the driver out.

For panels with tightly-woven fabric, leather, vinyl, or other specialty covering, the Rotofast Snap-On Anchor is recommended.
Fabric Wrapped Panel Rotofast Snap-On Anchor Kit
Install Location Wall
Parts Included (1) × Rotofast standard anchor
(1) × Wall anchor
(1) × 2″ #8 Screw
(1) Rotofast standard hex tool
(1) Rotofast standard driver tool
Note Multiple kits ordered together will only include (1) Rotofast standard hex tool and (1) Rotofast standard driver tool.
Fabric Wrapped Panel Rotofast Snap-On Anchor Kit
One hardware pack is needed for each mounting location

The Rotofast Snap-On Anchor is screwed into the back of the panel. The marking plug is inserted into the anchor, then panel is pushed against wall to mark anchor loacations. The ratchet is screwed into the wall at marked locations. Firmly push panels onto ratchets to complete installation.
Fabric Wrapped Panel Rotofast Snap-On Anchor Kit
Install Location Wall or Ceiling
Parts Included (1) × Rotofast snap-on anchor with ratchet
(1) × Marking plug
(1) × Wall anchor
(1) × 2″ #8 Screw
(1) Rotofast Snap-On Hex Tool
Note Multiple kits ordered together will only include (1) Rotofast Snap-On Hex Tool and up to (6) Marking plugs.


Click PDF iconPDF Iconto download printer friendly file format of product specs.

Click PDF iconPDF Iconto download the Technical Data Sheets for this product.

Click Get Adobe Reader to download a free copy of Adobe Acrobat Reader.
