HS Spring Hanger

HS Spring Hangers

High Deflection Spring Hangers provide far greater vibration control than the lower deflection neoprene hangers. Each powder coated steel spring is in series with a neoprene cup, providing excellent isolation efficiency. The spring serves to isolate a broad range of disturbing vibration frequencies, while the rubber cup is a high frequency or noise break.

All box type spring hangers are available pre compressed from the factory with a scale for adjusting spring tension. They are similar to SLR restrained mounts in that they can be adjusted to limit vertical movement caused by weight changes during system start up, maintenance and seismic events. Spring Hangers are also available with eyebolts top and bottom.

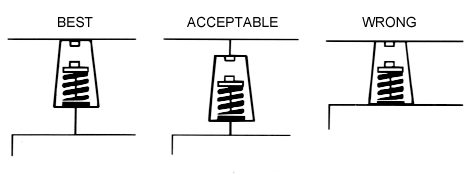

HD HANGER INSTALLATION: Install hangers with gap on underside as shown. This allows the isolators to operate efficiently. The gaps also compensate for minor misalignment. Direct contact of the unit and hanger box “short circuits” the isolation.

HS Spring Hanger Installation
HS 1″ Deflection Spring Hangers
Type & Size Rated Capacity Rated Defl Mount Constant Spring Color/Stripe Dimensions
D H W LRP MRD
HS-X-12 12 lbs 1.25″ 10 lbs/in Orange 2-1/2″ 4-1/4″ 2-7/8″ 3-1/2″ 3/8″
HS-X-23 23 lbs 1.30″ 18 lbs/in Brown
HS-X-33 33 lbs 1.10″ 30 lbs/in Red
HS-X-54 54 lbs 1.20″ 45 lbs/in White
HS-X-76 76 lbs 1.02″ 73 lbs/in Black
HS-X-113 113 lbs 1.00″ 113 lbs/in Yellow
HS-X-130 130 lbs 1.00″ 130 lbs/in Purple
HS-X-175 175 lbs 1.00″ 175 lbs/in Silver
HS-X-210 210 lbs 1.00″ 210 lbs/in Blue
HS-A-12 12 lbs 1.00″ 12 lbs/in Red 2-3/4″ 5-3/4″ 3-3/4″ 4″ 5/8″
HS-A-18 18 lbs 1.00″ 18 lbs/in Gray
HS-A-25 25 lbs 1.00″ 25 lbs/in Orange
HS-A-41 41 lbs 1.18″ 35 lbs/in Pink 2-3/4″ 5-3/4″ 3-3/4″ 4″ 5/8″
HS-A-56 56 lbs 1.14″ 49 lbs/in Black
HS-A-73 73 lbs 1.06″ 69 lbs/in Tan
HS-A-95 95 lbs 1.01″ 94 lbs/in Green
HS-A-45 45 lbs 1.60″ 28 lbs/in Blue
HS-A-75 75 lbs 1.50″ 50 lbs/in Orange
HS-A-125 125 lbs 1.33″ 94 lbs/in Brown
HS-A-200 200 lbs 1.15″ 174 lbs/in Black
HS-A-310 310 lbs 1.00″ 310 lbs/in Yellow
HS-A-400 400 lbs 1.00″ 400 lbs/in Green
HS-A-510 510 lbs 1.00″ 510 lbs/in Red
HS-A-625 625 lbs 1.00″ 625 lbs/in White
3/4″ Minimum Deflection
HS 1″ Deflection Spring Hangers
Type & Size Rated Capacity Rated Defl Mount Constant Spring Color/Stripe Dimensions
D H W LRP MRD
HS-B-20 20 lbs 2.40″ 8 lbs/in Tan 4″ 7-1/4″ 4-3/4″ 5-1/8″ 3/4″
HS-B-26 26 lbs 2.18″ 12 lbs/in White/Blue
HS-B-35 35 lbs 2.20″ 16 lbs/in Purple
HS-B-50 50 lbs 2.20″ 24 lbs/in White/Red
HS-B-65 65 lbs 2.10″ 31 lbs/in Brown
HS-B-85 85 lbs 2.10″ 40 lbs/in White/Black
HS-B-115 115 lbs 2.00″ 57 lbs/in Silver
HS-B-150 150 lbs 2.00″ 75 lbs/in Orange
HS-B2-210 210 lbs 2.12″ 99 lbs/in Silver
HS-B2-290 290 lbs 2.00″ 144 lbs/in Blue
HS-B2-450 450 lbs 2.00″ 224 lbs/in Tan
1-1/2″ Minimum Deflection

Click PDF iconPDF Iconto download printer friendly file format of product specs.

Click Get Adobe Reader to download a free copy of Adobe Acrobat Reader.
