Fabrisorb V-Clean Vinyl Wrapped Acoustical Panels
Standard vinyl, micro-vented or perforated vinyl wrapped Acoustical Wall and Ceiling Panels

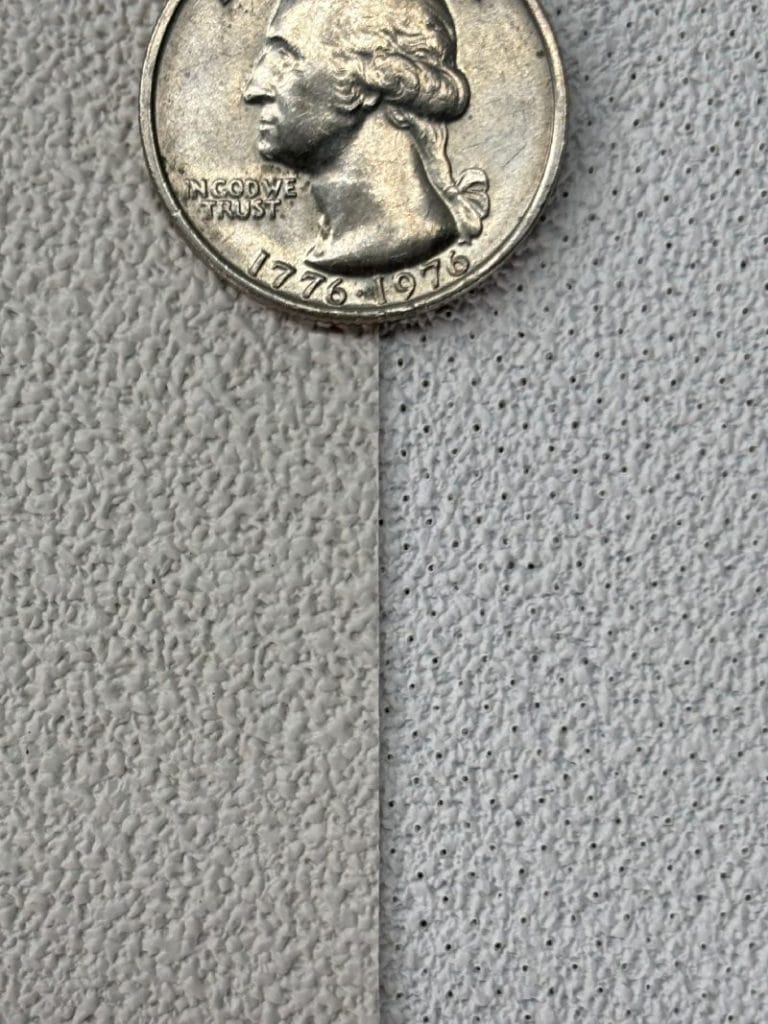

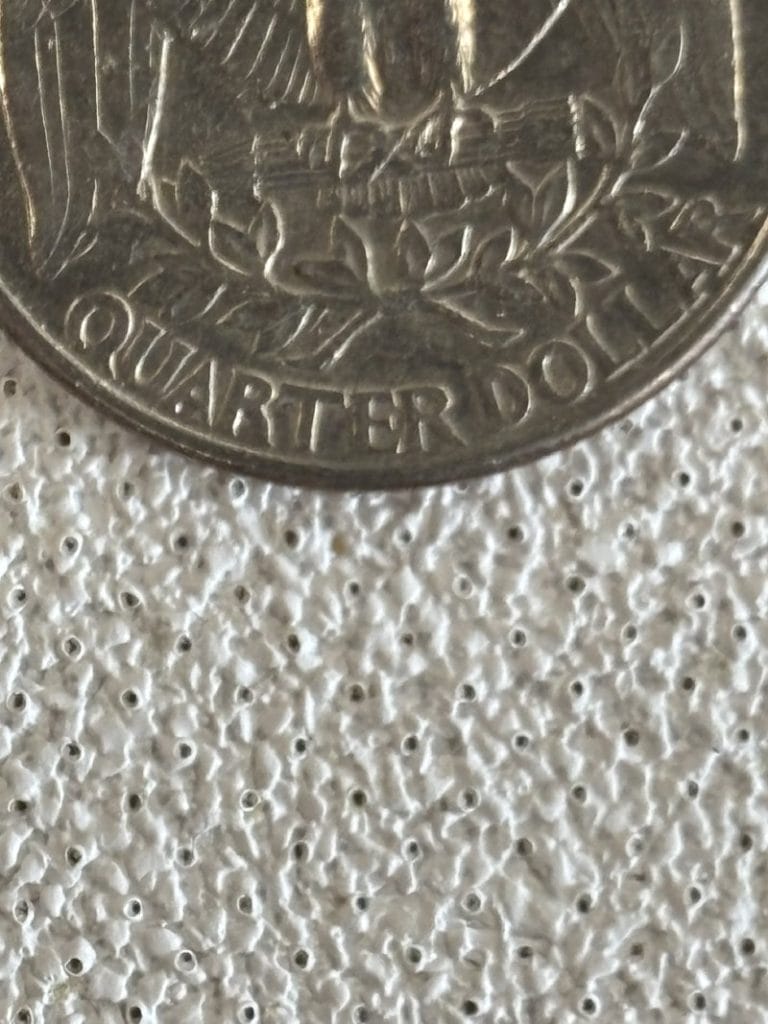

Fabrisorb V-Clean™ Vinyl Wrapped Acoustical Panels deliver high-performance sound absorption in environments where cleanability, hygiene, and long-term aesthetics are critical. Designed as an easily cleanable evolution of traditional fabric-wrapped fiberglass panels, each panel features our standard 6-7 lb. density fiberglass core wrapped in premium architectural vinyl available in over seventy colors. An optional micro-venting process enhances mid- and high-frequency absorption by allowing sound energy to pass through the facing while maintaining the inherent durability and cleanability, making these panels ideal for high-traffic and hygiene-sensitive spaces such as healthcare, education, laboratories, hospitality spaces, fitness, and public venues. Due to the non-stretch nature of vinyl, V-Clean panels are manufactured exclusively with square edges to ensure consistent appearance and full core encapsulation. Vinyl facings are ordered per project and subject to availability and minimum order quantities, and micro-vented vinyl options may require additional manufacturing lead time.
-
Product Specs
Applications

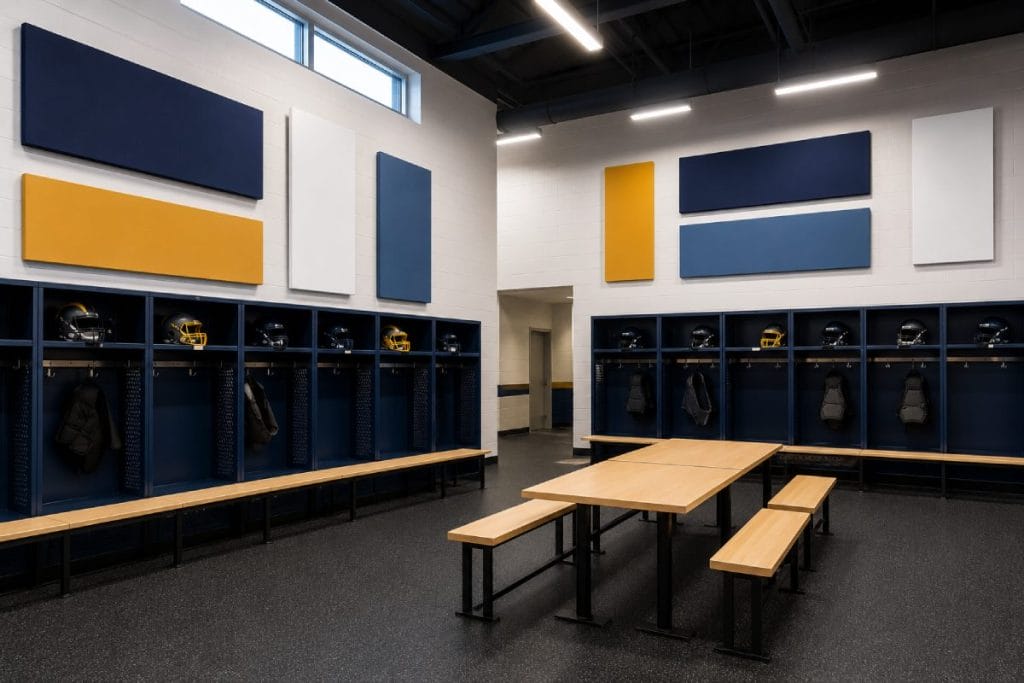

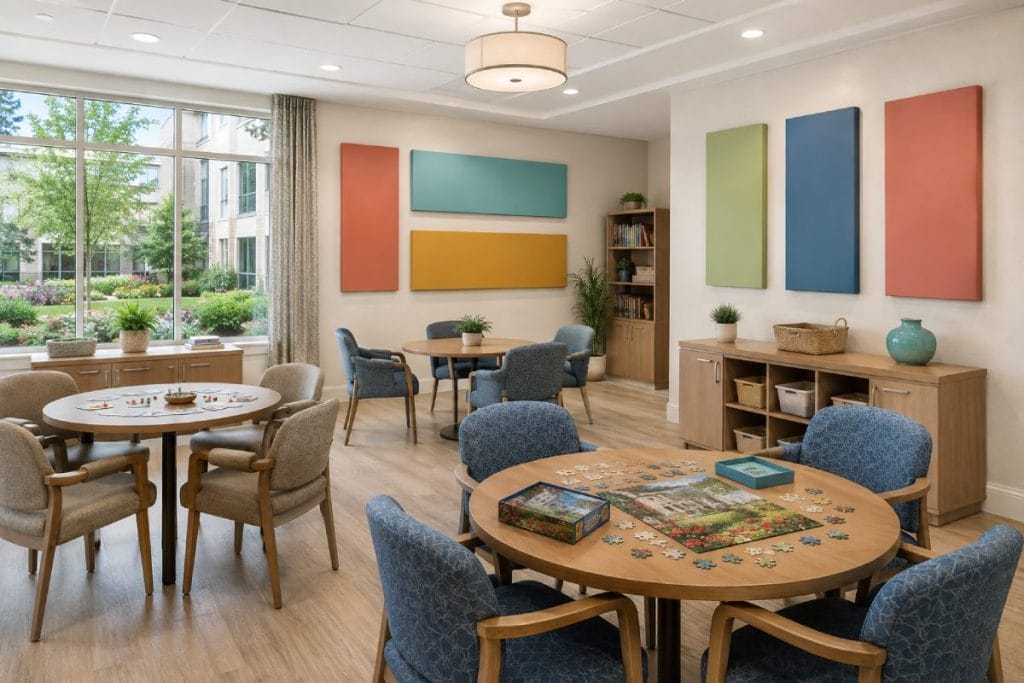

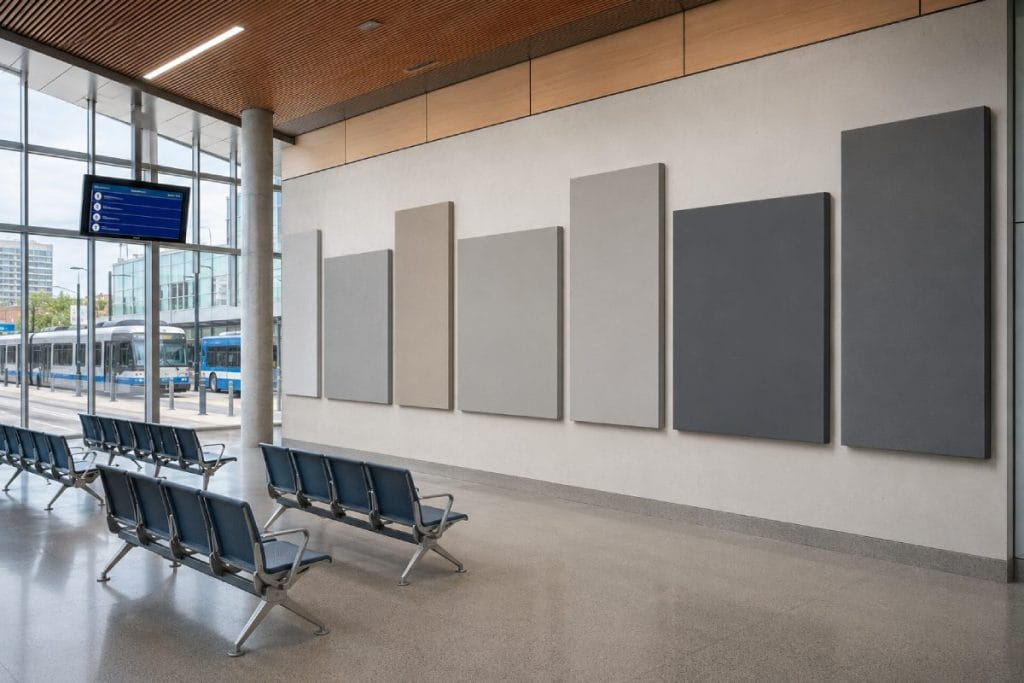

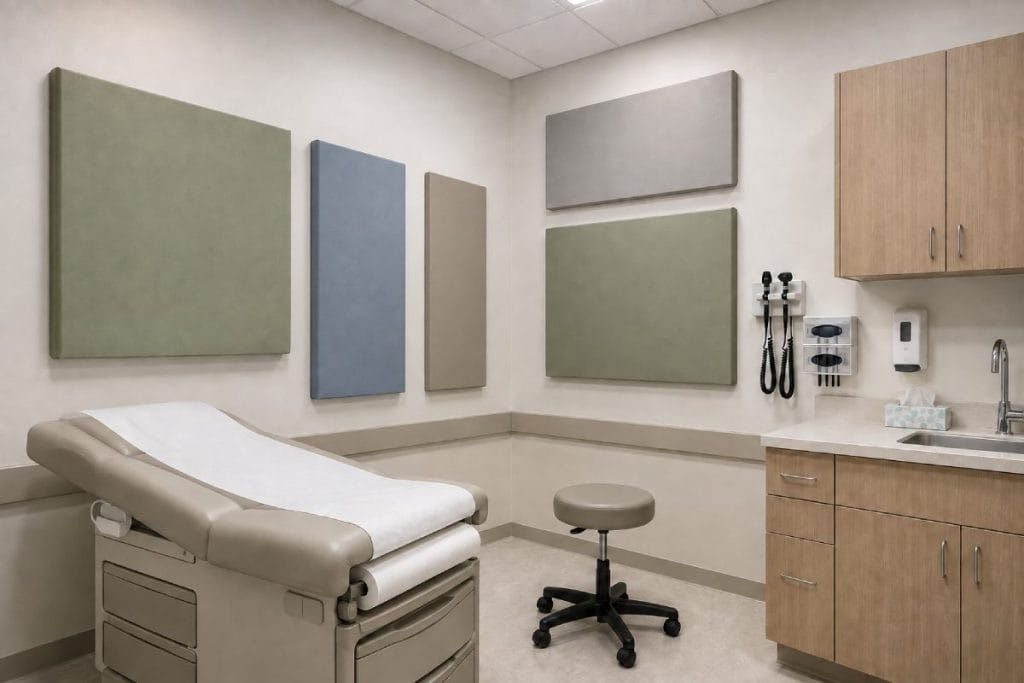

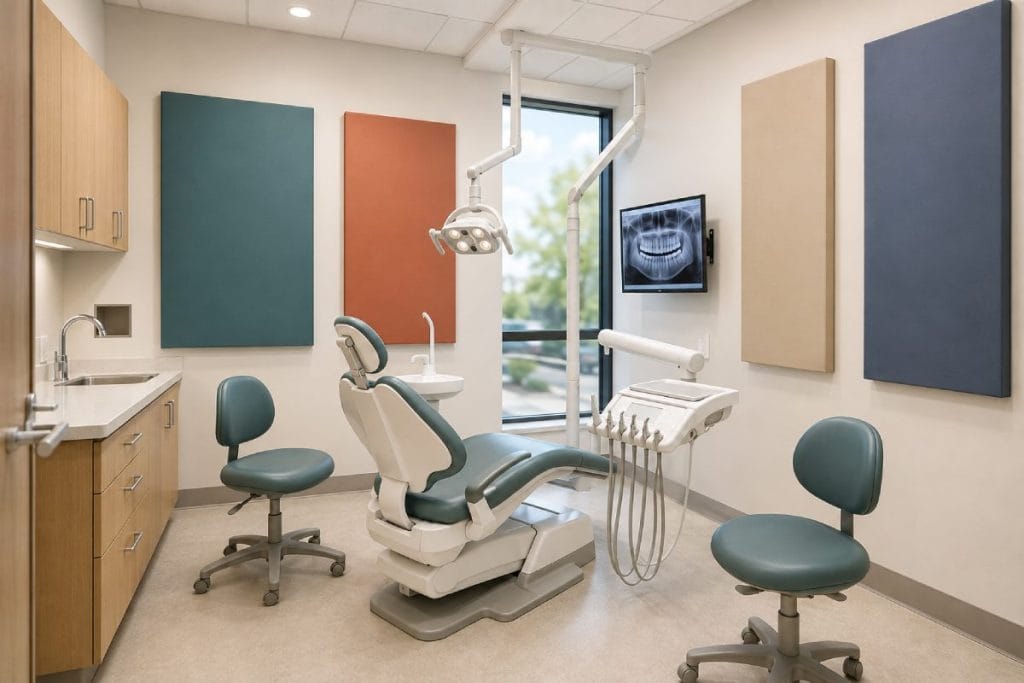

Patient exam rooms, treatment bays, procedure prep areas, nurse stations, medical corridors, dental operatories, rehabilitation gyms, physical therapy rooms, early‑education classrooms, daycare activity rooms, food science labs, research support spaces, clean prep rooms, hotel back‑of‑house corridors, spa treatment rooms, locker rooms, indoor pool perimeters, pet grooming rooms, veterinary exam spaces, animal boarding areas, public restrooms, concession areas, ticketing lobbies, transit waiting zones, museum interactive areas, fitness studios, indoor recreation lounges, senior activity rooms, community multipurpose rooms, and high‑traffic entry vestibules and more.
Material Composition
Rigid, 6-7 lb. density fiberglass wrapped with either a standard vinyl, a micro-vented vinyl or a perforated vinyl. See Koroseal® Desert Sand information below
Thickness
1" and 2" (Optional: 1/2”, 1-1/2”, 3”, 4”)
Size
2′×2′, 2′×4′, 4'x4', 4′×8′ - custom sizes available up to 4'x10'
Color

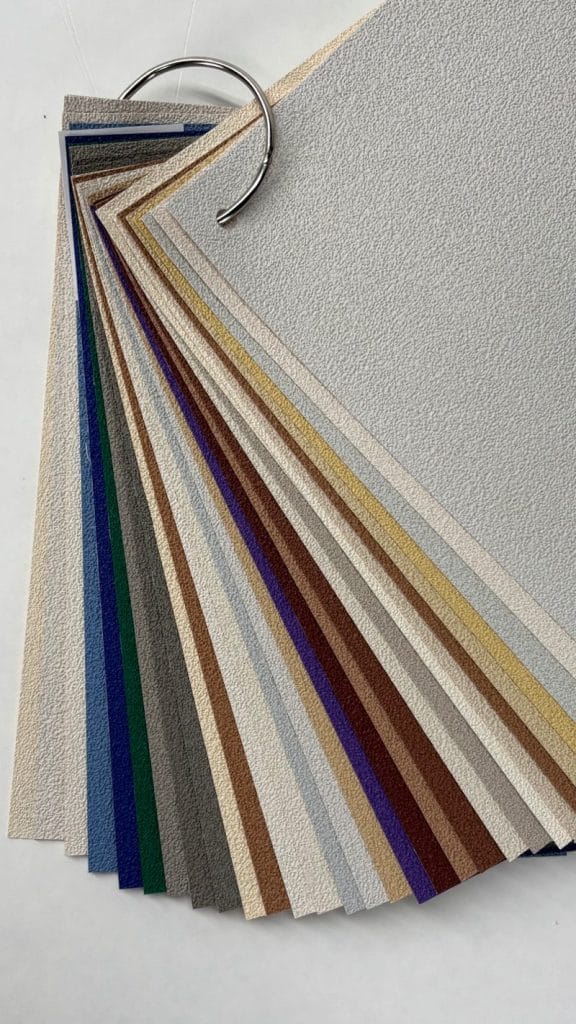

Available in seventy (70) colors of Koroseal® Desert Sand (vinyl)
Installation Method
Installed directly onto wall or ceiling surfaces with adhesive, two-part Z-bars or RotoFast Snap-On Panel Anchors
Weight
1" thick: 0.5 lbs. per square foot
2" thick: 1.0 lbs. per square foot
