Introducing the First Tri-Functional Acoustical Panel

Buy Now

dBA Panels – Sound Silencer™ (Diffuser Blocking Absorber)

Acoustical Wall Panels and Ceiling Tiles

The new dBA panels offer sound blocking, sound absorption and sound diffusion all in one unit.

Product Features:

  • 1 installation required. Unlike traditional products which require 3 separate installations to meet the performance of the dBA sound blocking panel.
  • Class A Fire Rated
  • No Fiberglass
  • Moisture Resistant Indoor
  • Non-Fibrous
  • Impact Resistant
  • Water Resistant
  • Non-Abrasive Surface
  • Both STC and NRC Ratings and Diffuser
  • Tackable Surface
  • Bacteria and Fungi Resistant
  • Lightweight

Product Testing & Information

dBA stands for Diffuser Blocking Absorber. Our dBA panels are available in 1″ and 2″ thickness. Panel size is 2′ × 2′. The dBA sound diffuser panel is intended for wall or ceiling applications. The dBA sound blocking panel is an innovative sound treatment panel for both home theaters and professional grade commercial studios. No longer will you have to struggle to figure out noise reduction coefficients or calculate the amount of sabins for a given space.

All the guesswork will be eliminated. The new dBA panels offer sound blocking, sound absorption and sound diffusion all in one unit. This will all be accomplished with our new tri-functional wall and ceiling panel. These sound diffuser panels have a unique design that not only provides a wide array of acoustical characteristics, but it is aesthetically pleasing and will give any studio or home theater that polished, professional look. As it stands, the new dBA sound blocking panels will come in white or charcoal only, but as the line expands so will the color choices. Keep in mind these sound diffuser panels can be painted to match any decor. (ask for acoustical painting instructions)

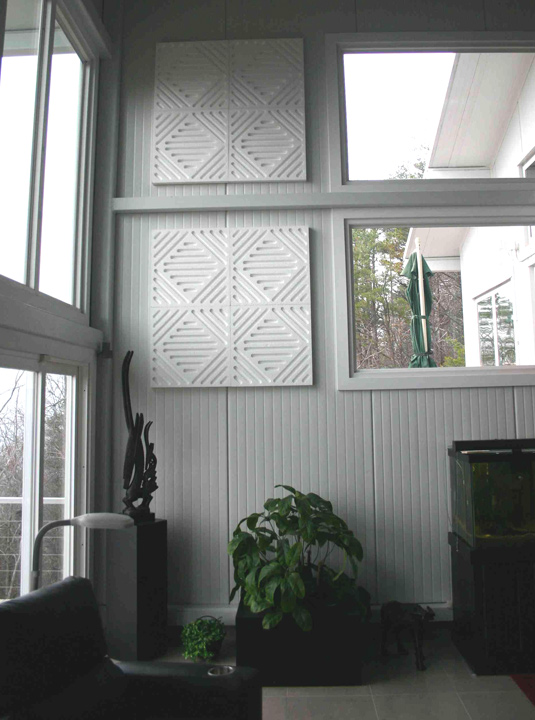

Color Options & Product Photos

Click on image for larger view.

dBA Panels – Sound Silencer™ (Diffuser Blocking Absorber) dBA Panels – Sound Silencer™ (Diffuser Blocking Absorber) dBA Panels – Sound Silencer™ (Diffuser Blocking Absorber)

Product Specs


Semi-Rigid, Non-Abrasive, Porous Expanded Polypropylene (P.E.P.P.). Acoustical Bead Board


dBA-1 and dBA-2 Custom Patterns Available For Truck Load Quantities


Lightweight, Impact Resistant, Moisture, Bacteria & Fungi Resistant, Tackable Surface


Home Theaters, Recording Studios, Commercial Sound, Pro Audio Application, Ceiling Tiles Or Any Acoustical Venue.


1″ & 2″


Nominal 2′ × 2′ & 2′ × 4′


White, Charcoal


ASTM E84, Class A

1″ – Flame Spread: 3, Smoke Developed: 84

2″ – Flame Spread: 5, Smoke Developed: 113


Noise S.T.O.P. Acoustical Adhesive, Standard T-bar grid, Mechanical Fasteners

Reverberation Demonstration

dBA™ Panel – Sound Absorption/Noise Reduction (NRC)
Mount 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1″ – Ceiling E400 0.38 0.60 0.36 0.47 0.62 0.82 0.50
2″ – Ceiling E400 0.35 0.59 0.40 0.64 0.97 1.10 0.65
dBA™ Panel – Sound Transmission Loss (STC)
125Hz 250Hz 500Hz 1KHz 2.5KHz 4KHz STC
1″ 5 3 4 6 7 8 6
2″ 7 4 5 7 8 11 7
1″ w/ 5/8″ Gypsum both sides 27 27 29 31 32 45 32
