Fabrisorb™ Canvas - Custom Printed Artwork, Graphics or Signage Acoustical Panels
Custom Printed Artwork, Wall Art, Graphics or Signage Acoustical Panels

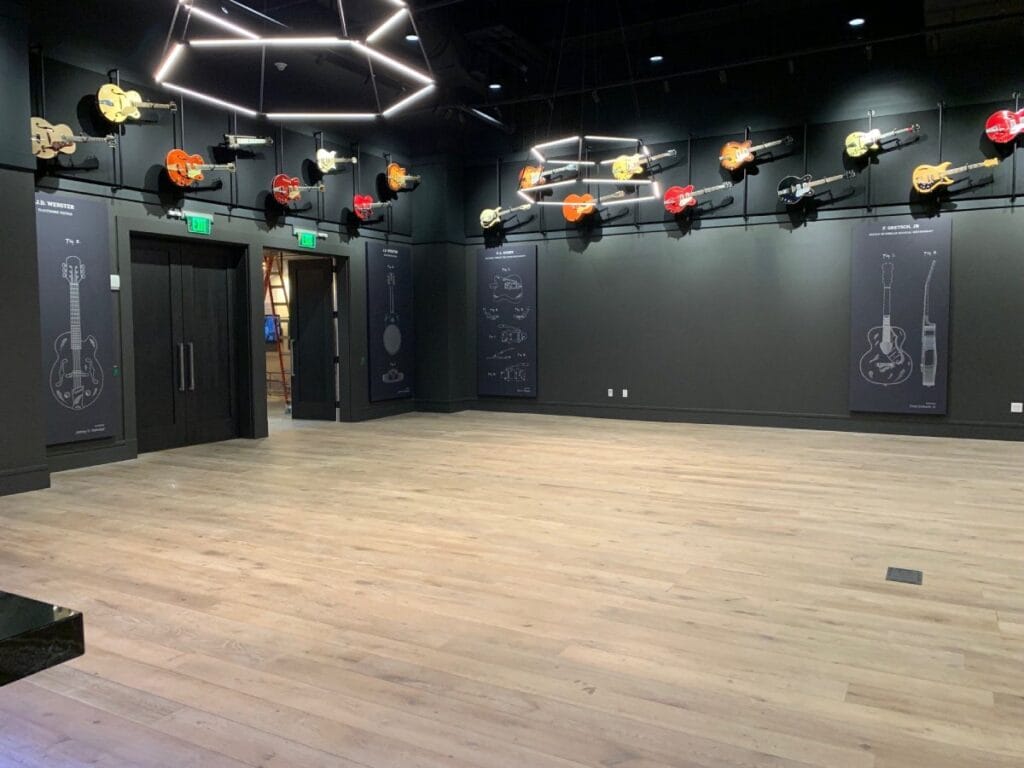

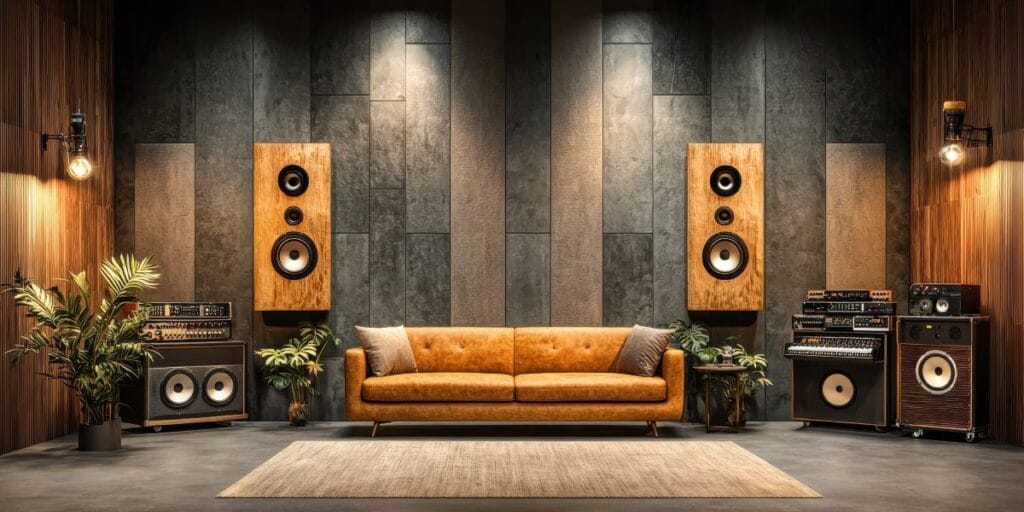

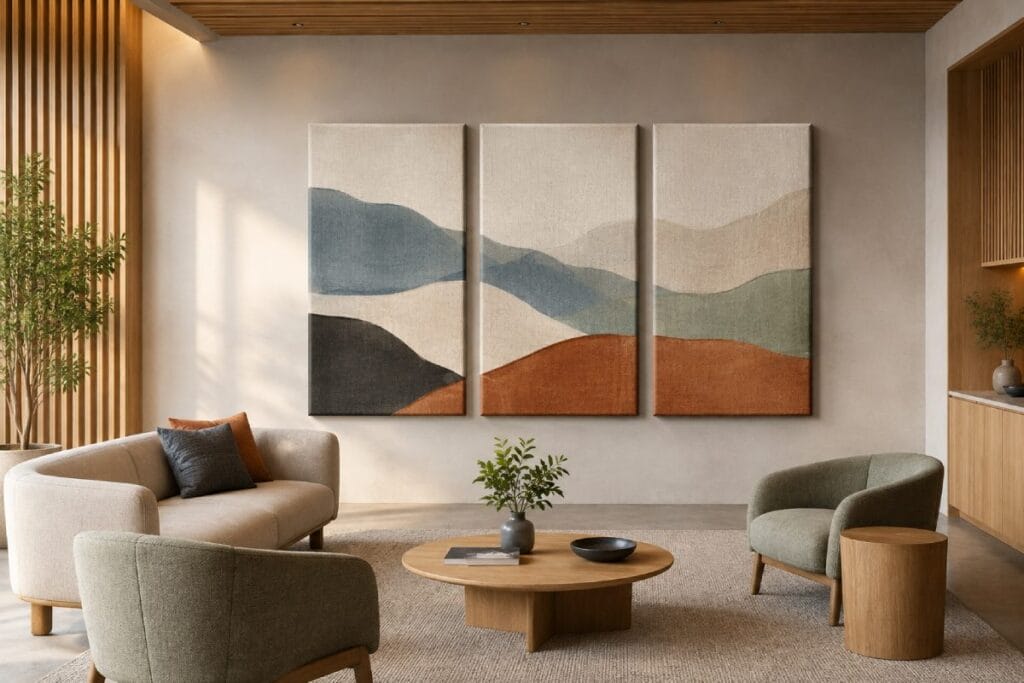

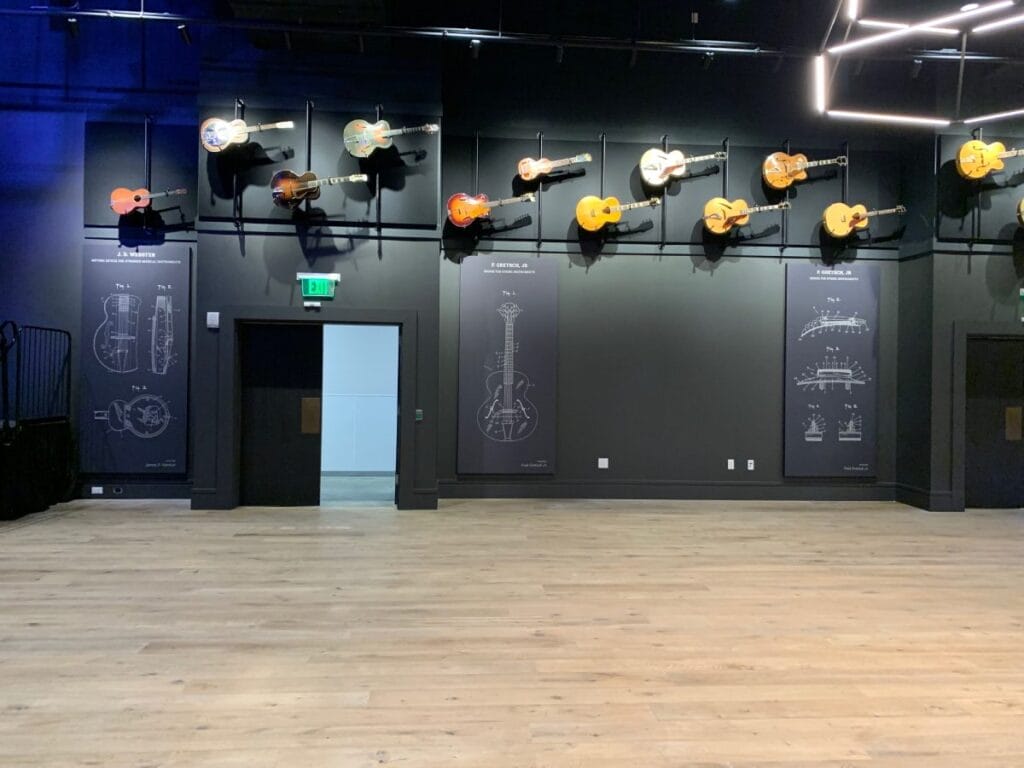

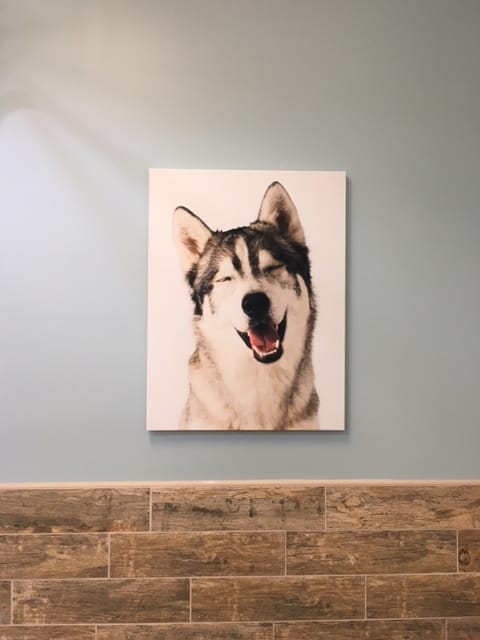

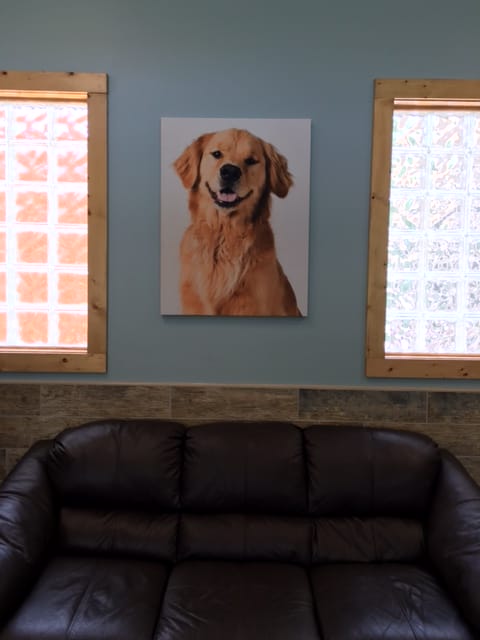

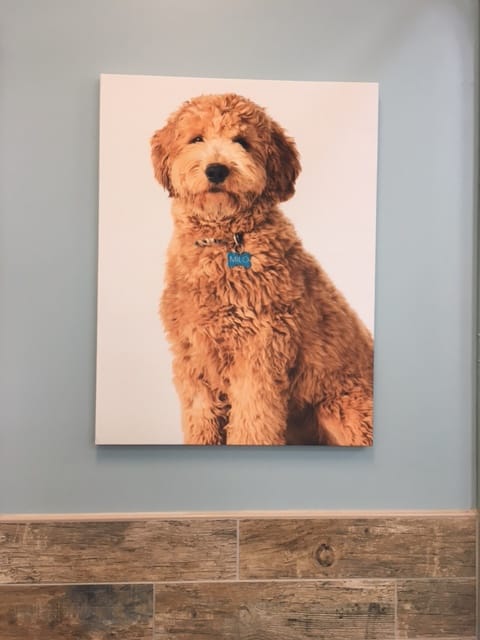

Every space has a story to tell—and Fabrisorb Canvas™ helps make it both seen and heard. Custom artwork, photography, graphics or branded messaging is reproduced in vivid, photo-quality detail on acoustically transparent fabric, then carefully wrapped over a high-performance fiberglass core that absorbs unwanted sound and reduces reverberation. The result is an acoustical panel that looks like a thoughtfully selected piece of art while quietly creating a more comfortable, welcoming and acoustically balanced environment. Available in a wide range of custom sizes and configurations, Fabrisorb Canvas gives designers the freedom to complement existing décor, reinforce a brand identity or create an attention-grabbing focal point. From corporate reception areas and hospitality spaces to schools, museums and entertainment venues, these panels transform essential sound control into a memorable visual feature designed specifically for the space.
-
Product Specs
Applications
Corporate reception areas and lobbies, conference rooms and boardrooms, open offices and coworking spaces, restaurants and cafés, school classrooms, school cafeterias and student commons, hotels and hospitality suites, healthcare waiting and reception areas, university lecture halls and training rooms, houses of worship and fellowship halls, recording, podcast and broadcast studios, music classrooms and rehearsal rooms, auditoriums and performing arts spaces, libraries and media centers, retail stores and showrooms, museums and exhibition halls, home theaters and media rooms, fitness and wellness studios, community centers and multipurpose rooms, airports, transportation hubs and visitor centers.
Material Composition
White and printable acoustically transparent fabric wrapped over a highly absorptive, rigid, 6-7 lb. per cubic foot density fiberglass core
Thickness
(standard) 1" and 2"
Additional options: .5”, .75,1.5”, 3”, 4”Size
(standard) 24" x 24", 24" x 48" and 48" x 96"
Additional options: larger sizes may be available for some thicknesses, please call for detailsImage / Artwork Details
Customers must provide a high-resolution digital file suitable for the desired finished panel size. Image quality depends on the resolution and dimensions of the original file, so larger, higher-quality files generally produce the best results. If you need help finding an image, Adobe Stock offers an extensive selection of professional images available for licensing.
Customers are responsible for obtaining permission to reproduce any copyrighted images, logos or artwork. Documentation confirming ownership or authorized use may be required before an image can be printed.Installation Method
Adhesive and impaling clips, Z-bars, Mechanical / RotoFast Anchors, Hook-and-Loop
-
Acoustical Specs
Fabrisorb™ Wall panel – Sound Absorption Coefficients 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC 1″ .14 .27 .80 1.11 1.14 1.14 .85 2″ .22 .81 1.24 1.30 1.21 1.16 1.15 -
Material Performance
Fire Performance
Class A Fire Rated per ASTM E84
Thermal resistance
tbd
Environmental
n/a
-
Accessories & Hardware
Impaling Clips and Adhesive One impaling clip is needed for each mounting locationImpaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries.
Install Location Wall Parts Included (1) × Impaling Clip Recommended Adhesive
(sold separately)Titebond Green Choice Adhesive (ASTSA28) Part Number HWIMP33 Fabric Wrapped Panel Hardware Pack – Impaling Clip One hardware pack is needed for each mounting locationDrywall anchors are installed into the drywall and the screws hold the impaling clip to the anchor. Impaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries. Install Location Wall Parts Included (1) × Impaling Clip
(2) × Drywall Anchors
(2) × ¾″ ScrewsRecommended Adhesive
(sold separately)Titebond Green Choice Adhesive (ASTSA28) Part Number HWFWPIMP Fabric Wrapped Panel Hardware Pack 1 One hardware pack is needed for each mounting locationThe drywall anchors are installed onto the drywall and the screws hold one of the plastic clips to the wall. The remaining ¾″ screws are used to mount the remaining plastic clip to the mounting plate on the back of the panel. Adhesive can be used to hold the clips together to prevent the clips from detaching from one another. Install Location Wall or Ceiling Parts Included (1) × Mounting Plate (factory-installed on the back of the panel)
(2) × 3″ Plastic Z-bars
(2) × Drywall Anchors
(4) × ¾″ ScrewsPart Number HWFWPHP1 Note Plastic clips are also available in 21″, 47″, and 96″ lengths. Fabric Wrapped Panel Rotofast Standard Anchor Kit One hardware pack is needed for each mounting location. The Rotofast Standard Anchor is screwed to the wall. Mark anchor locations on panel. Push metal insert into anchor body. Position panel at pre-marked locations and push hex tool through panel face to engage anchor. Turn clockwise approximately two revolutions. Pull the driver out.For panels with tightly-woven fabric, leather, vinyl, or other specialty covering, the Rotofast Snap-On Anchor is recommended. Install Location Wall Parts Included (1) × Rotofast standard anchor
(1) × Wall anchor
(1) × 2″ #8 Screw
(1) Rotofast standard hex tool
(1) Rotofast standard driver toolNote Multiple kits ordered together will only include (1) Rotofast standard hex tool and (1) Rotofast standard driver tool. Fabric Wrapped Panel Rotofast Snap-On Anchor Kit One hardware pack is needed for each mounting location. The Rotofast Snap-On Anchor is screwed into the back of the panel. The marking plug is inserted into the anchor, then panel is pushed against wall to mark anchor locations. The ratchet is screwed into the wall at marked locations. Firmly push panels onto ratchets to complete installation. Install Location Wall or Ceiling Parts Included (1) × Rotofast snap-on anchor with ratchet
(1) × Marking plug
(1) × Wall anchor
(1) × 2″ #8 Screw
(1) Rotofast Snap-On Hex ToolNote Multiple kits ordered together will only include (1) Rotofast Snap-On Hex Tool and up to (6) Marking plugs.
