Quilted Curtain S.T.O.P.: Soundproof Curtains & Barriers

Absorptive/Noise Barrier Quilted Soundproofing Curtains

For Unusual Conditions
Cost Effective
Water & Chemical Resistant

Quilted Curtain S.T.O.P. is a noise barrier and sound absorber, designed to enclose different types of noise sources or work areas. It can be custom-made to suit any application and is suitable for industrial, commercial, and residential settings. The curtain is an effective and durable sound absorber that comes with a mass-loaded vinyl barrier option. The product is available in 1-inch and 2-inch thicknesses. The curtain panels are constructed with grommets across the top and hook-and-loop fasteners along the vertical edges.

Product Testing & Information

Product Data Sheet
CSI Specifications
4 Ways to Quiet a Noisy Machine
Finishing Field Cuts
MSDS
Installation Instructions
ASTM E-84 Test – BBC-13
Sound Transmission Loss (STC) – BBC-13 1″
Sound Transmission Loss (STC) – BBC-13 2″
ASTM E-84 Test – BSC-25
Sound Transmission Loss (STC) – BSC-25 2″

Use Sweets P Tag to add this product to CAD

Product TAG

What are the different types of Quilted Curtain S.T.O.P.?

Quilted Curtain S.T.O.P. comes in several types with two variants, the BSC-25 and BSC-13, with varying specifications to cater to a range of acoustic requirements. The type of curtain refers to its design, thickness, and the weight of the barrier used.

Type	Thickness	STC Value	Frequency
BSC-25 with 1lb. barrier	1-inch	12	125Hz
		10	250Hz
		27	500Hz
		40	1kHz
		44	2kHz
		43	4kHz
BSC-25 with 2lb. barrier	1-inch	19	125Hz
		22	250Hz
		28	500Hz
		40	1kHz
		56	2kHz
		61	4kHz
BBC-13 with 1lb. barrier	1-2-inch	11	125Hz
		10	250Hz
		24	500Hz
		30	1kHz
		35	2kHz
		35	4kHz
BBC-13 with 2lb. barrier	2 -inch	19	125Hz
		22	250Hz
		28	500Hz
		40	1kHz
		56	2kHz
		61	4kHz

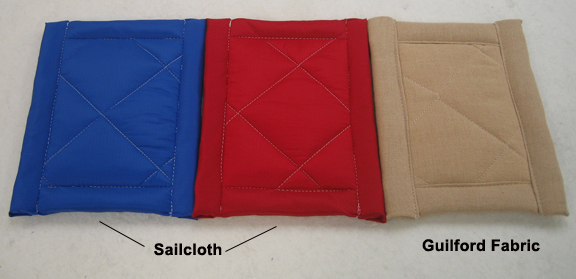

Sample Colors: (Click on Images for Larger View of Quilted Soundproof Curtain)

Product Specs

MATERIAL

Quilted fiberglass core with vinyl-coated fiberglass-cloth facing and vinyl noise barrier

PATTERN

Quilted Diamond Pattern

FEATURES

Effective and durable sound absorber with mass loaded vinyl barrier option.

APPLICATIONS

Used as an economical, effective noise barrier and sound absorber to enclose many types of noise sources or work areas. The sound barrier curtains can be custom fabricated for almost any application. These noise-blocking blankets can be used in industrial, commercial & residential applications.

THICKNESS

BSC-25: Nominal - 2”
BBC-13: Nominal - 1”, 2”

SIZES

BSC-25 Curtain (Quilting on Both Sides) – Standard: 48″ Wide and Lengths up to 25′

BBC-13 Curtain (Quilting on One Side – Standard: 54″ Wide and Lengths up to 25′

Custom sizes of quilted soundproof curtains are also available.

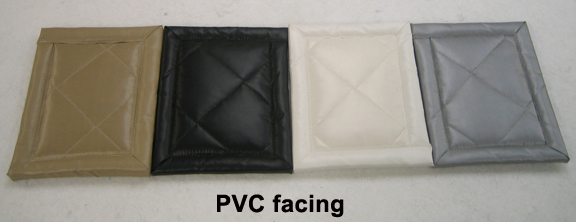

COLOR

Standard PVC Facing – Silver
Optional PVC facing – Black, Tan, White

FLAMMABILITY

Class A Fire Rated per ASTM E84

INSTALLATION

Hook and loop fasteners, grommet hangers, curtain spanport hardware.

GROMMETS

Standard Brass. (Stainless steel upgrade available upon request) ID: 9/16″ Grommet Center 1 ¼″ down from top of panel

Testimonials

Acoustical Surface’s BSC-T25 Quilted Fiberglass Curtain Panels installed in creative way to transform an acting studio into acting studios

Quilted Curtains Reduce Noise

Moveable Office Wall…

CURTAIN S.T.O.P. – Sound Transmission Loss – ASTM E90
Frequency	125Hz	250Hz	500Hz	1KHz	2KHz	4KHz	STC
BSC-25 w/ 1lb. Barrier	12	16	27	40	44	43	29
BSC-25 w/ 2lb. Barrier	19	22	28	40	56	61	33
BBC-13 w/ 1lb. Barrier	11	16	24	30	35	35	27
BBC-13 w/ 2lb. Barrier	19	22	28	40	56	61	33
