Load Capacities 20 lbs. to 200 lbs. (9 kg to 91 kg)
500% Overload Fail-Safe Assembly

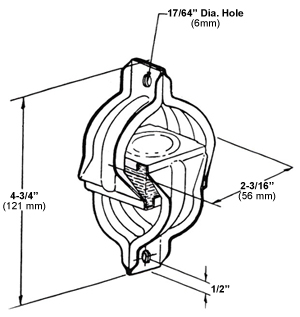

Hangers shall consist of a fiber glass isolator encased in an anti-short circuit reinforced steel bracket which will accommodate up to #8 suspension wire or a 1/4″ (6.35 mm) bolt or screw.
The fiber glass isolator shall be 1″ (25 mm) thick, precompressed, molded fiber glass composed of fiber glass produced by a multiple flame attenuation process which generates nominal fiber diameters not to exceed 0.00022″ (5.6 microns) and shall have been stabilized by precompression ten (10) times to three (3) times the maximum rated load of the material used.
The hanger assembly shall be zinc-plated reinforced steel and shall carry a five (5) times maximum rated load overload without failure. Hangers shall be Model AF.
