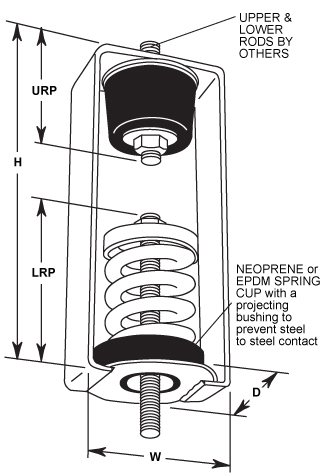

High Deflection Spring Hangers provide far greater vibration control than the lower deflection neoprene hangers. Each powder coated steel spring is in series with a neoprene cup, providing excellent isolation efficiency. The spring serves to isolate a broad range of disturbing vibration frequencies, while the rubber cup is a high frequency or noise break.
All box type spring hangers are available pre compressed from the factory with a scale for adjusting spring tension. They are similar to SLR restrained mounts in that they can be adjusted to limit vertical movement caused by weight changes during system start up, maintenance and seismic events. Spring Hangers are also available with eyebolts top and bottom.
DNHS 1″ Deflection Spring Hangers
Type & Size
Rated Capacity
Rated Deflection
Mount Constant
Spring Color/Stripe
Dimensions
D
H
W
LRP
MRD
URP
DNHS-X-12
12 lbs
1.25″
10 lbs/in
Orange
2-1/2″
5-1/2″
2-7/8″
3-1/4″
3/8″
1-3/4″
DNHS-X-23
23 lbs
1.50″
18 lbs/in
Brown
DNHS-X-33
33 lbs
1.30″
30 lbs/in
Red
DNHS-X-54
54 lbs
1.40″
45 lbs/in
White
DNHS-X-76
76 lbs
1.22″
73 lbs/in
Black
DNHS-X-113
113 lbs
1.20″
113 lbs/in
Yellow
DNHS-X-130
130 lbs
1.20″
130 lbs/in
Purple
DNHS-X-175
175 lbs
1.20″
175 lbs/in
Silver
DNHS-X-210
210 lbs
1.20″
210 lbs/in
Blue
DNHS-A-12
12 lbs
1.35″
12 lbs/in
Red
2-3/4″
6-3/4″
3-1/4″
3-1/2″
5/8″
2-1/4″
DNHS-A-18
18 lbs
1.35″
18 lbs/in
Gray
DNHS-A-25
25 lbs
1.35″
25 lbs/in
Orange
DNHS-A-41
41 lbs
1.53″
35 lbs/in
Pink
2-3/4″
6-3/4″
3-1/4″
4″
5/8″
2-1/4″
DNHS-A-56
56 lbs
1.49″
49 lbs/in
Black
DNHS-A-73
73 lbs
1.41″
69 lbs/in
Tan
DNHS-A-95
95 lbs
1.36″
94 lbs/in
Green
DNHS-A-45
45 lbs
1.95″
28 lbs/in
Blue
DNHS-A-75
75 lbs
1.85″
50 lbs/in
Orange
DNHS-A-125
125 lbs
1.68″
94 lbs/in
Brown
DNHS-A-200
200 lbs
1.50″
174 lbs/in
Black
DNHS-A-310
310 lbs
1.35″
310 lbs/in
Yellow
DNHS-A-400
400 lbs
1.35″
400 lbs/in
Green
DNHS-A-510
510 lbs
1.35″
510 lbs/in
Red
3/4″ Minimum Deflection
DNHS 2″ Deflection Spring Hangers
Type & Size
Rated Capacity
Rated Deflection
Mount Constant
Spring Color/Stripe
Dimensions
D
H
W
LRP
MRD
URP
DNHS-B-20
20 lbs
2.75″
8 lbs/in
Tan
4″
9″
4-3/4″
5-1/8″
3/4″
3″
DNHS-B-26
26 lbs
2.53″
12 lbs/in
White/Blue
DNHS-B-35
35 lbs
2.55″
16 lbs/in
Purple
DNHS-B-50
50 lbs
2.55″
24 lbs/in
White/Red
DNHS-B-65
65 lbs
2.45″
31 lbs/in
Brown
DNHS-B-85
85 lbs
2.45″
40 lbs/in
White/Black
DNHS-B-115
115 lbs
2.35″
57 lbs/in
Silver
DNHS-B-150
150 lbs
2.35″
75 lbs/in
Orange
DNHS-B2-210
210 lbs
2.47″
99 lbs/in
Silver
DNHS-B2-290
290 lbs
2.35″
144 lbs/in
Blue
DNHS-B2-450
450 lbs
2.35″
224 lbs/in
Tan
1-1/2″ Minimum Deflection
