Note: Kit pieces are sold separately and custom sizes are available upon request.
| Kit 1 - Standard |
Kit 2 - Heavy Duty |

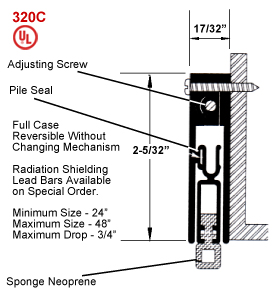

Automatic Door Bottom 320C

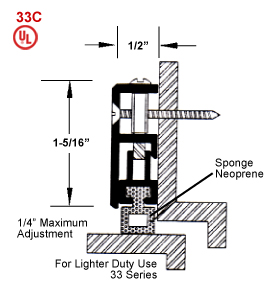

Adjustable Jamb Seal 33C
(3 piece set 2 - 7' long & 1 - 3' long)
 |

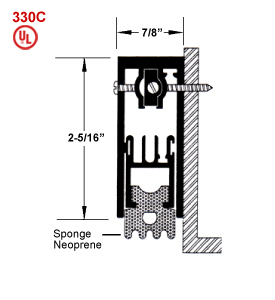

Automatic Door Bottom 330C

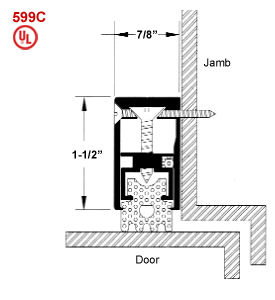

Adjustable Jamb Seal 599C
(3 piece set 2 - 7' long & 1 - 3' long)
 |
Door Frame Sound Gaskets
Please Note: Door Bottoms are not
designed to seal directly on carpet. For best result door
bottoms should seal on a solid surface. The solid surface
should be positioned above the level
of the floor covering on either side of the door.
|
Acoustical Performance
STC in Accordance with ASTM E90-75 |
Model 320C (no Threshold)
Door caulked shut STC 32
With door bottom STC 28 |
Model 330C (no Threshold)
Door caulked shut STC 44
With door bottom STC 37 |
Model 330C (with
Threshold)
Door caulked shut STC 51
With door bottom STC 43
and threshold |
NOTE: Standard 1
3/4" solid Core Door,
5lbs/sq ft. STC-22 No Seals. With Door Seals
STC-33 Solid Core Door, 7lbs/sq ft. STC-46 |
 |
Click here for measuring instructions
|
