Temporary Exterior Noise Barrier

NOISE S.T.O.P.™ Temporary Exterior Noise Barrier

BBC-13X-2” Temporary Exterior Noise Barrier
The BBC-13X-2″ offers the benefits of both a noise barrier and a sound absorber for outdoor applications. This product consists of a two-inch thick vinyl-coated fiberglass-cloth-faced quilted fiberglass that is bonded to a one-pound per sq. ft. reinforced loaded vinyl noise barrier. “X” style Sound Curtain panels are constructed with grommets across the top and bottom, and exterior grade Velcro seals along the vertical edges. The product is also available in roll form with edges bound or unbound.
  • Class A (or 1) Flammability Rated per ASTM E 84
  • For Indoor or Outdoor Applications

MATERIAL: Vinyl coated fiberglass cloth facing on 2″ quilted fiberglass & 1 lb/sf reinforced loaded vinyl noise barrier
FEATURES: Effective and durable absorber with mass loaded vinyl barrier option.
APPLICATIONS: With its 3-5 year life span* in the harshest environments, this product is typically used as a temporary noise barrier on outdoor applications such as construction site noise mitigation projects. Also available with a two-pound psf noise barrier or a one-inch thick quilted fiberglass sound absorber.
WEIGHT: 1.45 lb/sf
THICKNESS: Nominal 2″
SIZES: Standard Width 54″; Roll Length 25′
COLORS: Facing Colors on Quilt – Gray, Tan, Black or Off-White
Barrier Colors – Gray, Tan, Blue or Olive
TEMPERATURE RANGE: -20°F to +180°F

Click on Images to Enlarge

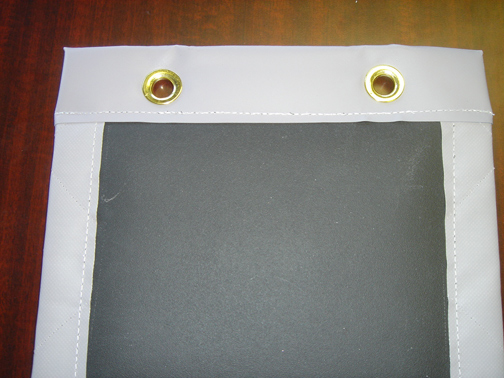

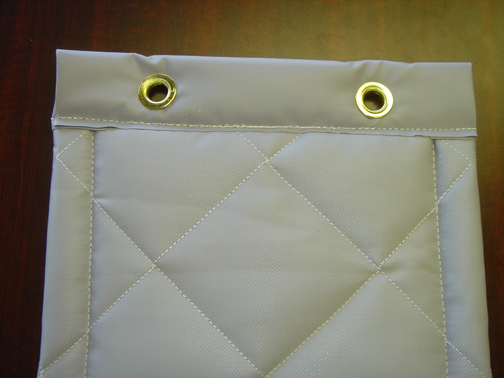

BBC-EXT-N-1 Exterior Noise Barrier Front BBC-EXT-N-1 Exterior Noise Barrier Back
Front

Back

Sound Blanket – Sound Transmission Loss – ASTM E90 & E 413
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz STC
BBC-13X-2 13 20 29 40 50 55 32
Sound Blanket – Sound Absorption Performance – ASTM C423
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
BBC-13X-2 .07 .27 .96 1.13 1.08 .99 .85

Click PDF iconPDF Iconto download printer friendly file format of product specs.

Click Get Adobe Reader to download a free copy of Adobe Acrobat Reader.
