Noise S.T.O.P.™ Ultra-San soudproofing clean room ceiling tiles offer superior acoustics while meeting demanding clean room requirements. Noise S.T.O.P.™ Ultra-Tiles are available in either faced only model or completely encapsulated model. The 1 mil reinforced white mylar is USDA & FDA approved for clean room applications.

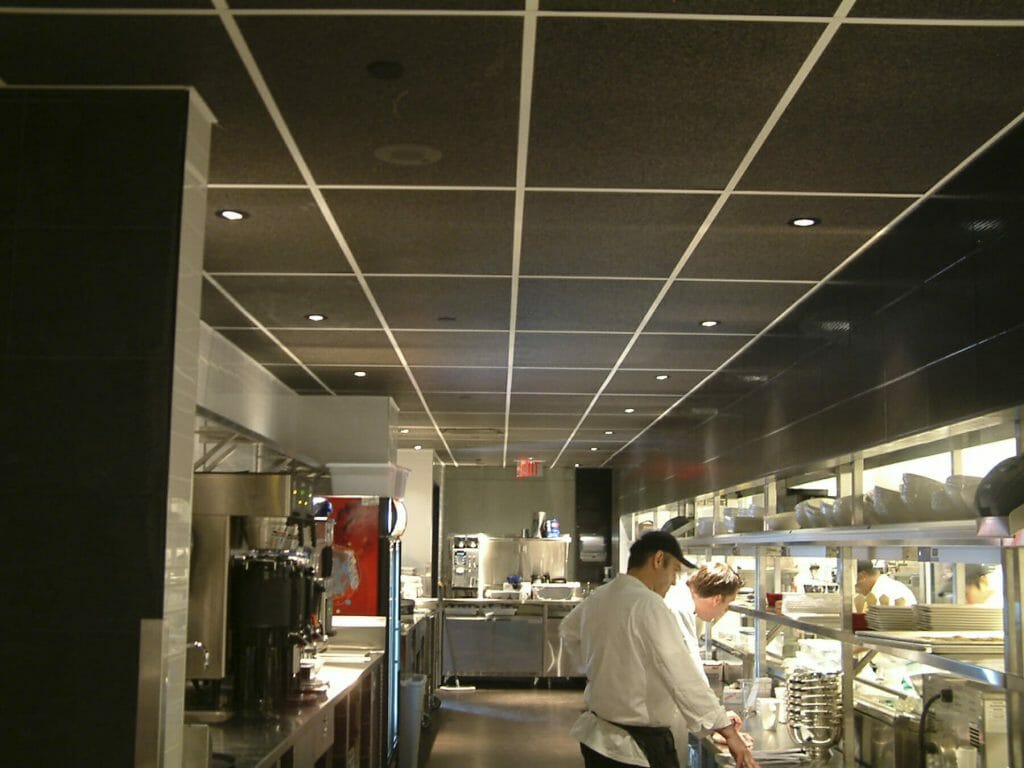

MATERIAL: 6-7 PCF Rigid Fiberglass Core FINISHES: 1 Mil Reinforced White Mylar APPLICATIONS: Typical uses include food processing plants, cafeterias, kitchen areas, restaurants and veterinary clinics. SIZE: Nominal 2′×2′ or 2′×4′ THICKNESS: 1″ or 2″ INSTALLATION: Easily Installed with a 15/16″ Grid – Wall Mounted FACING OPTIONS: Faced 1 Side Only Faced & Wrapped Edges Completely Encapsulated FLAMMABILITY: ASTM E-84 Class 1-A Nonflammable Components. Flame Spread: 25, Smoke Developed: 50 SUBSTRATE: 6-7# PCF Rigid Fiberglass Core. MOUNTING: Grid (supplied by others) FINISHES: 1 Mil Reinforced White Mylar. EDGE DETAIL: Square WEIGHTS: 1″ – 0.5lbs/sq. ft.; 2″ – 1.0lbs/sq. ft. ACOUSTICAL: NRC Rating – 1″ = 0.85; 2″ = 1.15
Click PDF iconto download printer friendly file format of product specs.
