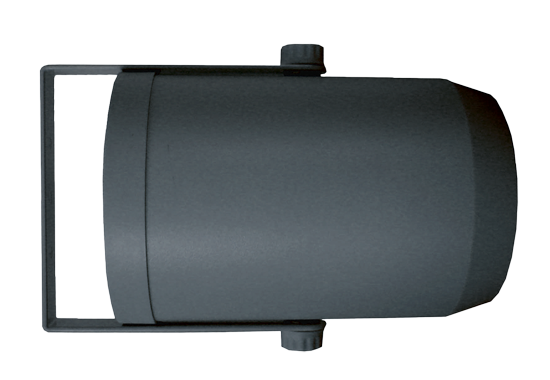

Compact Sound Masking System

SMS-25V

25-Volt Sound Masking Loudspeaker

The SMS-25V is a 25-volt system loudspeaker designed to generate the optimum masking sound for a variety of ceiling conditions. It is equipped with a 5″ driver installed in a sealed enclosure.

The SMS-25V is typically installed in the plenum space, suspended between the acoustic tiles and the deck. In the case of an open ceiling, it can be attached to the structure. The SMS-25V loudspeaker can be oriented in any direction. A RoHS compliant version is available.

Specifications

  • Power: 10 watts
  • Line Voltage: 25V
  • Sensitivity: 91 dB
  • Material: ABS
  • Frequency Response: 100-8,000 Hz
  • Connectors: Screw Terminals
  • Color: Black or White
  • Driver: 5.5″ Full Range
  • Diameter: 8.75″ (222 mm)
  • Height: 5.3″ (125 mm)
  • Weight: 4 lbs (1.8 kg)
  • Shipping Weight: 4.4 lbs (2 kg)
25V Speaker Dimensions

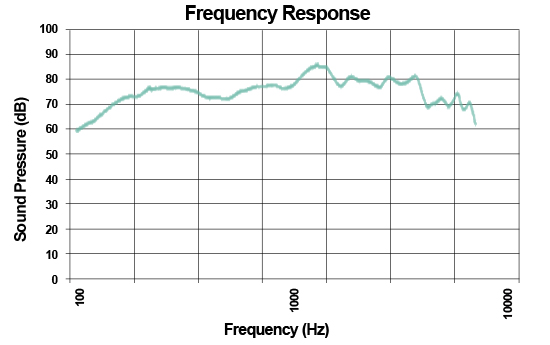

Surface Mounted Loudspeaker Height and Width Surface Mounted Speaker Diameter25V Speaker Frequency Response

Click PDF IconPDF Iconto download printer friendly file format of product specs.
