WHR Neoprene Hangers Light Duty

Buy Now

WHR Neoprene Hangers are an inexpensive but effective method of reducing noise and minor vibration transmission.

WHR hangers are noise breaks for use with wire, chain or horizontal screws for hung ceiling applications.

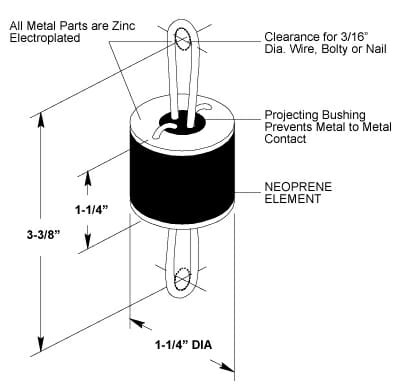

Typical Wire Installation

Product Testing & Information

WHR Hangers
Type & Size Rated Capacity Range Rated Deflection Color Mark
WHR-40 up to 60 lbs 0.20″ Green
WHR-50 55 – 95 lbs 0.20″ Red
WHR-60 90 – 155 lbs 0.20″ White
WHR-70 150 – 220 lbs 0.20″ Yellow
