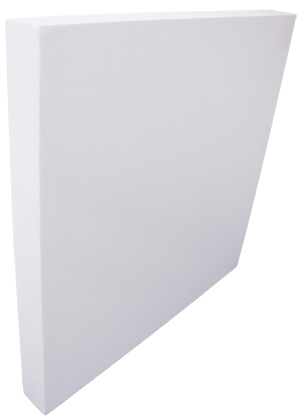

Sound Control Panel New Dimensions

NEW DIMENSIONS

Acoustical Wall Panels
  • Excellent Acoustical Absorption
  • Finished Look
  • Fiberglass Core


New Dimensions Acoustical Wall Panel Texture

New Dimensions Acoustical Wall panels are designed for areas requiring excellent acoustical absorption with a ‘drywall’ look. Applications include conference rooms, auditoriums, churches, entryways, and other areas requiring both sound absorption and a high quality custom painted finish.

New Dimensions Acoustical Wall Panel Layers

The core construction is dimensionally stable glass fibeboard laminated with a molded glass fiber, all covered with a specially formulated fiberglass mat. Edges are protected with resin hardening. The acoustically transparent painted finish completely covers the face and exposed edges.

New Dimensions Acoustical Wall panels utilize fiberglass board core that is eligible to bear the Green Cross label for recycled content. The board is certified on average to contain at least 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.

And for your LEED™ project, our acoustical panels can help you qualify for recycled content points under the Materials and Resources section. Other LEED categories may also apply depending upon the project requirements.



MATERIAL: 6-7 PCF Glass Fiberboard Laminated with 1/16″ 16-20 PCF Molded Glass Covered With Fiberglass Mat
THICKNESS: 1″, 1-1/2″, 2″, 3″, and 4″ (Plus 1/16″ molded glass fiberboard.)
SIZES: 4′ × 12′ Maximum (4′ × 10′ maximum for 1-1/2″ thickness)
EDGE DETAIL: Resin Hardened, unless otherwise specified. Edge shapes include: square, radius, and bevel.
FINISH:Factory-finished in a variety of colors, including white. Custom colors are offered to precisely match any interior design palette.
MOUNTING: Standard mountings include spot and perimeter adhesive, Z-clip, concealed splines, impaling clips, hook & loop, and magenetic fasteners.
ACOUSTICAL PERFORMANCE:
1-1/16″ Thickness NRC – .85;
2-1/16″ Thickness NRC – .90
(Derived from tests conducted according to ASTM C 423 on a Type D5 mounting by a NVLAP accredited laboratory.)
FIRE PERFORMANCE: Each component has been tested according to ASTM E 84 and has a Class I/A rating.
R-VALUE: The R-Value is resistivity to heat or cold.
1″ – 4.1
1½″ – 6.2
2″ – 8.3
3″ – 12.5
4″ – 16.6
RECYCLED CONTENT: Fiberglass board core contains on average 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.

Click PDF iconPDF Iconto download printer friendly file format of product specs.

Click Get Adobe Reader to download a free copy of Adobe Acrobat Reader.
