Metro Rebound Acoustical Wall Panel

METRO REBOUND

Acoustical Wall Panels
  • Excellent Acoustical Absorption
  • Impact Resistant
  • Fiberglass Core
  • Approved by Minnesota State Prison Bureau

Metro Rebound wall and ceiling panels are designed for use in high abuse areas requiring sound absorption and cleanability. A “pan” of perforated co-polymer over fiberglass allows sound absorption while withstanding many forms of punishment. Applications include gymnasiums, hotels, and multi-purpose rooms – anywhere requiring a durable, acoustically absorbent panel.

This panel features an innovative combination of dimensionally stable glass fiberboard, with a resilient perforated co-polymer face sheet with heat-formed edges. A white scrim layer is optional under the co-polymer sheet.

Metro Rebound panels utilize fiberglass board core that is eligible to bear the Green Cross label for recycled content. The board is certified on average to contain at least 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.

And for your LEED™ project, our acoustical panels can help you qualify for recycled content points under the Materials and Resources section. Other LEED categories may also apply depending upon the project requirements.



MATERIAL: 6-7 PCF Glass Fiberboard, With a Resilient Perforated Co-Polymer Face Sheet.(A white scrim layer is optional under the co-polymer sheet.)
THICKNESS: 1-1/16″, 1-9/16″, and 2-1/16″
SIZES: Widths up to 48″, and lengths to 116″ for 1″, and 114″ for 2″. Custom widths up to 51″ are available with 1-1/16″ thickness. Standard tolerance is ± 1/8″; a reveal of 1/8″ is required between panels.
EDGE DETAIL: All edges, square only, are resin hardened underneath the heat-formed co-polymer.
COLORS:The co-polymer is available in the following colors: Billboard, City Air, Crosswalk, Highrise, Park, Subway, Train Station, and Water Tank. Custom colors are also available.
FINISH OPTION:The co-polymer is also available in a faux wood finish.
MOUNTING: Standard wall mountings include: spot adhesive with optional impaling clips, Z-clip, hook & loop, and magnetic fasteners. Wall bar to wall bar is the recommended ceiling mount.
ACOUSTICAL PERFORMANCE:
1-1/16″ Thickness NRC – .75
2-1/16″ Thickness NRC – .95
(Derived from tests conducted according to ASTM C 423 on a Type D5 mounting by a NVLAP accredited laboratory.)
FIRE PERFORMANCE: Each component has been tested according to ASTM E 84 and has a Class I/A rating.
R-VALUE: The R-Value is resistivity to heat or cold.
1″  – 4.1
1½″ – 6.2
2″ – 8.3
3″ – 12.5
4″ – 16.6
RECYCLED CONTENT: Fiberglass board core contains on average 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.
Click any Image for Larger Image
Metro Rebound Acoustical Wall Panel – Billboard Metro Rebound Acoustical Wall Panel – City Air Metro Rebound Acoustical Wall Panel – Crosswalk

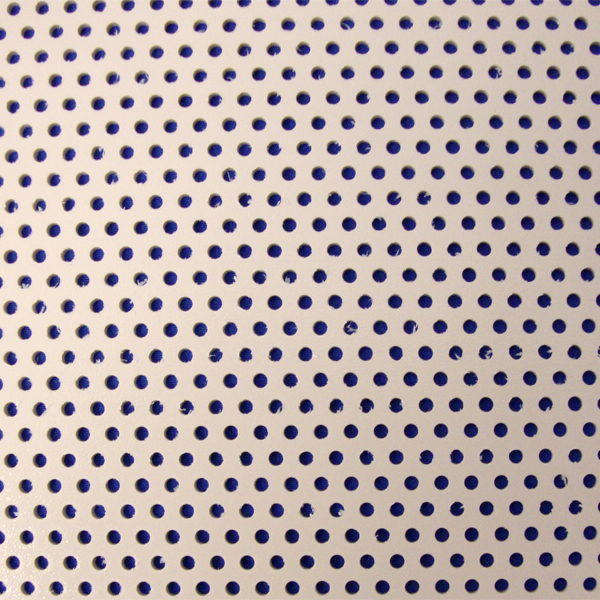

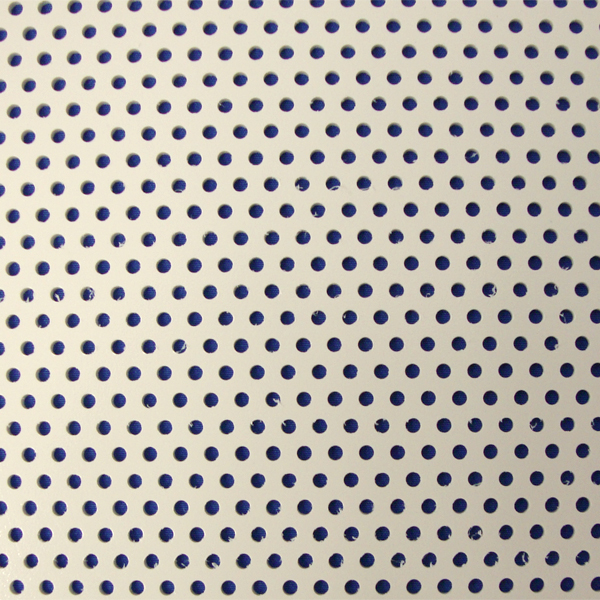

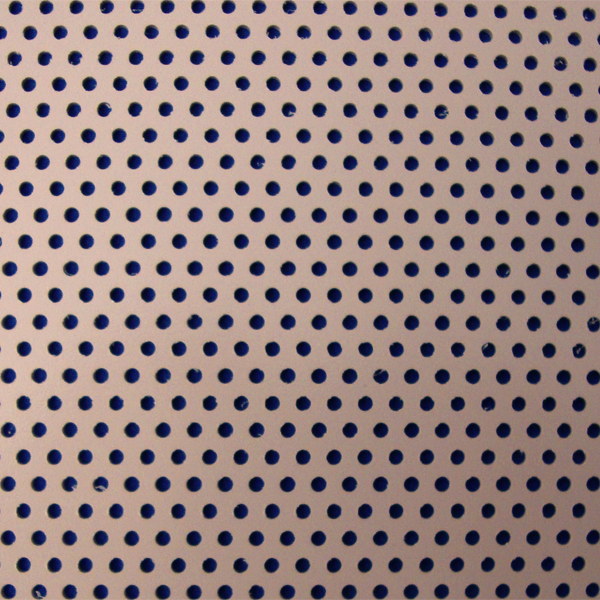

Billboard City Air Crosswalk
Metro Rebound Acoustical Wall Panel – Highrise Metro Rebound Acoustical Wall Panel – Park Metro Rebound Acoustical Wall Panel – Subway

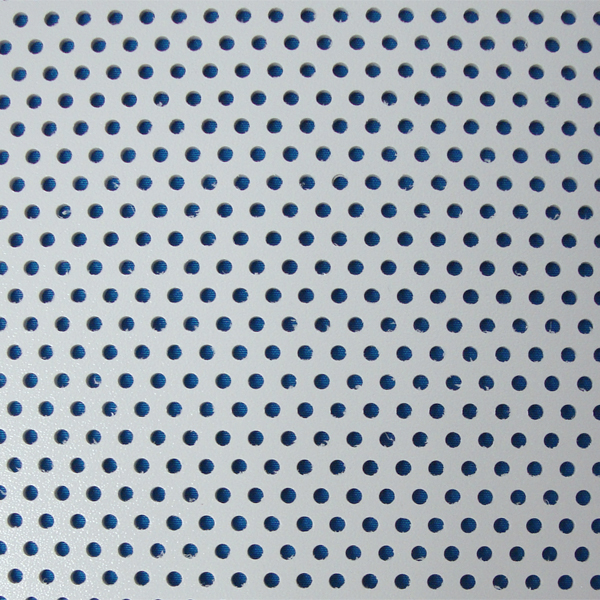

Highrise Park Subway
Metro Rebound Acoustical Wall Panel – Train Station Metro Rebound Acoustical Wall Panel – Water Tank Metro Rebound Acoustical Wall Panel – Faux Wood Finish

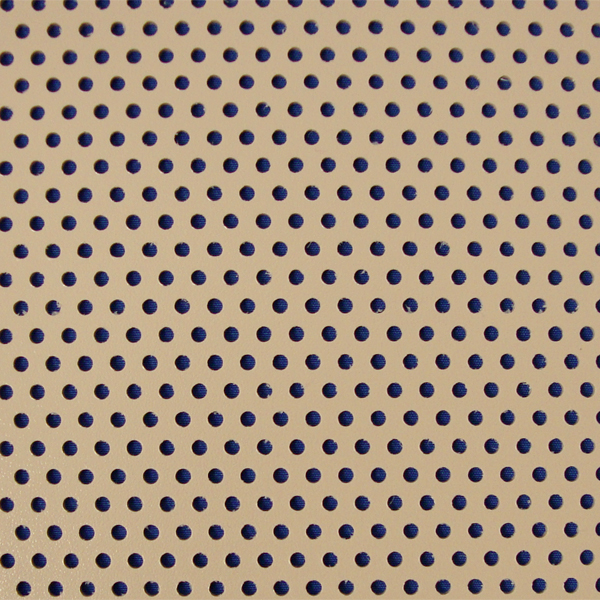

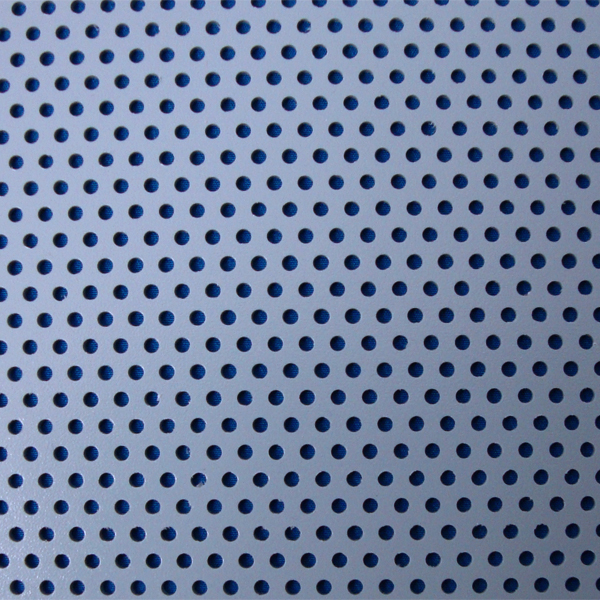

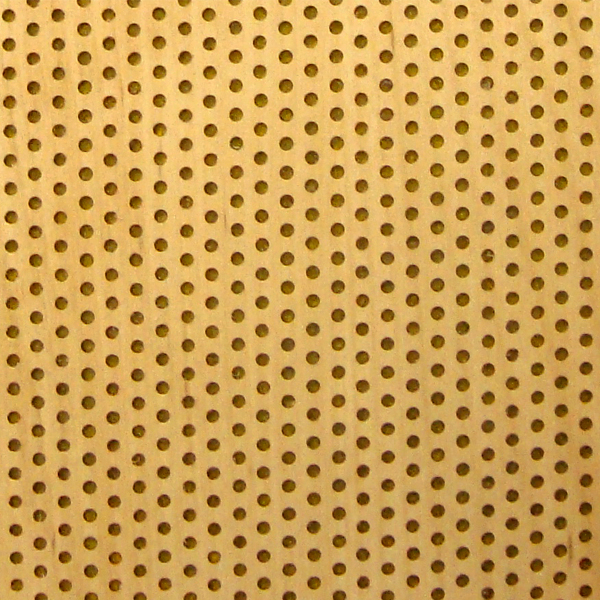

Train Station Water Tank Faux Wood Finish
