NOISE S.T.O.P.
BARRIER/ABSORBER
POLYURETHANE COMPOSITE™ |
| Polyurethane
Foam Composite Sound Containment System |
• Sound
Absorber
• Noise
Barrier
•
Optimal Noise Containment
•
Decoupler Isolates Vibration
|
|
|
MATERIAL: Polyurethane Acoustical Foam Bonded to
1lb. - sq. ft. mass loaded Vinyl Noise Barrier with Polyurethane
Foam Vibration Decoupler
PATTERN: Flat Surface
APPLICATIONS: Ideally
suited to line equipment enclosures. Commonly used to line walls
and ceilings of utility or mechanical rooms to absorb and contain
the noise source. Use where sound absorption, noise reduction
and vibration control are needed.
THICKNESS: 1 1/4 ”
SIZES: 24" x 48", 48" x 48"; Special Sizes Available Upon Request.
COLORS: Charcoal
(unfaced) Aluminized Mylar, Black or Grey Tuftane, Tedlar
FLAMMABILITY: UL-94/HFI
- Pass. ASTM E84 - Unrated
INSTALLATION: ASI S.T.O.P. Noise Acoustical Adhesive or Pressure Sensative
Adhesive Backing. Use Mechanical Attachment for overhead Installations
FACING OPTIONS: Black Tuftane, Aluminized Mylar, Paint Available Upon Request. PSA Adhesive Back Available.
ELONGATION: ASTM-D-412-DIE C = 325% TENSILE STRENGTH:
ASTM-D-412-DIE C = 358.2lbs. psf.
Product Tests & Information:
• Acoustical Tests
• MSDS
|
|

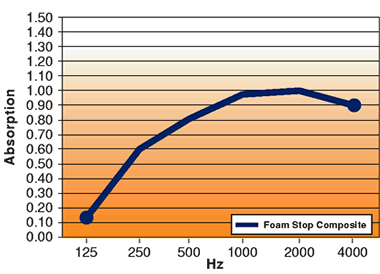

Sound Absorption
Coefficients - Type B Mtg. - ASTM C423-90A
|
| |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
NRC |
|
Foam S.T.O.P
Polyurethane
Composite™ |
0.13 |
0.60 |
0.81 |
0.97 |
1.00
|
0.90 |
0.85 |
|
|
Sound Transmission
Data - ASTM E90-75; ASTM E413-73
|
| |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
STC |
|
Foam S.T.O.P
Polyurethane
Composite™ |
17 |
22 |
20 |
32 |
31
|
43 |
28 |
|
WARNING: Polyurethane Foam is
Flammable. Flame Spread > 400; Smoke Developed: > 480
ASTM E84
|
Click
PDF icon
to download printer friendly file
format of product specs.
Click
to receive a free copy of Adobe Acrobat Reader. |
